Description

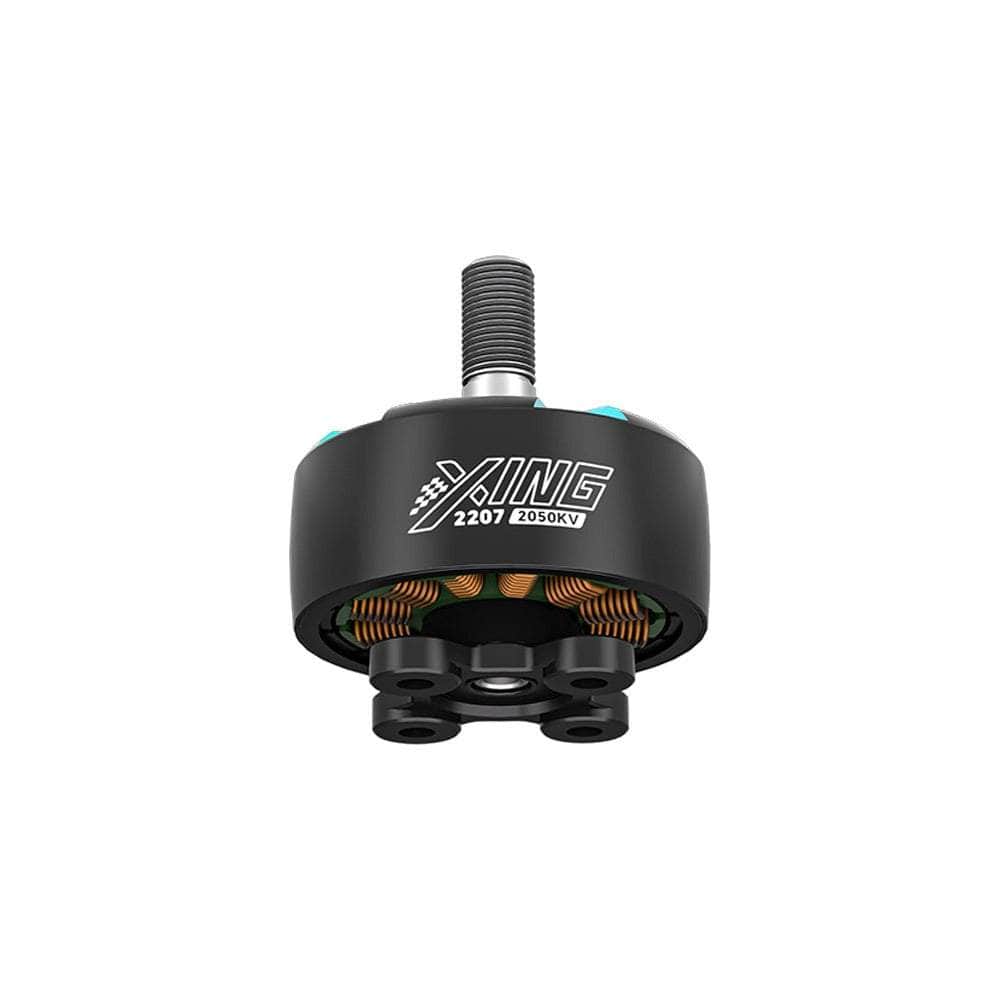

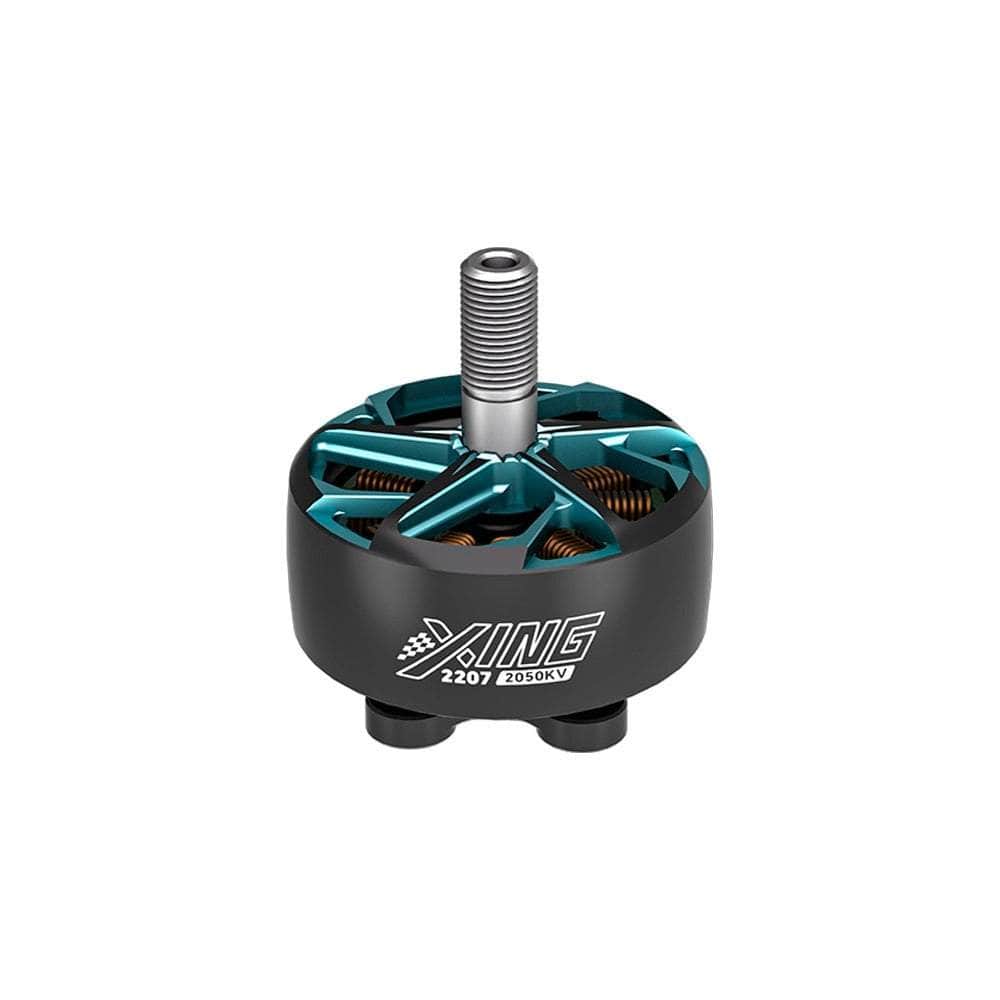

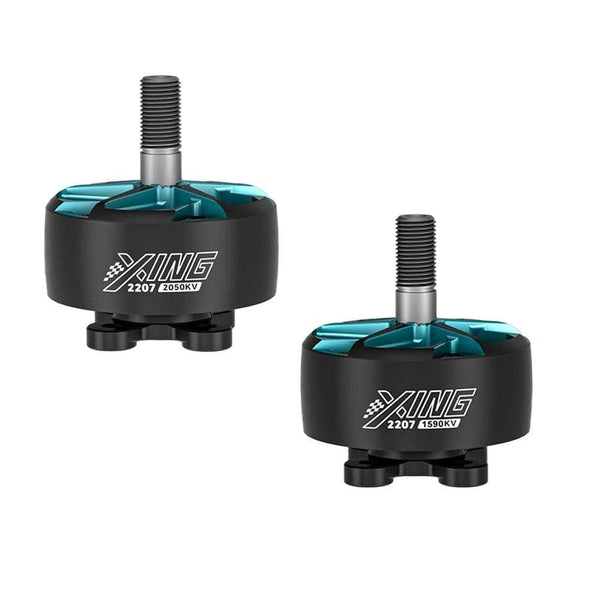

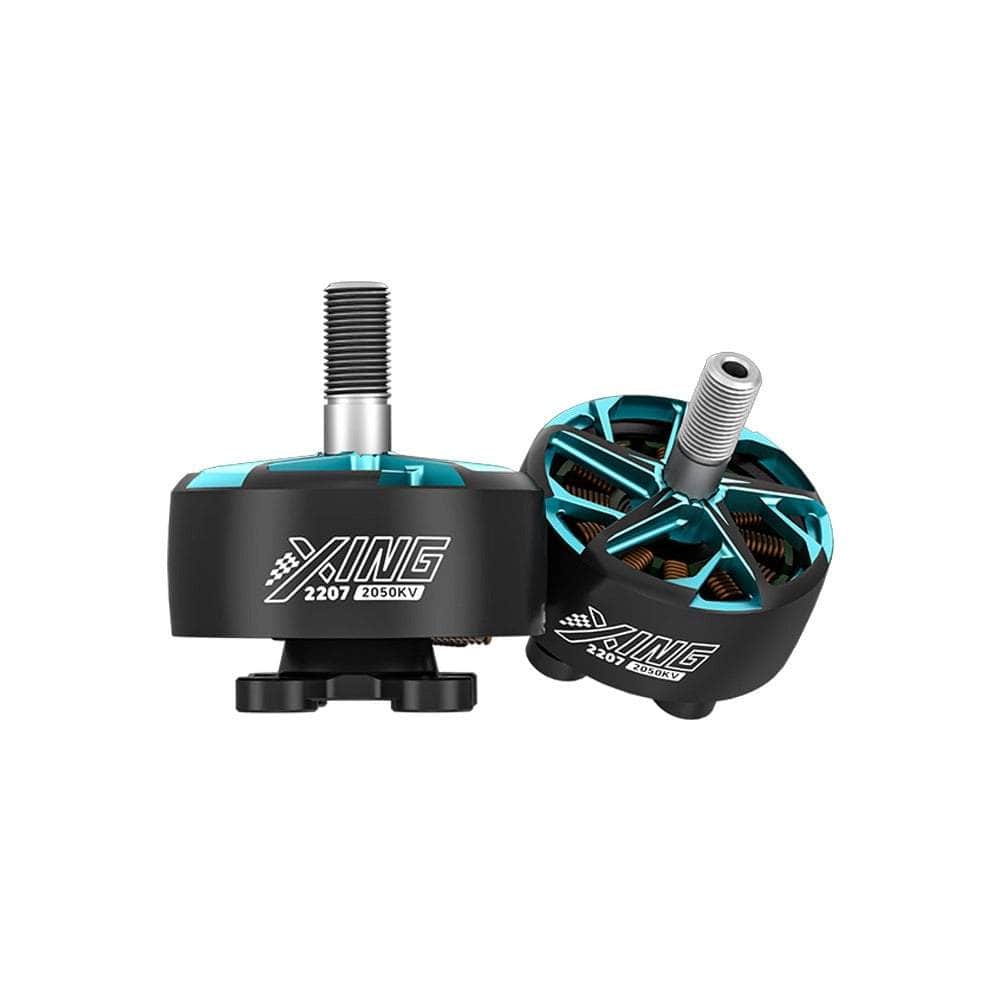

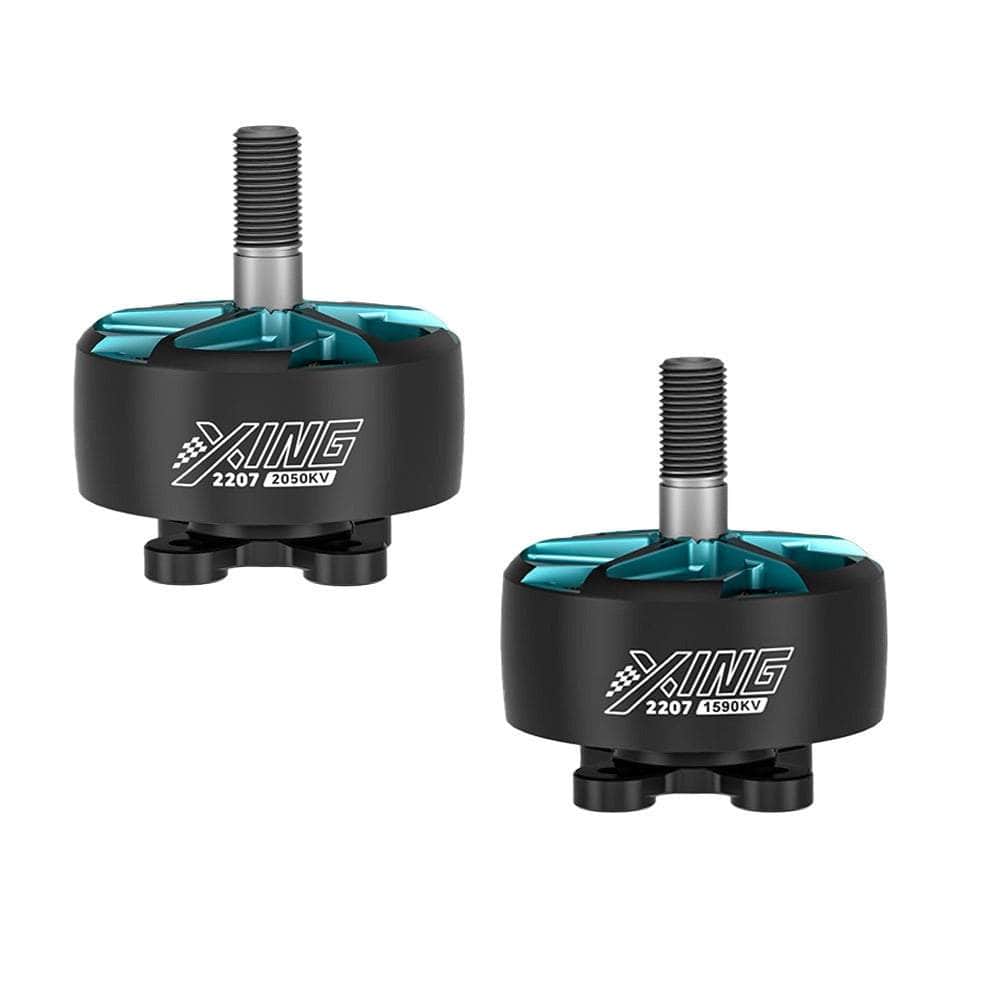

Engineered for racing drones like the Mach R5, the R5 2207 Motor delivers all the power you need in an ultra-efficient design. With minimized air gaps and high-quality materials, this motor offers lightning-fast response, increased efficiency, and maximum performance on the track.

Be sure to browse the rest of our iFlight products and vast motor selection.

Features

• Specially Designed for High-Speed Racing Drones like the Mach R5
• Equipped with Center-Slotted N52H Arc Magnets
• Smooth, Powerful, and Reliable Performance
• Improved Consistency and Durability
• Durable Bell and Shaft Connection
• Optimized Magnetic Flux
• Increased Power Output

Specifications

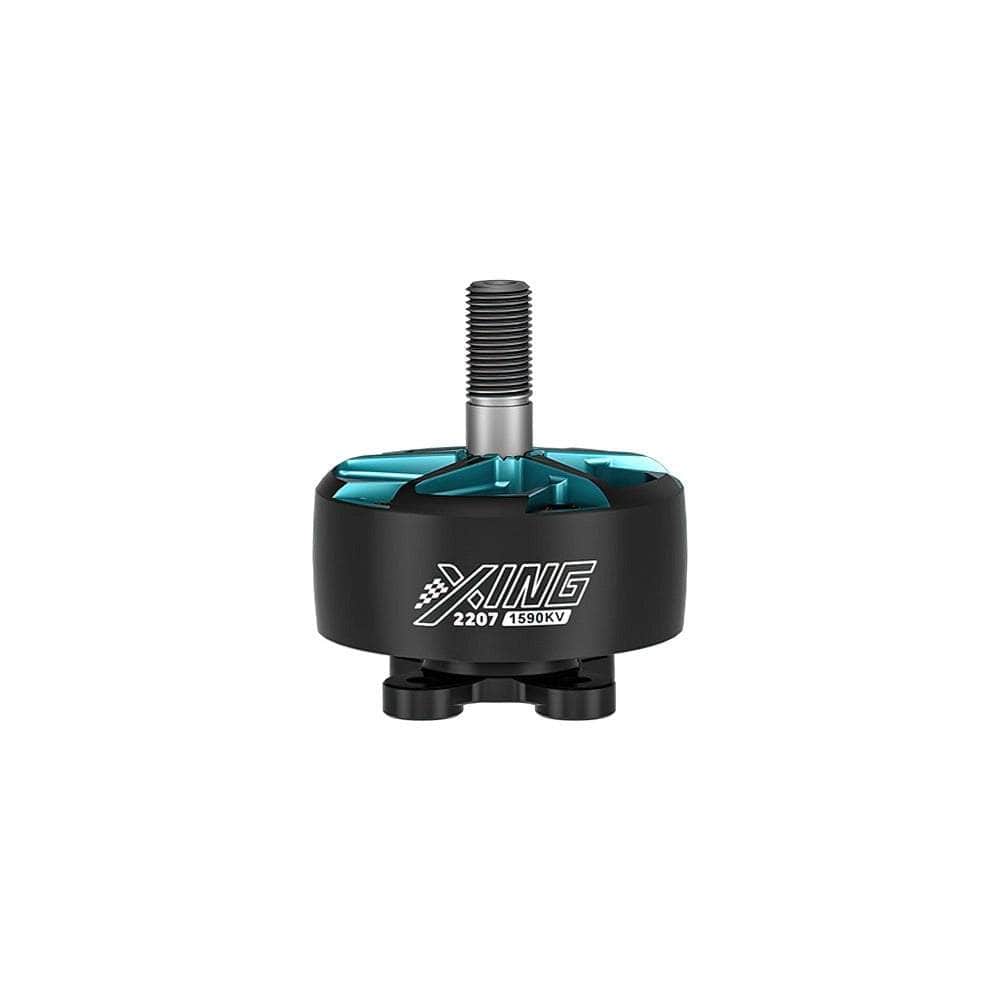

1590KV

• Bearing Specifications: φ9 × φ4 × 4mm
• Winding: Single-strand copper winding
• Mounting Holes: 16 × 16mm, φ3mm
• Shaft Protruding Length: 12.5mm
• Lead Length: 150mm / 20AWG
• Interphase Resistance: 95.6mΩ
• Weight (including wire): 33.8g
• Dimensions: 28.2 × 19mm
• Max Wattage: 1221.6W
• Configuration: 12N14P
• Magnet: N52H Curved
• Shaft Diameter: 5mm
• Peak Current: 38.62A
• Input Voltage: 32V
• Bearing Type: NSK
• KV: 1590KV

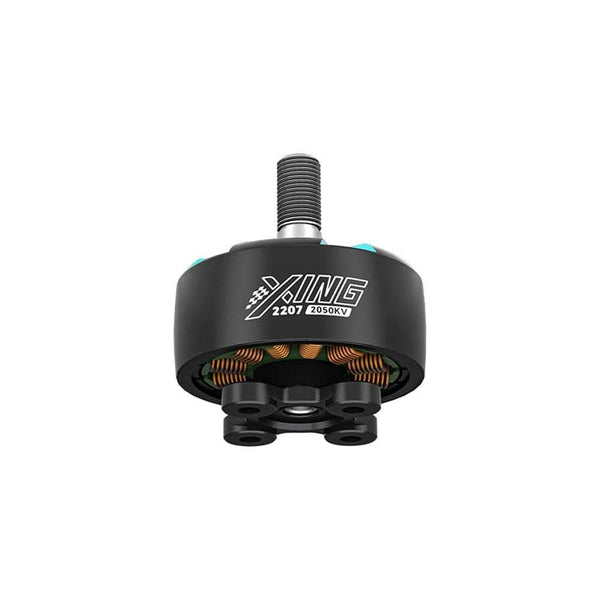

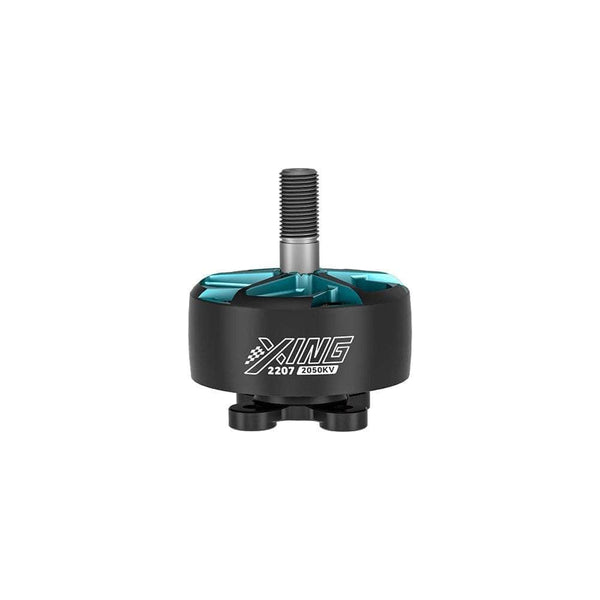

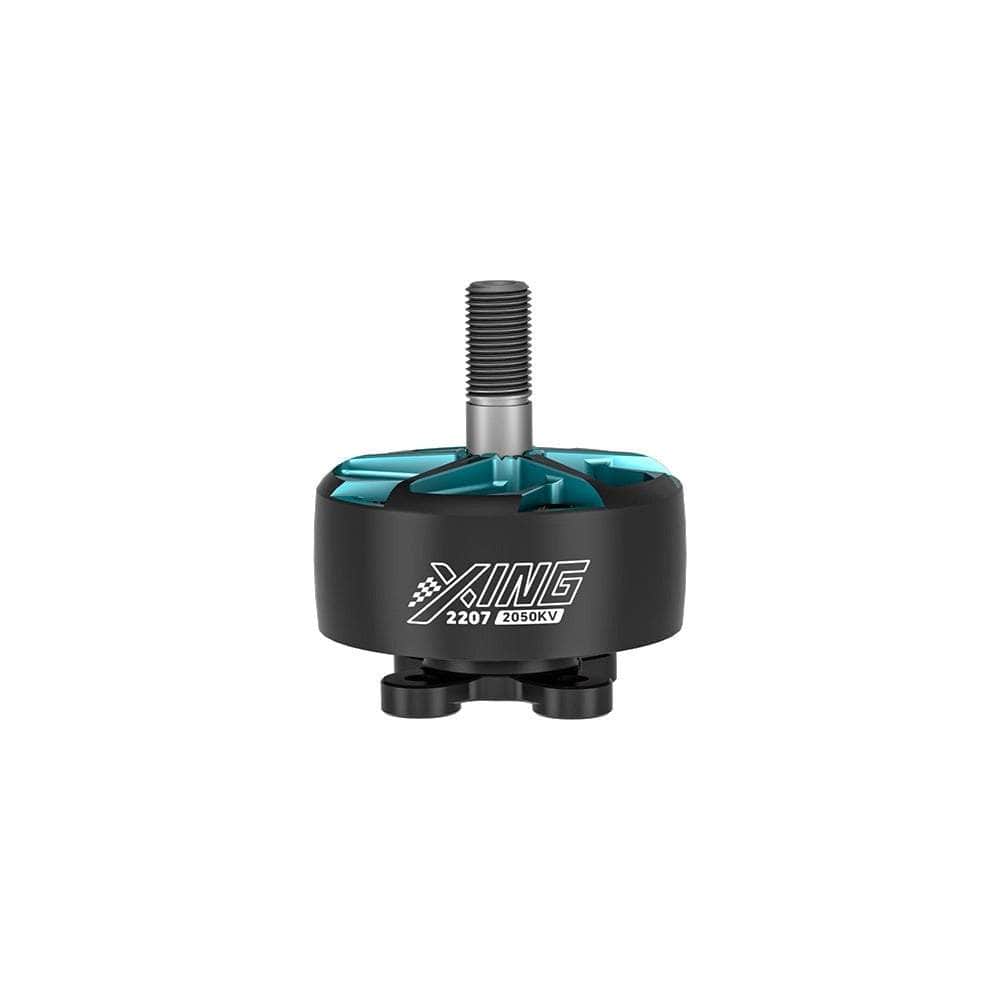

2050KV

• Bearing Specifications: φ9 × φ4 × 4mm
• Winding: Single-strand copper winding
• Mounting Holes: 16 × 16mm, φ3mm
• Shaft Protruding Length: 12.5mm
• Interphase Resistance: 56.3mΩ
• Lead Length: 150mm / 20AWG
• Weight (including wire): 34.6g
• Dimensions: 28.2 × 19mm
• Max Wattage:  1166.4W
• Configuration: 12N14P
• Magnet: N52H Curved
• Shaft Diameter: 5mm
• Peak Current:  49.53A
• Input Voltage:  25.2V
• Bearing Type: NSK
• KV: 2050KV

Includes

• 1x iFlight R5 2207 Motor (Choose Your KV)
• 1x Hardware Kit
