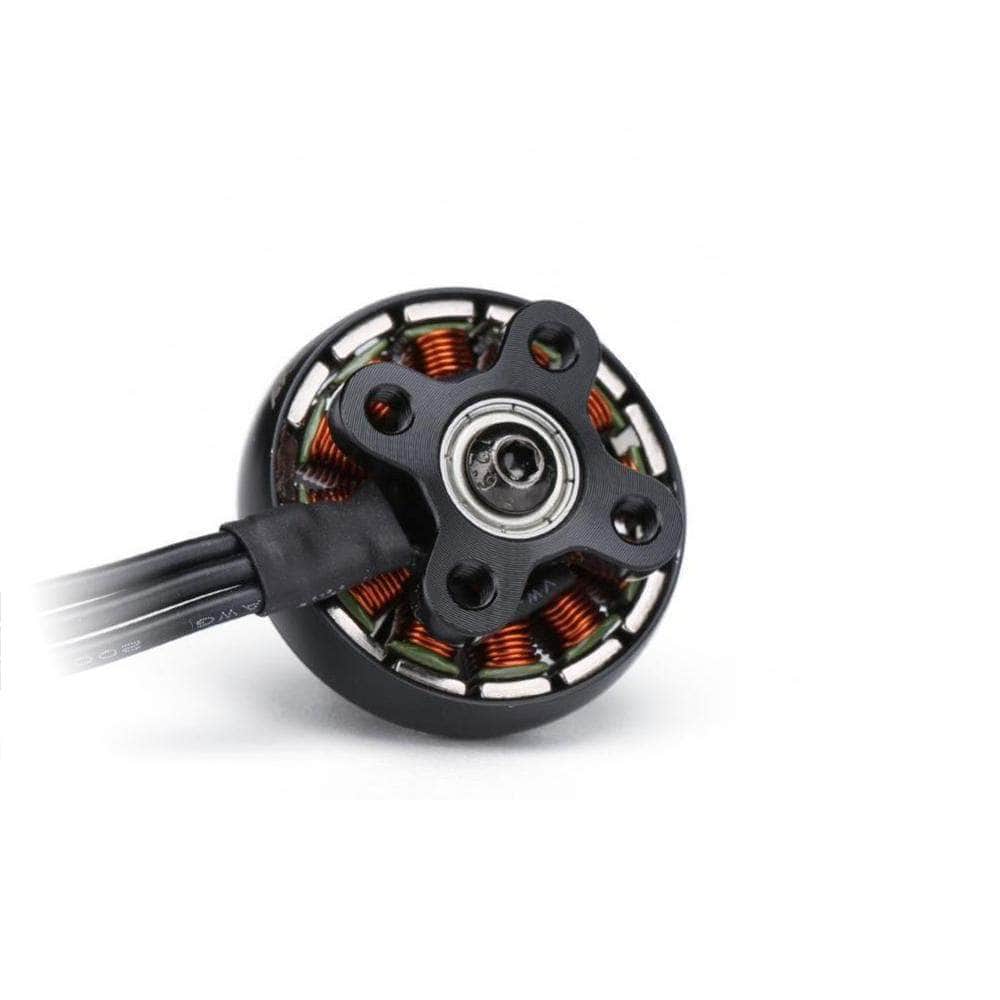

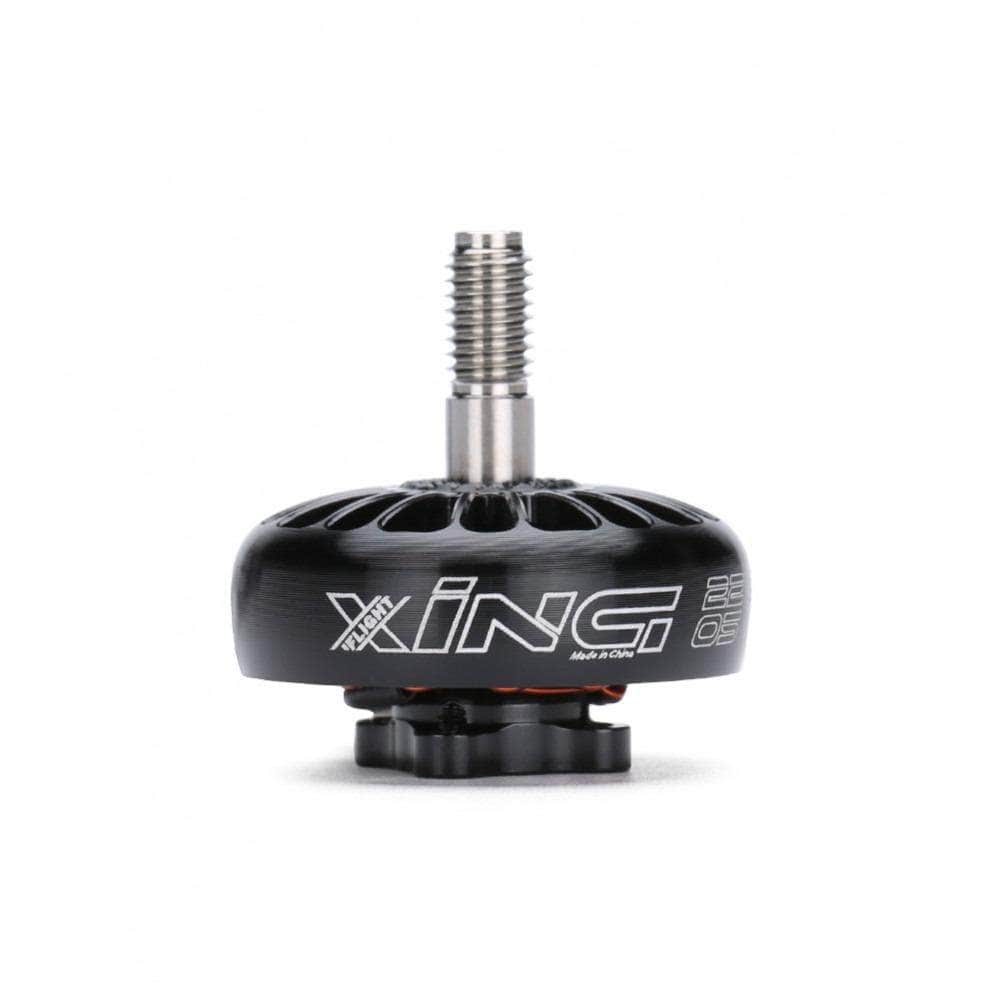

iFlight Xing 2205 2300Kv Motor

In Stock
Pre Order
Coming Soon
Free Delivery on U.S.A. Orders $99 or more
Add to Wishlist

A relatively large motor for a 12x12mm, M2 mounting pattern. This motor is ideal for lightweight 5" builds.

Check out all our Micro Motors and our selection of iFlight gear!


  • High-strength 5mm Steel shaft
  • Japanese NSK φ8*φ3*4 bearings
  • N52H curved magnets
  • Motor wires protected
  • Dynamically balanced


  • KV: 2300KV
  • Input Voltage: 4S/6S Lipo
  • Configuration: 12N14P
  • Stator Diameter: 22mm
  • Stator Length: 5mm
  • Bottom Mounting pattern: 12*12mm/M2
  • Weight: 25.5g with short wire


  • 1x iFlight Xing 2205 2300Kv Micro Motor
