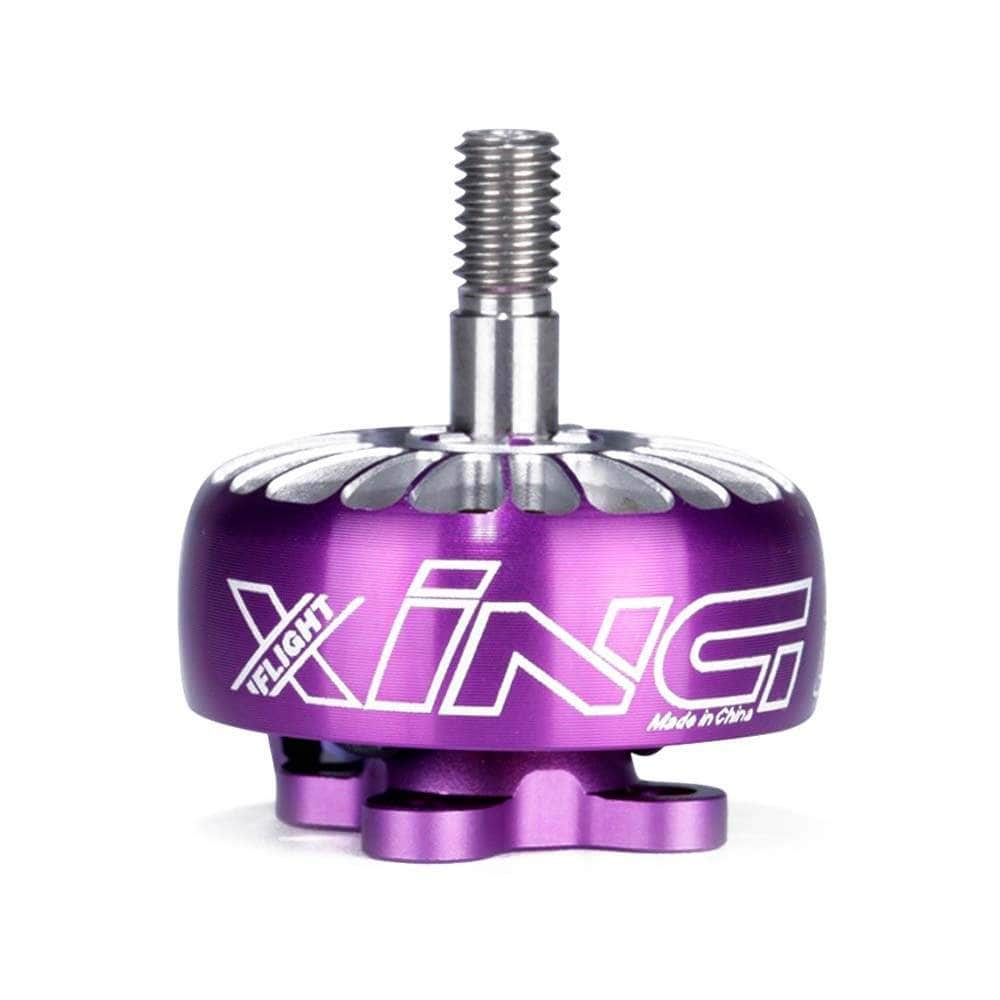

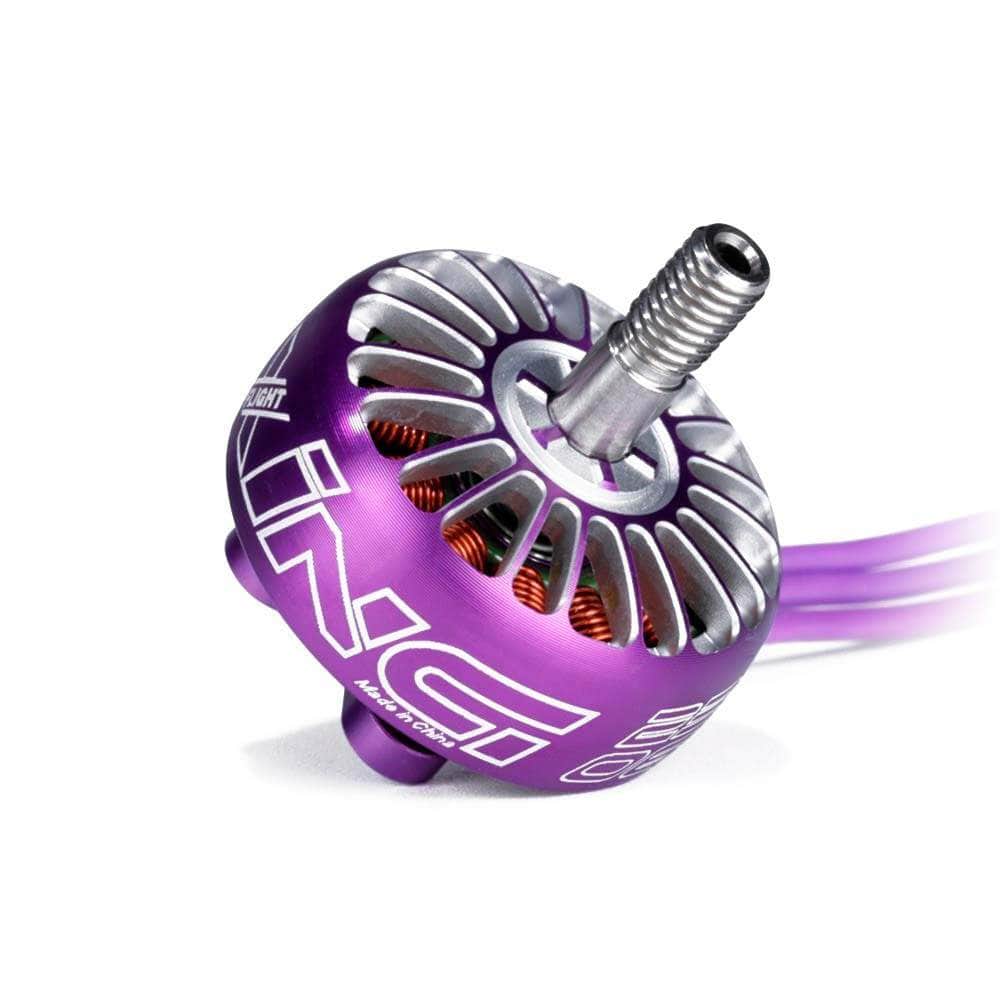

iFlight XING 2306 2450Kv Unibell Motor

$18.39
In Stock
Pre Order
Coming Soon
Add to Wishlist
Free Delivery on U.S.A. Orders $50 or more

iFlight continues their tradition of producing excellent motors in a variety of sizes and Kv to meet the needs of different build types and flight styles. They're not just some of the best looking motors around. A high strength titanium alloy shaft, quality bearings and N52H magnets, and precision machined bell and base are just a few features of the XING series.

Check out the rest of the specs below, and be sure to browse the rest of our iFlight products and vast motor selection.

Now featuring a new "unibell" solid 1 piece bell design!



Features

  • New Unibell Design
  • Elliptical Body, High-strength Titanium Alloy Shaft
  • Large Heat Dissipation Hole Design (15℃ cooler than same range motor)
  • Crush resistant damping bearing eliminates vibration effectively
  • 50%-80% optimal throttle output for best efficiency
  • 160mm cable length for different frames and setups
  • CNC high precision machined 7075 aluminum bell and base
  • 220℃ Pacific heat resistant copper wire, solid wire windings
  • Electromagnetically matched magnets and stator
  • Japanese Kawasaki 1200 iron core
  • N52H high temperature magnets
  • Motor wire protected
  • Hex bolt shaft set screw
  • Dynamically balanced

Specifications

  • Kv: 2450
  • Input Voltage: 2-4S
  • Configuration: 12N14P
  • Max Continuous Current: 44.57A
  • Internal Resistance: 47.3
  • ldle Current@10v: <2.0A
  • Motor Dimensions: Φ29.5×18.7mm
  • Stator Dimensions: Φ23×6mm
  • Prop Shaft Dimensions: M5x13.5mm
  • Shaft Diameter: 4mm
  • Wire Dimensions: 20AWG×160mm
  • Mounting Pattern: Φ16mm, 4×M3
  • Weight (w/ wires): 33.4g

Includes

  • 1x XING X2306 2450Kv Motor
  • 1x Hardware Set
