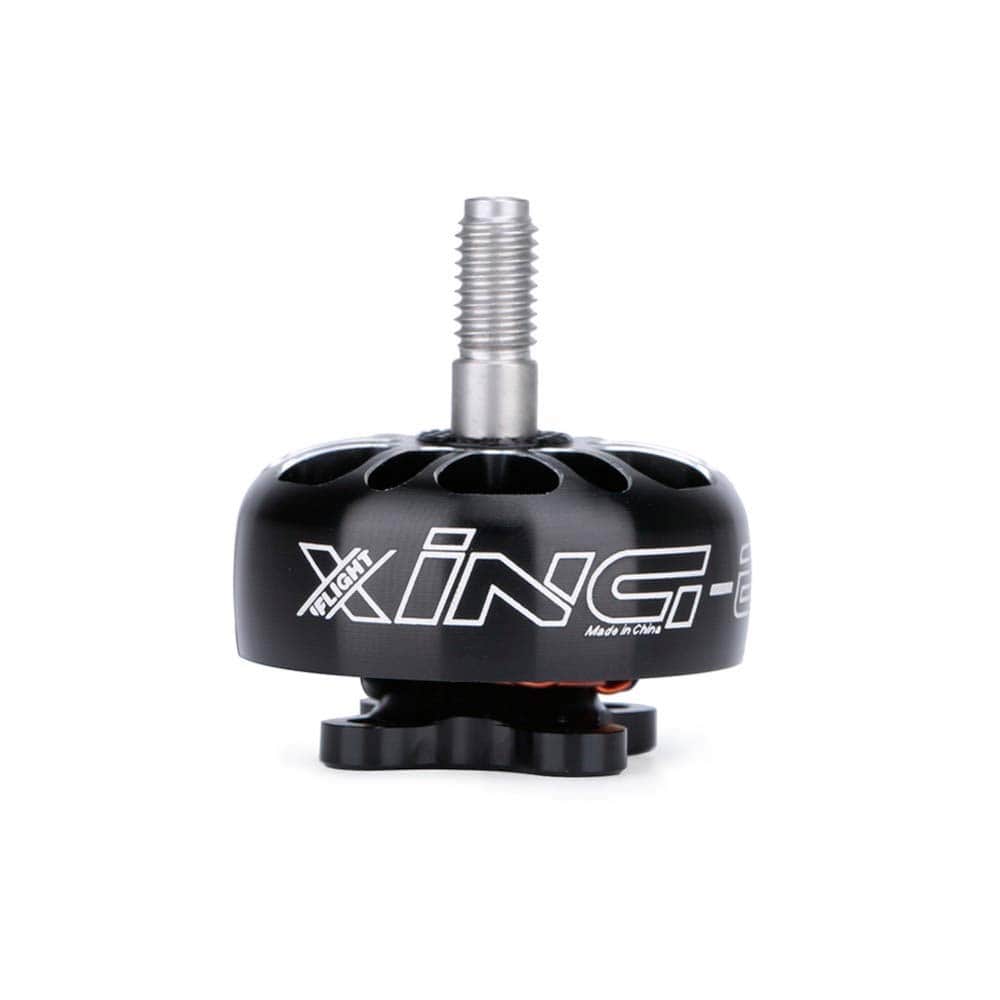

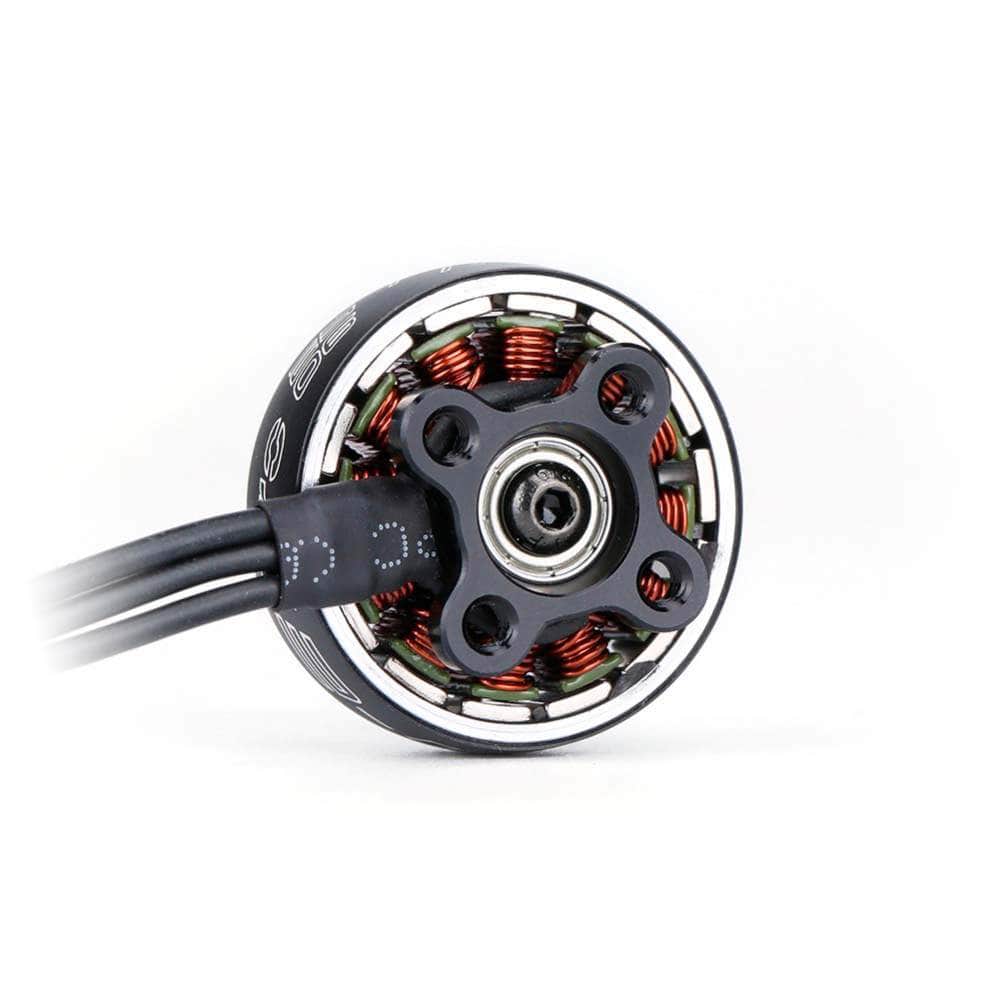

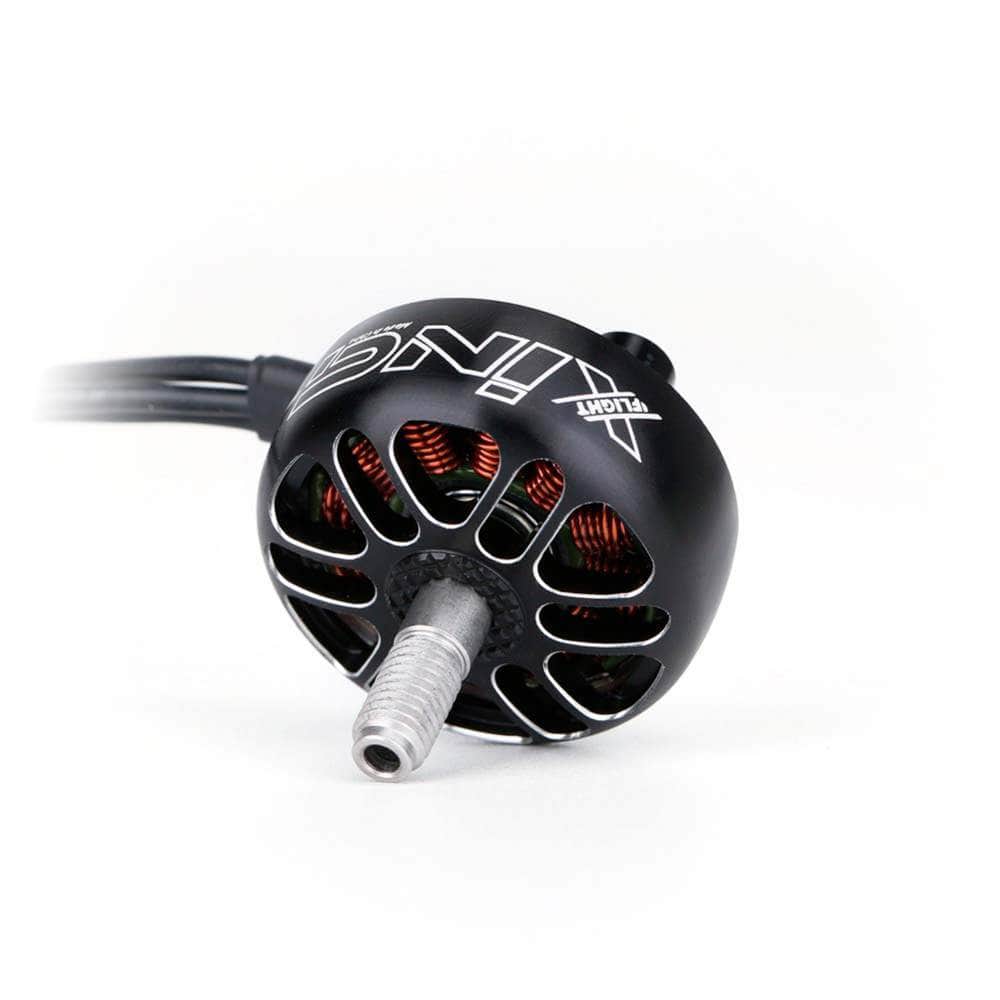

iFlight Xing-E Pro 2306 1700Kv Motor
XING-E PRO series is everything you love about Xing motors at a more affordable price, and now with a unibell design like their premium counterparts! Performance and durability are still of utmost importance to iFlight when designing these motors. They feature a 4mm high strength hollow steel shaft, single strand windings, M3 shaft screw, and larger 9x4x4mm NSK bearings.
Check out our other 2306 motors, and all our iFlight selection!
- Kv: 1700Kv
- Input Voltage: 2-6S LiPo
- Configuration: 12N14P
- Max Continuous Current: 36.66A
- Internal Resistance: 85.63mΩ
- Stator Dimensions: Φ23mm x 06mm
- Shaft Diameter: 5mm
- Mounting Pattern: Φ16mm
- Wire Dimensions: 20AWG x 160mm
- Weight (w/ wires): 33.8g
- 1x iFlight Xing-E Pro 2306 1700Kv Motor
