Description

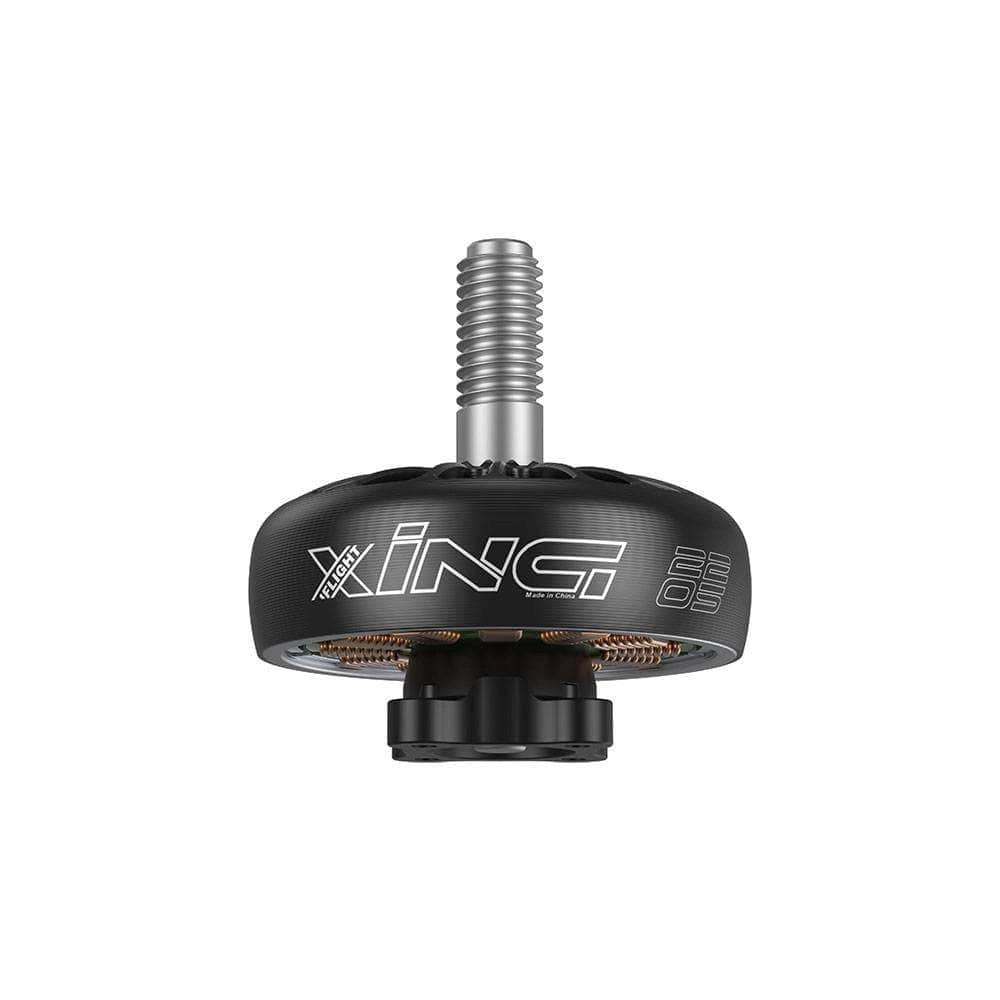

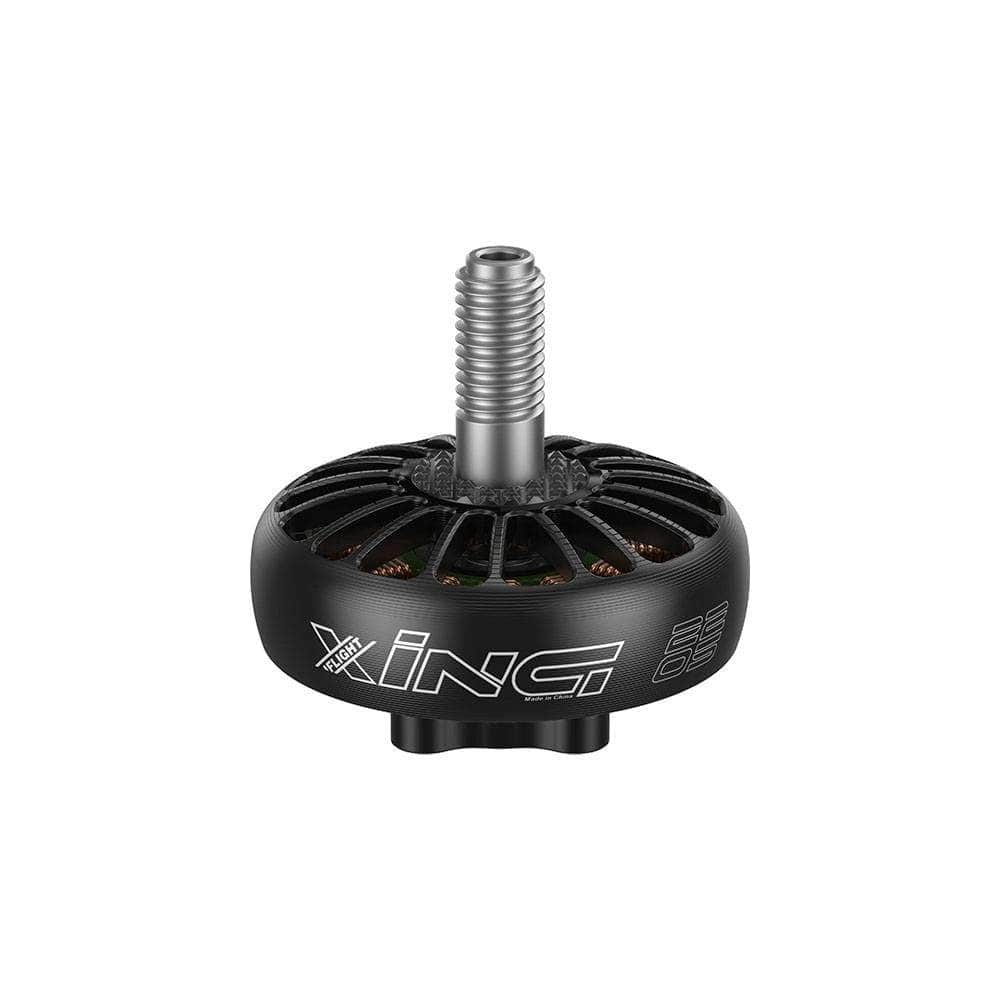

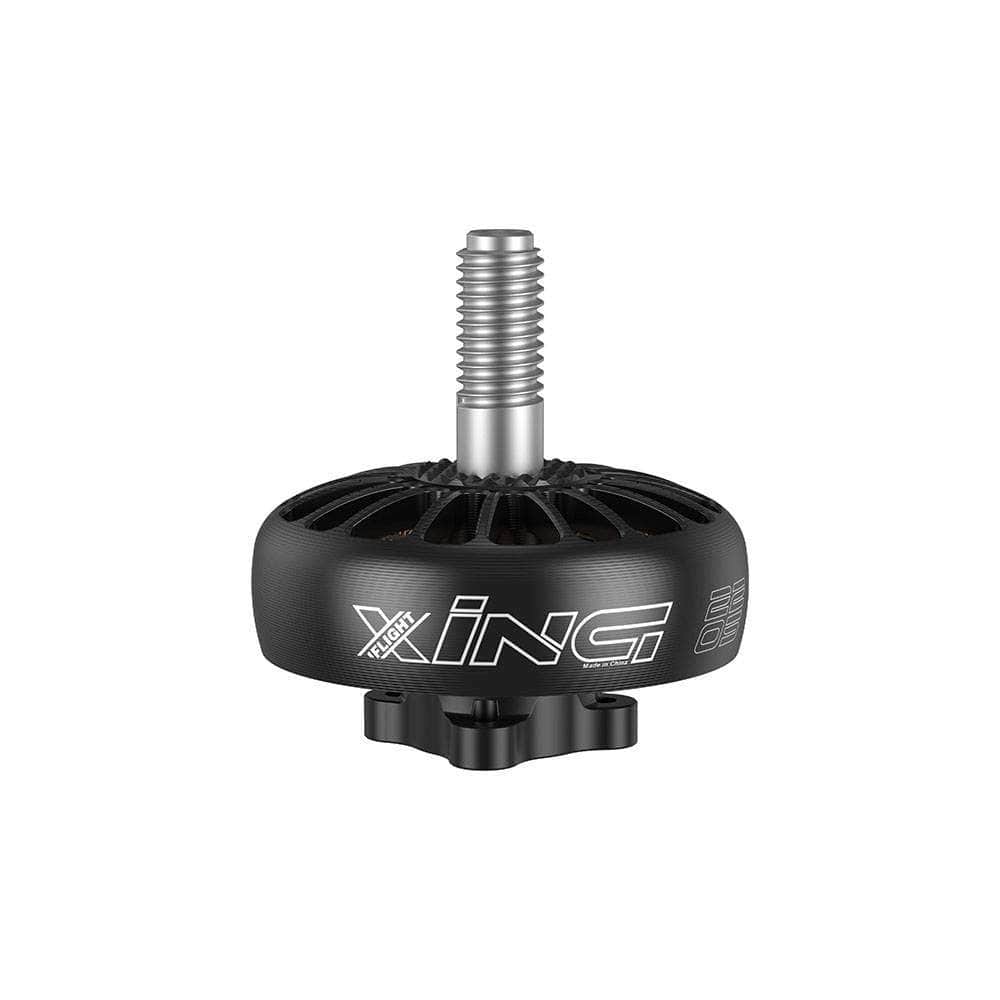

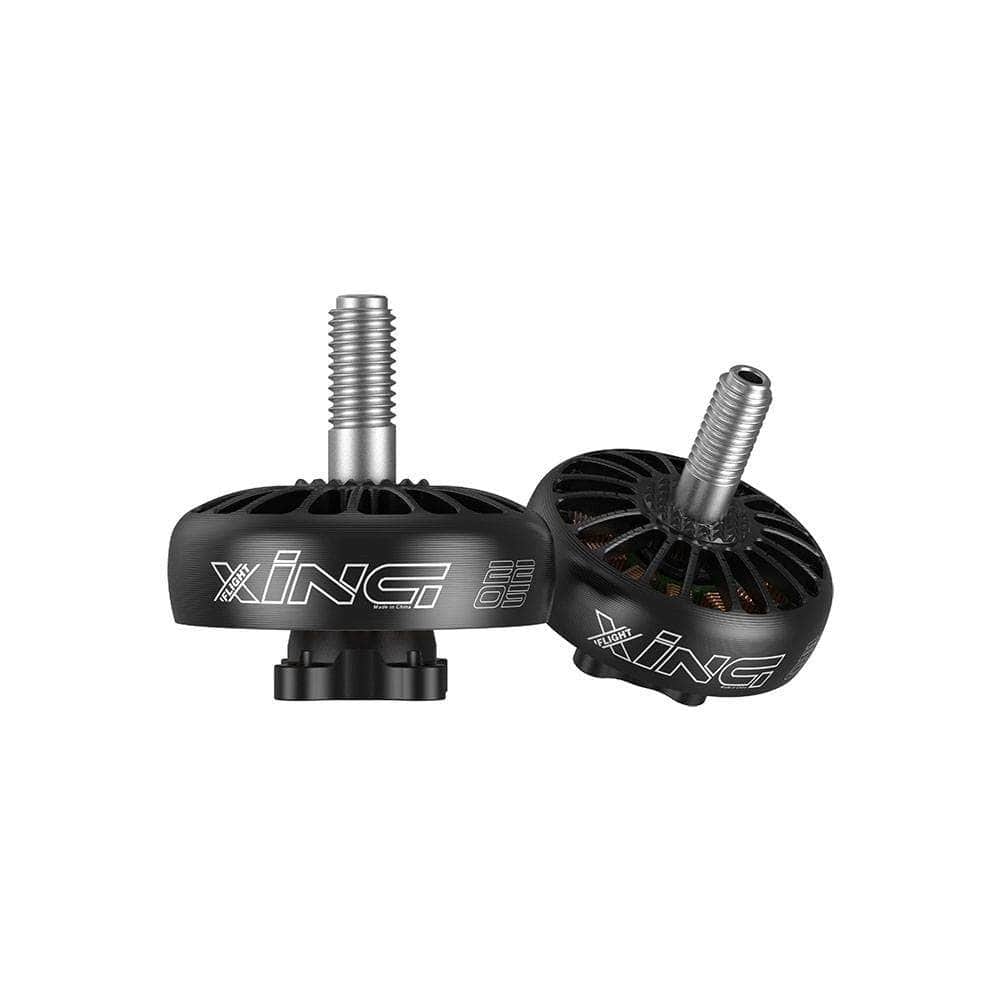

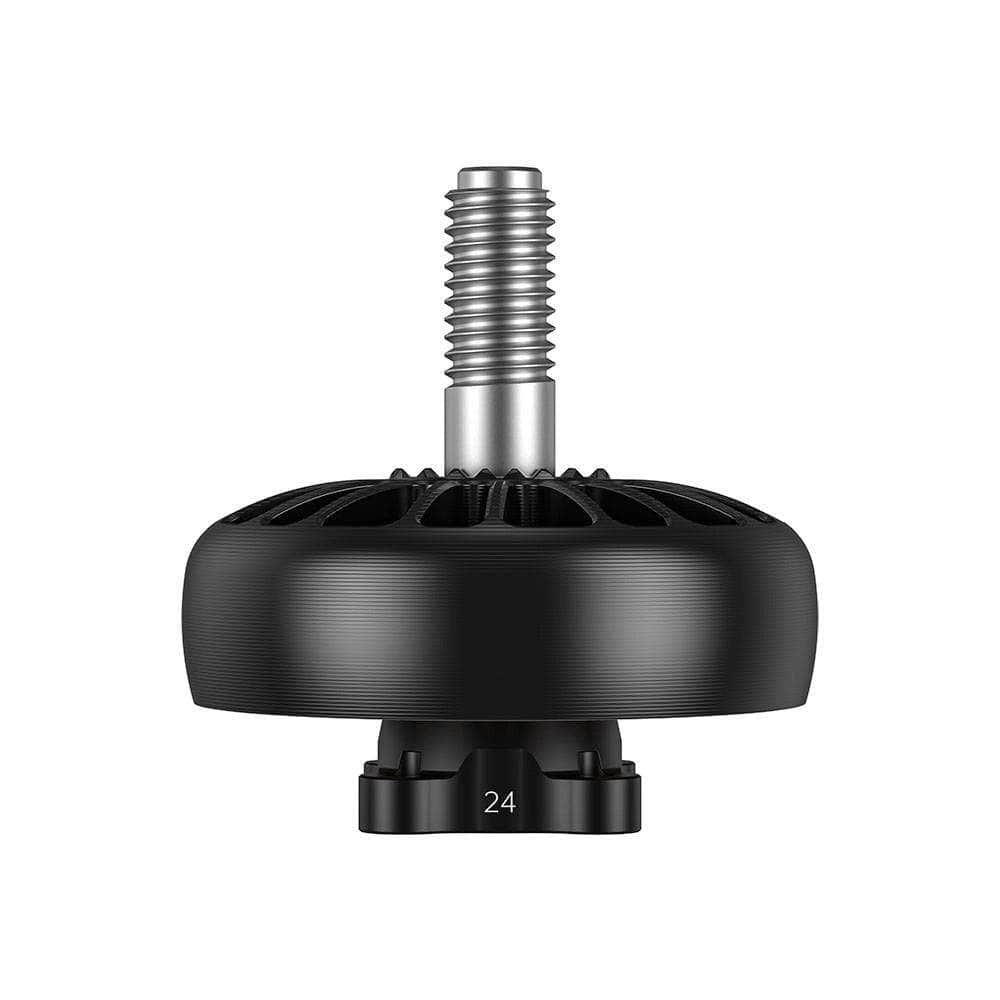

The iFlight XING2 2205 Motor (Unibell) is built for smooth, reliable FPV performance in a lightweight package. Featuring a high-strength steel shaft, precision Japanese NSK bearings, and N52H curved magnets, it delivers efficiency, durability, and responsive power for freestyle and racing drones. With protective wiring, dynamic balancing, and a sleek Unibell design, this motor combines strength and style in one of the most trusted motor platforms in FPV.

Be sure to browse the rest of our iFlight products and vast motor selection.

Features

• Dynamically balanced for smooth performance
• High-strength 5mm steel shaft
• Precision NSK bearings
• Durable Unibell design
• Protected motor wires
• N52H curved magnets

Specifications

• KV: 2300KV
• Weight(included wire): 23.7g / 24.6g / 25.3g
• Dimension: φ28.6 x 29.5mm(2300KV) / 28.6 x 29.55 (2450KV/3200KV)
• Interphase Resistance: 72.41mΩ / 50.63mΩ / 77.4mΩ
• Input Volts: 25.2/ 2-4S / 24V
• Peak Current: 17.91A / 33.06A / 38.43A
• Max Watt: 451.33W / 548.1W / 910W
• Mounting Holes: 12 x 12 φ2mm
• Rotor Specifications: Unibell
• Shaft Diameter: 4mm (3200KV) / 5mm (2300KV/2450KV)
• Shaft Protruding Length: 13.5mm
• Lead: 160mm / 22AWG
• Magnet: N52H Curved
• Configuration: 12N14P
• Bearing Type: NSK
• Bearing Specification: φ8 x φ3 x 4
• Winding: Single Strand copper winding

Includes

• 1x iFlight XING2 2205 Motor (Unibell)
• 1x Hardware Kit
