Description

There is nothing like the experience of flying an FPV drone, but building these marvelous machines is more complex than it needs to be. With Tramp, we set out to raise the bar on video transmitter technology. With Ghost, we set out to redefine the norms in receivers for R/C control. And now we have fused these two together, in the groundbreaking Ghost Hybrid. Designed by pilots, built by pilots, supported by pilots.

Check out the entire Ghost RC System, as well as the rest of our ImmersionRC selection!

Features

• Two full receiver channels (not just dual antenna)
• Only 2.2g, perfect for the popular sub-250g class
• Extreme Range AND Low Latency
• 500Hz R/C Link Updates (HW is 1kHz ready)
• 2.4GHz Lora OR FLRC control modes, for the best performance in any environment
• Integrated 5.8GHz 25mW - 600mW Video Transmitter
• Thermally Regulated, Factory Calibrated

Specifications

• Input Voltage: 5V
• VTX Output Power: 25-600mW
• Antenna Connector: U.FL
• Power/Video Connection: Solder Pads / Plug
• Frequency Range : 2406 - 2479MHz
• Modulation: Chirp Spread Spectrum + Adaptive FHSS
• Binding: Bidirectional with confirmation and protocol negotiation
• RF Profiles: Race, Pure Race, ‘Normal’, and Long Range, more to come
• Downlink Tx Power: +13dBm
• Sensitivity: -117dBm in Long Range mode
• Serial Formats: SBus, SBus-Fast (200k) , SRXL-2 (400k), GHST, SBus Inverted
• Firmware: Over-the-air (OTA) upgradable
• Stack Size: 20x20mm, 25x25mm
• Dimensions: 31.5x30mm
• Weight: 2.2g

Includes

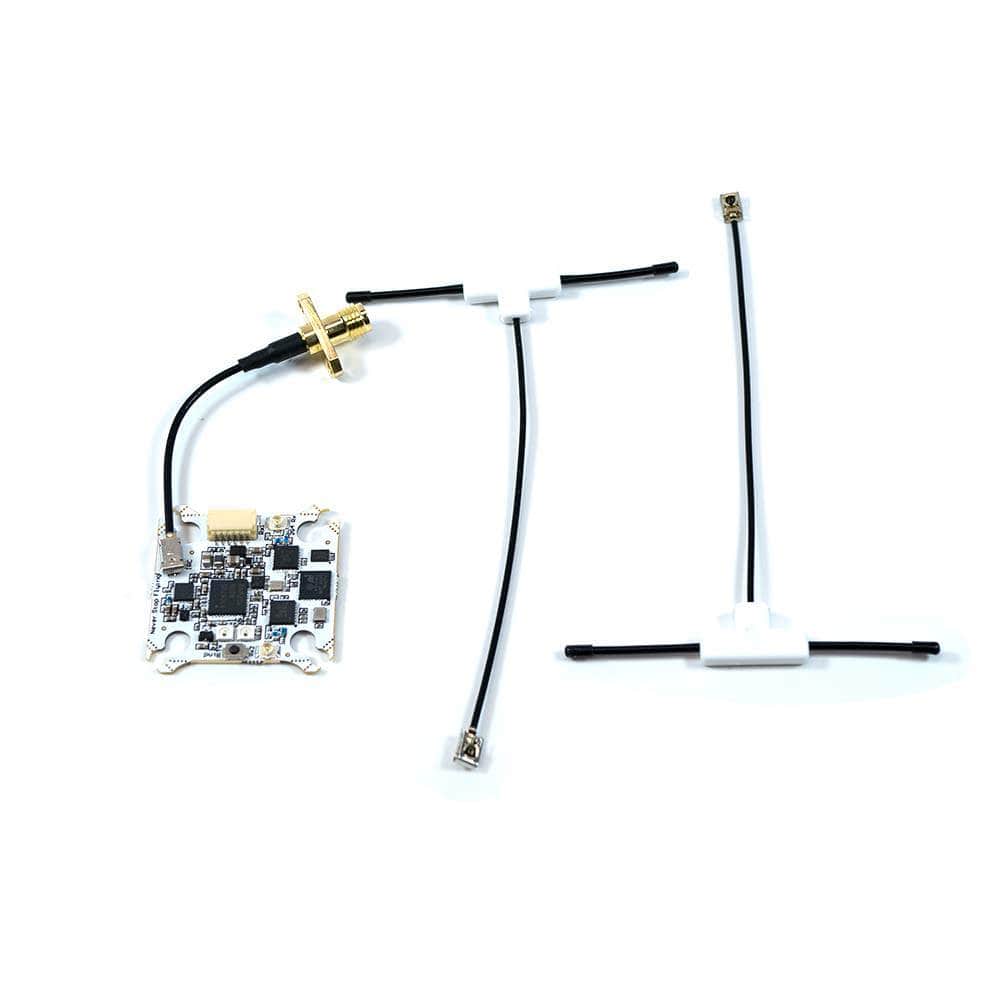

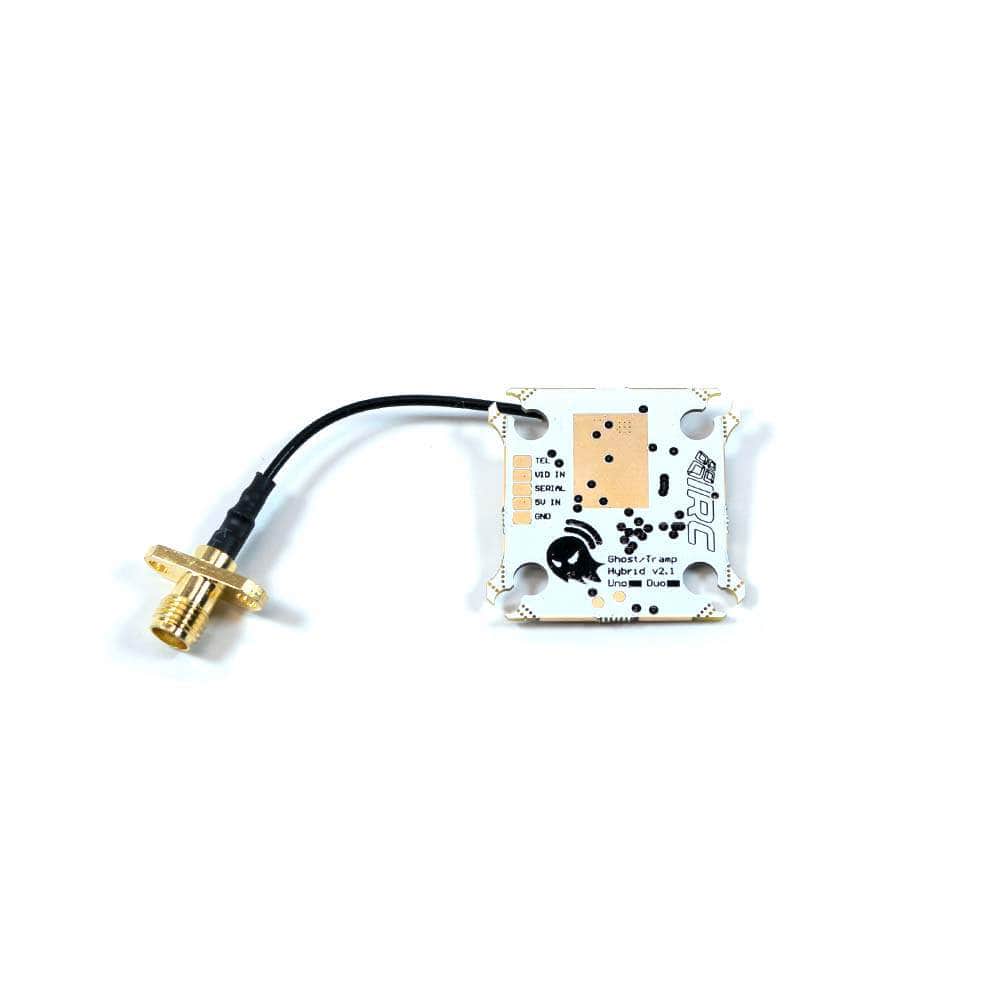

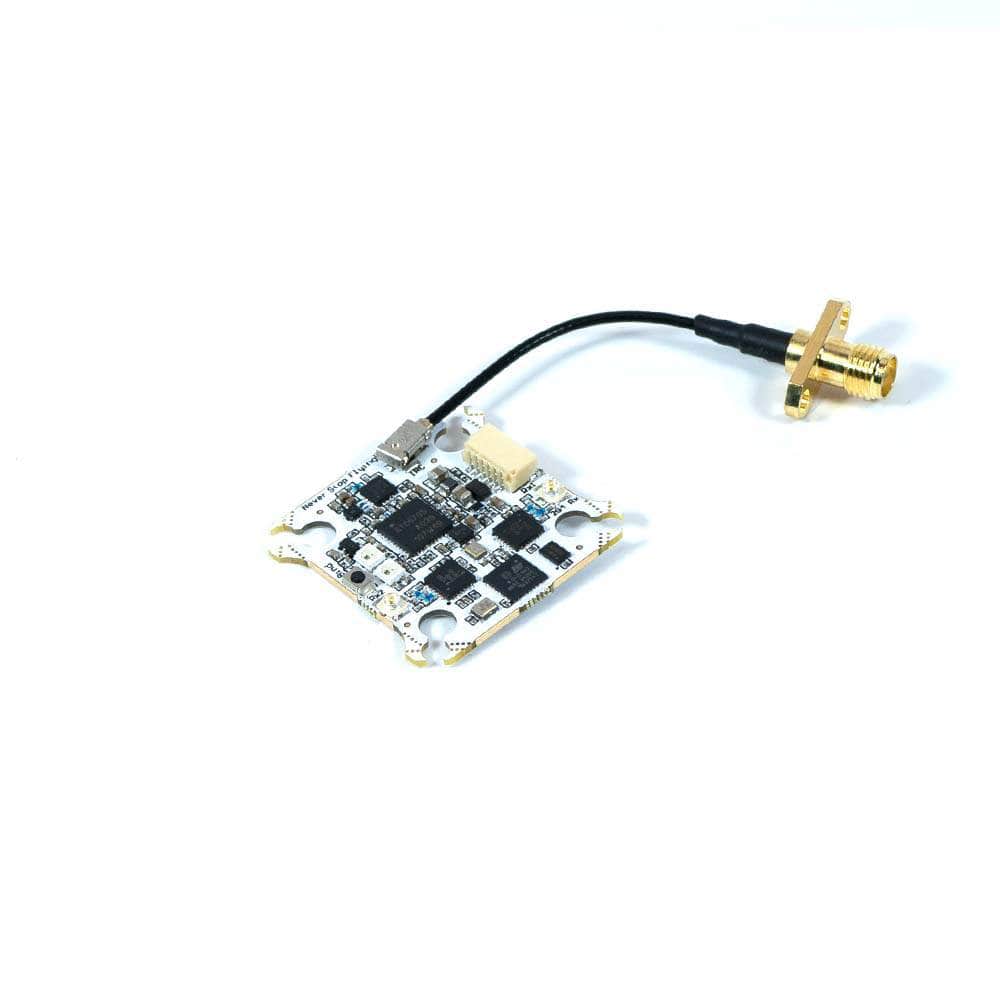

• 1x ImmersionRC Ghost Hybrid DUO V2 2.4GHz Receiver & 25-600mW 5.8GHz VTX
