RDQ Bardwell F7 V2 with iFlight Blitz E45S 45A 30x30 Stack/Combo

Original price $140.98
Original price $140.98 - Original price $140.98
Original price $140.98
Current price $137.99
$137.99 - $137.99
Current price $137.99
Coming Soon
In Stock
Pre Order
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

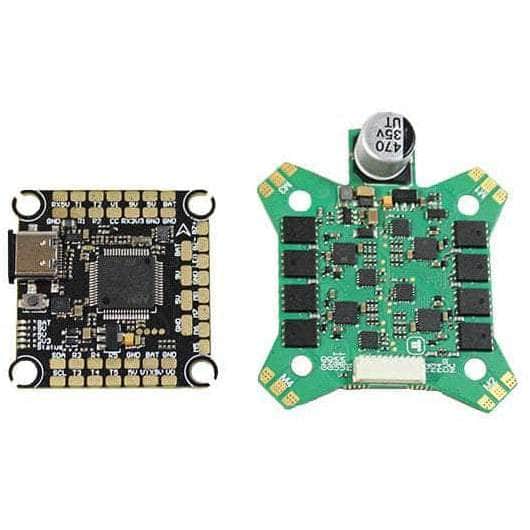

The legendary Joshua Bardwell F7 flight controller now in its V2 state takes everything great about the original JBF7 and adds a few key features that you asked for. Just like the original, it's got an F7 processor, SD card slot for black box logging, and 8 motor outputs. It's got a flexible pad layout that can handle almost any combination of peripherals you could want. Paired with this FC is the iFlight Blitz E45S 45A 2-6S ESC, An amazing 4in1 ESC that comes with a pre-soldered capacitor, big solder pads with lots of space, And a very spacious board layout to allow for easier heat dissipation. Make this stack combo the next powerhouse for any 5 inch freestyle or speedy race build!!

RDQ Bardwell F7 V2 3-6S Specifications

  • Input Voltage: 3-6S LiPo
  • MCU: STM32F722
  • Gyro: BMI270
  • Barometer: DPS310
  • Power Outputs: 5V 3A, 9V 3A (w/ Pit Switch), 3.3V, vBat
  • BF Target: JBF7 V2
  • UARTs: 5 (I2C SDA/SCL shared with UART 3)
  • Plugs: 4in1 ESC, RX, Analog Cam, HD Cam, VTX, LED/Buzzer
  • Mounting Pattern: 30.5x30.5mm
  • Weight: 8.3g (w/ gummies & USB Protector)

iFlight Blitz E45S ESC Specifications

  • Input Voltage: 2-6S
  • Max. Continuous Current: 45A
  • Max. Burst Current: 55A
  • Firmware: BLHeli_S
  • MCU: BB21
  • Target: QH-40 16.7
  • BEC: No
  • Telemetry Output: No
  • Current Sensor: Yes
  • Current Sensor Scale: 200
  • Dimensions 40.5x42x6.5mm
  • Mounting Dimesions: 30.5x30.5mm Φ4mm
  • Weight: 14.7g

If you have any issues accessing the Black Box features please type out this text in the CLI to get black box data to your SD card "set sdcard_detect_inverted=on" press ENTER, then type "save" and press ENTER.


  • 1x RDQ Bardwell F7 V2 3-6S 30x30 Flight Controller
  • 1x iFlight Blitz E45S 45A 2-6S 30x30 4in1 ESC
