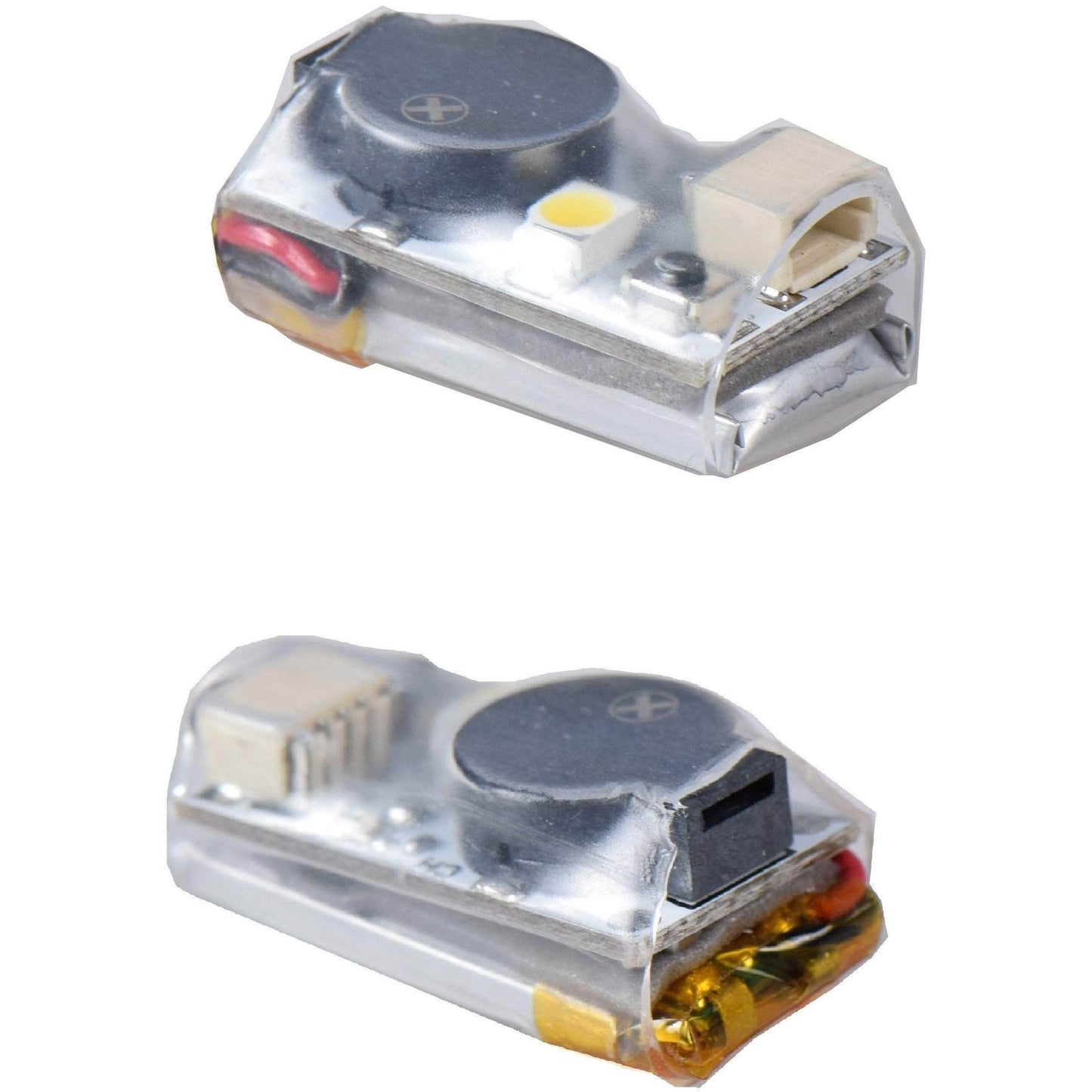

JHE20B Quad Finder LED Buzzer Beacon w/ Internal Battery

JHE20B Quad Finder LED Buzzer Beacon w/ Internal Battery

$8.49
$8.49
Add To Wishlist
View full details

Details

Description

The JHE20B Finder is compatible with all BF and CF flight controls. Just connect to the buzzer interface of the flight controller and it will work.

Check out the rest of our Buzzers & Alarms while you're here!

When the flight control wiring is correct, the multi-rotor aircraft is powered on, and the flight control power supply will automatically charge the JHE20B Finder. The red LED will light to indicate that charging is in progress, Red LED off means charging is saturated; red light flashing means flight controller is powered off, wait 30 seconds waiting time. The buzzer has two modes of operation:

1. It is compatible with the functions of the traditional active buzzer and synchronized with the flight control.

2. When the flight control is normally connected, if the main battery in the flight is powered off, it can still automatically emit 100 dB of drip sound after 30 seconds of power failure, and the LED will emit white light.

How to turn off the buzzer:

Press and hold the release button for more than 2 seconds, the JHE20B Finder turns off the sound.

Features

  • 100db audible alarm
  • LED Beacon

Specifications

  • Size: 22x12x9.5mm

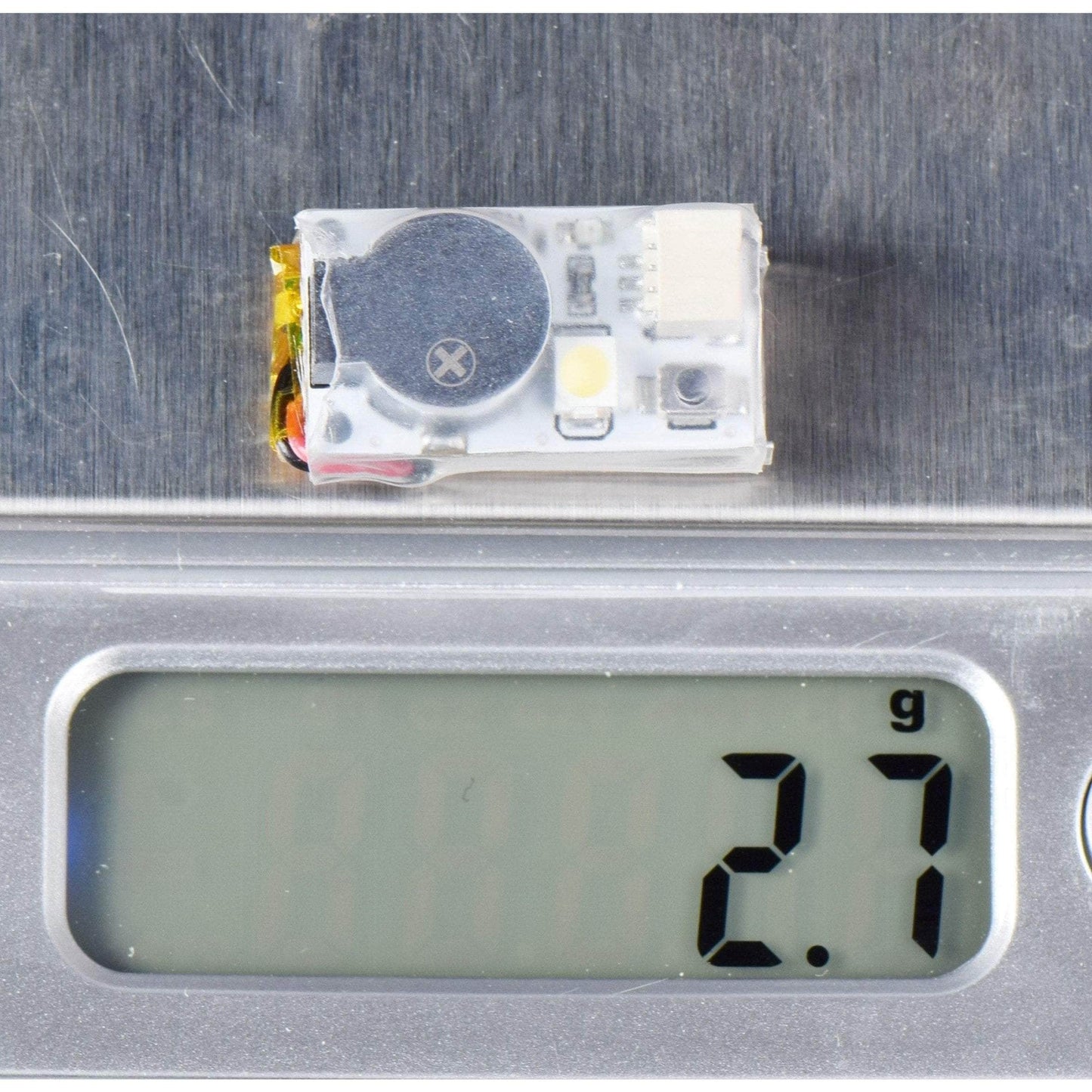

  • Weight: 2.7 g



    Includes

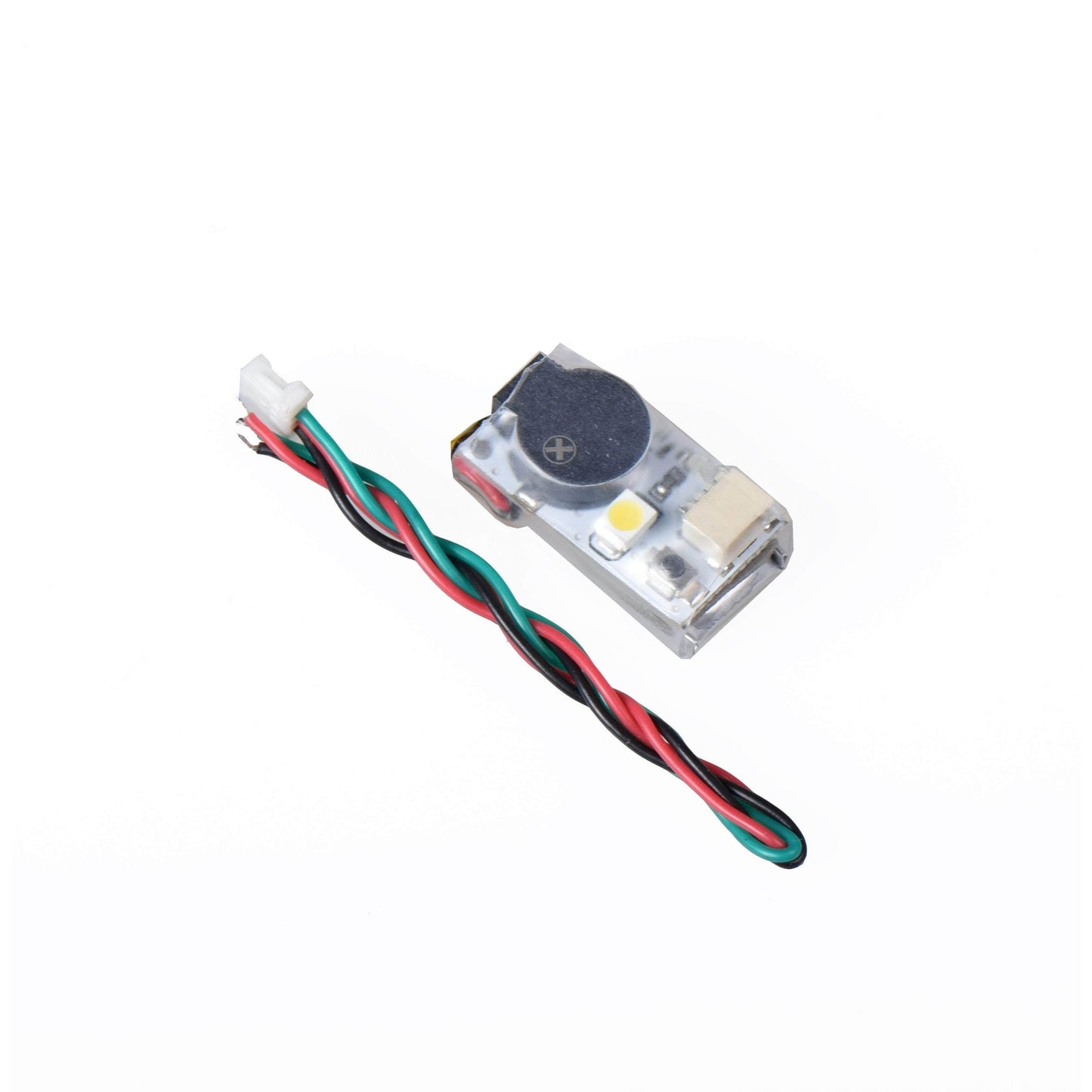

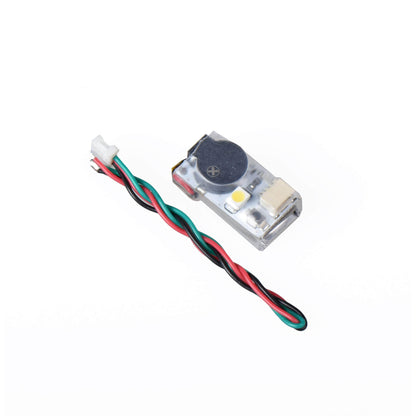

    • 1x JHE20B Finder
    • 1x Wire Set

    More Info

    • SKU: 691023486416
    • Barcode: 691023486416


    Overall rating: 4.634146 / 5 from 82 reviews.

    AI Generated Review Summary

    The JHE20B Quad Finder LED Buzzer Beacon is a compact and reliable device compatible with all BF and CF flight controls. It features a 100 dB audible alarm and an LED beacon, with an internal battery that charges automatically. Customers appreciate its quality and build, though opinions on the buzzer volume vary.

    Summary topics

    • Buzzer Volume: 26%
    • Build Quality: 12%
    • Beeper Budget-Friendliness: 22%
    • Product Quality: 22%

    Review topics: ["shipping","quality","build","issues","battery","works","price","buzzer","beeper","quad","button","insurance","guy","choice","connector","alternative","location"].

    Review highlights

    • "I recommend one for every buildI recommend one for every build" — James l.
    • "Cheap insurance for your valuable build." — Christopher B.
    • "bright LED and loud beeper, works great." — Chris M.

    Reviews

    Ok

    "So far works well enough"

    — John H. (5/5)

    Easy to use and fast shipment

    "Super small and light weight, but loud!"

    — Eric T. (5/5)

    A Must

    "You need this on every quad, load beeper, good quality."

    — Christopher L. (5/5)

    Small enough to fit tight

    "Small enough to fit tight builds, battery lasts and lasts, Beeper is almost too loud (until you lose your rig)"

    — Shawn D. (5/5)

    Good little buzzer

    "Worked great until I buried it in the snow! Be sure to mount in an accessible place because you have to hold the button to disarm it after you unplug your battery. I tucked mine on the bottom of my frame."

    — Joah E. (5/5)

    A must have

    "I finished my build yesterday and the finishing touch is always a beeper with the battery."

    — Christopher L. (5/5)

    These are awesome. It beeps

    "These are awesome. It beeps on an aux channel and is loud"

    — shawn t. (5/5)

    Works perfectly. Thank you!

    "Works perfectly. Thank you!"

    — Michael L. (5/5)

    Order more of these

    "Excellent price"

    — Jason W. (5/5)

    Cmon, You need one.

    "Eureka, I found It!"

    — Joseph R. (5/5)

    Q&A

    Can the buzzer be deactivated by reconnecting the battery for two seconds like the vifly buzzers, or can it only be deactivated by pushing the button? This is important to know because some builds don’t have easy access to the buzzer button.
    No this beeper doesn't work like that. I've literally just tested this for you. You must hit the button. I'd suggest mounting the buzzer under the quad with zip-ties if possible. If you have foam feet this will be possible on most quads. Also this one isn't very loud will beep one time every second or so. It is loud enough to find your quad yes but I've heard much louder and others beep more frequently.
