Description

Meet your budget-friendly stack featuring an F7 FC on top of a AM32 ESC!

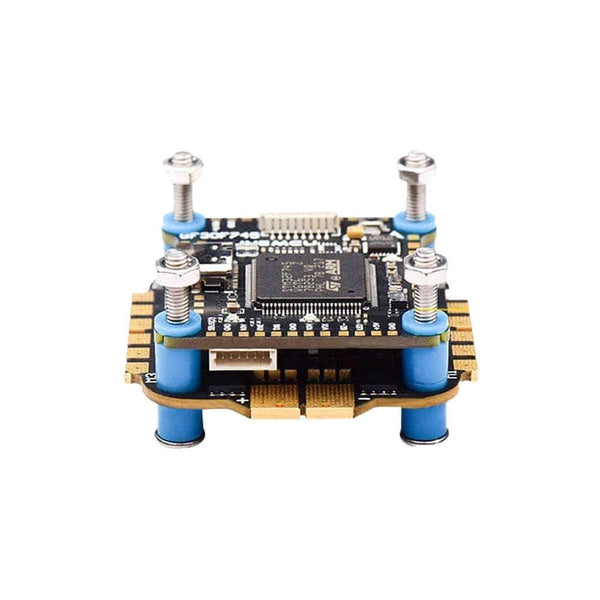

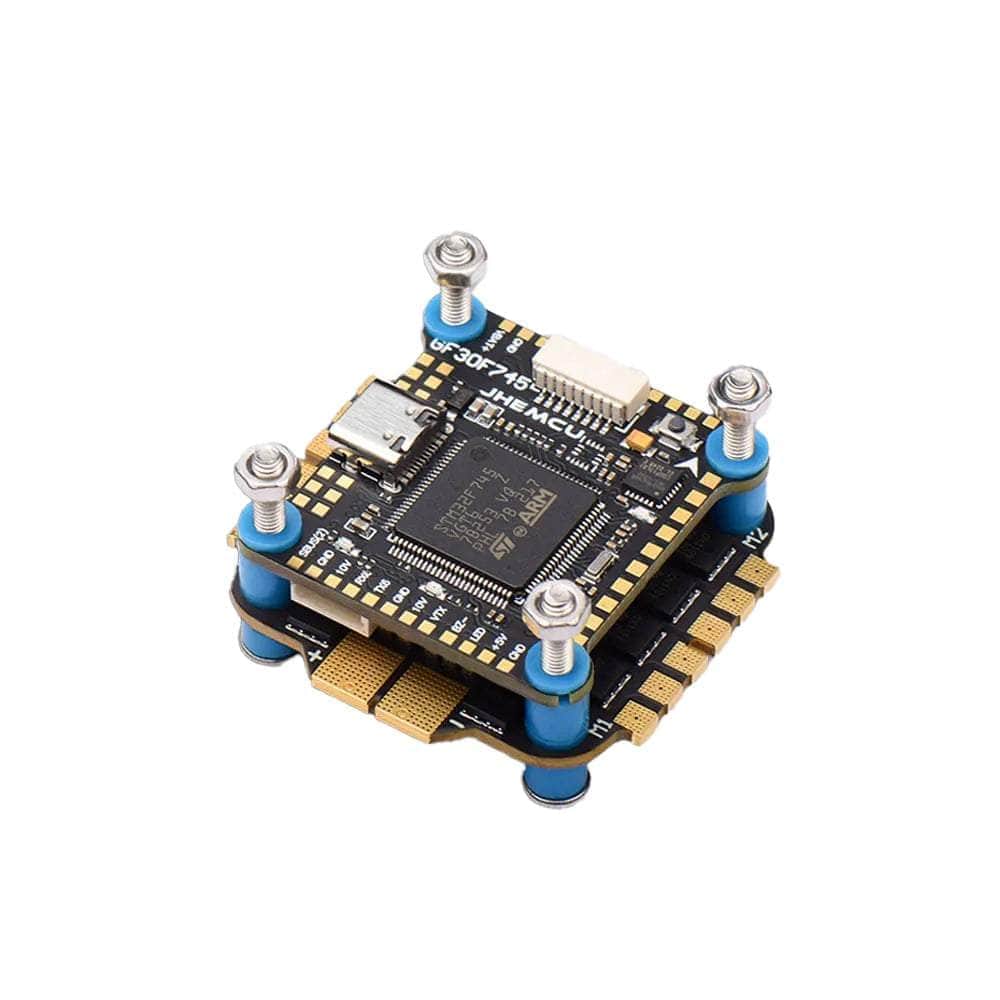

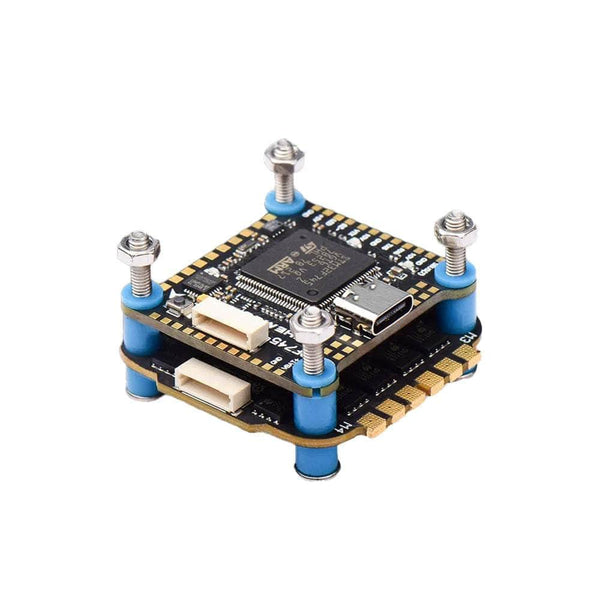

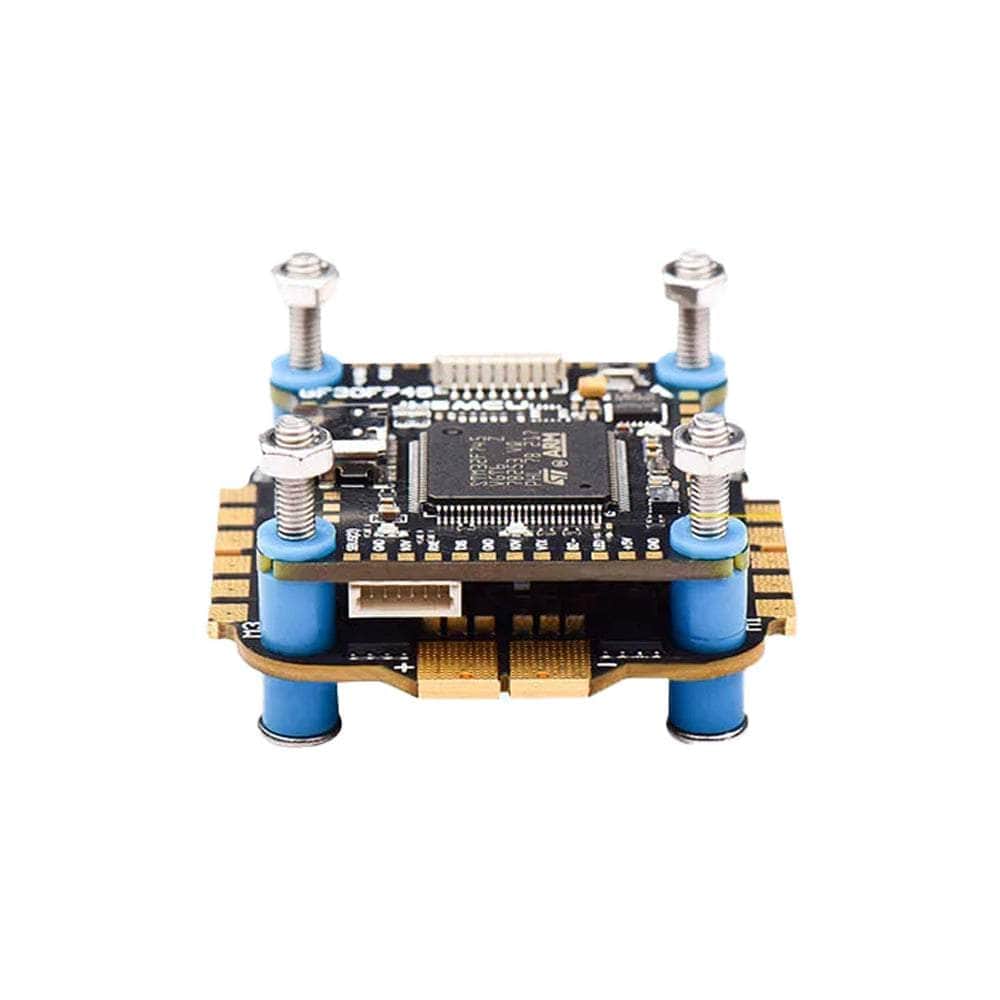

The JHEMCU GF30F745 3-6S 30x30 Flight Controller is ideal for drone pilots who demand high performance. It supports 3-6S and features advanced MPU6000 capabilities for smoother and more accurate flight. Enjoy an improved flying experience with this intuitive and reliable flight controller. Coming within 6pin plug in port designed for HD VTXs like the DJI O3 Air Unit.

Specifications

FC

• Chip: STM32F745VG(216MHZ)

• Gyro: MPU6000

• Barometer: DPS310

• OSD Chip: AT7456E

• Black box:16MM

• LED Program: Support

• BB buzzer: Support

• Input voltage: 3-6S

• I2C Connector: Support

• BEC: 5V/2.5A

• BEC: 10V/2.0A

• Cam Input: Support

• USART: UART1,UART2.UART3.UART4.UART6.UART7

• Receiver: ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMX

• GPS: YES

• COMPASS: YES

• HD O3: YES

• USB: TYPE-C

• Current Port: Yes.

• Voltage Sensor: Yes

• DFU Button: YES

• FC firmware: betaflight_4.4.2_JHEF745.HEX

• Instal hole: 30.5x30.5x4MM

• Board size: 36x36MM

• Weight: 7.5g

ESC

• Input Power: 3-6S(11-27V)

• Current: 60A

• BEC: NO

• Instal Hole: 30.5x30.5xM4

• Size: 44x43MM

• Firmware: AM32

• Weight: 15.4g

Includes

• 1x JHEMCU F7 3-6S 30x30 Stack/Combo (GF30F745 FC / AM32 60A 4in1 ESC) - Choose Version - MPU6000
