Description

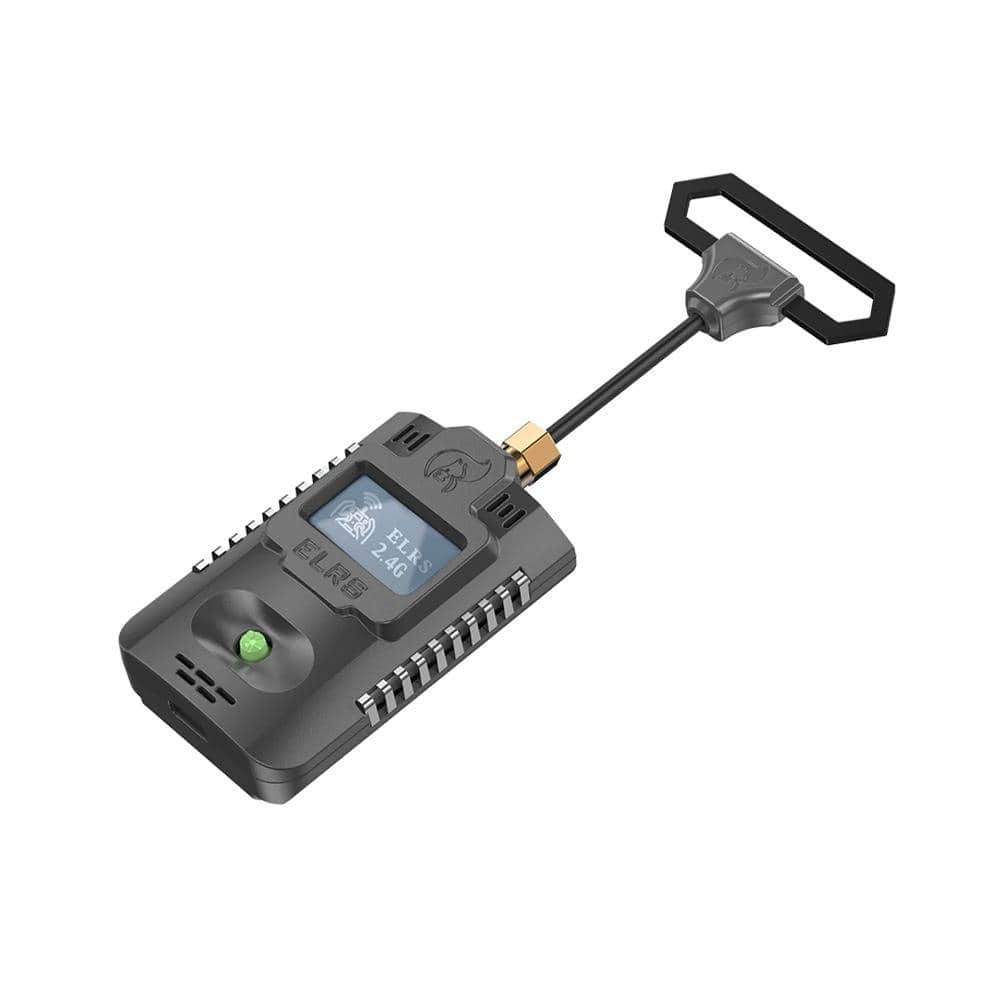

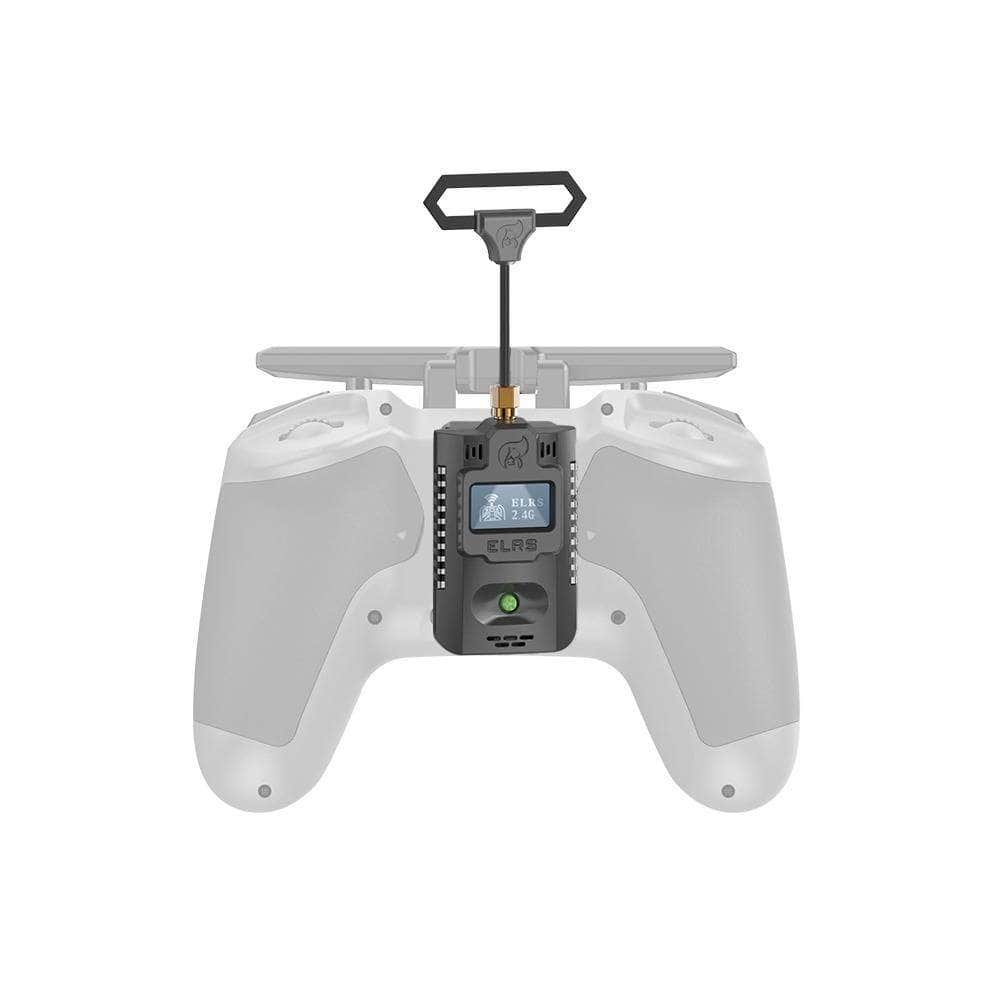

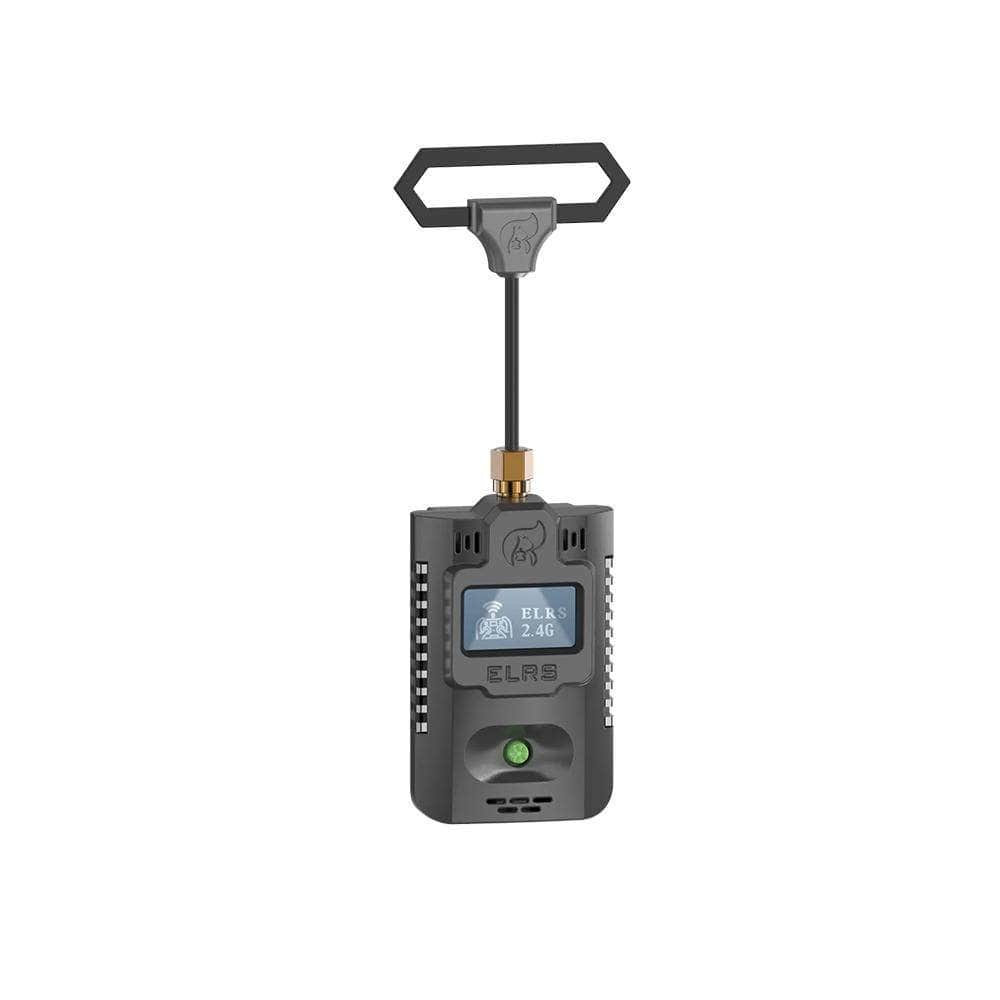

The Jumper AION ELRS 2.4GHz Nano TX Module offers a reliable long-distance link with a 500Hz refresh rate, adjustable power, and WiFi updates. Pre-loaded with ExpressLRS firmware, it features an OLED display screen and 5-direction button for easy navigation.

Check out all our RC Transmitters and our entire Jumper selection!

Features

• Adjustable power (10-500mW) for racing, freestyle, or long-range flights
• Built-in OLED screen and 5-way joystick for intuitive configuration
• Supports Wi-Fi, USB-C, or Bluetooth updates for hassle-free firmware management
• Preloaded ELRS firmware ready to pair instantly with compatible receivers
• Directional Diamond antenna ensures stable performance even in challenging environments

Specifications

• Product: Jumper 2.4GHz ELRS TX Nano Module
• Screen: OLED
• MCU: ESP32
• RF Output Power: 10-500mw
• Frequency Range: 2.4GHz-2.5GHz
• Firmware: ExpressLRS
• Antenna: Directionality Diamond antenna for best signal penetration
• Working Voltage： DC5-8.4v
• Maximum receive refresh rate: 500Hz
• Menu button: 5 directions button
• Voltage: DC6-8.4V
• Current: ＜400mA
• Port: S.port
• Firmware update: via Wifi, UBC-C, or Bluetooth

Includes

• 1x Jumper 2.4GHz ELRS TX Nano Module
• 1x Diamond Antenna
