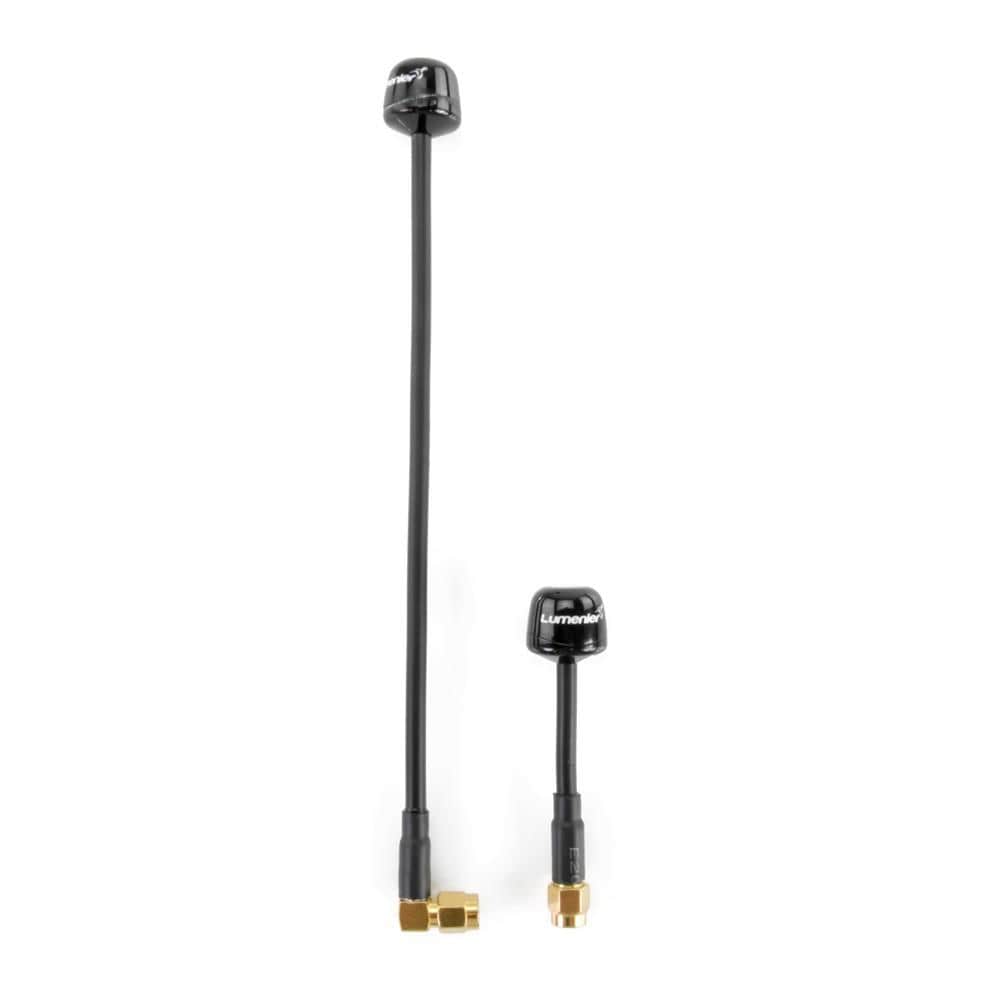

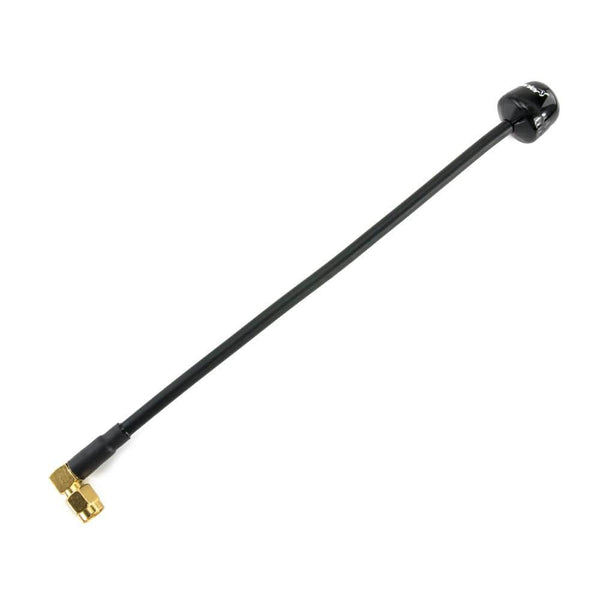

Lumenier AXII 2 5.8GHz Long Range 90° SMA Antenna - Choose Your Polarization

Lumenier AXII 2 5.8GHz Long Range 90° SMA Antenna - Choose Your Polarization

$25.99
$25.99
Polarization:
In stock
In stock
Add To Wishlist
View full details

Details

Description

The Lumenier AXII is known to be the most versatile and highest performing antenna line for FPV today. Lumenier has been able to improve on the best and make it even better!

The AXII 2 comes in many connector types such as SMA, MMCX, U.FL, Stubby SMA, and Long SMA. Precision engineering has given this antenna a virtually perfect 1.0 Axial ratio resulting in a true circularity. On top of that, the AXII 2 has an amazing max gain of 2.2dBic, a true upgrade over the original AXII.

Be sure to check out the rest of our Video Transmitter and Receiver antennas, and all our Lumenier products!

Features

  • Significantly Improved Range with a Higher Gain (2.2dBic Gain)
  • Wider Bandwidth (5.3-6.2GHz)
  • Cleaner Signal And Better Rejection to Interference
  • More Durable - Improved Injection Molded Housing
  • Virtually Perfect Axial Ratio

While almost every aspect of the AXII 2 was improved upon, the size and weight managed to stay the same. The AXII 2 is still one of the smallest and lightest circular polarized antennas on the market, perfect for both lightweight racing builds or freestyle quads.

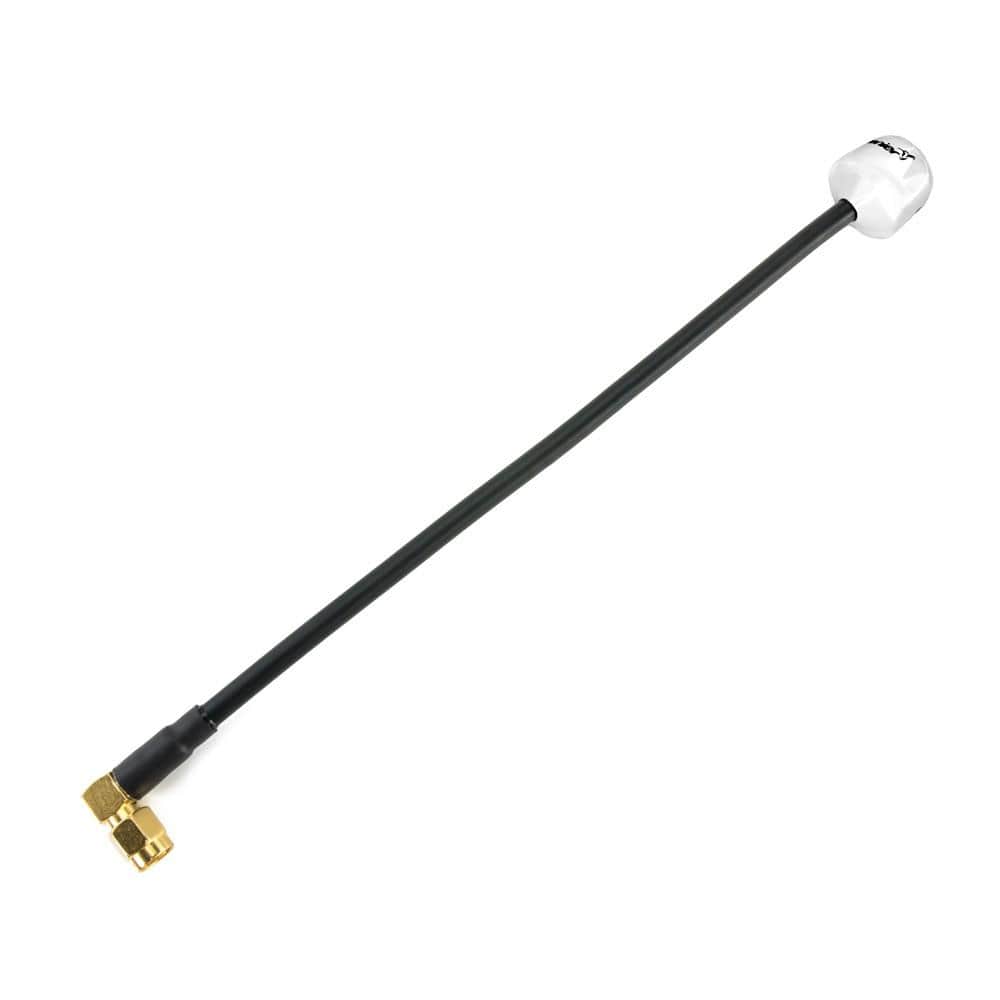

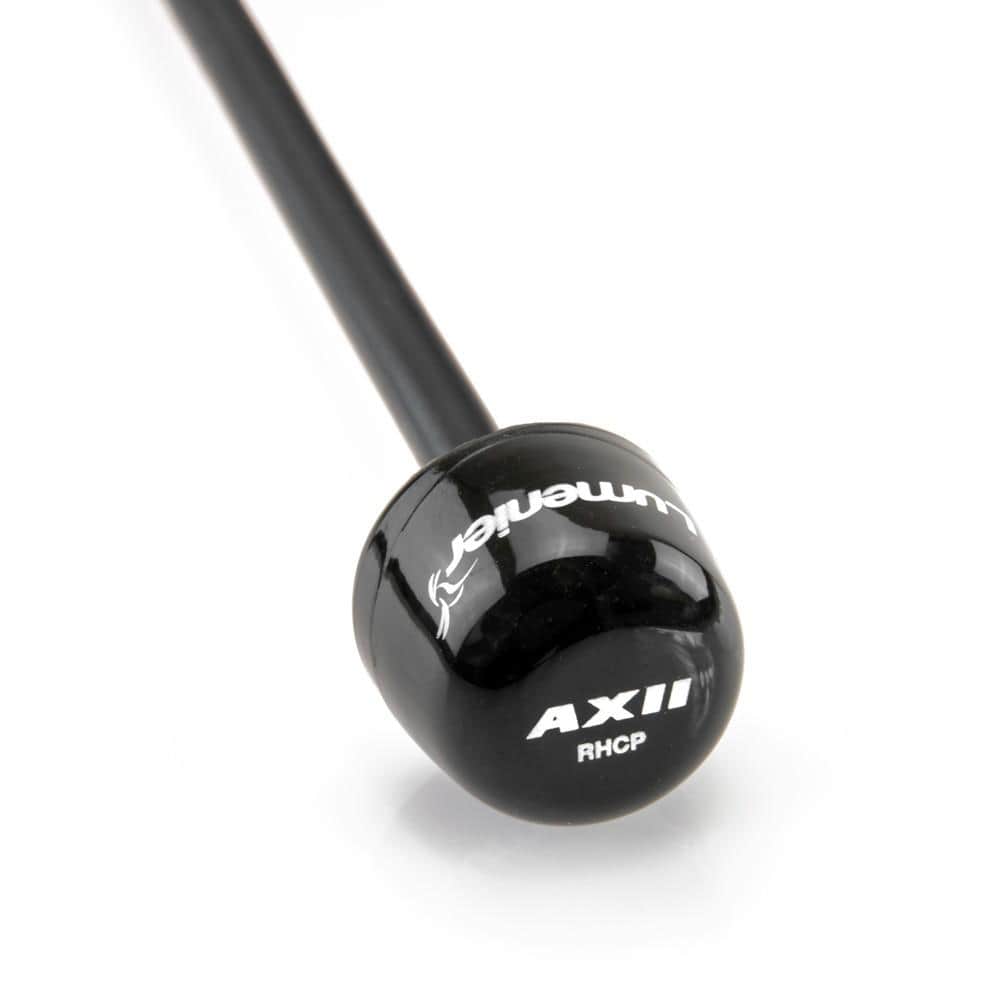

Antennas take a lot of abuse, especially when put onto a quad. The AXII 2's robust antenna housing is made out of a new injected molded polycarbonate, and ultra-sonically welded shut. This has significantly improved the durability of the AXII housing. The 45mm long semi-rigid RG402 cable allows for 90 degrees or more of freedom. The SMA connection is reinforced with a metal collar crimped to the base for extra support.

Note: When installing, secure the antenna via the SMA connector, do not twist the cap.

Specifications

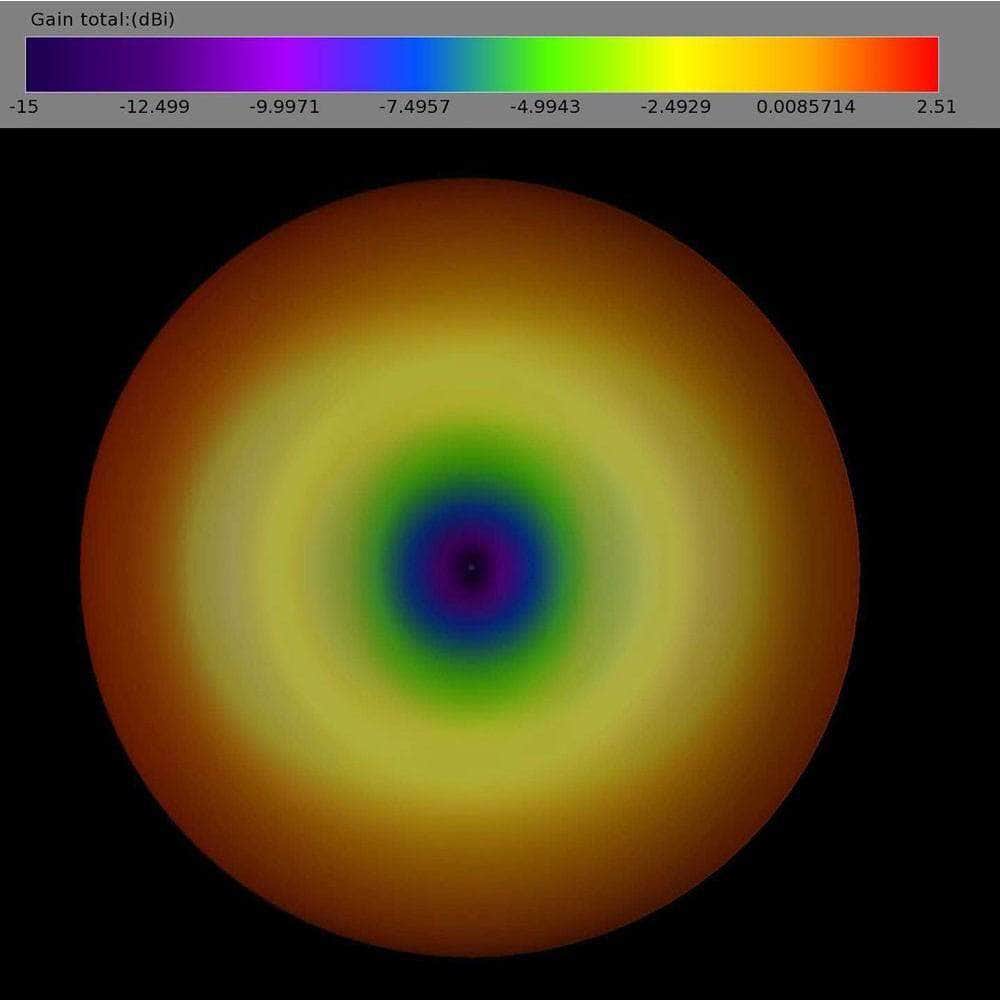

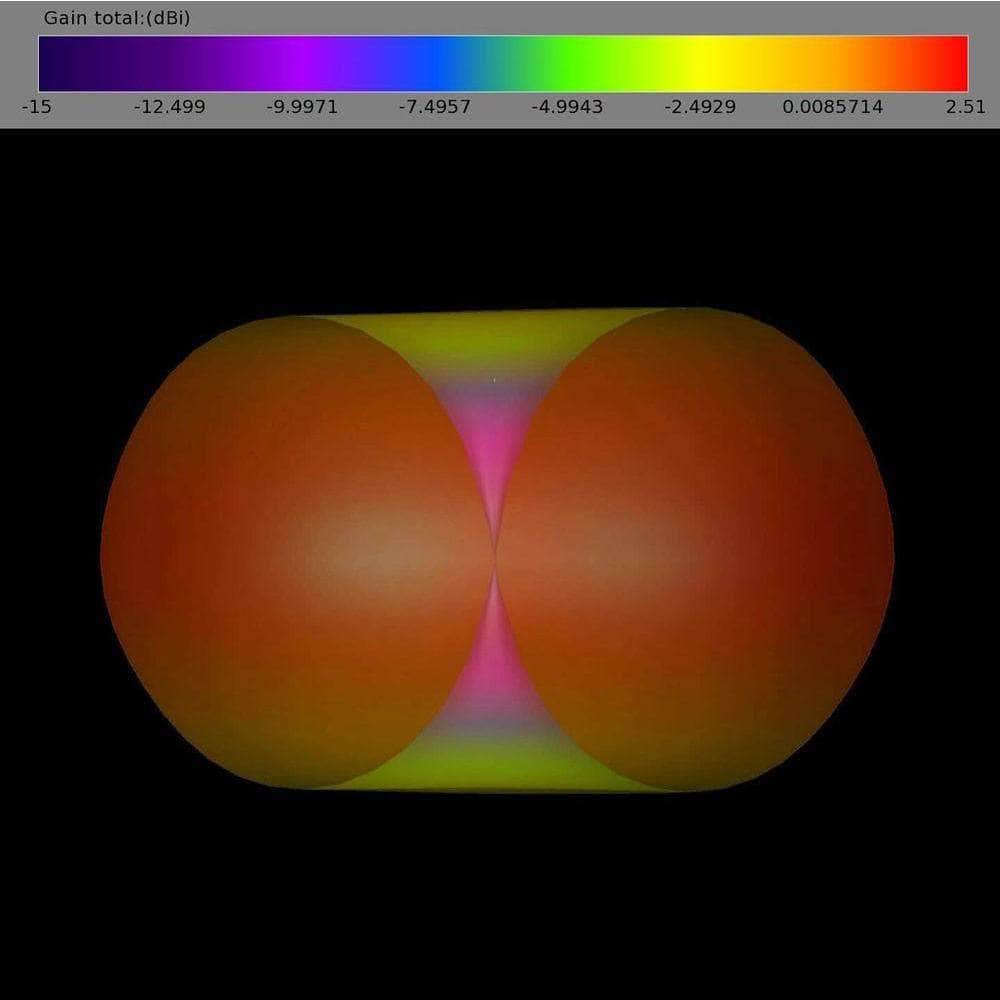

  • Gain: 2.2dbic
  • Axial ratio: 1.0 (near perfect)
  • Bandwidth: 5.3GHz-6.2GHz
  • Radiation Efficiency: 98%
  • SWR: <=1.5:1
  • Weight: 15.8g
  • Size: 188mm x 17.5mm
  • Cable: Semi-rigid RG402
  • Connector: Right-Angle SMA
  • Works great as both a transmitting or receiving antenna
  • Compatible with other styles of 5.8GHz RHCP antennas

Includes

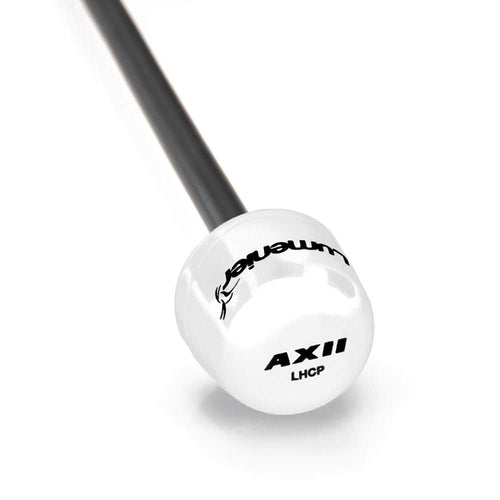

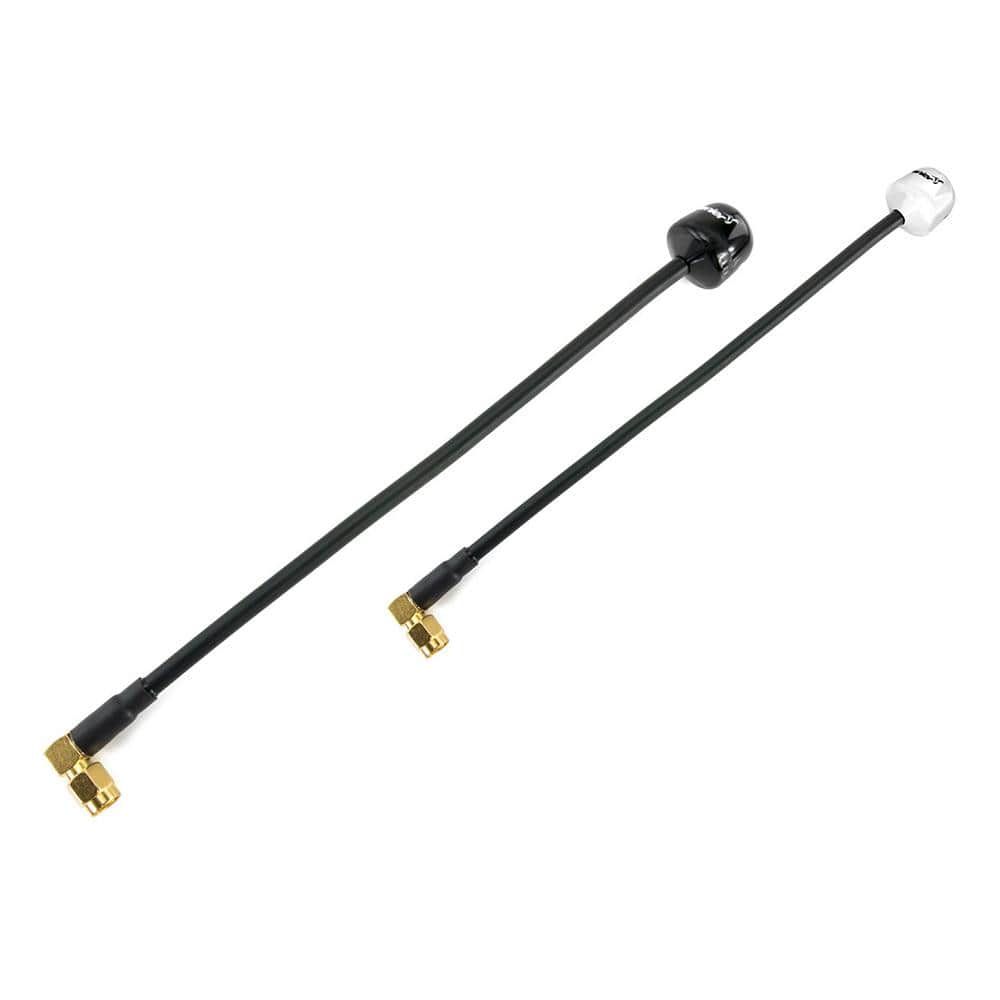

  • 1x Lumenier AXII 2 Long Range Right-Angle SMA 5.8GHz Antenna (Choose RHCP or LHCP)

More Info

  • SKU: 10519
  • Barcode: 82652057618


Overall rating: 4.828125 / 5 from 64 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["quality","antenna","receiver","range","works","sensor"].

Review highlights

Reviews

It’s ok, long range I

"It’s ok, long range I am not so sure, but does the job."

— Cody A. (3/5)

was able to fit without

"was able to fit without 90 degree adapter. nice height good signal strength."

— Mark A. (5/5)

works perfectly

"works perfectly"

— Kheshav D. (5/5)

Well constructed great signal and

"Well constructed great signal and super range"

— David M. (5/5)

Better effect than I expected

"I noticed a substantial improvement over my pagodas. Videos quality better, less break up, and great signal. I was impressed!"

— Trevor N. (5/5)

Great reach for long range

"I put this on a 7" long range build and am getting a really clear signal as far as I'm willing to fly"

— Cole R. (5/5)

Right away feels like a

"Right away feels like a well build antenna and is durable. Useing it on my LR quad."

— Christian L. (5/5)

Have not really seen to

"Have not really seen to much improvement over the shorter one, but does help when drone is behind me."

— Dale W. (4/5)

Works well as advertised.

"Works well as advertised."

— Romeo U. (5/5)

a must have

"Long or short range you need to have this antenna in your setup"

— Christian A. (5/5)

Q&A

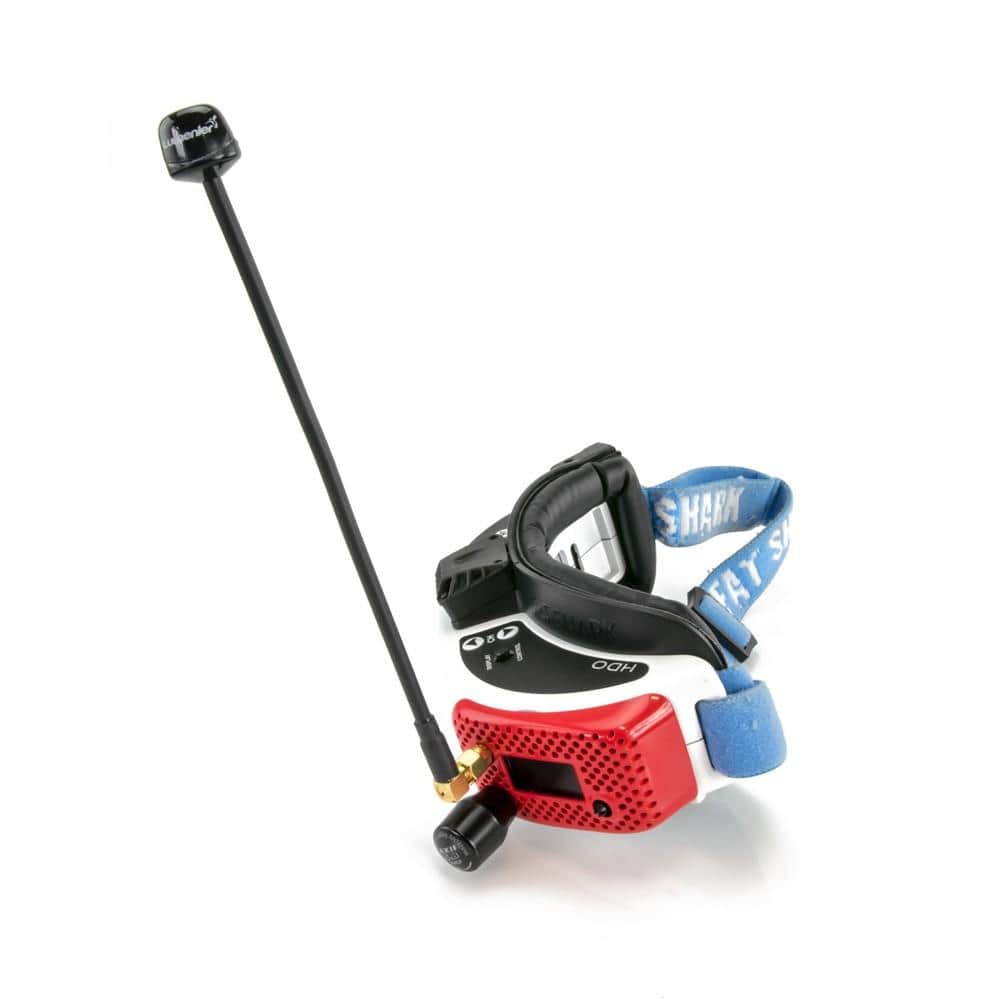

I own the ev200d goggles will these attach without adapters
Yes you can!
Will this antenna work with the ImmersionRC rapidFire? Do you need the Patch Antenna with this antenna?
Yes it will work with Rapid Fire, works very well. I have a patch but get better reception with using a pagoda that I had laying around. I mostly fly proximity so I can not vouch for long rangers.
