Lumenier AXII HD 2 5.8GHz RP-SMA Patch Antenna for DJI Goggles - Choose Color

Original price $49.99 - Original price $49.99
Original price
$49.99
$49.99 - $49.99
Current price $49.99
In Stock
Pre Order
Coming Soon

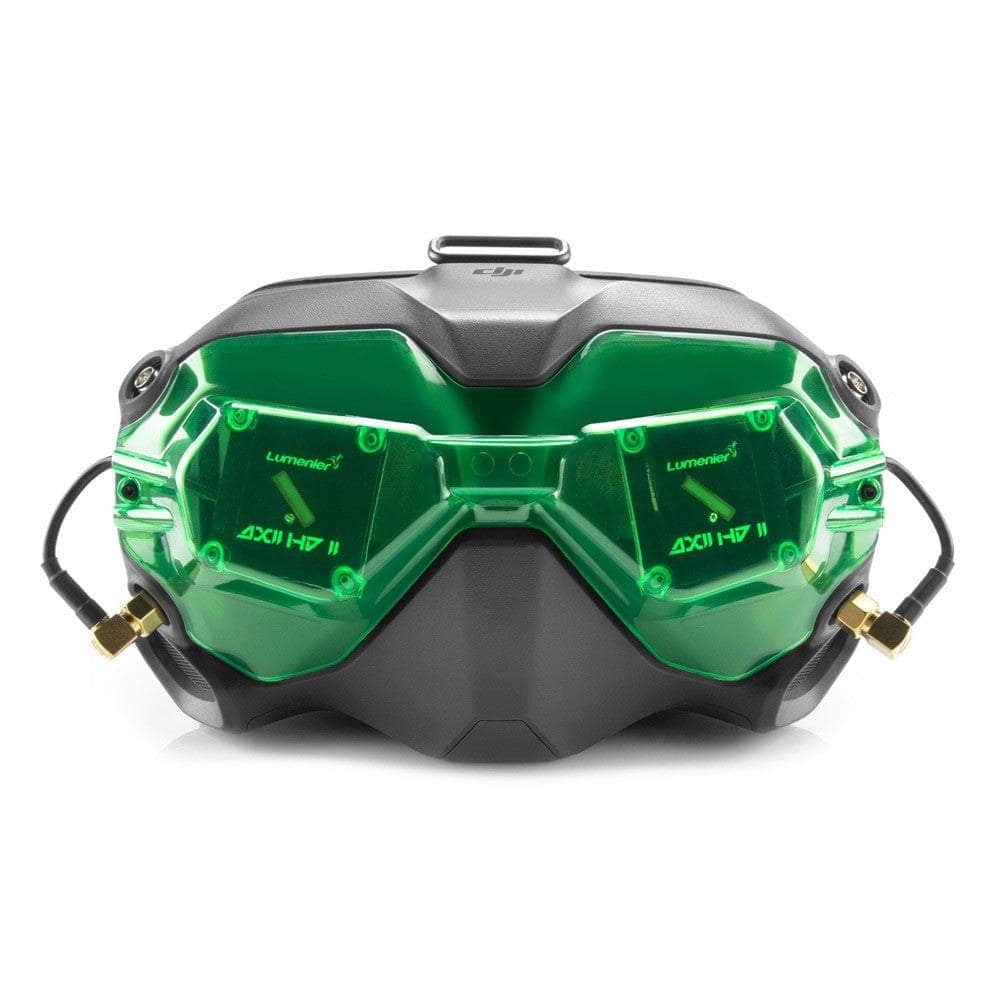

Color: Green
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

Building on the success of the original AXII HD antennas, the new AXII HD 2 improves on both looks and performance. Finally, a high-quality set of antennas designed as a direct replacement and upgrade for your stock DJI antennas for the DJI Digital HD FPV Goggles. The AXII HD 2 antennas were designed from the ground up to be a perfect match for the DJI goggles. The AXII HD 2 antennas feature a custom molded semi-transparent visor with embeded antennas inside. This provides a low profile, sleek looking, direct connect RP-SMA antenna solution, and all this with improved performance.

The Lumenier AXII HD 2 5.8GHz Patch Antenna offers you the highest performance you can get from a high gain mini patch antenna designed for DJI Digital HD FPV. The Lumenier AXII HD Patch has a high 8.4 dBiC gain for long range flying and excellent penetration through objects compared to standard omnidirectional FPV antennas. It also features an incredible 92% efficiency (most mini patch antennas are below 75%), which means you get amazing performance and the best picture in your video goggles. Lumenier, designed in collaboration with renowned FPV antenna designer Hugo of TrueRC, brings you the Lumenier AXII HD 5.8GHz Patch Antenna.

Form Fitting Design for DJI HD FPV Goggles

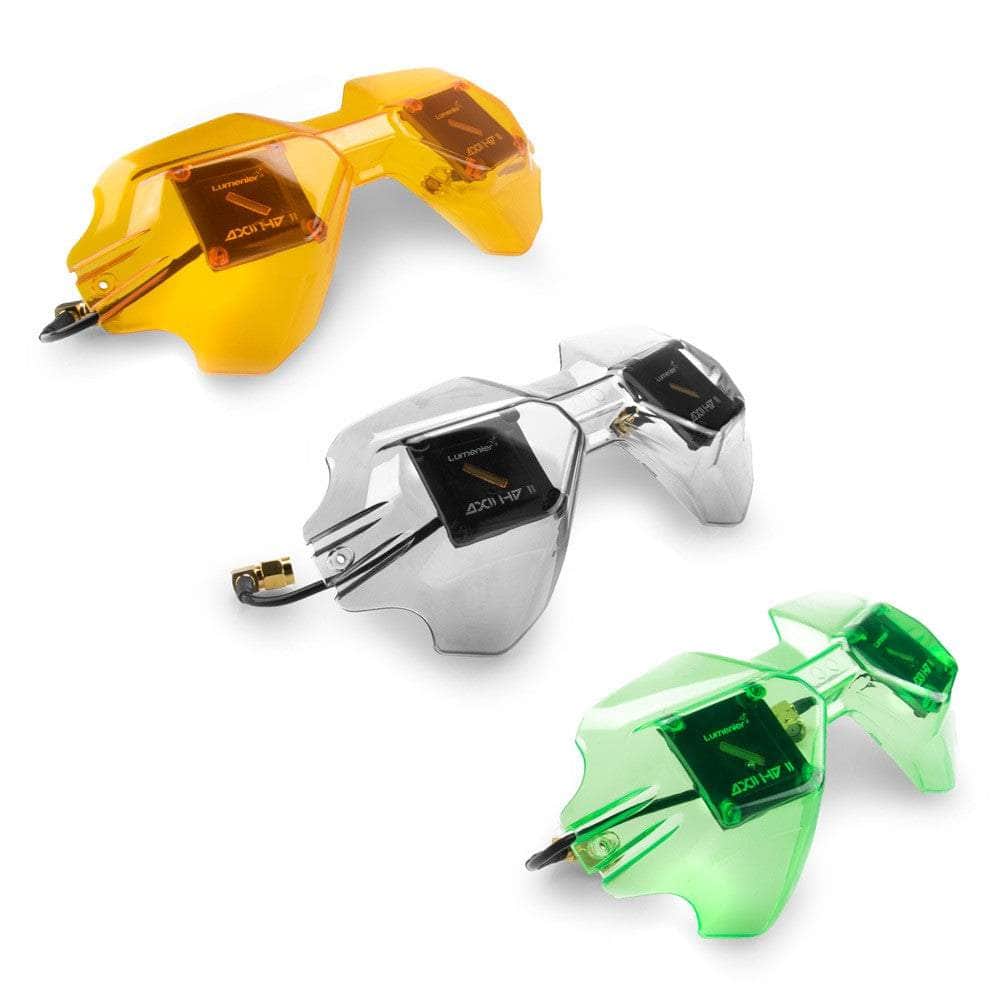

Not only do the AXII HD 2 Antennas have awesome performance, but they do it in an ultra-compact form factor with a custom injection-molded polycarbonate visor. This makes the antenna an ideal choice for your DJI HD system. Each Patch antenna comes pre-installed inside the visor making install a breeze. Since it is so small and compact you don't have to worry about bumping into things while wearing these antennas like other larger and heavier high gain antennas. Super easy to store in your travel bag as well, and no need to remove the antennas while traveling.

High Gain & Wide Beam Width

Generally, with such a high gain antenna you would have to sacrifice the effective FOV (field of view) or beam width, but with the AXII HD 2 Patch Antenna you get the best of both worlds: High gain and wide beam width! The AXII HD Patch will give you 8.4dBiC gain while still covering over 76 degrees of horizontal beam and 68 degrees vertically. This means the antenna is more forgiving and can still give you a clear picture even if you aren't pointed exactly at your aircraft or transmitter.

Check out our DJI antenna selection, all our DJI compatible gear and all our Lumenier products!

Features

  • Compact low-profile design on your goggles, easy to store and transport
  • High gain directional antennas
  • LHCP Circular Polarization
  • Every antenna is QC checked for guaranteed best performance

Specifications

  • Polarization: LHCP
  • Frequency: 5.8GHz
  • Bandwidth: 220 Mhz
  • Gain: 8.4 dBiC
  • VSWR: 1:1.1
  • Radiation Efficiency: 95%
  • Beam Width: 76° H. 76° V.
  • Connector: RP-SMA
  • Weight: 33g

Includes

  • 1x Lumenier AXII HD 2 5.8GHz RP-SMA Patch Antenna for DJI Goggles
>
