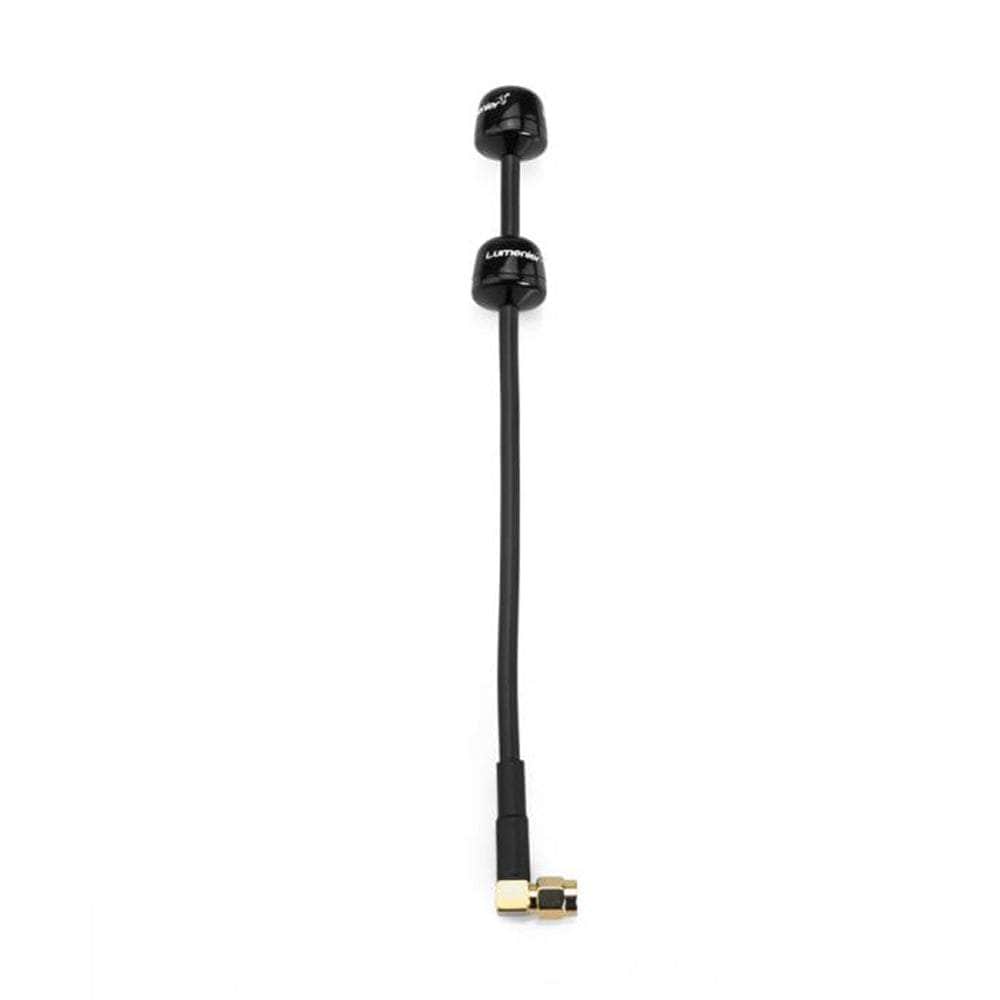

Lumenier Double AXII 2 5.8GHz 90° SMA Long Range Antenna - RHCP

Original price $29.99 - Original price $29.99
Original price
$29.99 - $29.99
Current price $29.99
Coming Soon
In Stock
Pre Order
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

Double Gain for Longer Range – The Double AXII 2 features a combination of 2 antenna elements which more than doubles the gain (up to 4.7dBiC) of a standard AXII 2 antenna. Fly further and have a clear FPV signal. High-gain & omni-directional – Get 360° coverage. Better suited for receiving vs. transmitting (due to "doughnut" pattern with nulls), yet still great creativity possibilities when transmitting.

Note: When installing, secure the antenna via the SMA connector, do not twist the cap.

Check out all our 5.8GHz VTX antennas all our Lumenier products!

Double the Gain = Longer Range

One of the biggest features of the Double AXII antenna is unique combination of 2 antenna elements into a single high gain antenna network. With precision manufacturing and fine tuning each Double AXII is able to effectively more than double the gain of a standard AXII 2 antenna from 2.2 to an incredible 4.7dBiC! This means you can fly further or behind more objects and still have a clear FPV video signal.

High Gain + Omni-Directional

High gain antennas aren't anything new. You can find many patch, helical, cross-hair style antennas which will offer high gain, but the downside is they are extremely directional. This means they only work well in the direction they are pointing.

The Double AXII 2 antenna is omni-directional, meaning it works 360 degrees around you. You can fly in front, behind, or to the sides and still have the same great reception. It doesn't matter where you are pointing, you will have great signal all around you!

Best on Receiving or Transmitting?

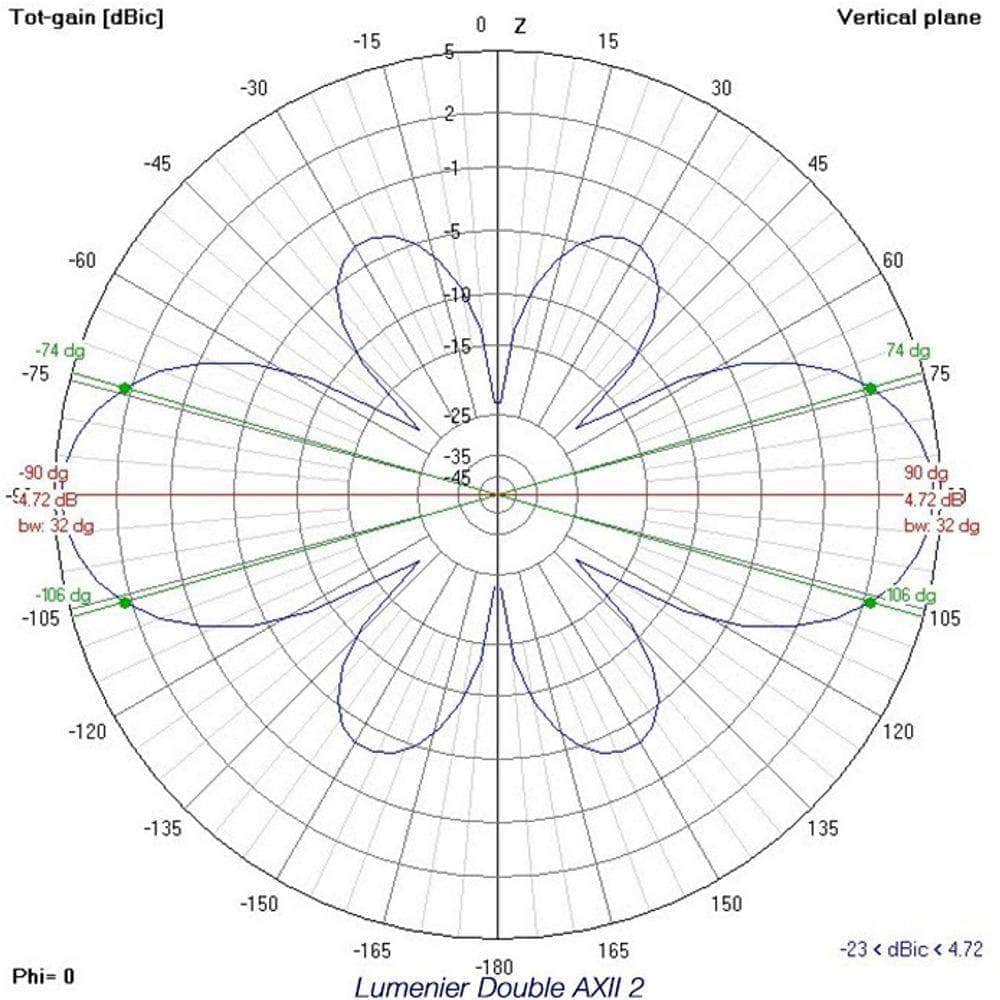

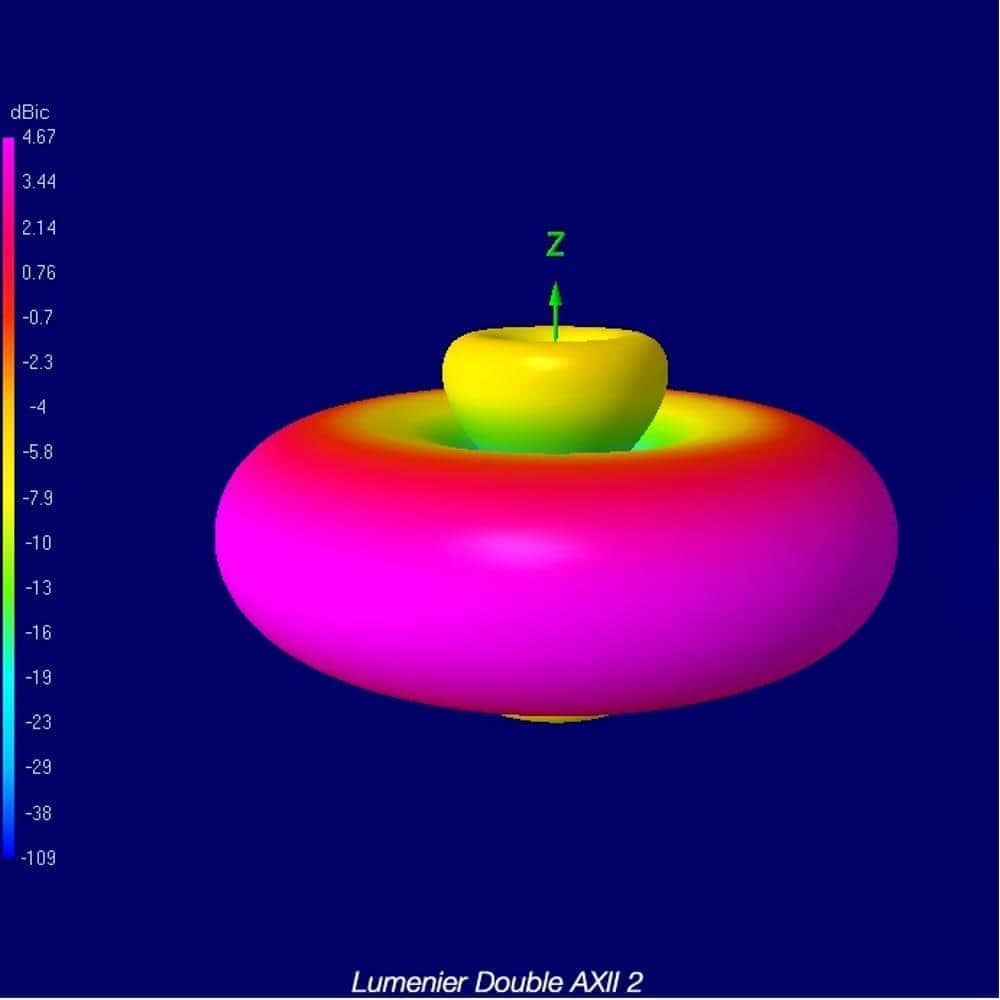

The Lumenier Double AXII 2 antenna can work for both receiving or transmitting, however due to the nature of the radiation pattern it is best suited as a receiving antenna in most cases. The higher gain gives you much longer range in a "doughnut" style radiation pattern, but it does have some nulls directly above/below the antenna and some small nulls around the 50 degree areas.

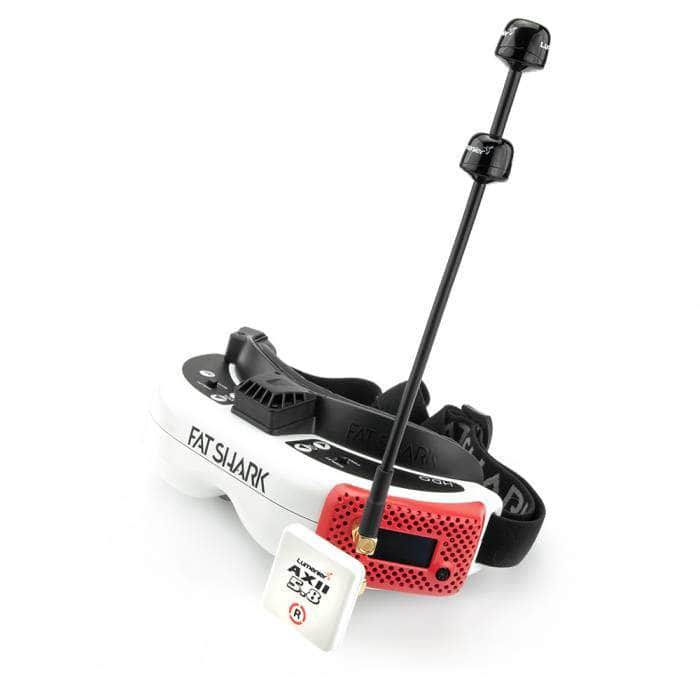

As a receiving antenna if you have the Double AXII 2 in a vertical orientation you will have excellent signal all around you in a 32 degree FOV. You can do the same by putting the antenna on the transmitter of your aircraft, however during flight if you tilt or bank a lot you may run into the null areas of the antenna. This is why it is generally best used as a receiving antenna. But don't let us stop you from getting creative! Need an antenna on your plane for an ultimate long range mission? This may be the perfect fit for you.

Improved Features Over Standard AXII V1

  • Significantly Improved Range with a Higher Gain (4.7dBiC Gain)
  • Wider Bandwidth (5.3-6.2GHz)
  • Cleaner Signal And Better Rejection to Interference
  • More Durable - Improved Injection Molded Housing
  • Virtually Perfect Axial Ratio
  • Precision engineering has given this antenna a virtually perfect 1.0 Axial ratio resulting in a true circularity. On top of that, the Double AXII 2 has an amazing max gain of 4.7dBiC, a true upgrade over the original AXII.

Super Tough

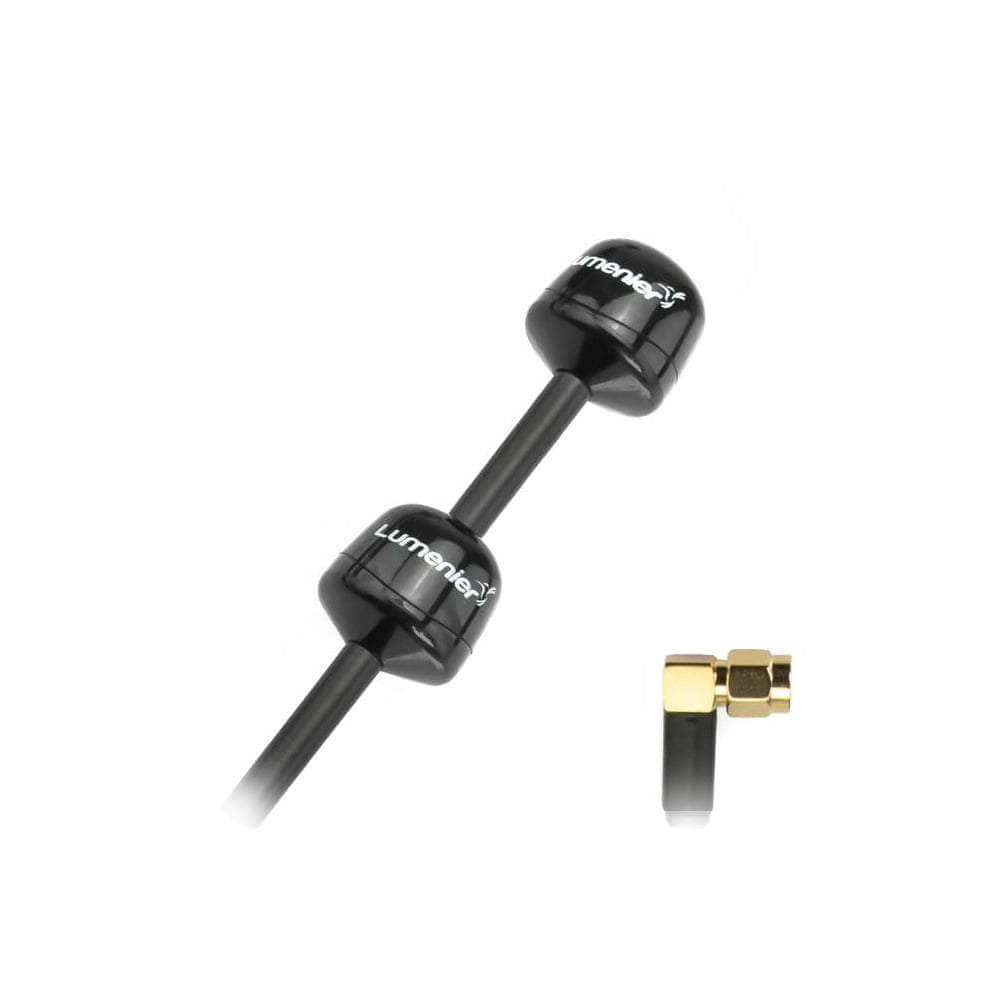

Antennas take a lot of abuse, especially when put onto a quad. The AXII 2's robust antenna housing is made out of a new injected molded polycarbonate, and ultra-sonically welded shut. This has significantly improved the durability of the AXII housing. The 120mm long semi-rigid RG402 cable allows for 90 degrees or more of freedom. The SMA connection is reinforced with a metal collar crimped to the base for extra support.


  • Gain: 4.7dBiC
  • Axial ratio: 1.0 (near perfect)
  • Bandwidth: 5.3GHz-6.2GHz
  • Radiation Efficiency: 98%
  • SWR: <=1.5:1
  • Weight: 20g
  • Size: 190mm x 17.5mm
  • Cable: Semi-rigid RG402
  • Connector: Right-Angle SMA
  • Polarization: RHCP


  • 1x Lumenier Double AXII 2 5.8GHz 90° SMA Long Range Antenna - RHCP
