Description

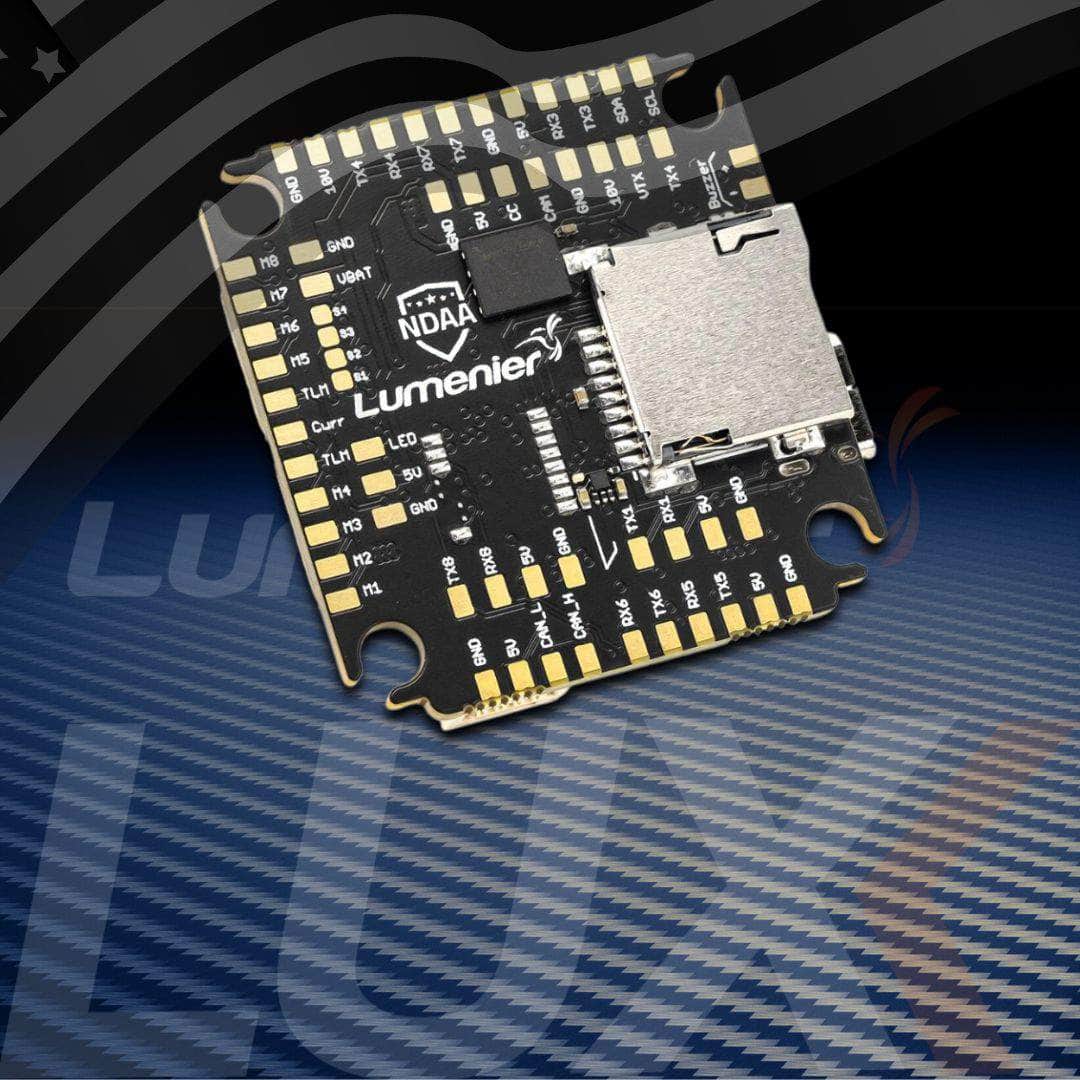

The Lumenier LUX F765 Flight Controller is your ultimate solution for high-performance multirotor builds, offering robust features and seamless compatibility with Betaflight, Ardupilot, and PX4. Its NDAA-compliant design is for professional and recreational builders and pilots seeking unmatched reliability and precision, this FC is designed to level up your drone!
Make sure to check out our other Flight Controllers and our Lumenier product selection!
Features
- Supported Firmware - Betaflight, Ardupilot, and PX4
- Blackbox Storage - SD Card and Flash
- I2C Ports for External Sensors
- 10V Regulator for VTX Power
- 5V Regulator for Accessories
- Analog Current Sensor Input
- Analog Battery Sensor Input
- CANbus Support (PX4 only)
- Camera Control Output
- LED Strip Control
- NDAA compliant and designed in the USA
- USB Type-C (2.0)
- 8 UART Ports
Specifications
- Processor: MCU STM32F765, 216MHz, 512KB RAM, 2MB Flash
- Sensors: Built-in Gyro, Accelerometer, and Barometer
- Power Supply: 3S to 8S Battery Voltage
- Weight: 9g
- LED Indicators:
- 2x LEDs for Status (3.3V Power and Firmware Indicator)
- Power Regulators:
- Analog Inputs: 2x ADC (VBAT and Current)
- Camera Support: 1x Camera Input
- +10V Regulator for VTX
- +5V Regulator
- Mounting:
- Holes: 30.5mm x 30.5mm
- Dimensions: 38x38x4mm
- Outputs:
- 12x Motor/Servo Outputs
- LED Strip Control
- Buzzer Output
- Storage:
- Flash Storage: 128Mb
- SD Card Slot
- Ports:
- 1x External I2C Port
- USB Type-C (2.0)
- 1x CANbus Port
- 8x UART Ports
Important Notes
- When using Ardupilot or PX4 builds, an sdcard is required to boot after firmware install.
Links
MANUAL
FIRMWARE
- PX4:
- Betaflight:
- Ardupilot:
Includes
- 1x Lumenier LUX F765 Flight Controller - NDAA
- 1x 63mm 8 pin JST-SH Cable
- 1x 23mm 8 pin JST-SH Cable
- 1x 64mm 6 pin JST-SH Cable
- 1x 75mm 4 pin JST-SH Cable
- 4x M3 Rubber Grommets
