Description

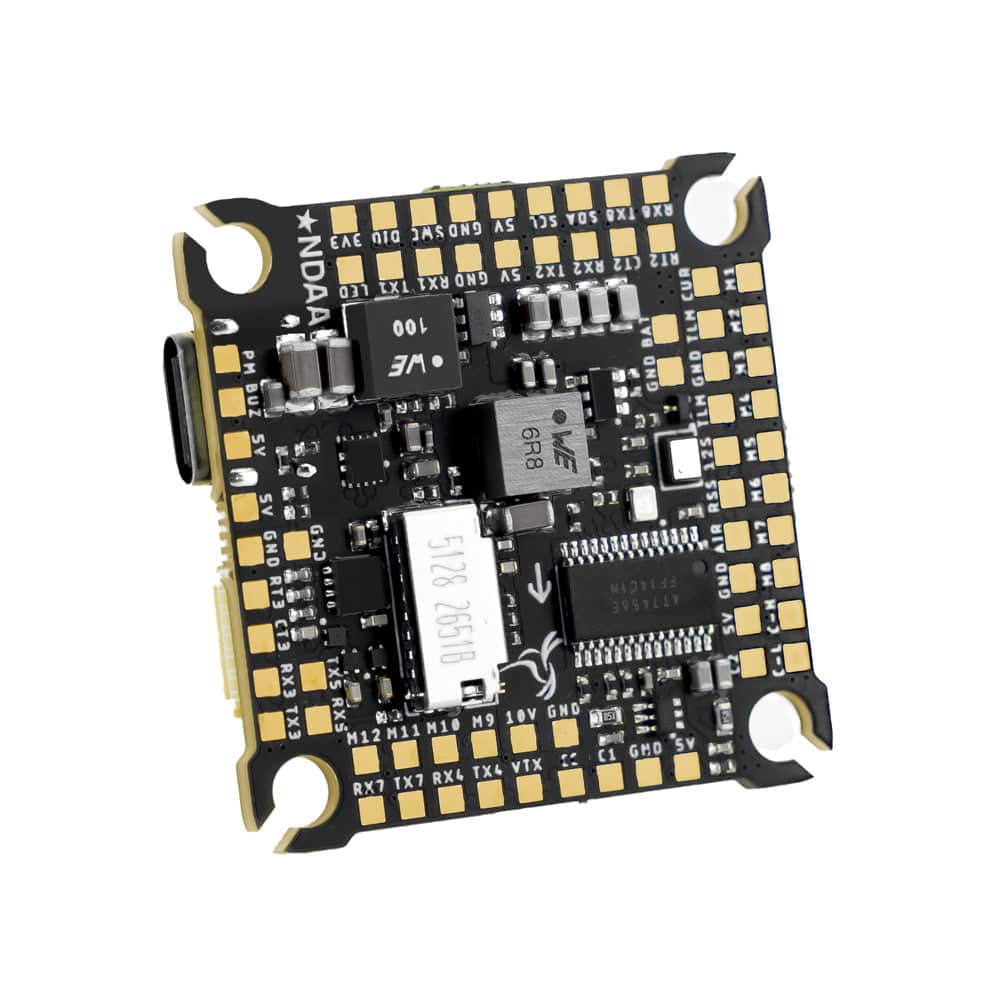

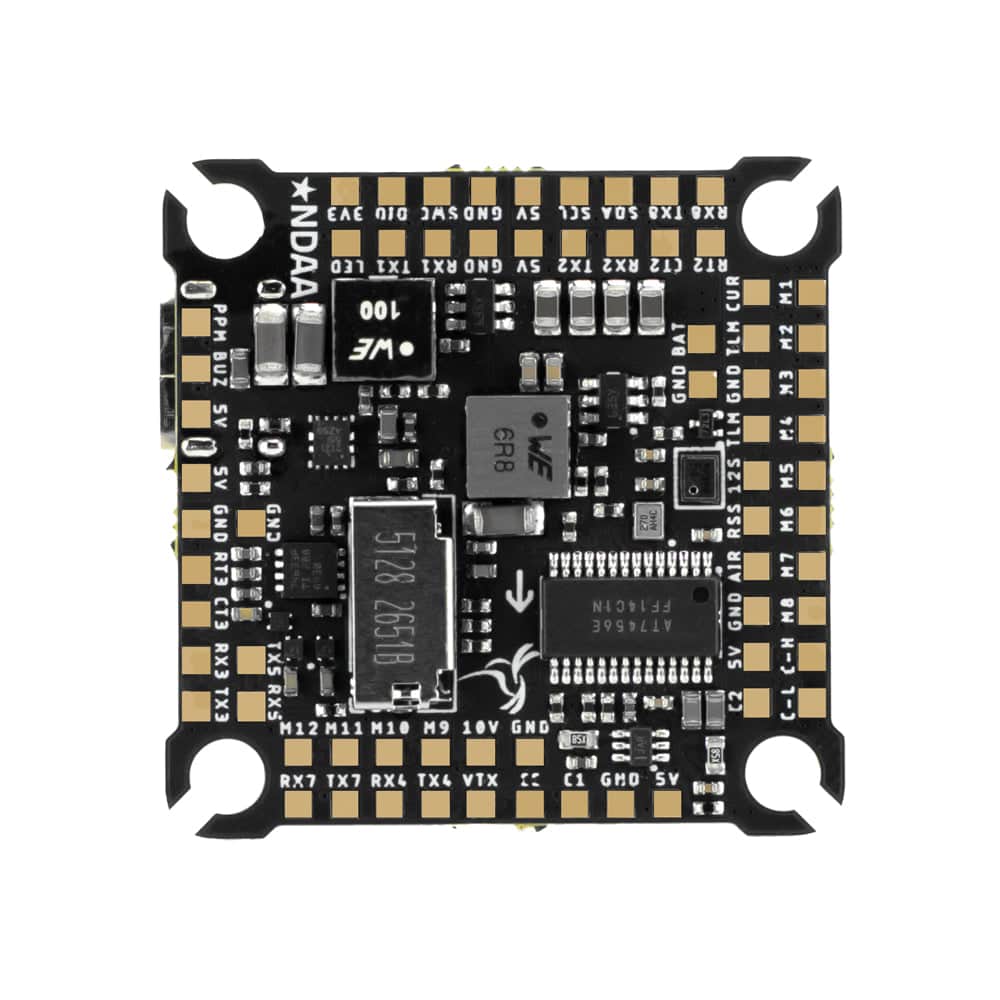

The Lumenier LUX H743 – NDAA Flight Controller features some of the latest sensors in drone technology, including the next-generation InvenSense ICM-45686 Gyro/Accelerometer, Infineon DPS368 barometer, and STMicroelectronics LIS2MDL magnetometer. Additionally, the LUX H743–NDAA features several differentiating characteristics, including a camera feed switch that allows toggling between two independent video streams.

Make sure to check out our other Flight Controllers and our Lumenier product selection!

Features

• Dual Gyro/Accelerometer Sensors with Synchronization Clock Signal and Independent Power Supplies
• Supported Firmware - Betaflight, INAV, Ardupilot, and PX4
• 7 UART Ports, Including 2 UARTs with Flow Control
• Internal Magnetometer
• NDAA Compliant
• LED supported

Specifications

• Input Voltage: 3S to 8S

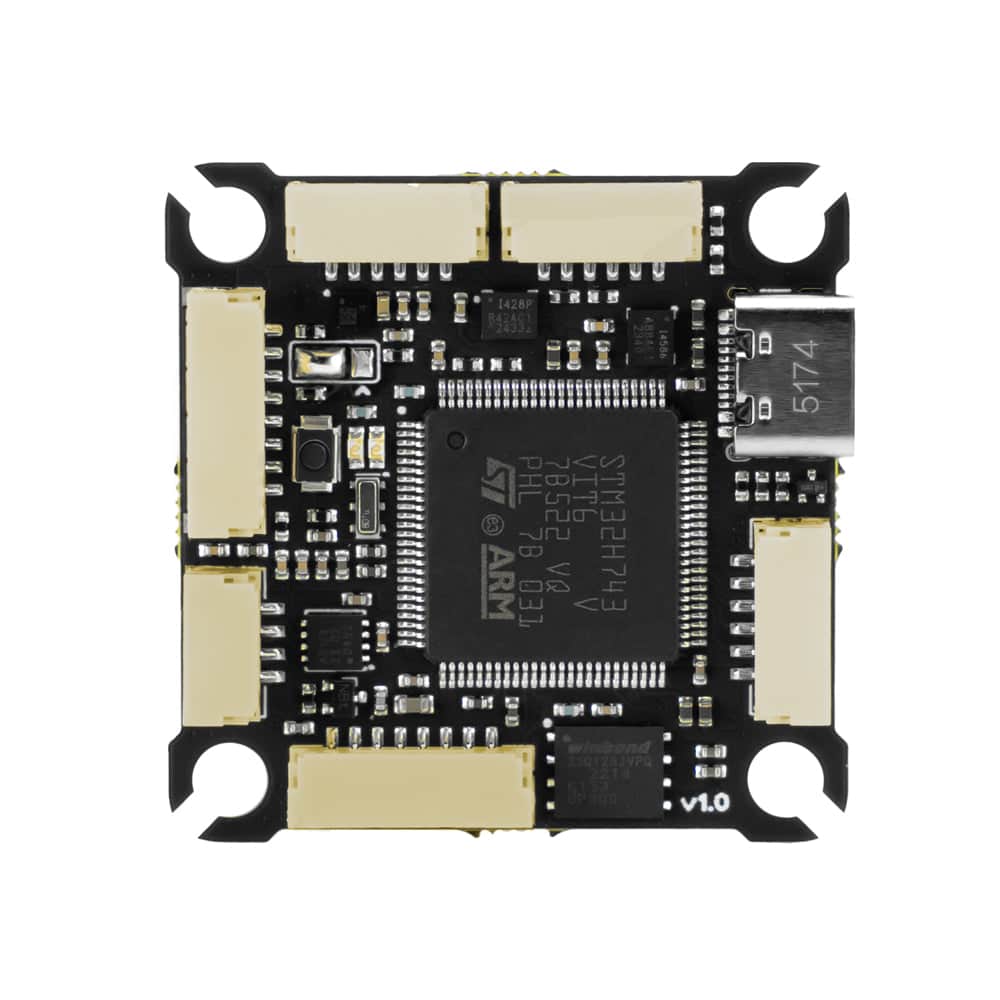

• MCU: ST STM32H743, ARM® Cortex®- M7, 480MHz, 1MB RAM, 2MB Flash
• Gyro/Accelerometer #1: Invensense ICM-45686
• Gyro/Accelerometer #2: Invensense ICM-42688-P
• Barometer: Infineon DPS368
• Magnetometer: STMicroelectronics LIS2MDL
• Flash Storage: Windbond W25Q128JV (128Mbit)
• OSD: AT7456E
• Size: 37.5mm x 37.5mm
• Mounting holes: 30.5mm x 30.5mm
• External Sensors: I2C Ports
• CANbus Support: PX4 and Ardupilot only
• LED Strip Control: WS2812
• Voltage regulators: +5V Regulator for Accessories, +10V Regulator for VTX Power
• Camera Control Output: Supported
• Dual Camera Switch: Supported
• VTX Power Switch: Supported
• RX PPM Input: Supported
• Analog Battery Sensor Input: 8S and 12S Inputs
• Analog Current Sensor Input: Supported
• Blackbox Storage: SD Card and Flash
• USB: Type-C (2.0)
• Pixhawk Telemetry: GPS and CAN Ports

Important Notes

• When using Ardupilot or PX4 builds, an SD card is required to boot after firmware installation.

Links

• MANUAL

  • Lumenier LUX H743 FC Manual



• NDAA DECLARATION

  • Lumenier NDAA Product Declaration - LUX H743 Flight Controller



• FIRMWARE

  • PX4:
    • Firmware Install
  • INAV:
    • Firmware Install
  • Betaflight:
    • Firmware Install
  • Ardupilot:
    • Firmware Install

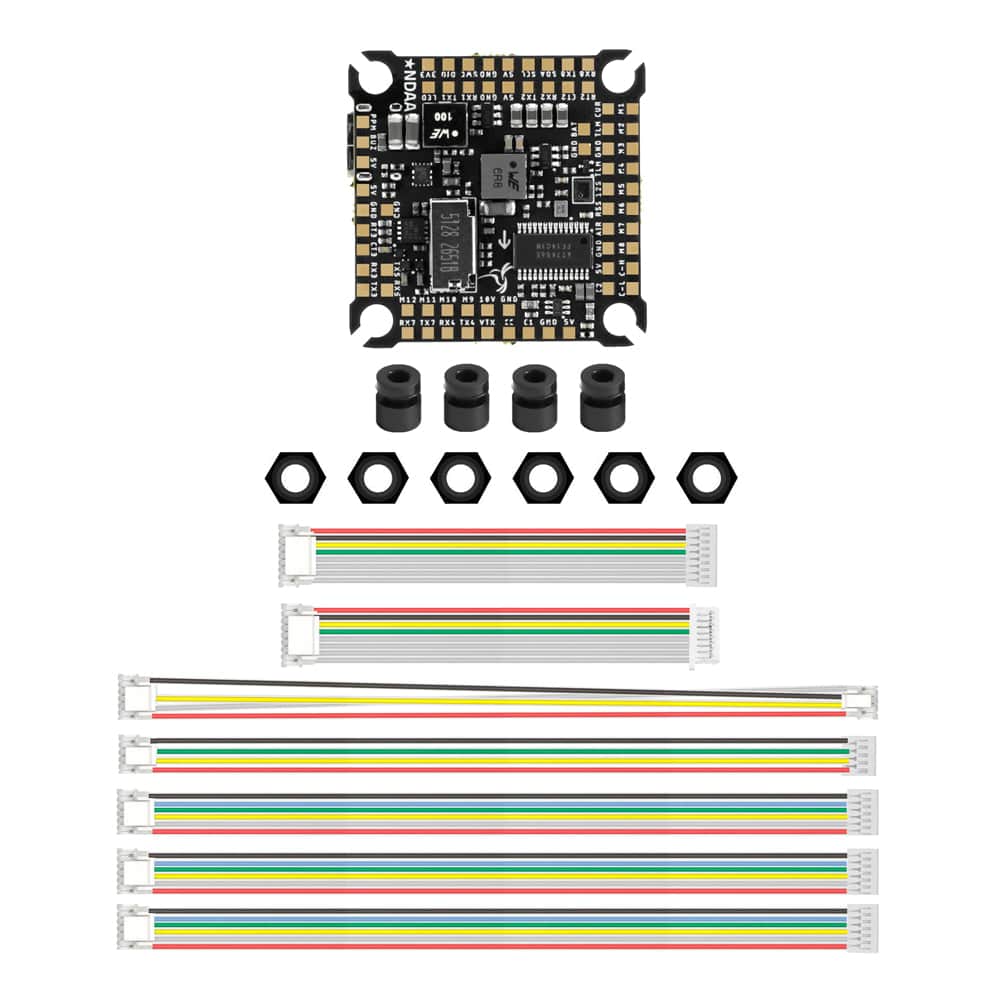

Includes

• 1x Lumenier LUX H743 Flight Controller - NDAA
• 1x 100mm 8-pin JST-GH to 8-pin JST-GH Cable
• 1x 100mm 8-pin JST-GH to 8-pin JST-SH Cable
• 1x 200mm 4-pin JST-GH to 4-pin JST-GH Cable
• 1x 200mm 6-pin JST-GH to 4-pin X1002H Cable
• 1x 200mm 6-pin JST-GH to 6-pin JST-GH Cable
• 5x M3 Rubber Grommets
