Lumenier Micro AXII 2 5.8GHz U.FL Antenna - Choose Polarization & Length

Original price $19.99 - Original price $19.99
Original price
$19.99
$19.99 - $19.99
Current price $19.99
In Stock
Pre Order
Coming Soon
Polarization: LHCP
Length: 65mm
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

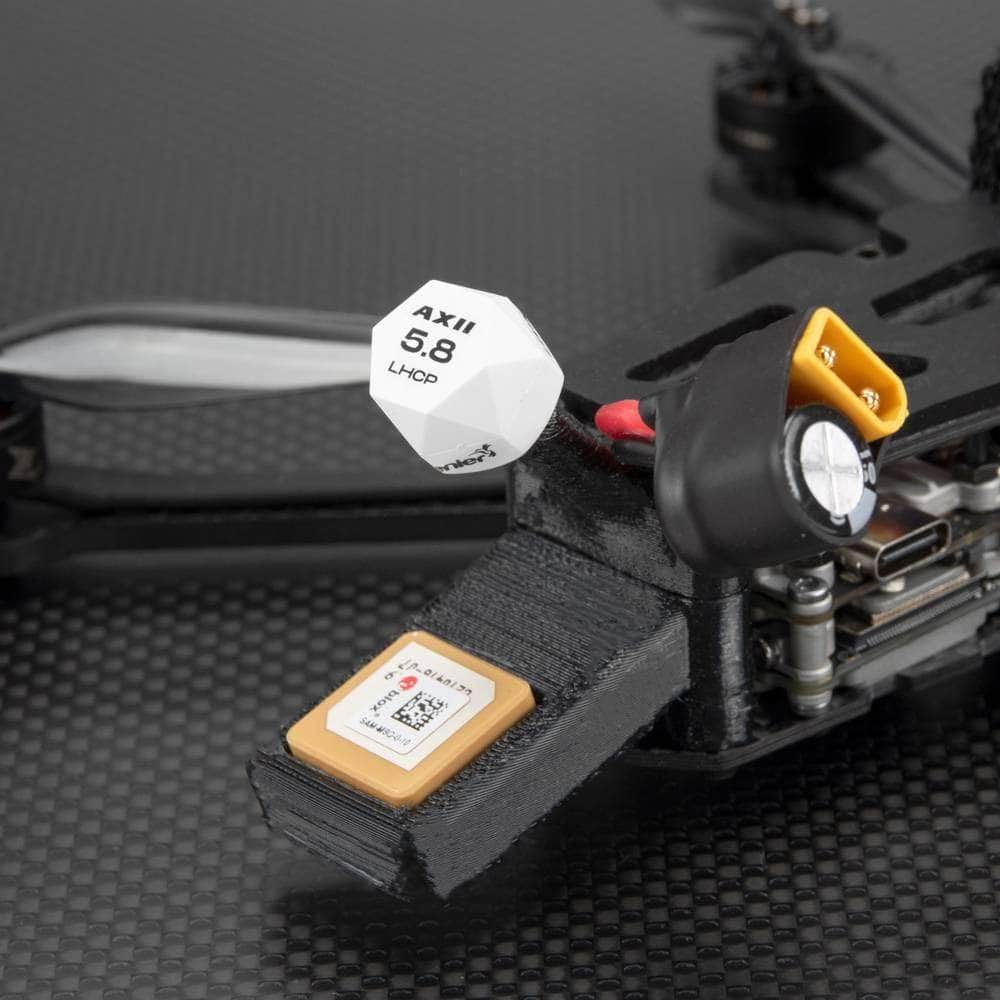

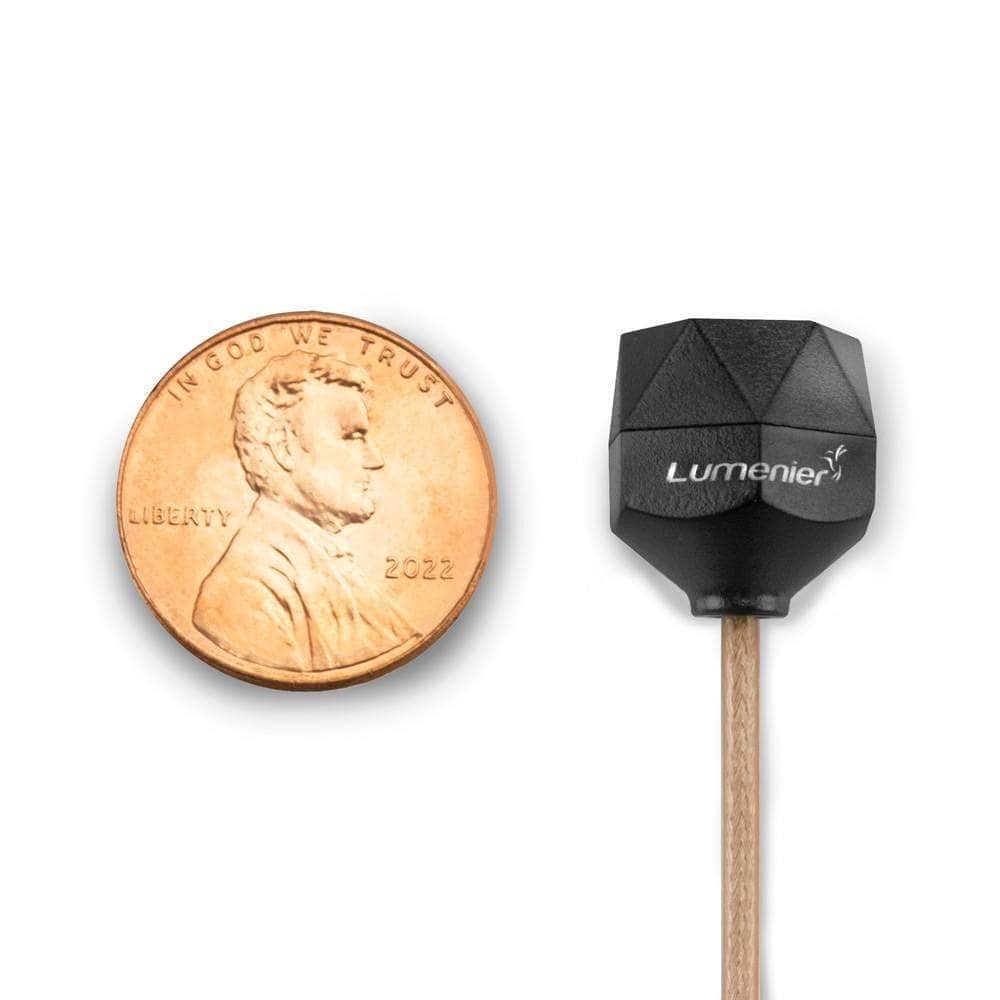

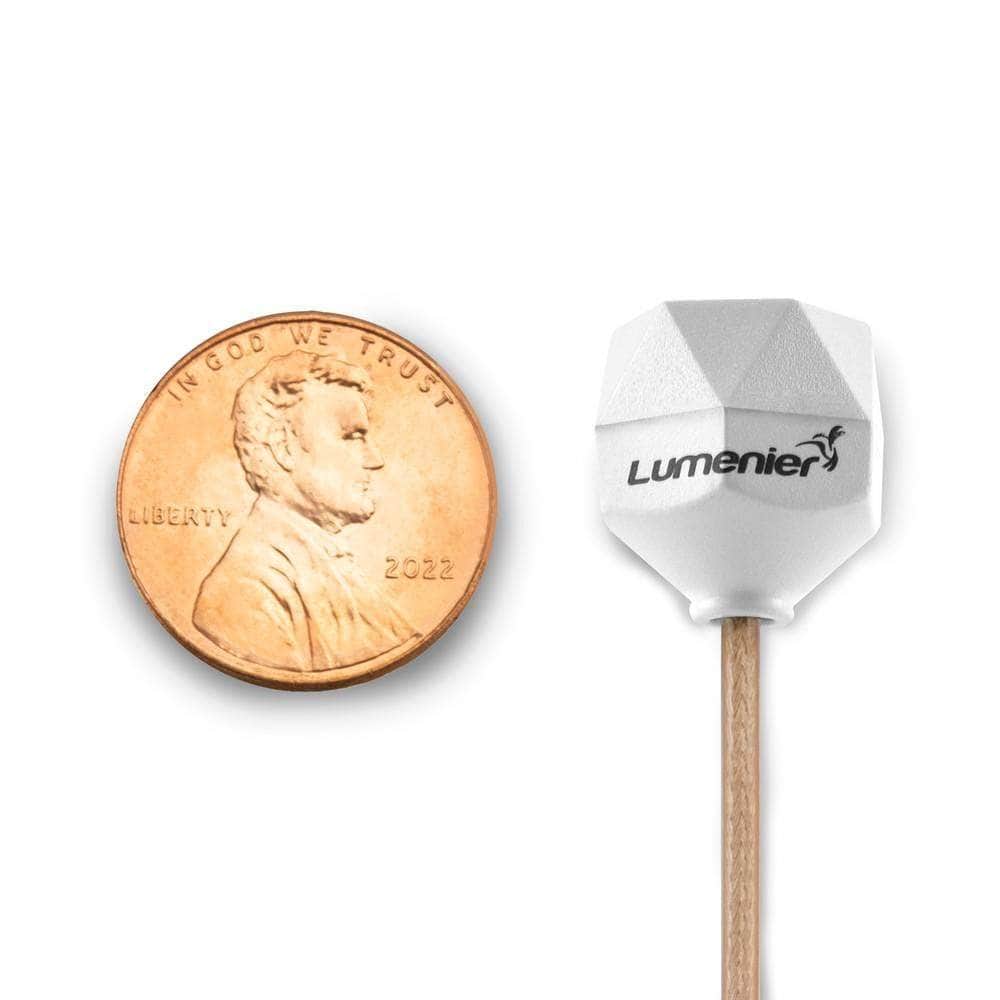

The Lumenier Micro AXII 2 5.8GHz Antenna is the new generation of the world's most popular FPV antenna. The Micro AXII 2 has incredible performance just like the full-size AXII antennas but at less than 1/2 the size and weight! Lumenier, in collaboration with renowned FPV antenna designer Hugo of TrueRC, brings you the smallest, lightest, and best-performing FPV antennas in the world. The Micro AXII 2 antenna improves on the original Micro AXII antenna and features a new RF pathway technology (unique hybrid network) improving performance while still being incredibly small and lightweight.

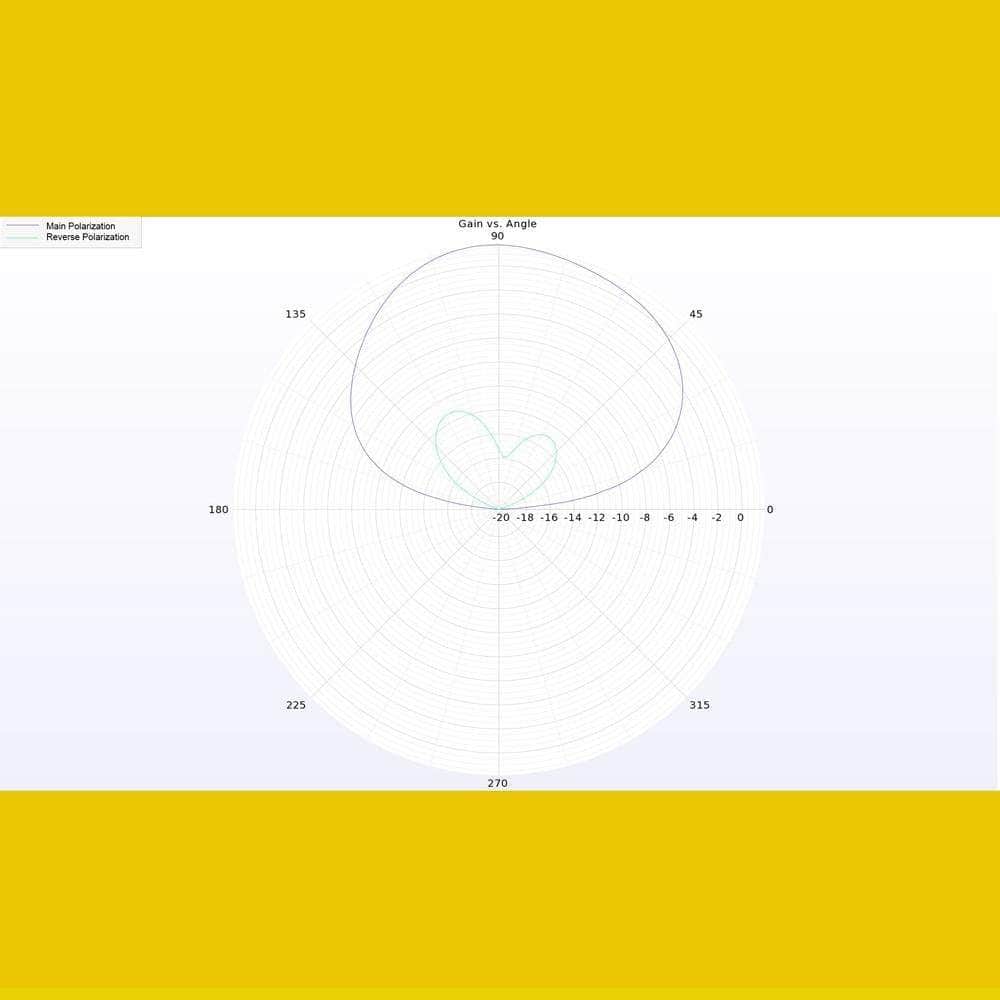

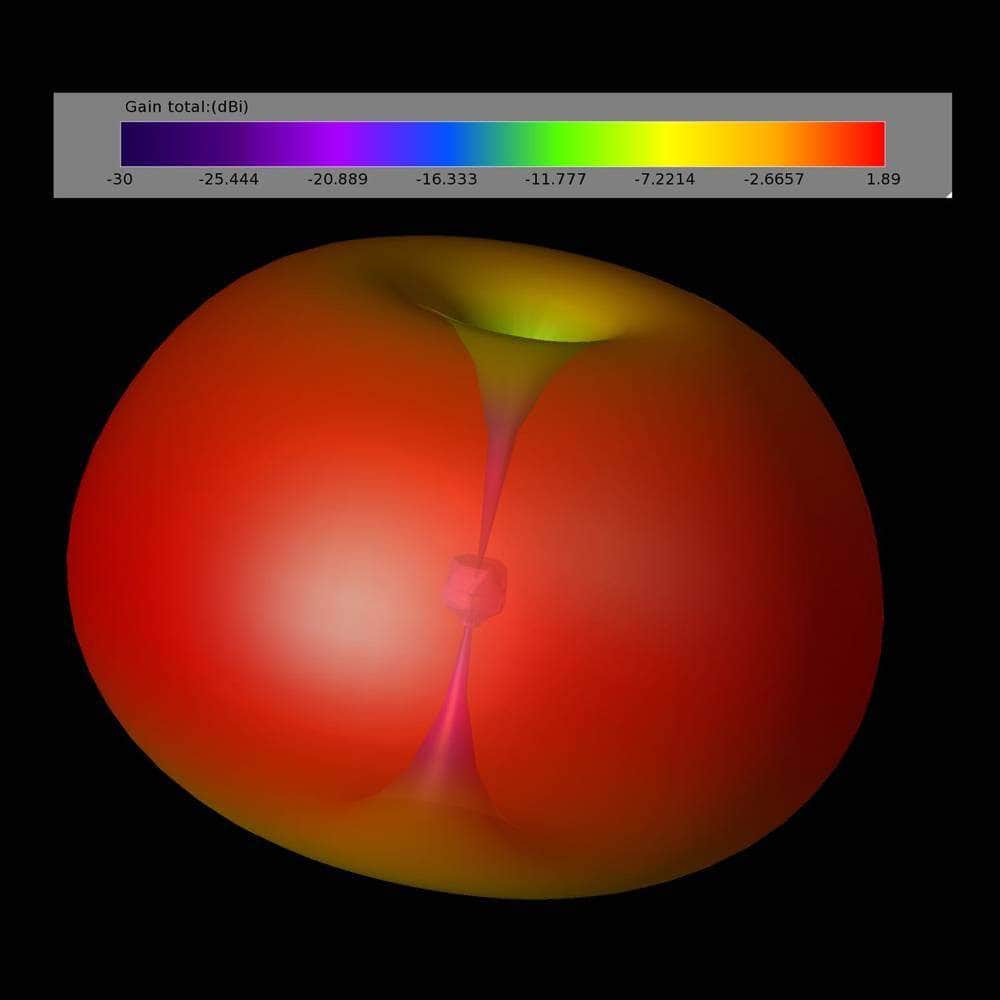

Even though the Micro AXII 2 is both small and lightweight, it does not sacrifice performance. In fact, it outperforms most other antennas in all categories. Precision engineering has given this antenna a near-perfect Cross-Polar Rejection resulting in a true circularity. This means an RHCP Micro AXII antenna rejects nearly 100% of LHCP signals, giving you a crystal clear image free of multi-pathing noise. On top of that, the Micro AXII 2 has a best-in-class max gain of 1.9dBic enabling better range and penetration. It has a wide bandwidth covering the popular FPV 5GHz band from 5.5GHz-6.0GHz, ensuring you have a clear and strong signal no matter which frequency you're on.

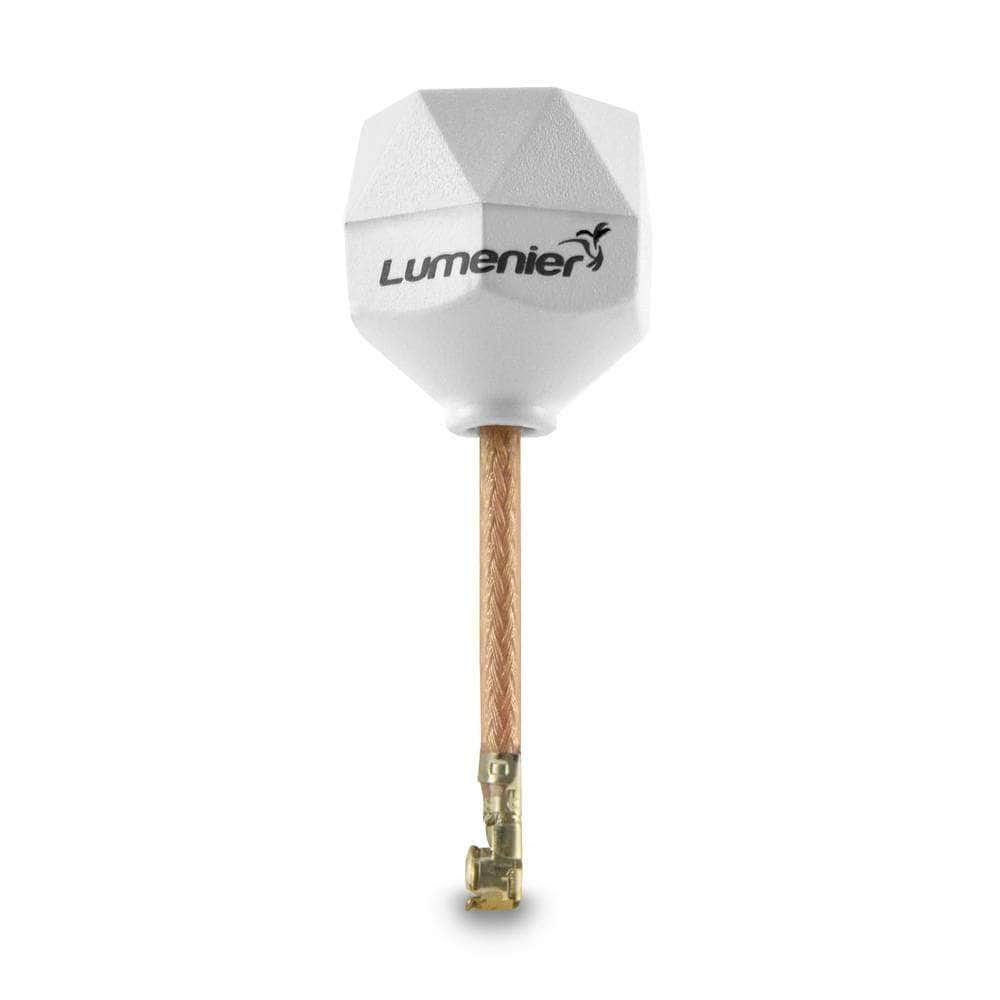

The Micro AXII is designed to be extremely durable and put up with the beatings FPV pilots put on their antennas. The entire antenna array is securely protected inside the injection-molded outer casing. The outer shell case is made from an impact-resistant polycarbonate material, and it is ultra-sonically sealed shut to guard the antenna elements inside.

When the original Lumenier Micro AXII Antenna was released it set a new standard for micro-sized FPV antennas with incredible performance in a tiny package. The Micro AXII 2 improves upon the original design and pushes the boundaries even further!

Check out all our 5.8GHz VTX antennas all our Lumenier products!

Features

  • Ultra-durable injection molded case
  • Better Cross-Polar Rejection
  • Higher Gain for longer range
  • New and improved look
  • Improved efficiency

Specifications

  • Weight: 1.03g to 2.8g depending on configuration
  • Cross-Polar Rejection: -15 to -30dB (1.9%)

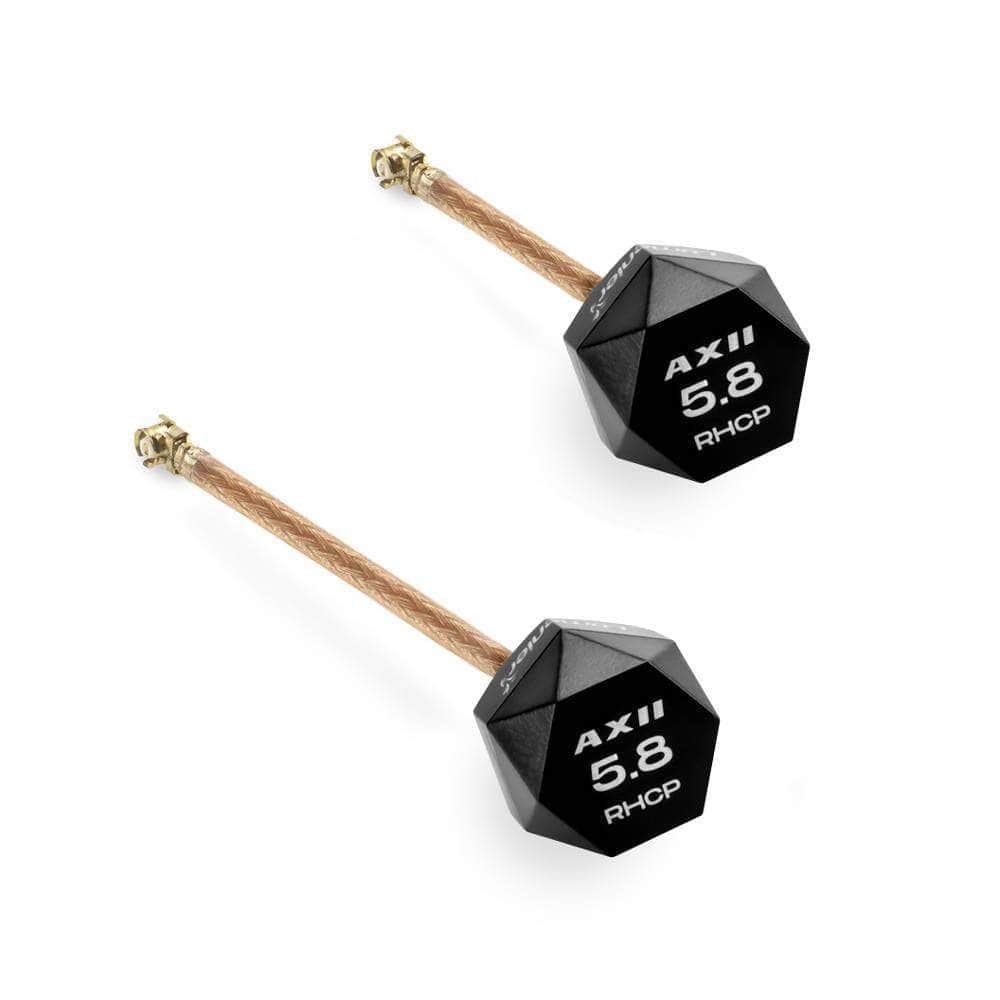

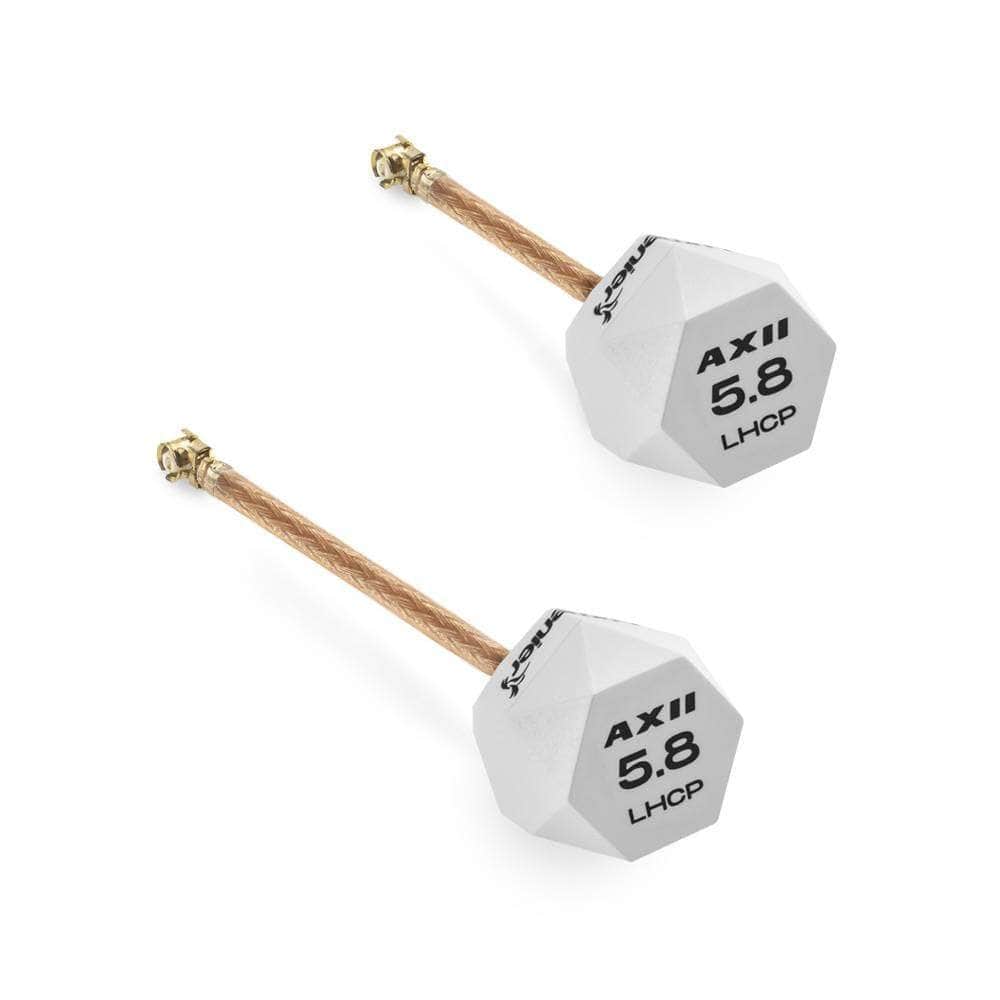

  • Polarization: RHCP or LHCP versions
  • Bandwidth: 5.6GHz-6.0GHz
  • Radiation Efficiency: 99%
  • Cable Length:

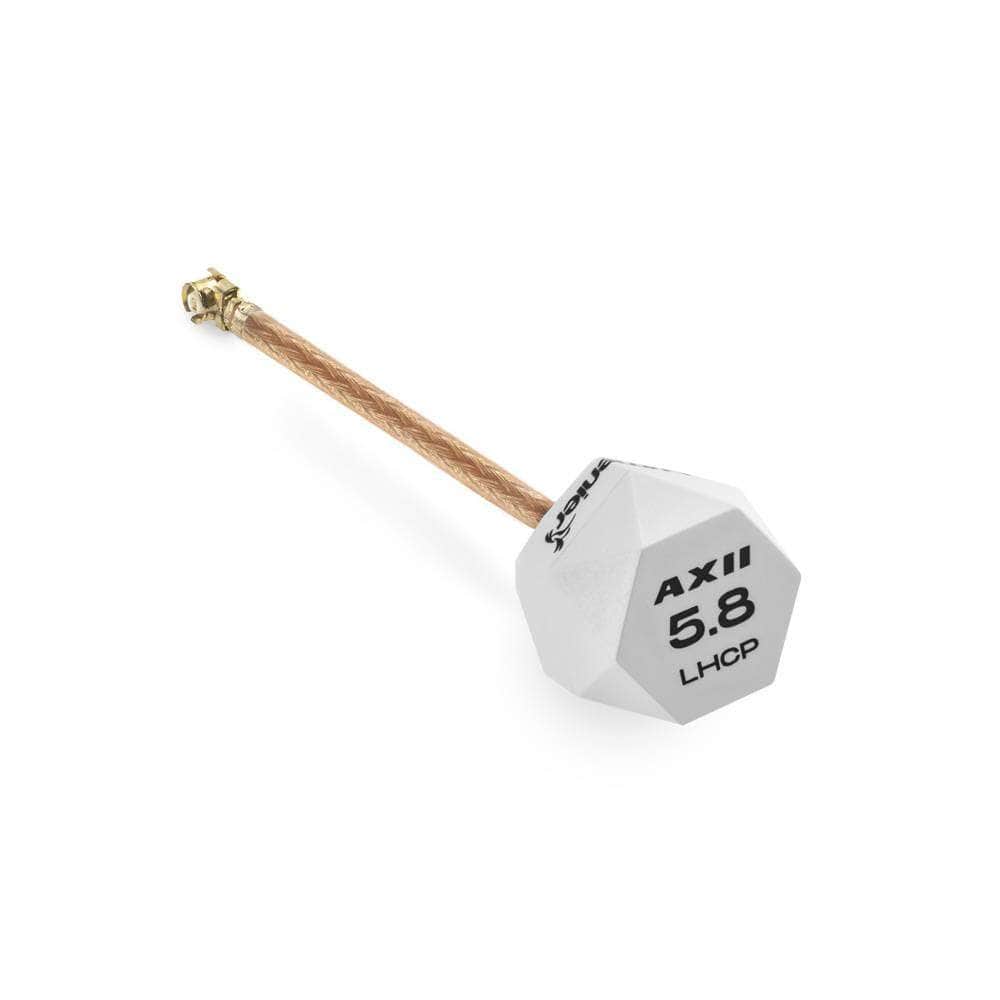

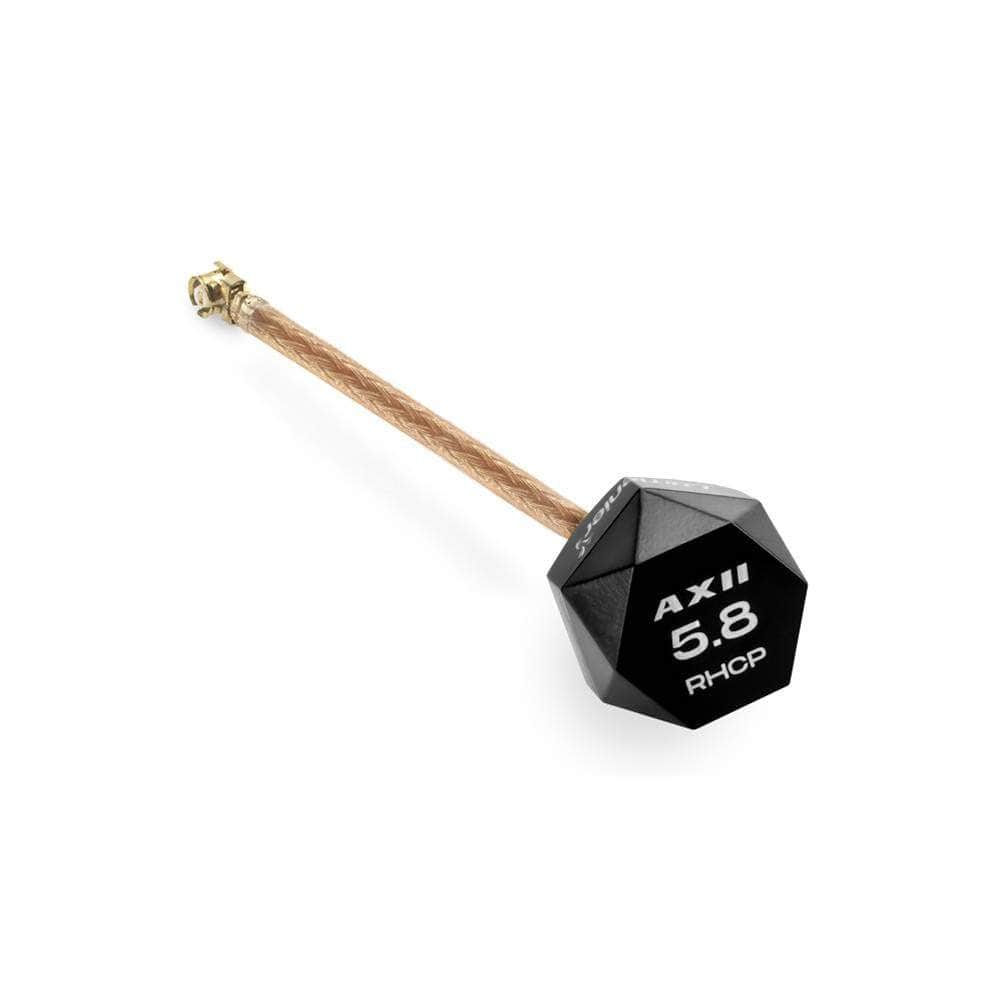

    • Regular: 65mm

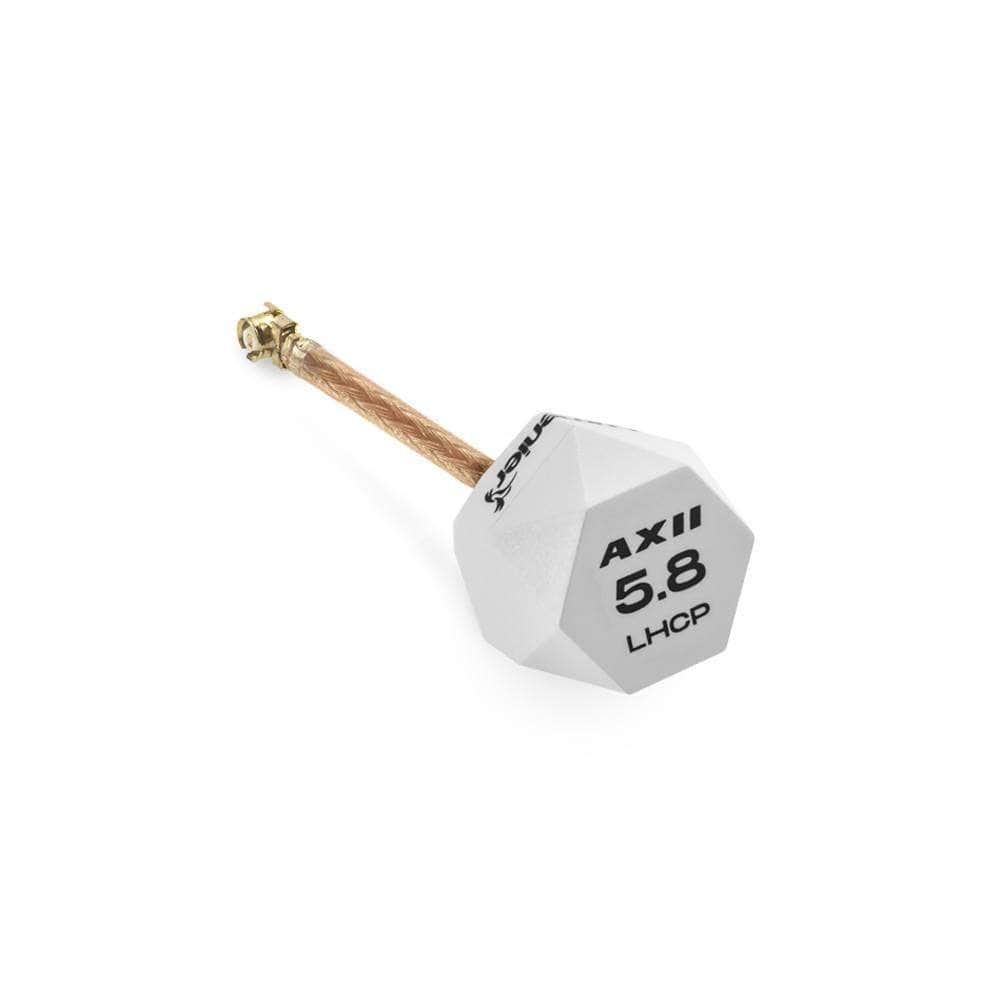

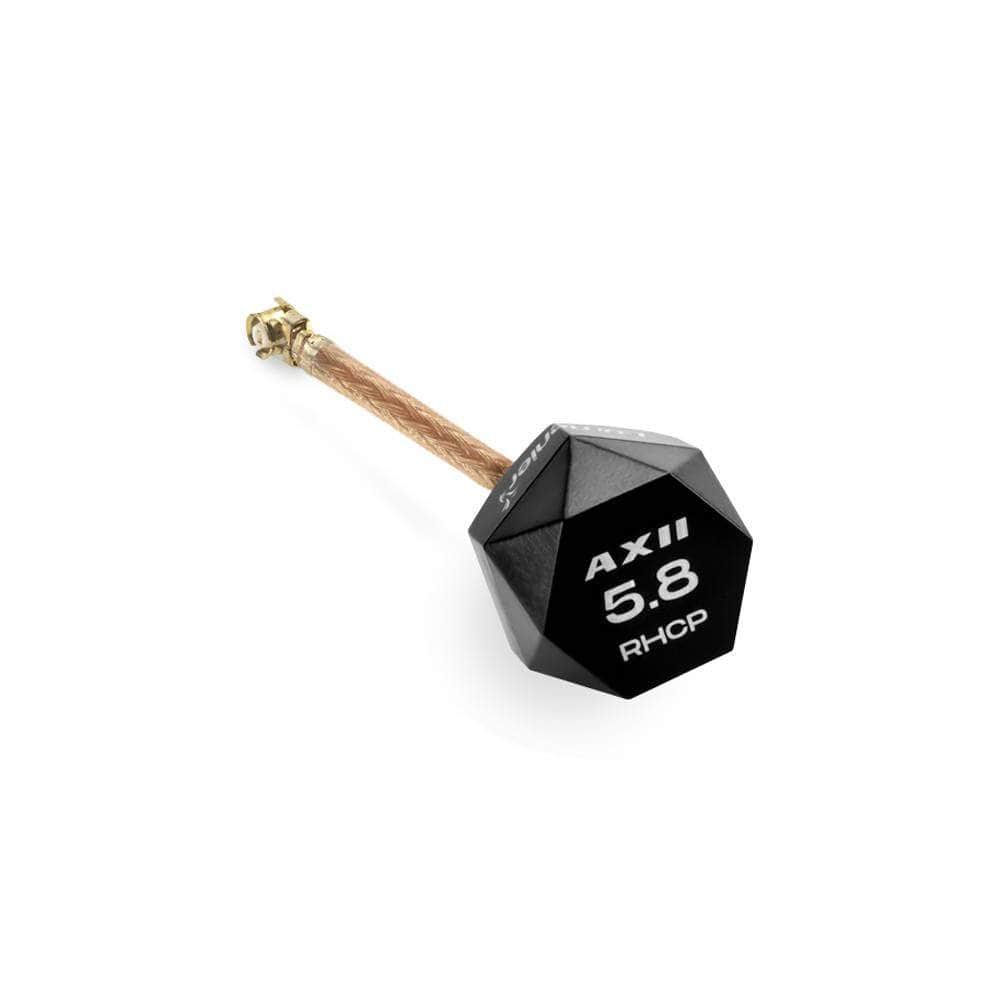

    • Short: 20mm
  • Connector: U.FL
  • Gain: 1.9dBic
  • SWR: <=1.5:1

Includes

  • 1x Lumenier Micro 2 AXII U.FL 5.8GHz Antenna



>
