Description

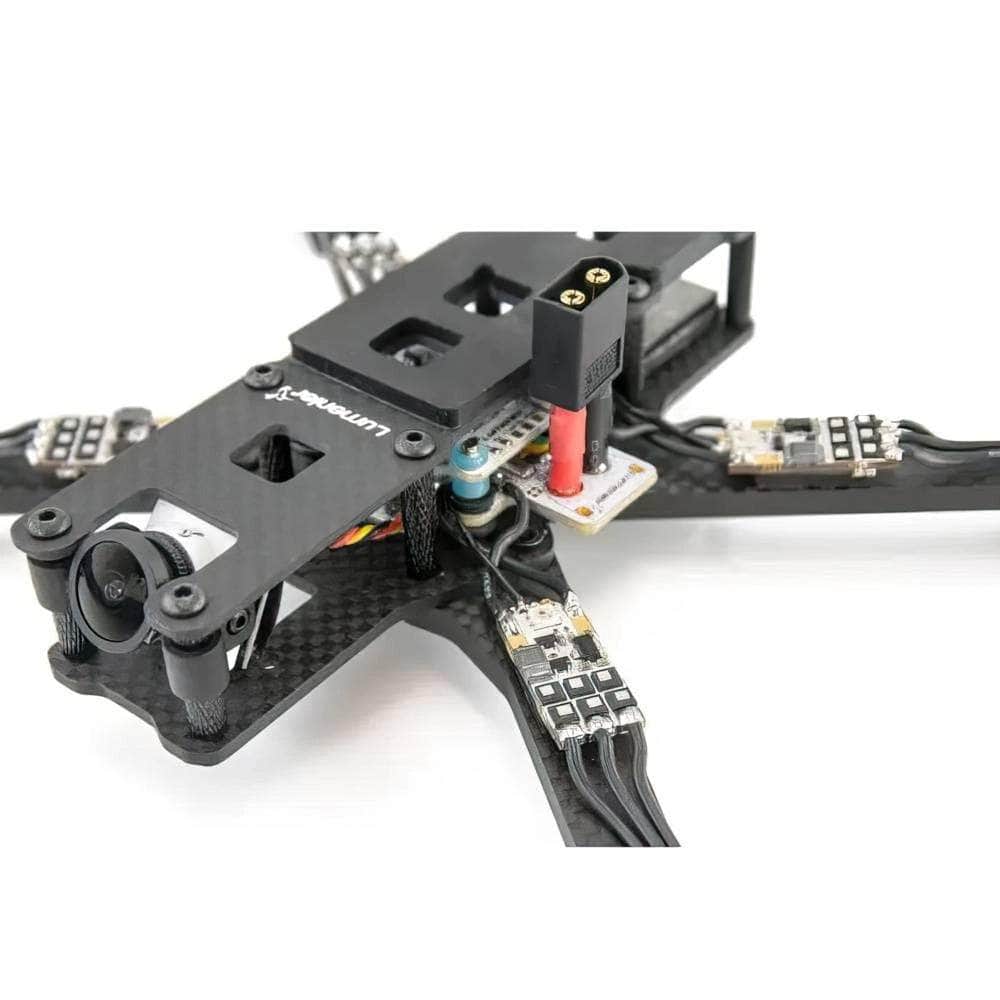

Lumenier Razor Pro F4 45A 2-6S AM32 ESC bringing you the newest tech with an old-school individual ESC format. Much easier to replace compared to a blown 4in1 ESC.  These things are tiny and lightweight, ready to be strapped in. Additionally there are programmable RGB LED doubling as race wire.

Browse our collection of ESCs and the rest of our Lumenier product selection!

Features

• Supports DSHOT 1200, Proshot, Oneshot125, Oneshot42, and Multishot with auto-detection

• Synchronous Rectification Technology

• 2-6S LiPo Battery Compatibility

• DSHOT 1200 Compatible

• Powerful Regenerative

• Ultra-Lightweight

• AM32 Firmware

• Adaptive Timing

• Razor_32 target

• New F4 MCU

DIFFERENCE BETWEEN LUMENIER RAZOR PRO AND STANDARD RAZOR ESCS

• The Pro version features a higher-quality, lower-resistance current sensor

• The Pro uses new-generation MOSFETs, which provide better heat dissipation, allowing for higher current

Specifications

• Solder Pads: LiPo +-, PWM, TLM, LED, Motor Outputs (pads on top and bottom of the ESC)

• Weight: 3 g (without motor wires)

• Constant Current: 45 Amps

• Dimensions: 12x28x5 mm

• Signal Wire Length: 15 cm

• BEC: No BEC, OPTO only

• Burst Current: 60 Amps

• Input: 2-6S LiPoly

Download the latest AM32 manual and configurator here

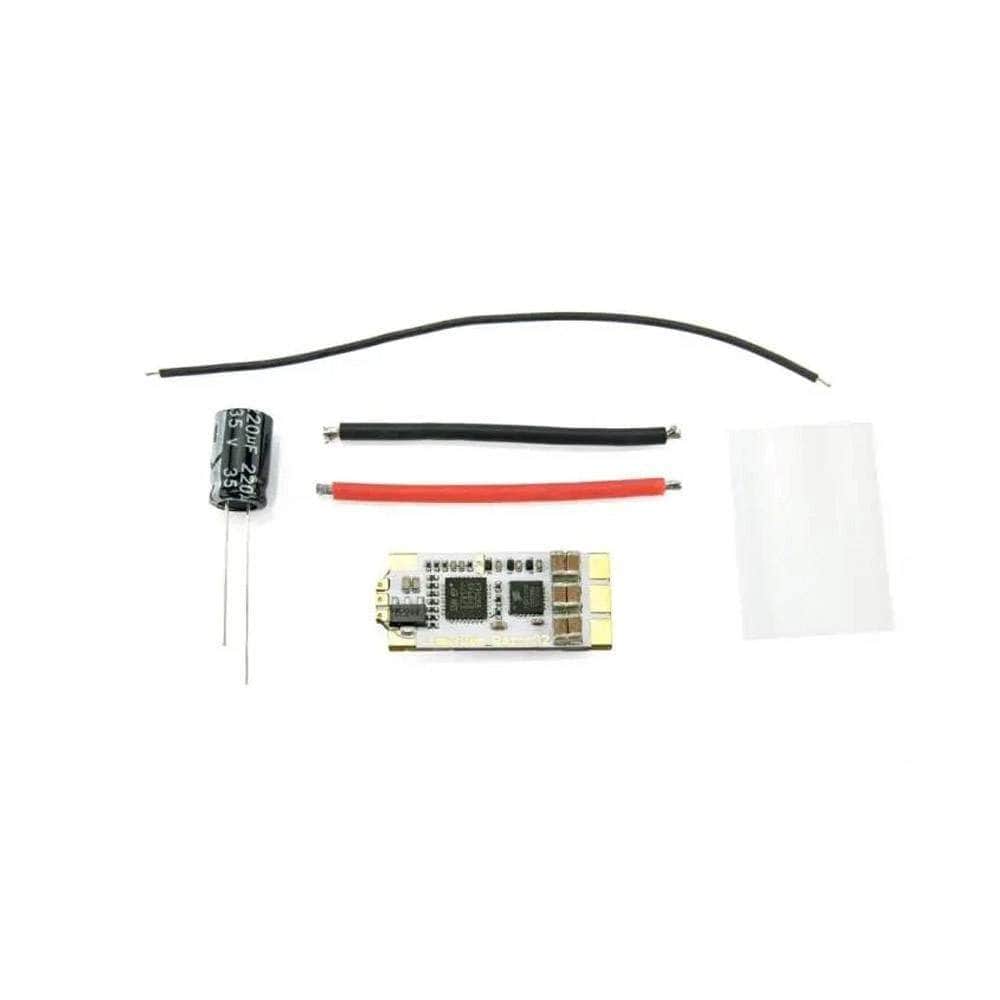

Includes

• 1x Lumenier Razor Pro - F4 45A 2-6S AM32 ESC

• 1x 220uf 35V Low ESR Capacitor

• 1x Power and Signal Wires

• 1x Heatsink

Wiring Diagram
