Hard to find BECs with
"Hard to find BECs with this input voltage range; works great"
Details
Description

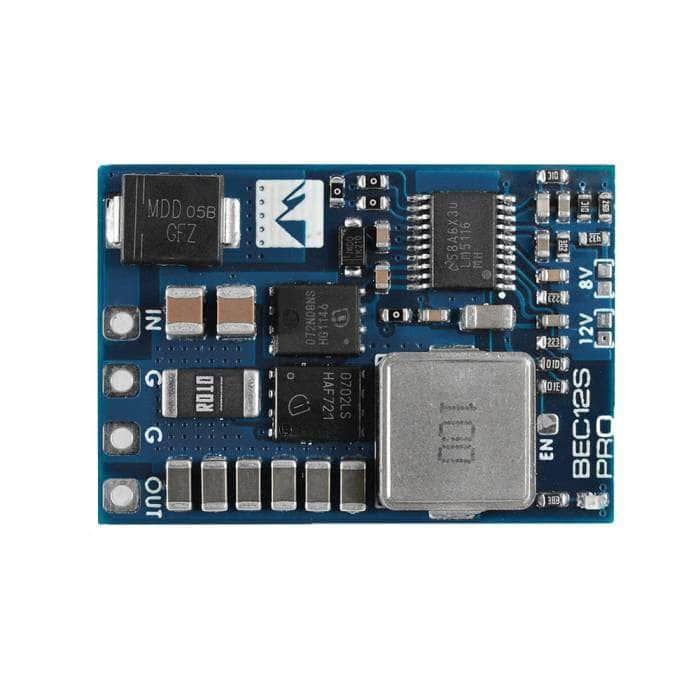

This full size BEC from Matek is great for powering your 5, 9, or 12V accessories without adding any meaningful weight to your build.
Check out the rest of our BECs and PDBs as well as the entire Matek selection!
Features
- Wide operating input range: 9-55V
- Continuous 5A output
- Peak 9A output
Specifications
- Wide 9V to 55V Operating Input Range with TVS protection
- 3x Output voltage options, 5.2V, 8V or 12V. Default 5.2V.
- Synchronous switching step-down (buck) regulator with typical efficiencies of 88% to 96%
- Supports continuous output current of up to 5A, peak current of 9A.
- Output ripple 30mV (VIN=50V, Output 5.2V @ 5A), 60mV (VIN=50V, Output 12V @ 5A)
- Standby current: 5~10mA
- No reverse-input voltage protection
- Thermal Shutdown
- Output Short-circuit tolerant (2 seconds)
- Overcurrent protection & self-recovery
- Dropout voltage: 2V (Input>=14V is required for stable 12V output)
- Pins distance: 3.81mm
- Size: 35 x 24 x 5.5mm
- Weight: 5g
Includes
- Matek BEC12S-Pro 9-55V to 5/8/12V-5A
More Info
- SKU: 19675
- Barcode: 6910236004977
