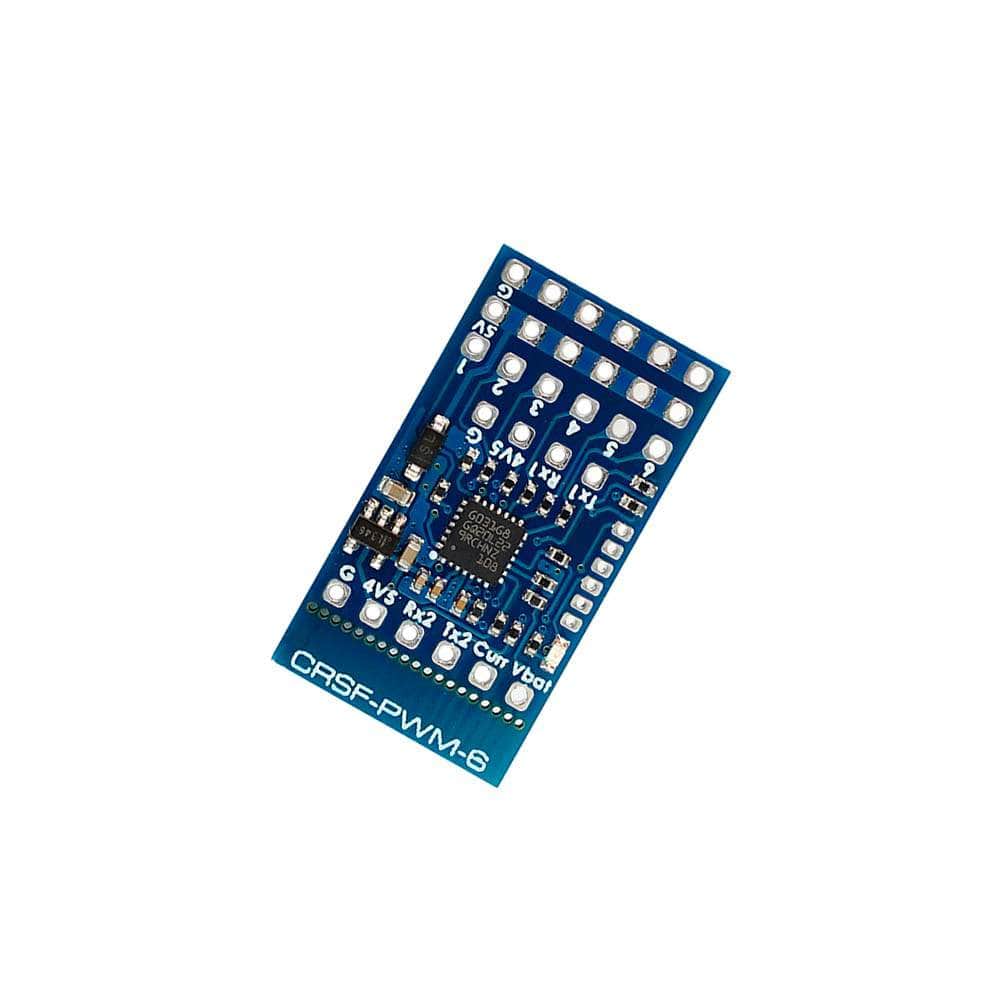

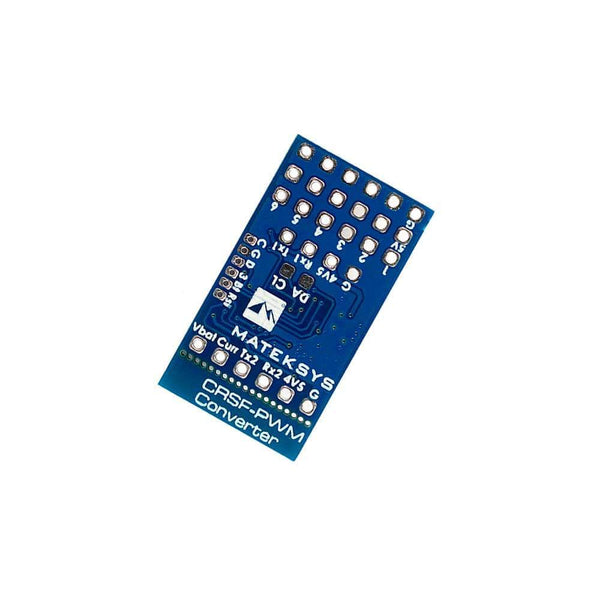

Matek CRSF-PWM-6 CRSF to PWM converter

Matek CRSF-PWM-6 CRSF to PWM converter

$9.49
$9.49
In stock
In stock
Add To Wishlist
View full details

Details

Description

If you want to use your TBS Crossfire receivers with a PWM system then Matek has the solution that you've been waiting for. This board allows you to attach your CRSF receiver and use PWM pins to connect to your wing or plane. This is perfect for those who want the stability of a plane or wing, but also want the dependable long range of the crossfire.

Check out the rest of our transmitters and accessories. as well as all of our Matek selection!

Specifications

  • Compatible with CRSF protocol receiver only
  • Support any CRSF protocol receivers(including 433MHz, 868MHz, 915MHz, 2.4GHz)
  • 6x PWM outputs
  • PWM frequency configurable (50Hz default, 100,160,330, 400Hz)
  • 2x UARTs (for Receiver and GPS)
  • Telemetry ID: RxBt, Curr, Capa, Bat%, GPS, GSpd, Hdg, Alt, Sats
  • 36V Max. battery voltage sense (1K:10K voltage divider built-in)
  • Compatible with external Current sensor (0~3.3V)
  • Vbat and Current sensor scale configurable
  • Failsafe value auto set
  • Firmware upgradeable
  • Rated voltage: 4~9V @5V pad, 0~36V @Vbat, 0~3.3V @Curr
  • No 5V regulator built-in
  • 25mm x 16mm, 1.3g
  • Packing: 1x CRSF-PWM-6, Dupont 2.54 pins

Includes

  • 1x Matek CRSF-PWM-6 CRSF to PWM converter

Wiring Diagram

More Info

  • SKU: 17207
  • Barcode: 691023533840


Overall rating: 4.866667 / 5 from 15 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["works"].

Review highlights

Reviews

Works as directed

"Better know how to solder but is an excellent board to save money for pwm devices"

— Michael V. (5/5)

Switching to this for all my future models

"I'm going to be using this for all my traditional fixed-wing line-of-sight models in the future. I like that I can attach any ExpressLRS receiver, and I'm assured I'll get plenty of range. I really like that you can tap into your battery connector and get voltage telemetry. No more messing with timers on my radio."

— Shane K. (5/5)

Nice way to run my servos

"I use the 900mhz ELRS receivers with this, and these let me run my servos without any issues. i have at least 6 of these now, and all have been a breeze to use."

— Tim S. (5/5)

Great

"You can turn extra CRSF (ELRS and crossfire) receivers into PWM receivers for wings in a pinch, and also get voltage data."

— Sidsadee B. (5/5)

Works ok but…..

"It requires Matek software to do any channel mapping. Default is fine though."

— Hansen T. (4/5)

Cool

"Cool"

— Jeffrey L. (5/5)

compact receiver board

"compact receiver board"

— Jerry D. (5/5)

works well like it

"works well like it"

— Clemeth P. (4/5)

Exactly What I Needed!

"Exactly what I needed for Crossfire in a wing without a flight controller. Works perfectly!"

— Brian B. (5/5)

Awesome

"Works really well with TBS Tracer Nano module on my plane. Using it with a GPS and the got a cable from the + that goes to the ESC to it. Getting telemetry info on my TBS Mambo. Just wish it supported VGps in order to get the variometer. Maybe an updated version will have that. Other than that, it works as intended and super easy."

— Karl R. (5/5)
