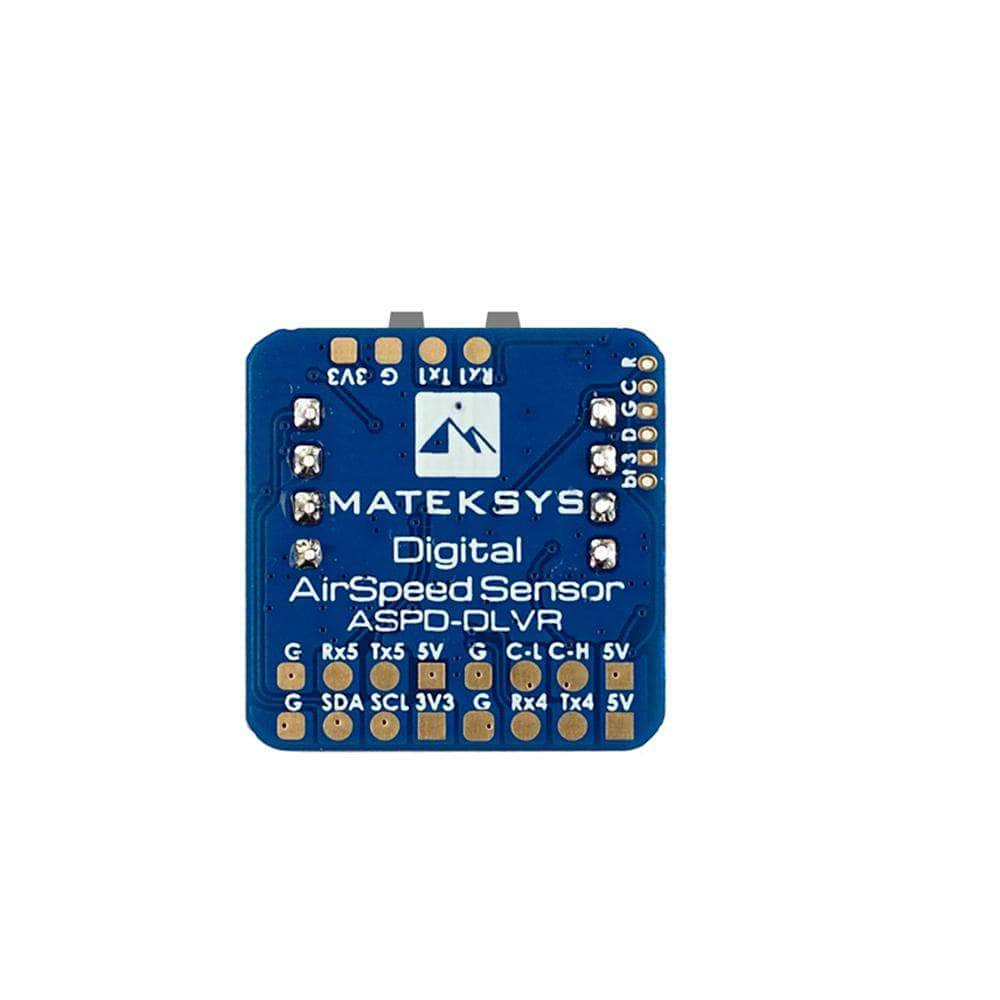

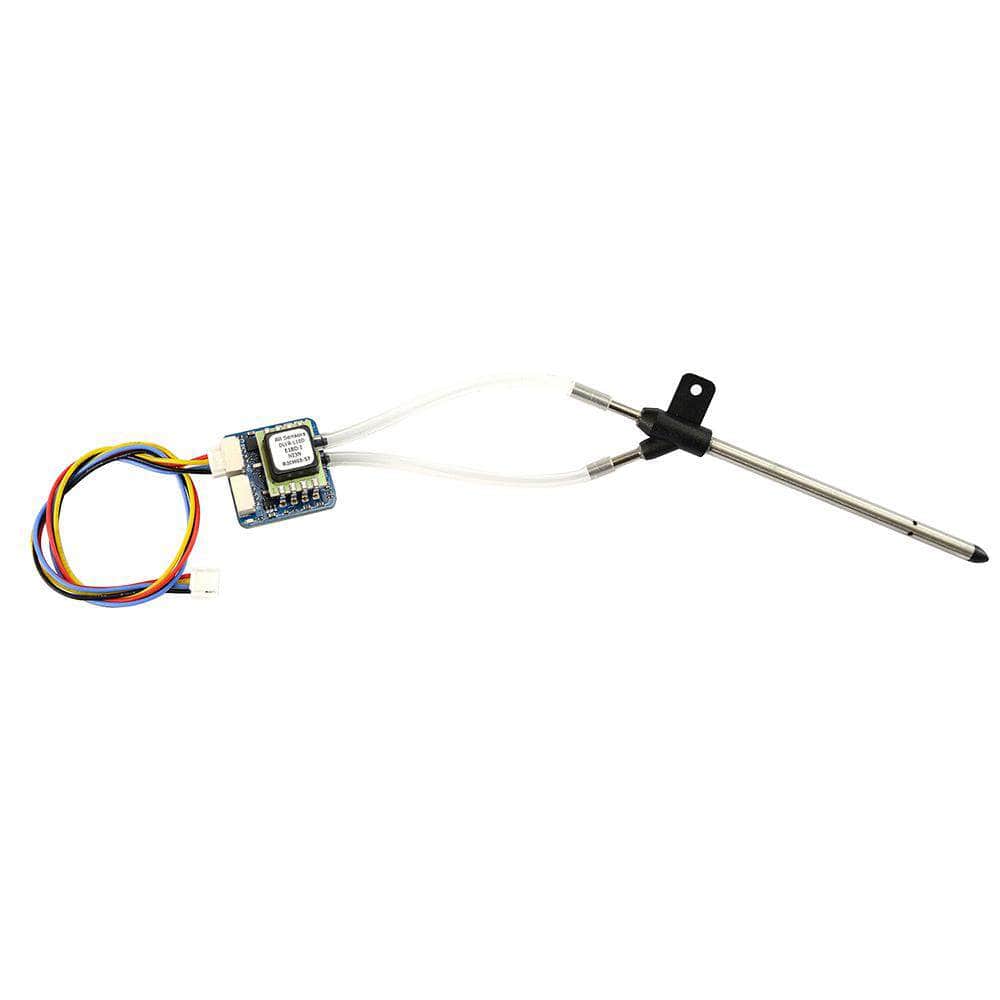

Matek Digital Airspeed Sensor ASPD-DLVR

$94.99
Coming Soon
In Stock
Pre Order
Free Delivery on U.S.A. Orders $60 or more
Add to Wishlist

Digital airspeed sensor from MATEK, a great addition to your Fixed Wing.

Check out all our wing flight controllers as well as the entire Matek selection!

Features

  • ArduPilot AP_Periph F405 CAN node

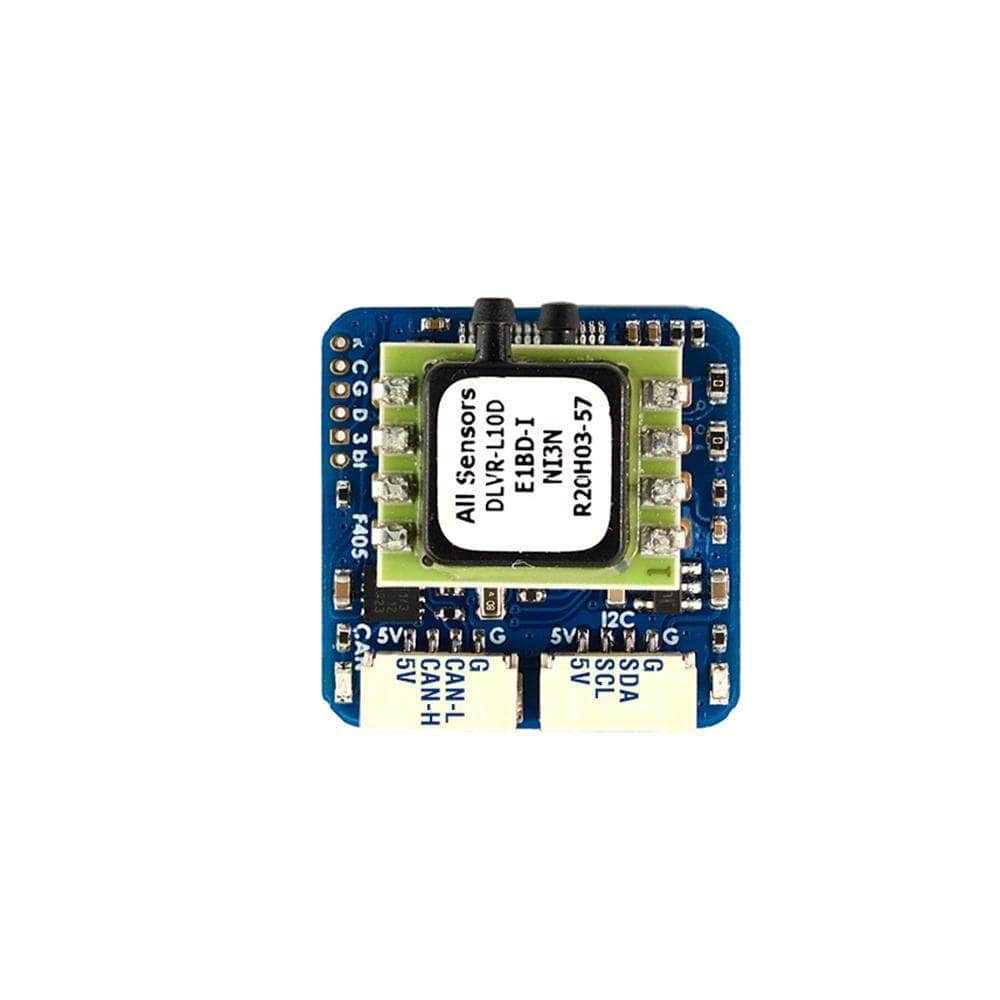

  • All sensors DLVR-L10D, Industrial temperature range
  • CAN & I2C Interface
  • Typical Platforms: Fixed-Wing, QuadPlane, VTOL
  • CAN JST-GH connector, UAVCAN Protocol
  • I2C JST-GH connector, DLVR-L10D I2C mode (I2C address 0x28)
  • UART1, Firmware update
  • UART2, Spare for external GPS
  • UART3, MSP Protocol (To be supported)
  • CAN bootloader LED, Blue
    • Fast blinking, No communication between CAN node and Flight Controllers
    • Slow blinking, Communicating between CAN node and Flight Controllers
  • 3.3V Power LED, Red

Specifications

  • Input voltage range: 4~6V
  • Power consumption: 60mA
  • Operating Temperatures: -20°C to 85°C
  • Pressure Range: 2500Pa (± 10 inH2O)
  • Burst Pressure: 75kPa
  • Speed Range: ±250 km/h
  • Size: 22mm*22mm*12.5mm
  • Weight: 4g

Includes

  • 1x Matek Digital Airspeed Sensor ASPD-DLVR
