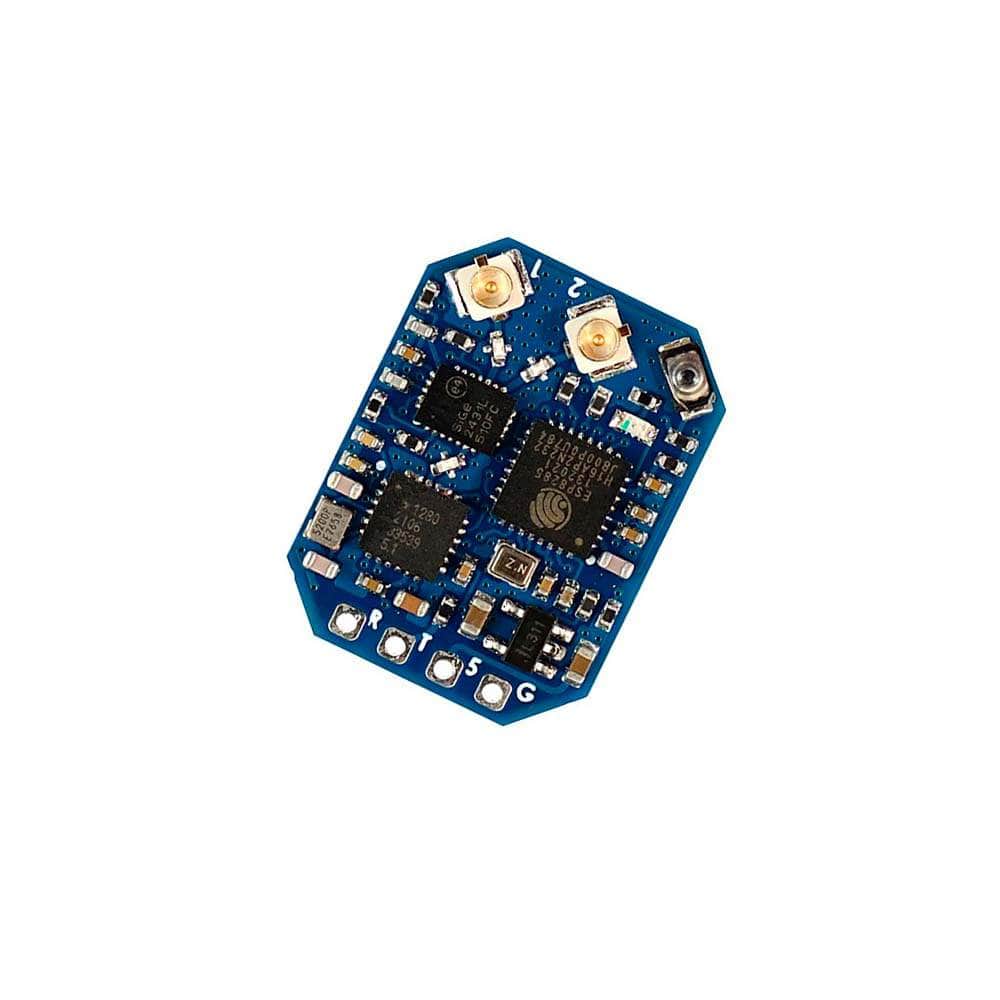

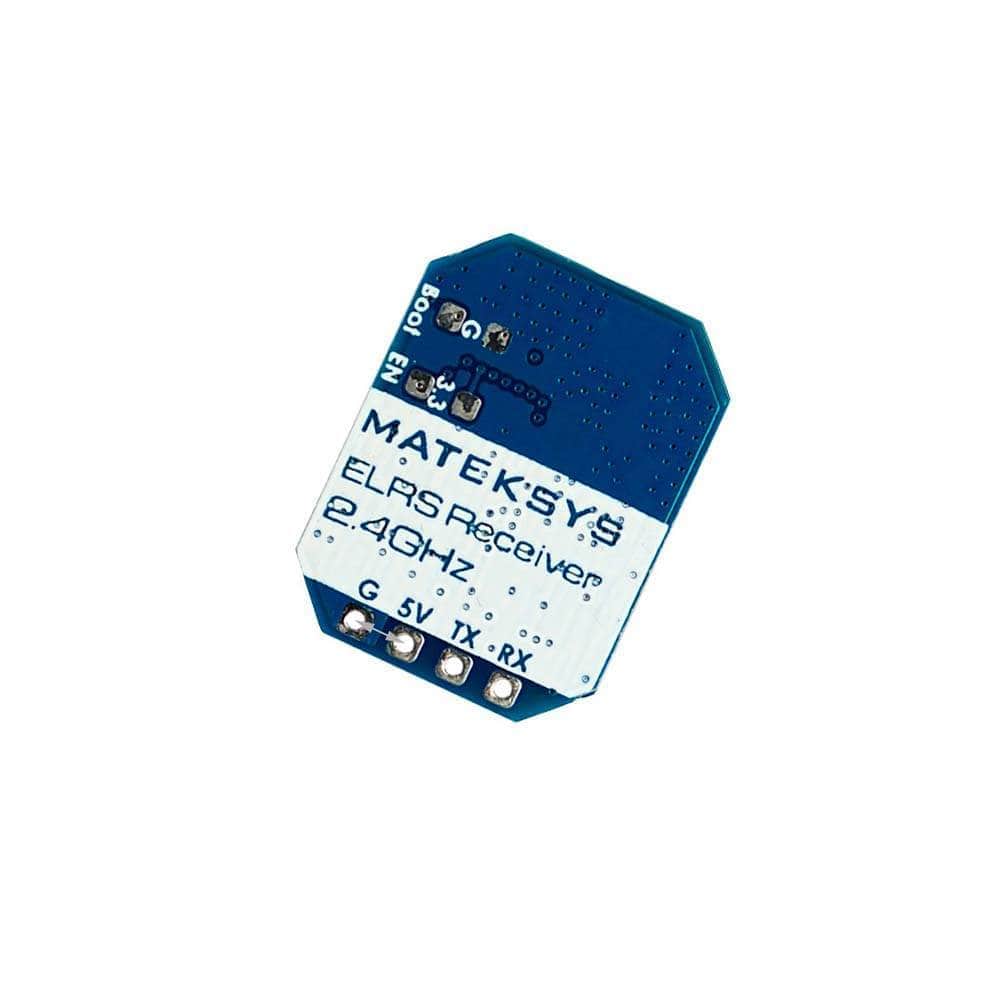

Matek ELRS-R24-D 2.4GHz Receiver

Matek ELRS-R24-D 2.4GHz Receiver

$23.99
$23.99
In stock
In stock
Add To Wishlist
View full details

Details

Description

With ELRS as the quickest growing receiver protocol, it only made sense for Matek to bring their creation to the selection. With their vast years of experience making RC parts, they are able to bring a unique form factor to the sea of carbon copies.

Check out the rest of our receivers, as well as all of our Matek selection!

Specifications

  • ESP8285, SX1280/1281IMLTRT
  • PA/LNA: SE2431L
  • Antenna connector: IPEX MHF 1
  • RF Frequency: 2.4GHz (2400~2480MHz)
  • Telemetry power: 22.5dbm~23dbm
  • SE2431L RX_gain: 12.5dB
  • Diversity (antenna-switching), default ANT2
  • Receiver protocol: CRSF
  • Input voltage: 4~9V DC @ 5V pad
  • Power dissipation:  40~45mA(before binding), 70~75mA(binding), 90~95mA(wifi mode)
  • PCB size: 21mm x 15mm
  • Weight: 3g w/ 2x antennas
  • Packing: 1x ELRS-R24-D,   2x IPEX MHF1 Antennas

Includes

  • 1x Matek ELRS-R24-D 2.4GHz Receiver
  •  2x U.FL Antennas

More Info

  • SKU: 17210
  • Barcode: 691023533875


Overall rating: 4.774194 / 5 from 62 reviews.

AI Generated Review Summary

The Matek ELRS-R24-D 2.4GHz Receiver is praised for its excellent quality and great range, though opinions on the antennas are mixed.

Summary topics

  • Product Quality: 20%
  • Product Range: 24%

Review topics: [quality, shipping, hardware, issues, components, buy, receiver, antenna, range, diversity, install, footprint, works, failsafe, elrs rx].

Review highlights

  • "the quality is great, I can't believe the range and the response of the diversity is great" — Clemeth P.
  • "High quality, great range, diversity from a name you can trust" — Mitchell P.
  • "Matek make good quality components and this ELRS unit is no exception." — Nathan C.

Reviews

Unlimited range

"Unlimited range"

— Maximus C. (5/5)

Very solid range

"Works perfectly"

— Berkeley B. (5/5)

Works as advertised.

"I like the small monopole antennas."

— r b. (5/5)

After lern how’s to set

"After lern how’s to set up, works perfect!!"

— Franco C. (5/5)

Good for miles, allegedly

"I heard from an anonymous source you can put this on a fixed wing, swap one antenna with a T style and get several miles of range."

— Shane W. (5/5)

Excellent Receiver

"A solid choice for an ExpressLRS receiver with 100+mW telemetry transmit and diversity. I have purchased multiple and have had zero complaints"

— Travis P. (5/5)

Matek receiver

"Works great easy to setup."

— Thomas C. (5/5)

Best

"This is reliable and a champ. Way more than I need for fpv but I like adding 2 fancy looking antennas on my builds lol"

— Chad R. (5/5)

Works great

"Works great"

— Edward L. (5/5)

excellent diversity receiver for elrs

"Excellent diversity receiver for elrs"

— Conor C. (5/5)

Q&A

Can I use this receiver to refurbish a helicopter with concentric shaft, elevator motor and lights. Want a gyro included in the receiver
No gyro just connection with ELRS radio.
Works with any ExpressLRS 2.4GHz transmitter?
Correct!
Will this work with an radiomaster tx 12 with elrs and also does the radio master tx12elrs come with the elrs transmitter or do I have to buy that separately?
This is the part that would go in your aircraft. It is compatible with any ELRS transceiver including the radiomaster.
