Another feature rich offering from Matek in the 30x30 class. Loaded with features for digital and analog builds. Matek leads the pack when it comes to quality and performance.  This flight controller is great for anyone wanting to run 4 individual ESCs due to its built-in PDB.

Check out our 30x30 Flight Controllers as well as the entire Matek selection!

Features

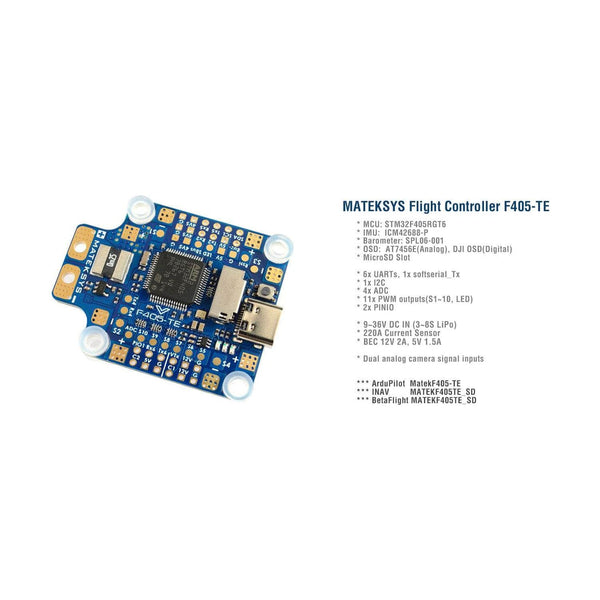

The MATEKSYS F405-TE Flight Controller features a 30.5 x 30.5mm mounting pattern and weighs 10g. It features a Barometer, Micro SD Slot, 6x UARTS, 11x PWM outputs, 9-36V DC IN (3-8S LiPo), 220A Current Sensor, BEC 12V 2A, 5V 1.5A and Dual analog camera signal inputs.

Specifications

  • MCU: 168MHz STM32F405RGT6
  • IMU: ICM42688-P (SPI)
  • Baro: SPL06-001 (I2C)
  • OSD: AT7456E (SPI)
  • Blackbox: MicroSD slot (SPI)
  • 6x UARTs, 1x Softserial_Tx option(INAV/BF)
  • 11x PWM outputs (8x Dshot compatible with BF/ArduPilot)
  • 1x I2C
  • 4x ADC (VBAT, Current, RSSI, Airspeed)
  • 1x spare PINIO
  • 4x individual ESC power/signal pads
  • 1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
  • Built in inverter on UART2-RX for SBUS input
  • Switchable Dual Camera Input

PDB Specifications

  • Input: 9~36V (3~8S LiPo)
  • PDB: 4x 35A (Max.4x 50A)
  • BEC: 5V 1.5A
  • BEC: 12V 2A
  • LDO 3.3V: 200mA
  • Current Senor: 220A, 3.3V ADC (INAV/BF scale 150, ArduPilot 66.7 A/V)
  • Battery Voltage divider 1K:20K (INAV scale 2100, BF scale 210, ArduPilot BATT_VOLT_MULT 21.0)

Firmware

  • ArduPilot: MatekF405-TE
  • INAV: MATEKF405TE_SD
  • BetaFlight: MATEKF405TE_SD

Dimensions

  • Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
  • Dimensions: 36 x 46 mm
  • Weight: 10g

Includes

  • Matek F405-TE Flight Controller
  • 6x silicon grommets M4 to M3
  • 1x Rubycon ZLH 35V/470uF (Low ESR)
F405-TE
F405-TE wiring
>
