The Matek F405-WMN Wing Flight Controller is a featured packed wing flight controller from Matek that is INAV ready, plenty of UARTS, and 12 PWM output channels!

Check out our Fixed Wing collection and all of our Matek Products!

Features

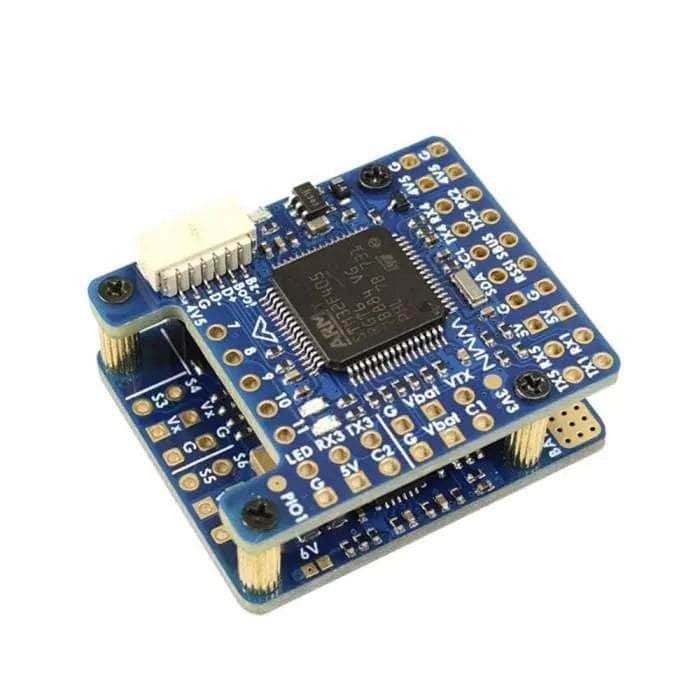

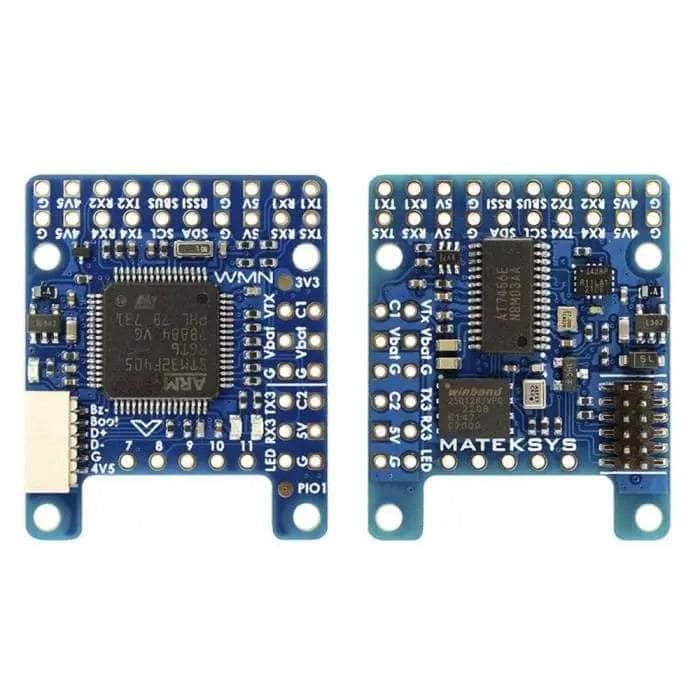

Matek's F405-WMN (Wing Mini) board is a great flight controller for those looking to save space and weight on their builds.  It puts pretty much all features from a full-size board on something that measures just 31x26x16mm.

Matek F405-WMN Flight Controller Matek F405-WMN Flight Controller

Specifications

FC Specifications

  • MCU: STM32F405RGT6, 168MHz , 1MB Flash
  • IMU: ICM42688-P
  • Baro: SPL06-001
  • OSD: AT7456E
  • Blackbox: 16M Flash
  • 5x UARTs, 1x Softserial_Tx option(INAV)
  • 12x PWM outputs
  • 1x I2C
  • 3x ADC (VBAT, Current, RSSI)
  • 1x spare PINIO
  • USB/Beep Extender with Type-C(USB2.0)
  • Built in inverter on UART2-RX for SBUS input
  • Switchable Dual Camera Inputs

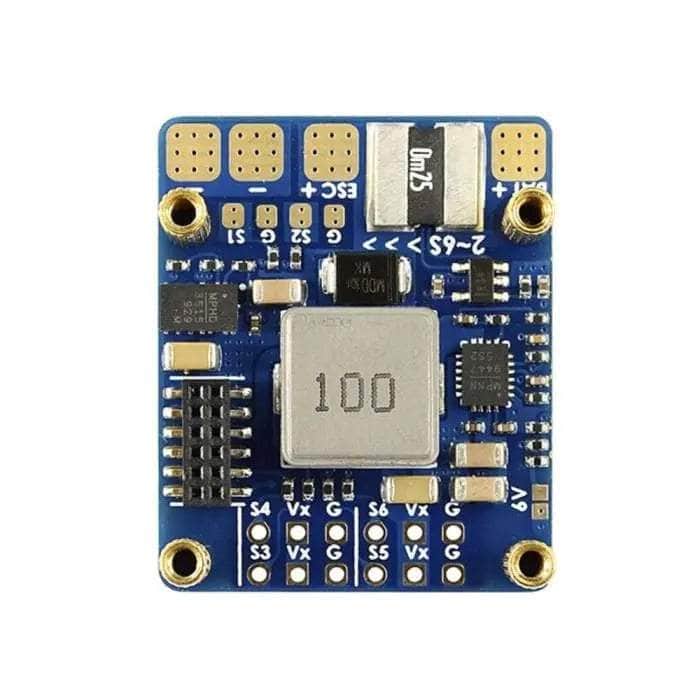

Power

  • 6~30V DC IN (2~6S LiPo)
  • 132A Current Sense (INAV Scale 250, ArduPilot 40A/V)
  • PDB/Current sense resistor: 90A continuous, 132A burst.
  • BEC 5V 1.5A for FC & Peripherals
  • BEC Vx 5A for servos, 5V/ 6V option
  • Vbat for VTX and camera
  • LDO 3.3V 200mA
  • Battery Voltage Sensor: 1k:20k

FC Firmware

  • ArduPilot: MatekF405-TE
  • INAV: MATEKF405TE (INAV 5.0 or newer)

Physical

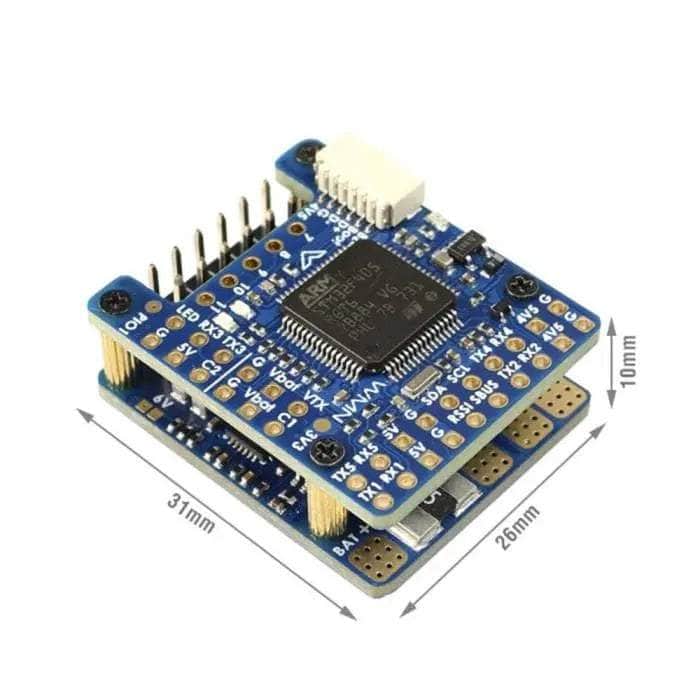

  • Dimensions: 31 x 26 x 16.5 mm
  • Mounting: 22 x 22mm, Φ2mm
  • Weight: 10g

Includes

  • 1x Matek F405-WMN Flight Controller
  • 1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P to JST-SH-6P cable for USB extender.
  • Dupont 2.54 pins (Board is shipped unsoldered)
