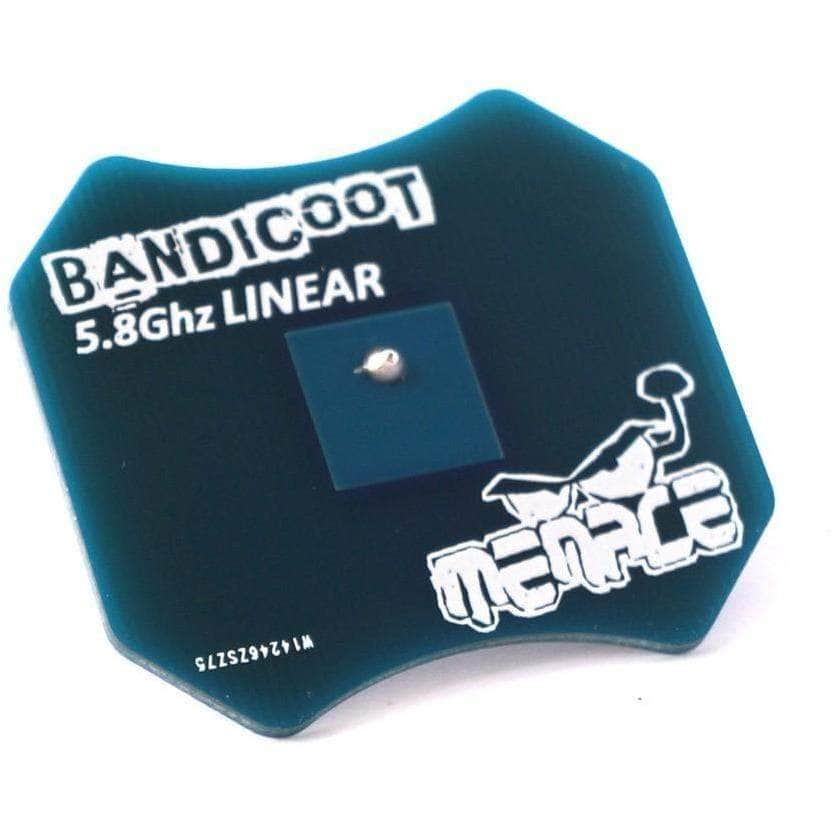

MenaceRC Bandicoot Patch 5.8GHz SMA Receiver Antenna - Linear

$9.99
In Stock
Pre Order
Coming Soon
Free Delivery on U.S.A. Orders $60 or more
Add to Wishlist
The BANDICOOT antenna is a small linear receiving patch that is designed to work with the linear whip antenna’s found on the Tiny Whoop and Micro Drones. If you are using a linear whip antenna on your micro quad and using a circular antenna to receive you would be experiencing a 3db loss due to the mixed polarization signals, for each 3db drop in signal that is a half in power so effectively your 25mW vtx will only be seen as transmitting 12.5mW. For increased range, clarity and to get your 3db back use the Menace Bandicoot.

Check out all our FPV Receivers & Antennas and our Menace selection!

Features

  • Linear Polarized
  • Linear Whip and Vee compatible
  • Compact low profile design on your FatShark or other goggles
  • Designed for goggles or base stations

Specification

  • Frequency: 5800 Mhz
  • Bandwidth 220 Mhz
  • Gain: 6.5 dBi
  • Beam Width: 150° at -7db, 120° at -5db, 90° at -3db
  • Linear Polarized
  • SMA Connector (Fits Fat Shark goggles)
  • Dimensions: 45mm x 41mm x 16mm
  • Weight: 11grams

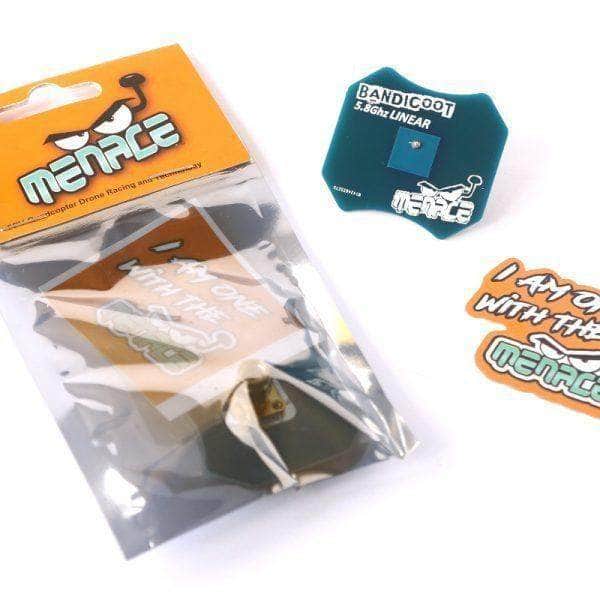

Includes

  • 1x MenaceRC Bandicoot Patch 5.8GHz SMA Receiver Antenna - Linear
