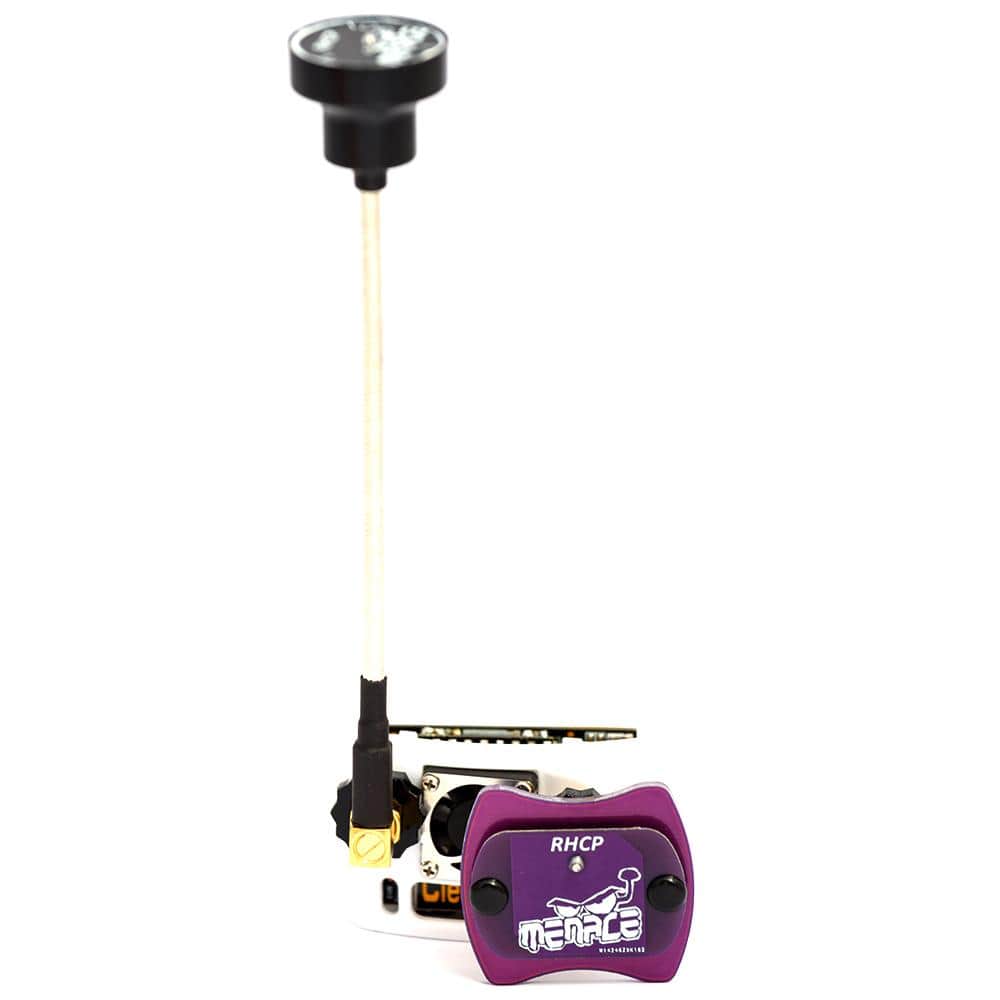

MenaceRC Goggle Pack 5.8GHz Receiver Antenna 2 Pack - RHCP

$25.79
In Stock
Pre Order
Coming Soon
Polarization
Free Delivery on U.S.A. Orders $60 or more
Add to Wishlist

Welcome to your perfect companion combo for receiving… The Menace FPV Goggle Pack is a one purchase simple solution to get you the best performance of proven antennas. The Menace FPV Goggle Pack includes their smallest patch along with their tallest omni antennas to get you the best experience in FPV straight out of the box. Take the guess work out of selecting your goggle receiving antenna’s and use this proven combination of patch and omni over the head matched pair.

If your starting out or looking to upgrade your FPV setup then the Goggle Pack is for you.

Check out all our FPV receiver antennas and modules, and all our MenaceRC gear!

    Specifications

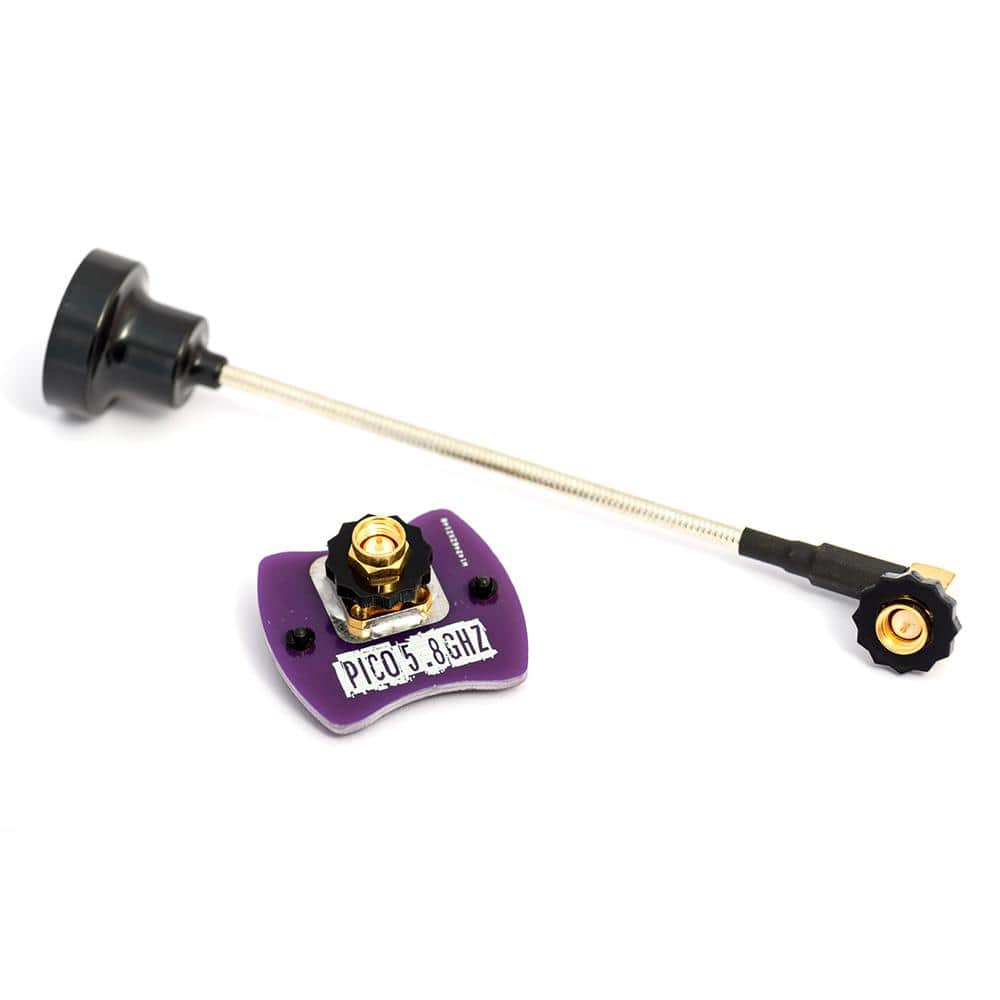

    Pico Patch: The PICOpatch antenna is MenaceRC's smallest receiving patch that is big in performance.

    • Frequency Range: 5645 – 5945 Mhz
    • Gain: 9.4 dBi
    • Beam Width: 61° at -3db points
    • (Check polar plot comparison invader actual angular db)
    • Left or Right Hand Circular Polarised (LHCP or RHCP)
    • SMA Connector (Fits Fatshark Goggles)
    • Dimensions: 37.0mm x 33.6mm x 19.2mm
    • Weight: 10 grams
    Periscope Omni: The Periscope Antenna gets the active part of the antenna above your head for clearer signal for not only flying behind yourself but in all directions.
    • Centre frequency 5.8 GHz
    • Frequency Range: 5550 – 6050 MHz
    • Matching S11 < -20dB, VSWR <1.22
    • Gain: 1.09dB with efficiency: 92%
    • Axial Ratio <1.3
    • Beam width: 360 degrees
    • Left or Right Hand Circular Polarised ( LHCP or RHCP)
    • SMA 90 Degree Connector
    • Height: 138mm
    • Weight: 14grams

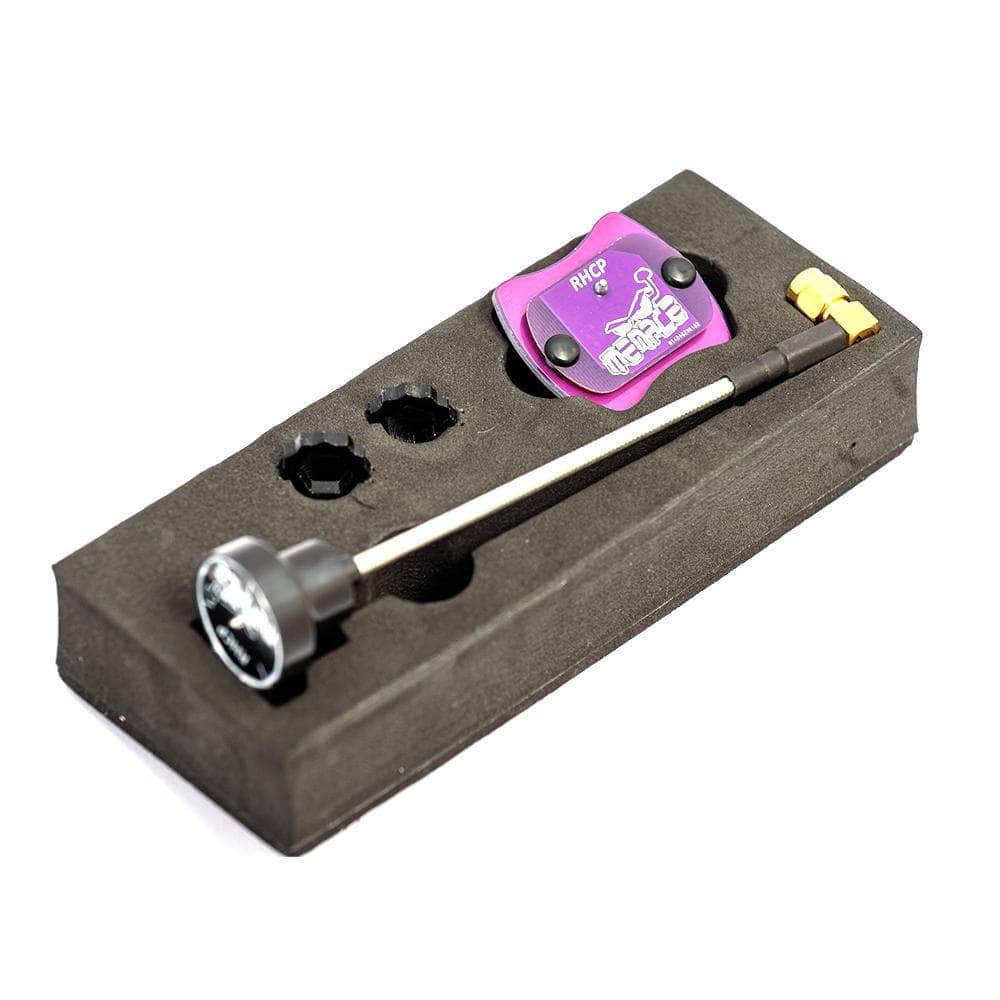

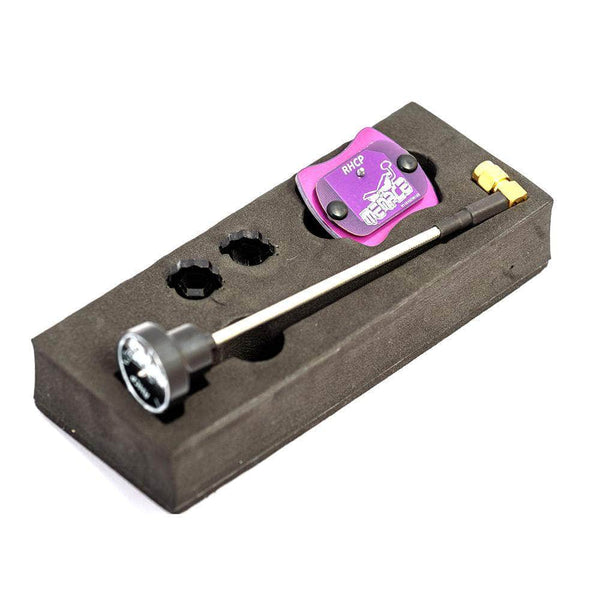

    Includes

    • 1x Pico Patch Antenna
    • 1x Periscope Omni Antenna
    • 2x SMA finger spinners
