Details
Description
Experience top-tier flight performance with the NewBeeDrone Cricket200 V2 F722 3-6S 20x20 Dual BMI270 Flight Controller. This controller features a 3-6S power range, 20x20 mounting, and dual BMI270 processing power for a stable, reliable flight experience. Get ready for smooth, long-distance flight with this advanced drone controller.
Check out our 20x20 FCs, and all our NewBeeDrone products!
Features

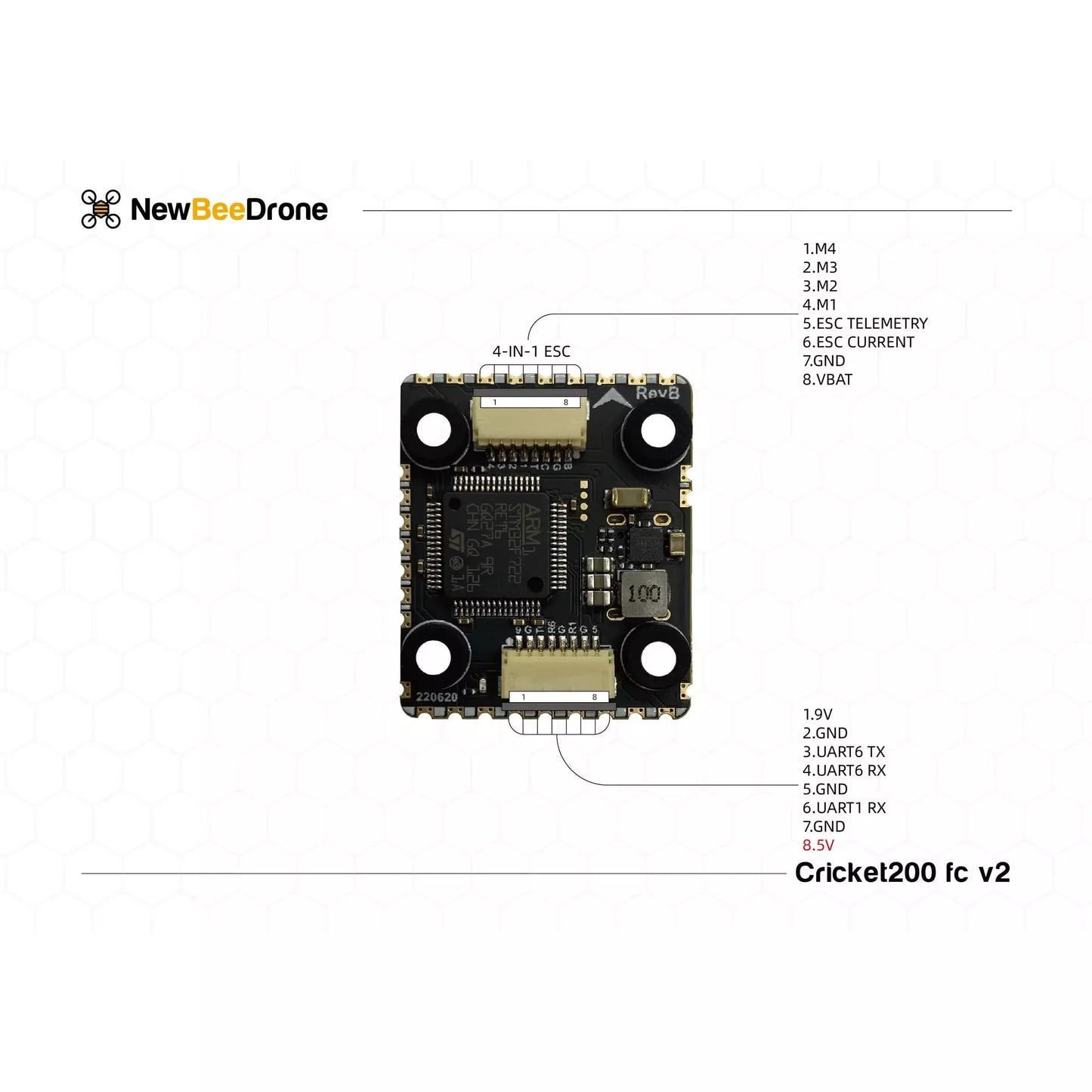

- Built-in 4 IN 1 ESC socket (including ESC telemetry, External current sensor) JST1.0 8Pin
- Plug and plug with NBD Cricket200 ESC/Infinity200 ESC. Also compatible with most of the ESC on the market.
- Built-in solder pads for ESC signal output and power

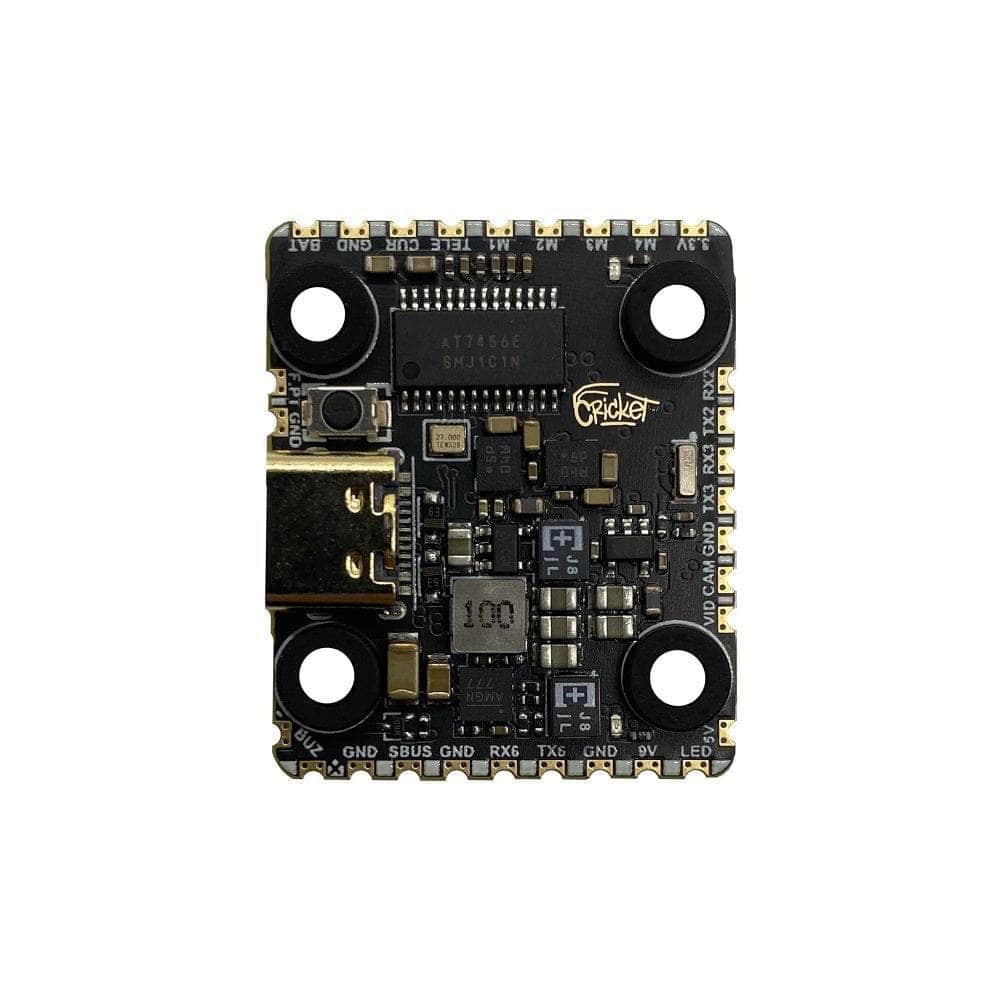

- Printed layout instructions ON the board - no need for instructions!
- DJI FPV Air Unit socket (use UART1 and UART6)
- 6 UARTS on board.
Specifications

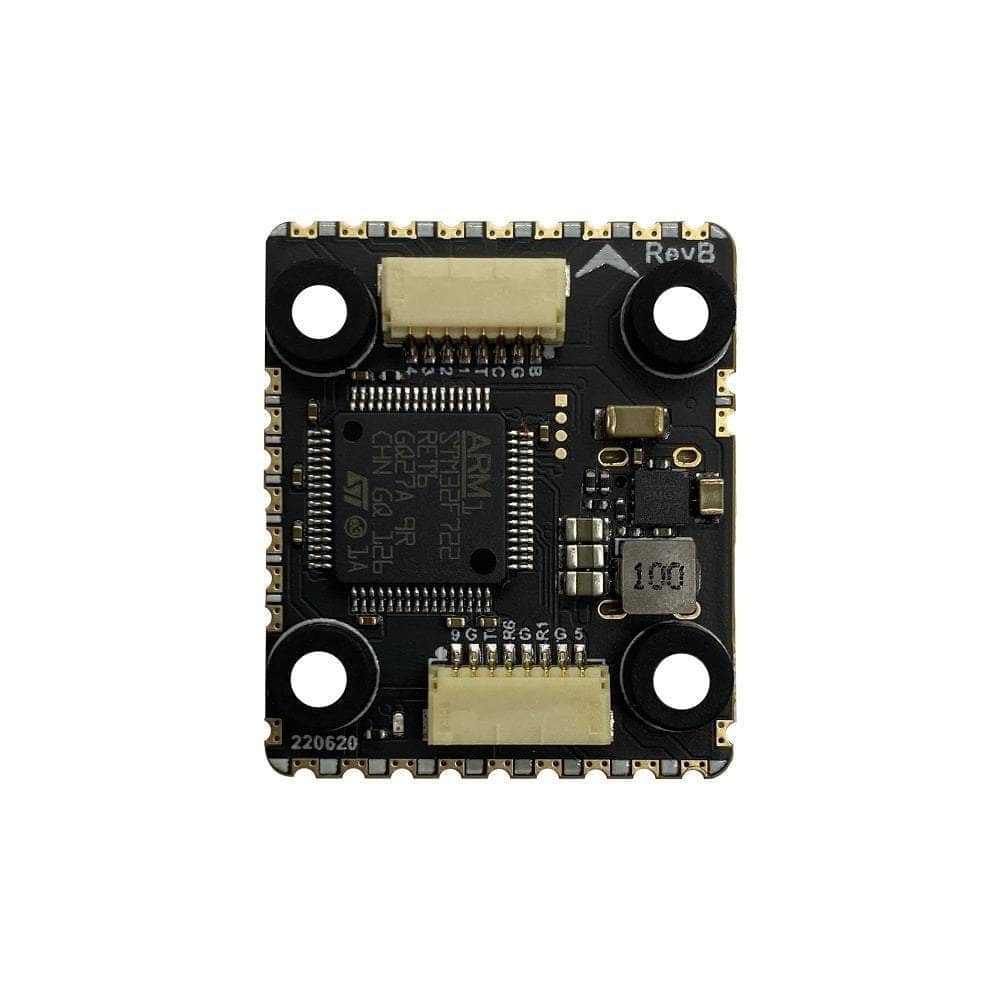

- MCU：STM32F722 - 216MHz
- Gyro: 2 BMI270
- BEC: 5V/3A
- Interface：6
- Mounting Size: 20x20mm
- Size: 31.5x27mm
- Input Power: 3-6S
Additional Infomation
- 3V3 100mA
- 9V 2A 18W Design for DJI FPV Air Unit
- 5V Camera Power
- BetaFlight OSD
- UART1 (Only RX, Air Unit connector)
- UART2 (Free)
- UART3 (Free)
- UART4 (TX and RX connected together for F.Port)
- UART5 (Only RX, ESC Telemetry)
- UART6 (MSP/Configuration Port for Air Unit)
- Firmware can be downloaded HERE.

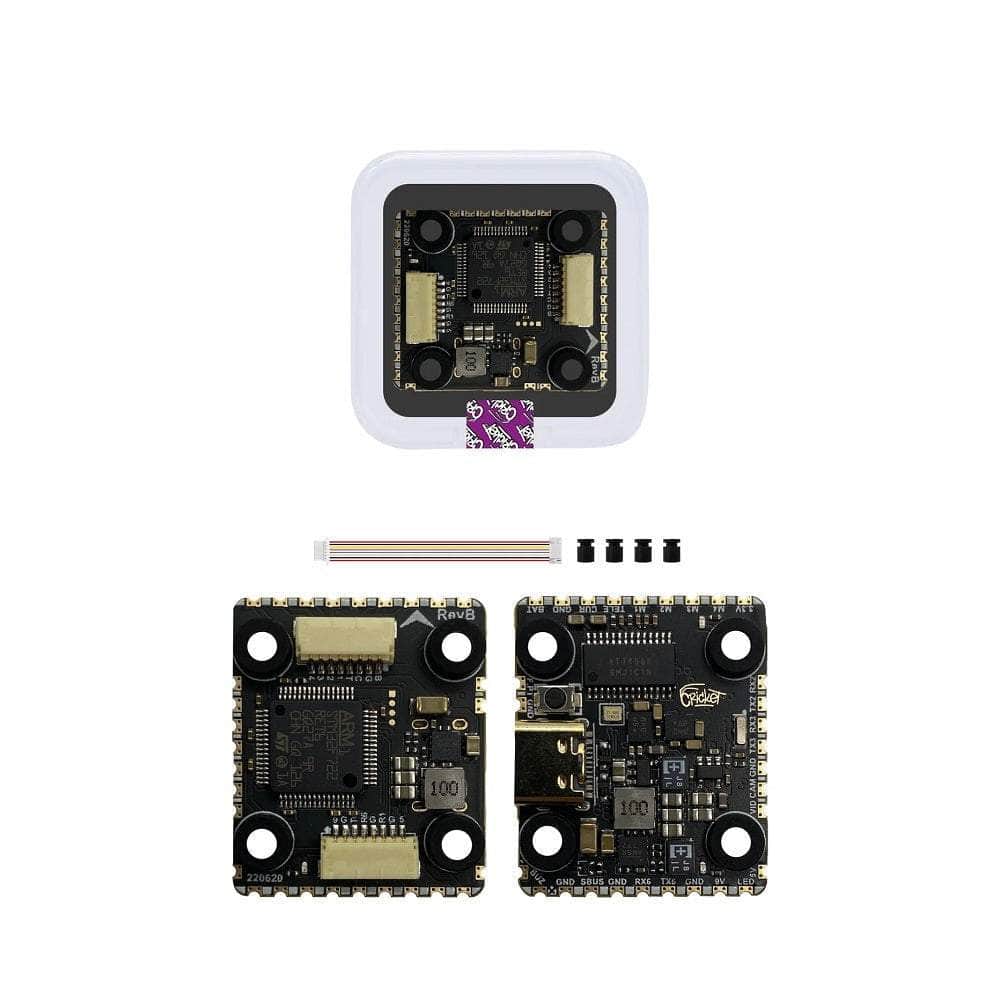

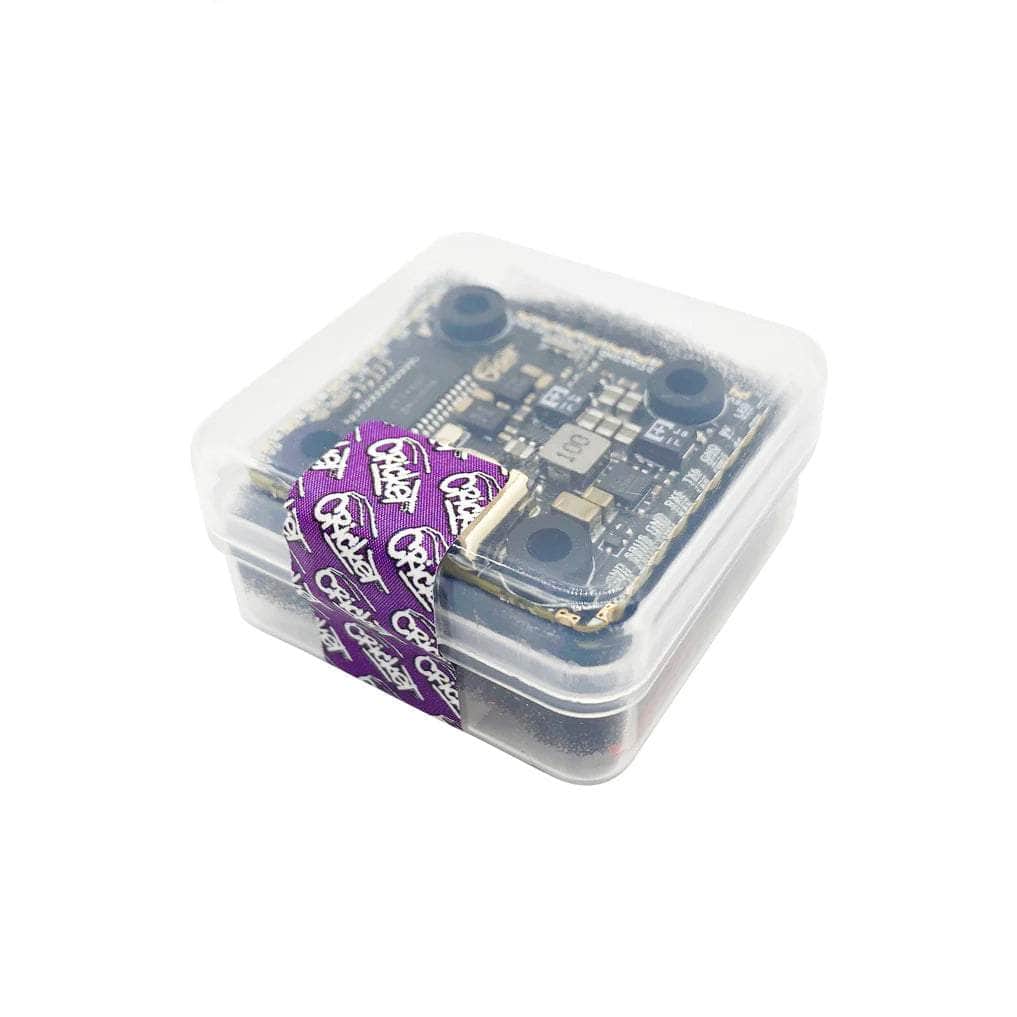

Includes
- 1x NewBeeDrone Cricket200 V2 F722 3-6S 20x20 Dual BMI270 Flight Controller
- 4x Grommets short 4x Grommets Long
- 1x Cricket200 FC to DJI Air module cable 70mm

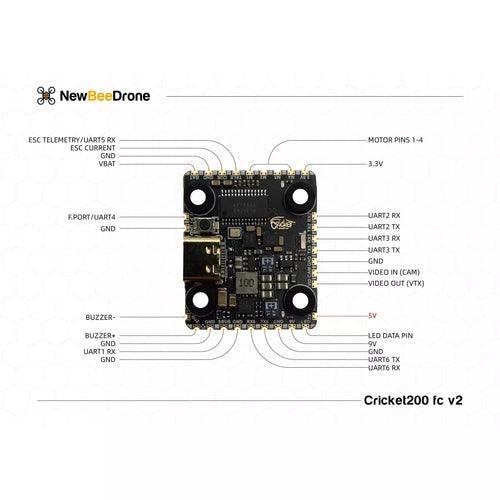

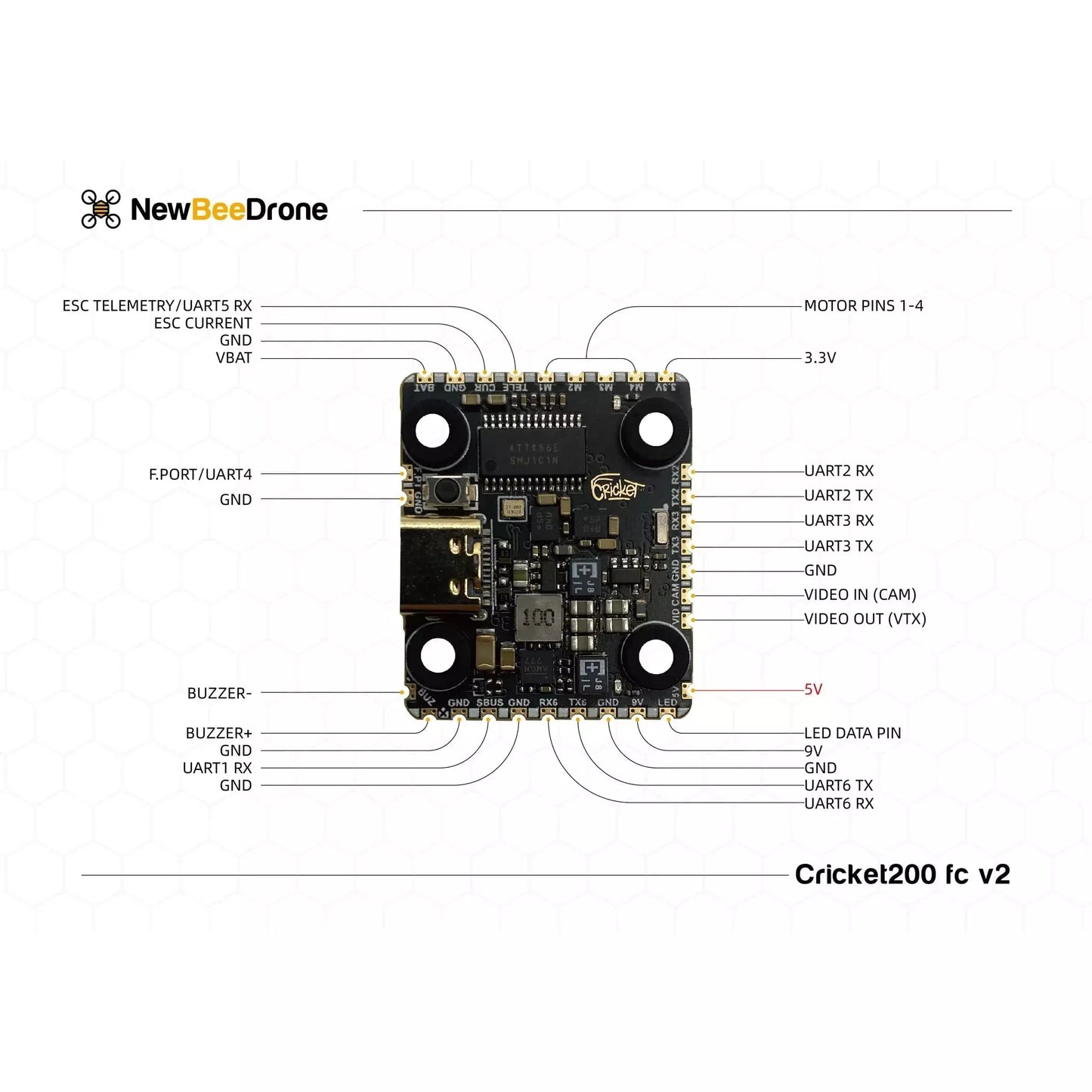

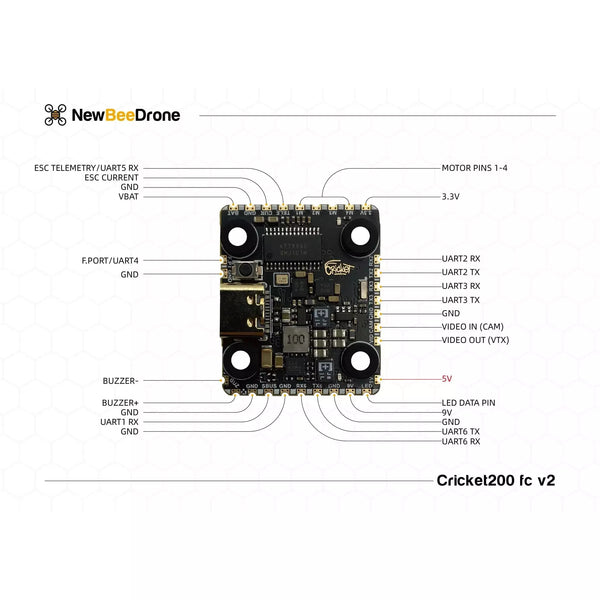

Wiring Diagram
More Info
- SKU: NEWB-NBD1712
- Barcode: 691023500808
