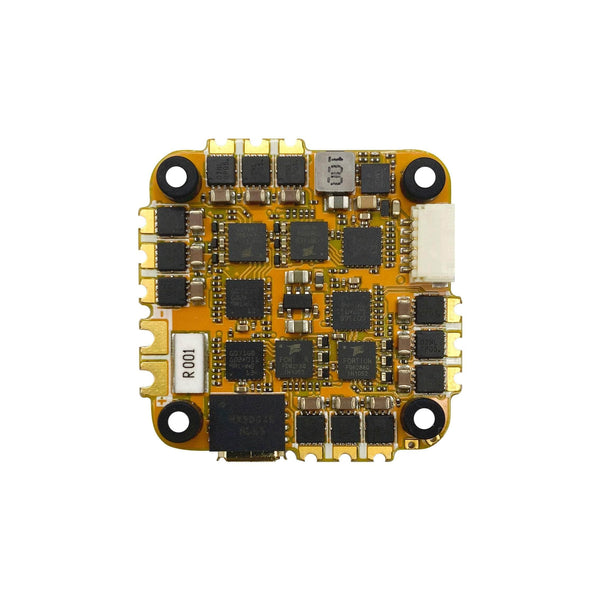

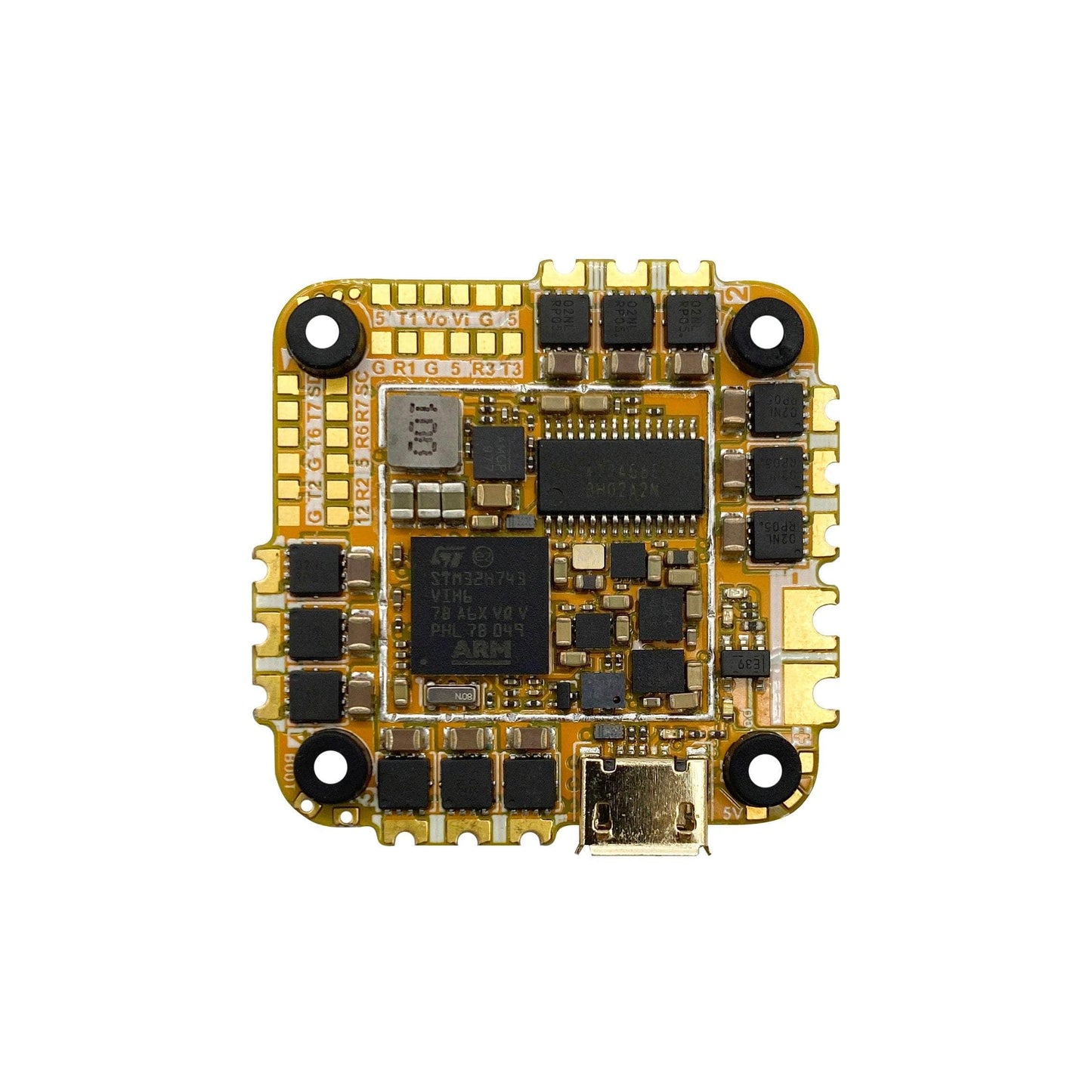

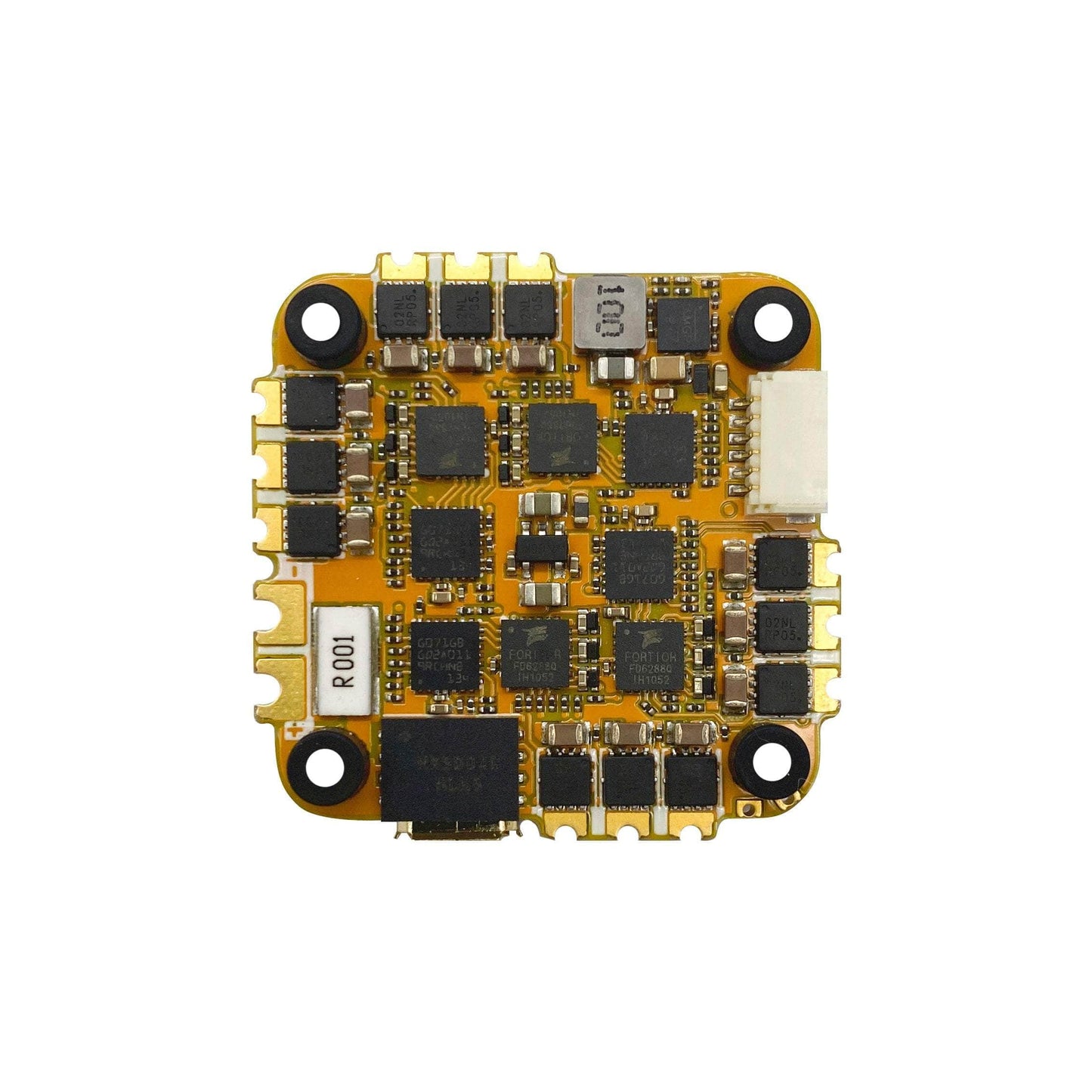

NewBeeDrone Galaxy AIO 255

Specification:

  • MCU: STM32H743VIH6
  • Gyro: 2xBMI270
  • Blackbox: SDIO 512M SD
  • Baro:Infineon DPS310(I2C2)
  • 6-Pin DJI FPV Air Unit Connector
  • Micro USB Connector
  • UART1 - Free
  • UART2 - Free
  • UART3 – Free
  • UART4- DJI Connector
  • UART6- SBUS on DJI Connector (RX only)
  • UART7 - Free
  • UART8 - ESC Telemetry
  • 4x SMT32G071 BLHELI32 ESC MCU
  • Continuedly Current 45A and 55A Burst ESC
  • 3-6S Battery Input
  • 12V 2A 30W Design for DJI FPV Air Unit
  • 34x34mm with 25.5x25.5 Mounting Holes
  • Weight: 10.8gr. without grommets
  • Betaflight OSD support Analog build
  • I2C_SCL I2C_SDA Ready
  • Buzzer Ready
  • LED Ready
  • 5V 3A Power supply for external LED or GPS module

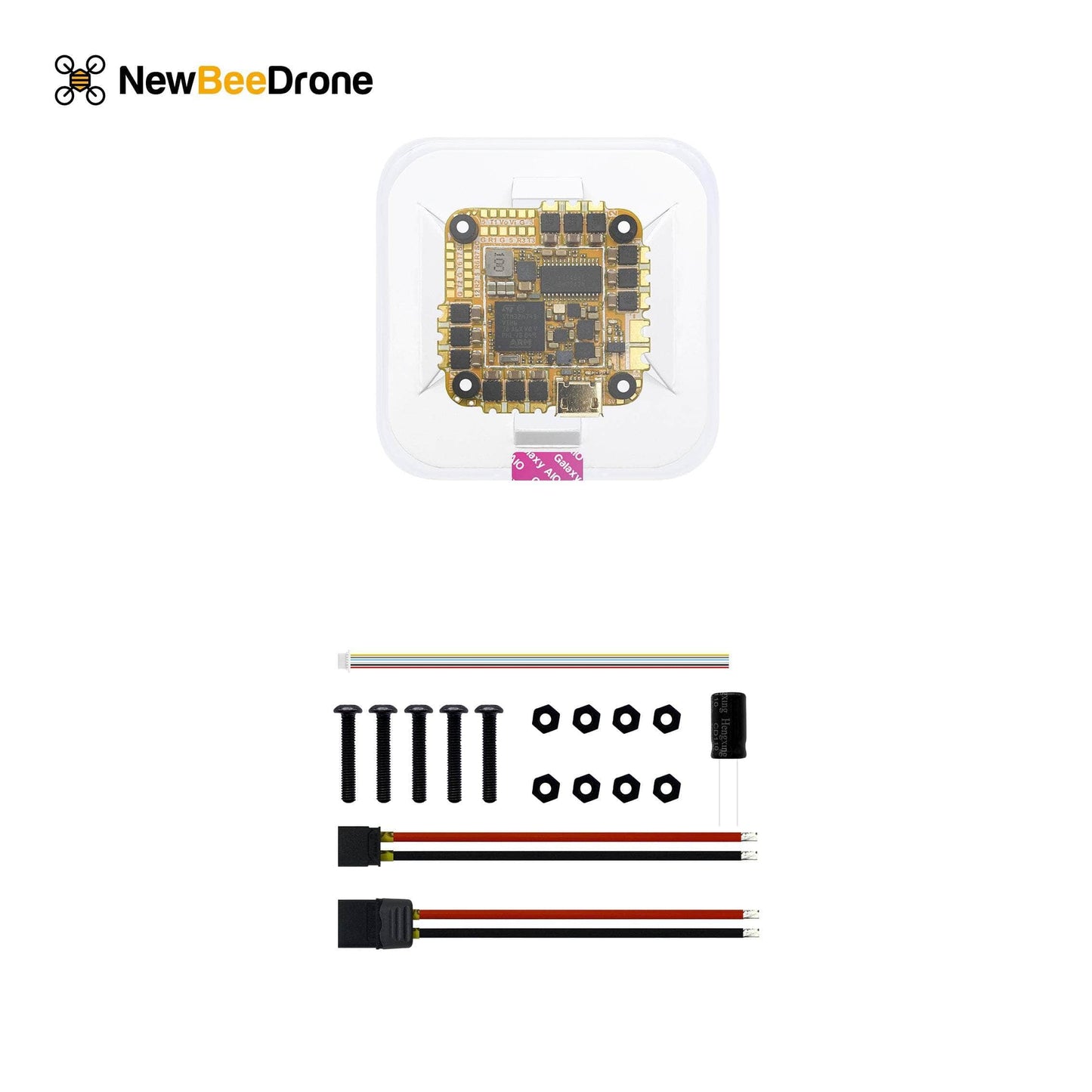

Includes

  • 1x Galaxy AIO Flight Controller + ESC
  • 1x Galaxy AIO DJI JST0.8 6Pin Cable 100mm (Teflon wire)
  • 10x M2 Nylon Lock Nut
  • 5x Steel Screw M2x14
  • 4x Grommets short
  • 1x 470uf 35v Electrolytic Capacitor
  • 1x XT60 Cable
  • 1x XT30 Cable


>
