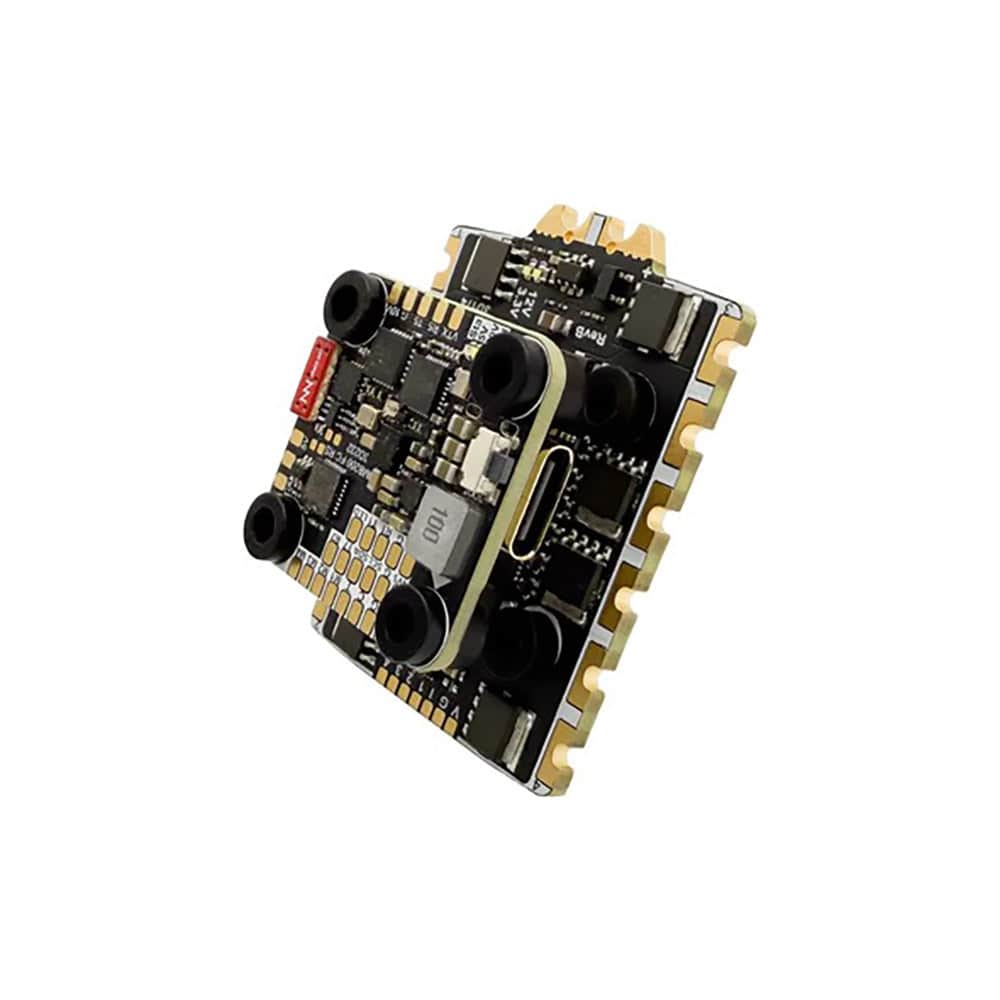

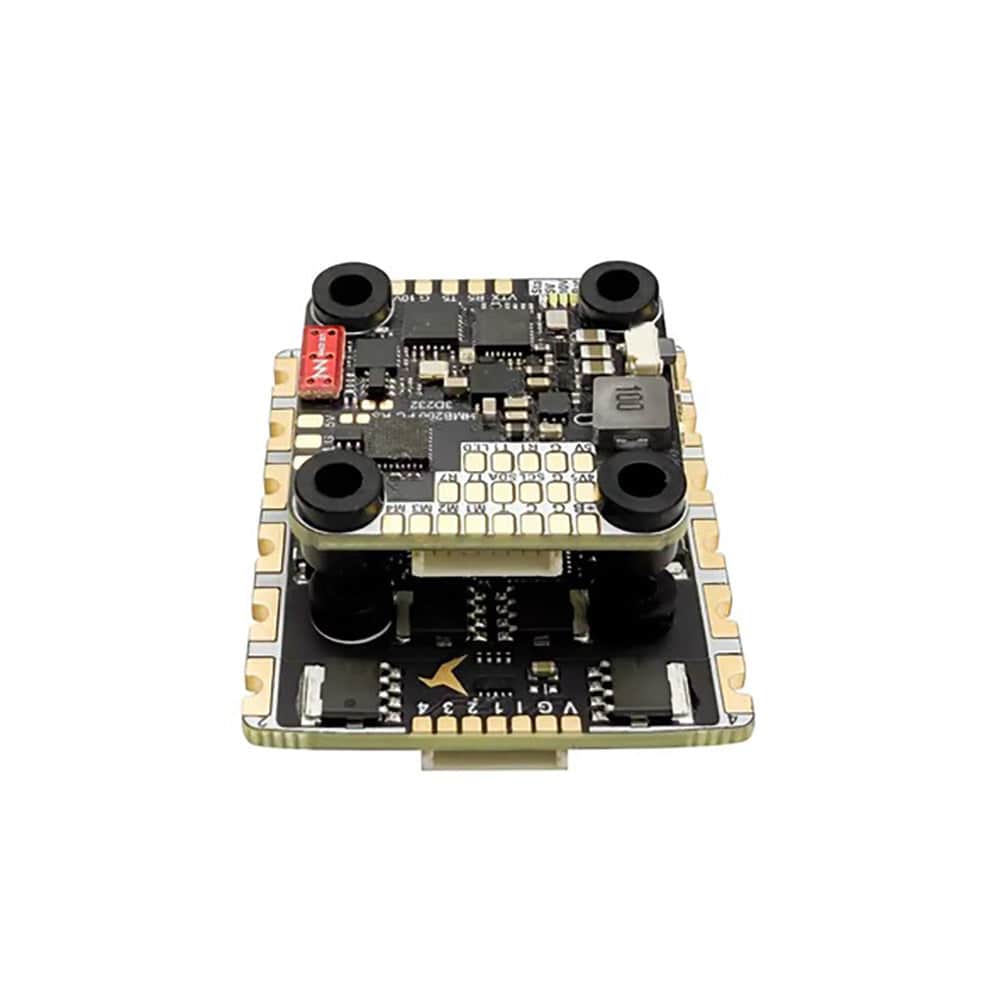

The NewBeeDrone Hummingbird 200 RaceSpec Stack - F4 ELRS FC + 80A AM32 ESC - is a purpose-built 20x20 flight stack designed from the ground up for competitive 5” FPV racing. Co-developed with professional racer Kyle Buell (aka Twidgit) and tested rigorously over half a year of real racing conditions, this stack delivers the durability, precision, and simplicity that race pilots demand.
At the heart of the system is the Hummingbird 200 Flight Controller, powered by a blazing-fast AT32F435 MCU at 288MHz, offering performance that surpasses even F722 processors. It features the highly respected ICM-42688 gyro with dedicated LDO power, and a built-in UART-based ExpressLRS 2.4GHz receiver with dual ceramic patch antennas and a TCXO oscillator for unmatched signal stability. This design eliminates the need for external receivers, simplifying builds and improving reliability during crashes.
Paired with the FC is the Hummingbird 200 4in1 ESC, rated for 80A continuous for 10 seconds and 100A burst for 3 seconds per channel, supporting 3–6S LiPo input. Built on a 6-layer 3oz copper PCB with blind vias and gold plating, this ESC is engineered to survive repeated abuse. It features three massive onboard TVS diodes for voltage spike protection and four corner-mounted capacitor pads for larger builds.\
Check out all our 20x20 stacks and the rest of our NewBeeDrone products.
Features
- AT32F435 MCU @ 288MHz – faster than F722
- Built-in ExpressLRS 2.4GHz receiver (UART-based)
- Dual ceramic patch antennas
- TCXO oscillator for signal stability
Specifications

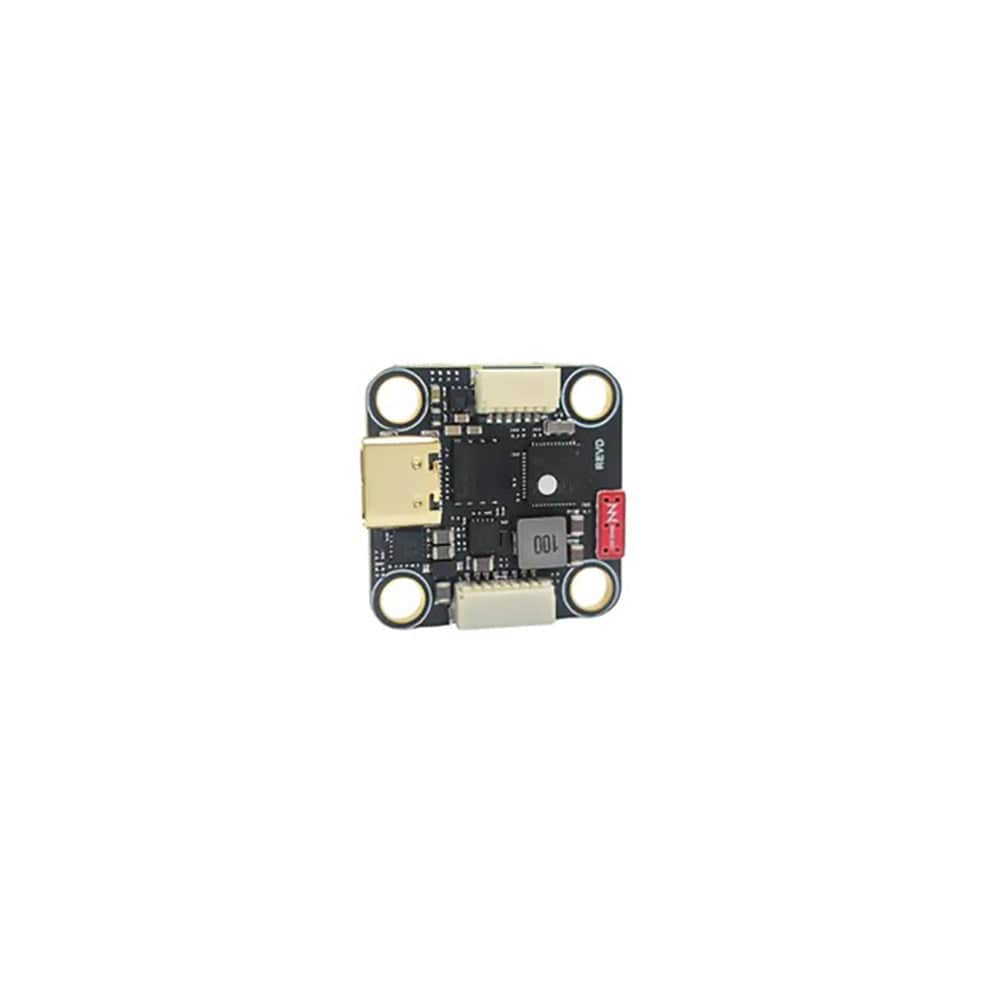

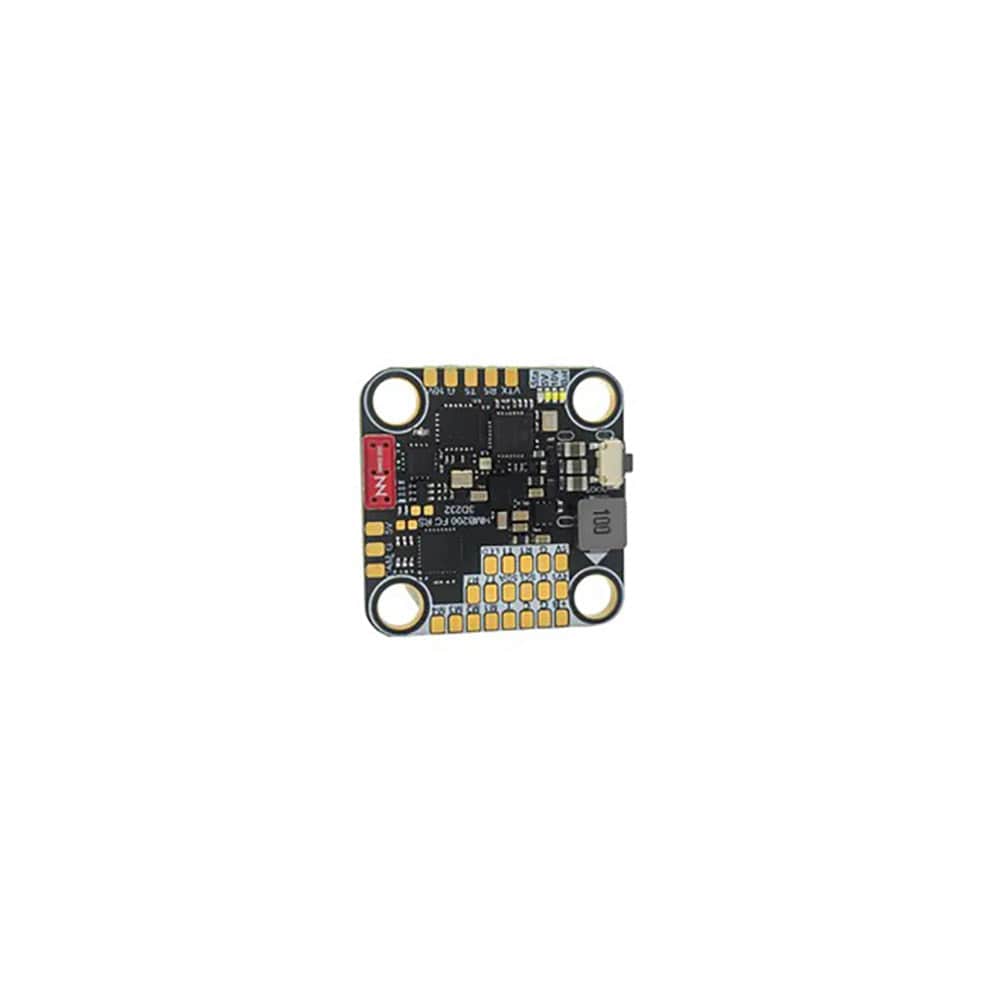

F4 ELRS Flight Controller
- MCU: AT32F435 @ 288MHz
- RX: Built-in ExpressLRS 2.4GHz receiver (UART-based)
- Antenna: Dual ceramic patch
- Firmware target name: NewBeeDrone Diversity 2.4Ghz RX V2
- TCXO oscillator: Yes
- Gyro: ICM-42688 with dedicated LDO power supply - External clock sampling in BF4.6 reduces gyro noise, improves stability.
- OSD: NBD7456 chip
- BEC power outputs: 10V 2A and 5V 2A dual
- UART Layout:
- UART1: Internal ELRS
- UART5: Direct HDZero VTX plug
- UART7: Free
- I2C and LED: pad ready
- Mounting: 20x20mm (M2 or M3)
- Weight: 4.8g
- Nano Coating: Yes

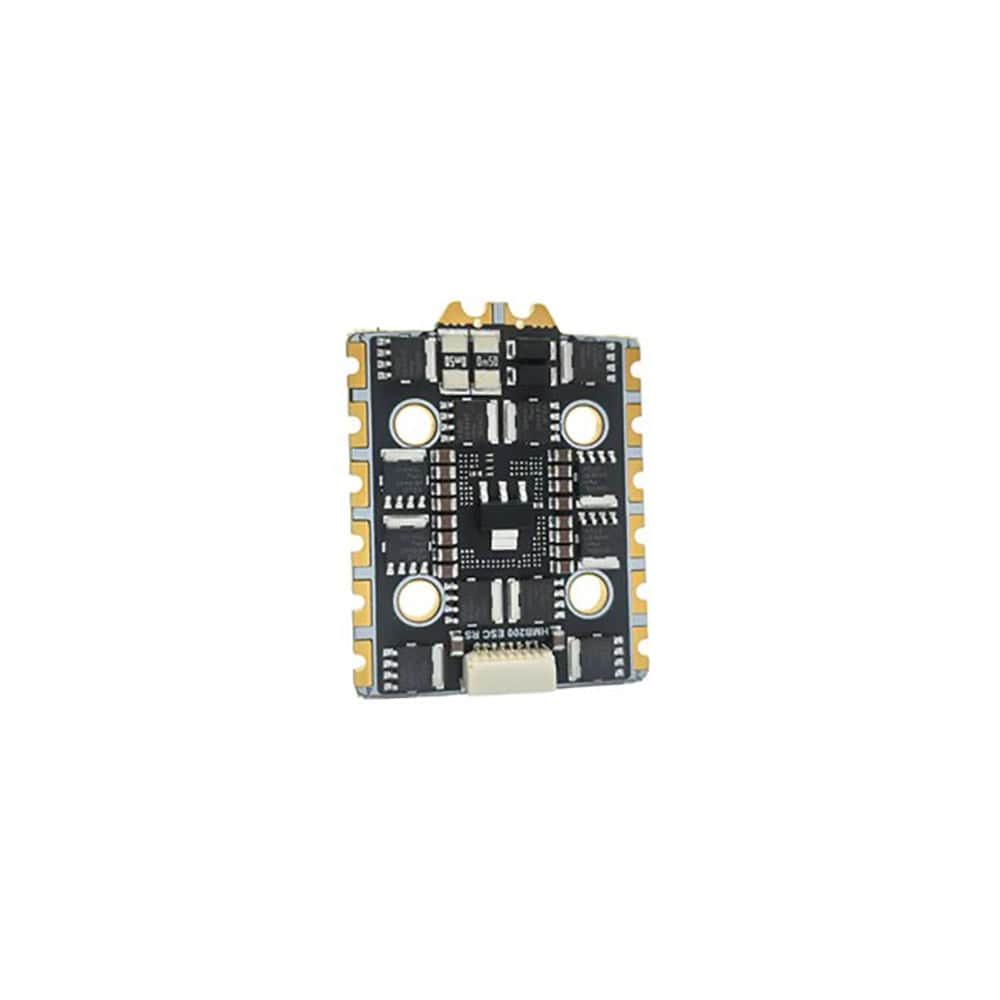

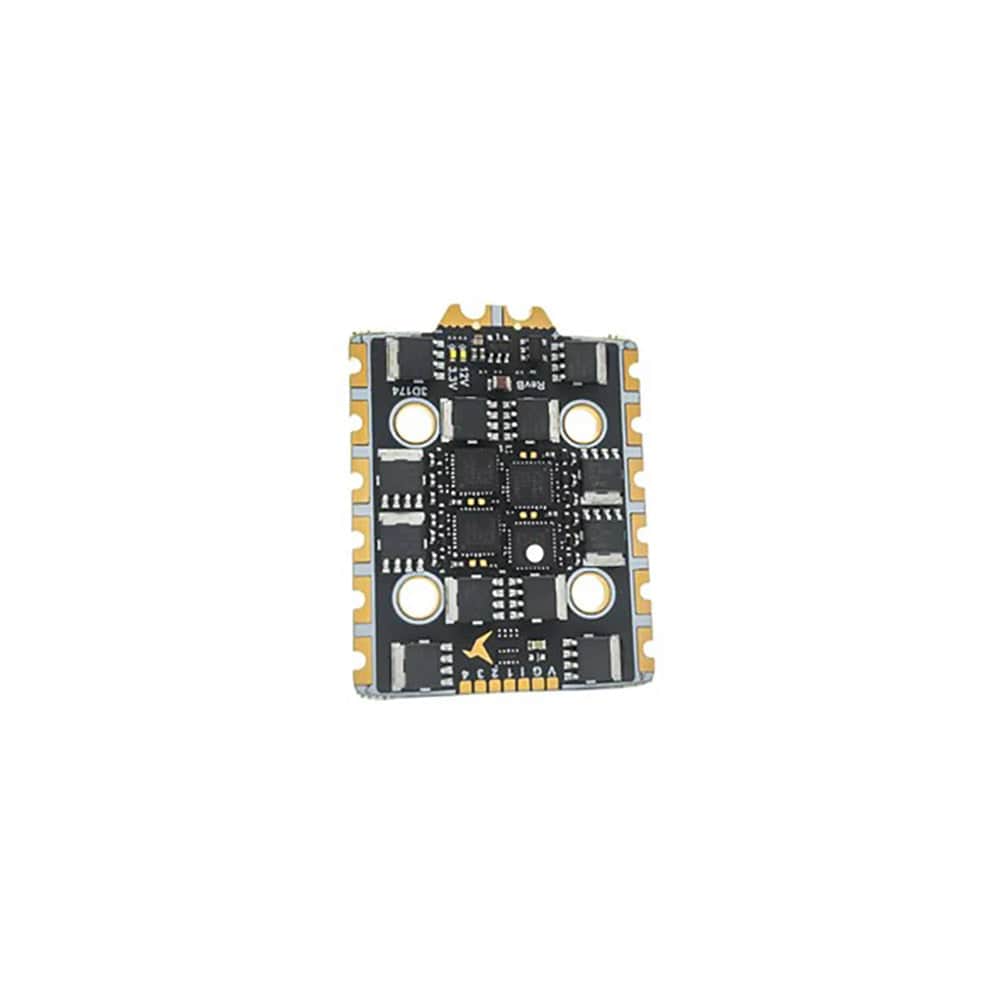

80A AM32 ESC
- 10 Seconds Continuous Current: 80A per channel
- 3 Seconds Burst Current: 100A (3s)
- Voltage Input: 3–6S LiPo
- MCU: AT32F421 with integrated gate driver
- Firmware: AM32
- 6-layer, 3oz copper PCB with blind via and gold plating
- TVS diodes: 2x onboard rated for 400W peak
- Motor pads: 3D motor pad structure (top + bottom + side solderable)
- Mounting: 20x20mm (M3 holes)
- Dimensions: 35x45mm (incl. pads)
- Weight: ~13.9g
- Nano Coating: yes
Links
- If you cannot get into DFU, please install: AT32 DRIVER
- User Guide: Link
Includes
- 1x NewBeeDrone Hummingbird 200 RaceSpec Stack - F4 ELRS FC + 80A AM32 ESC - 20x20

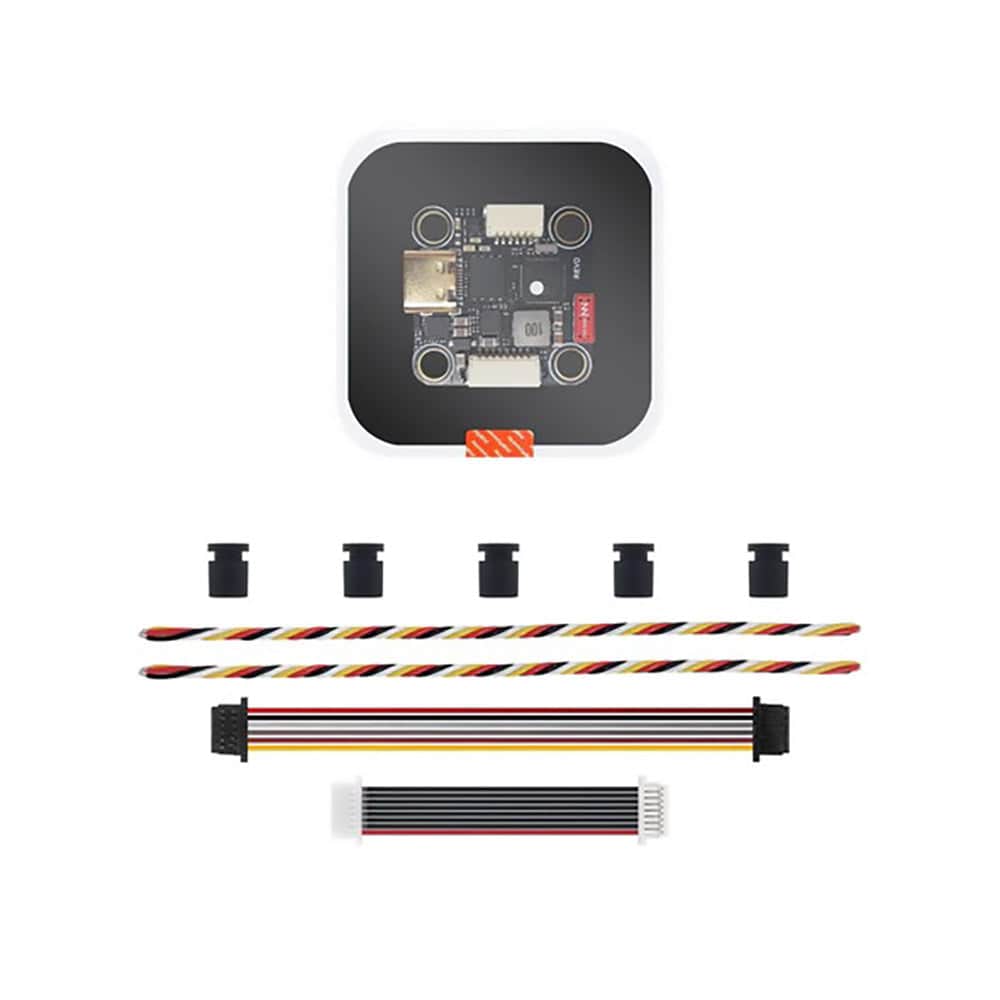

- Flight Controller:
- 5x Grommets
- 1x DJI O3/O4/HDZERO plug and play cable 100mm
- 1x SH1.0 8Pin 36mm for FC to ESC
- 2x 120mm silicon wire 4color cable

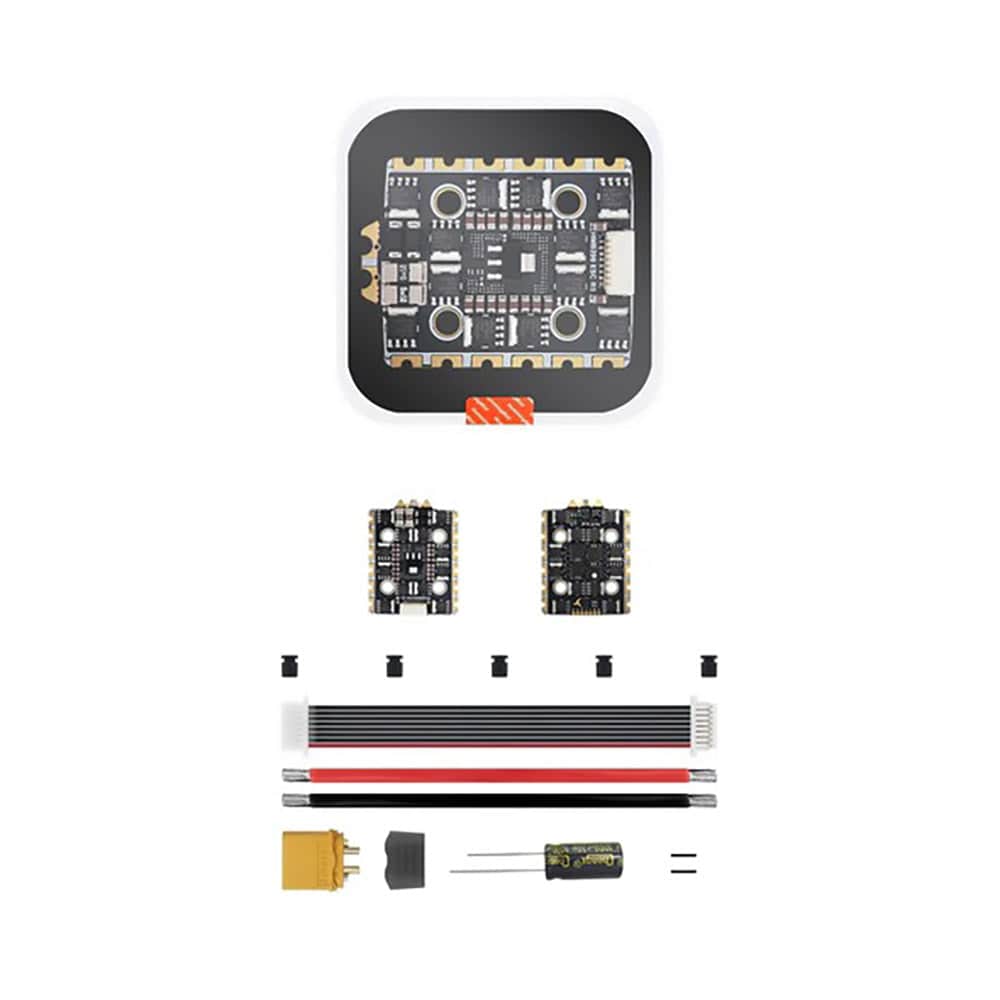

- ESC
- 5x Grommet
- 1x 14awg Power cable
- 1x XT60 Plug
- 1x 8Pin 100mm Silicone Cable for FC Connection
- 1x 1000uf Capacitor
- 2x Tiny heat shrink for capacitor
- Flight Controller:
More Info
- SKU: 23691
- Barcode: 0612020001
