Details
Description

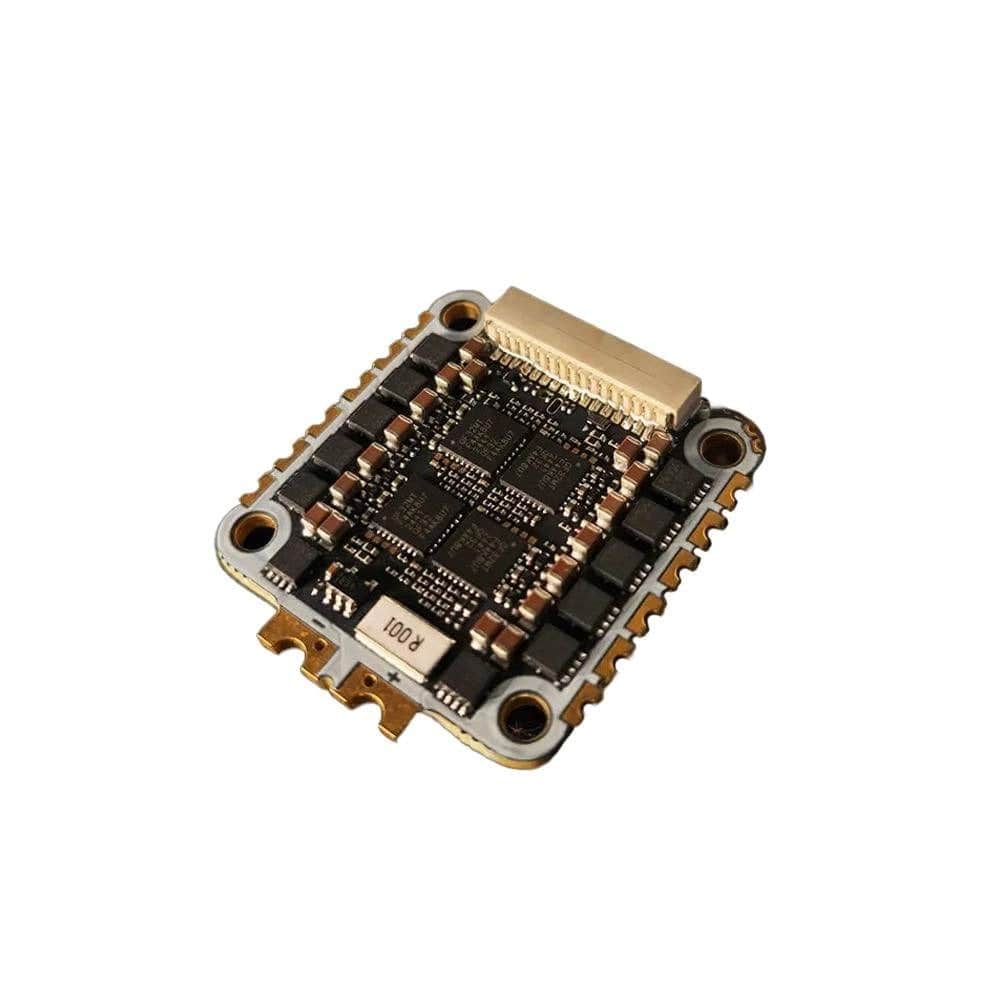

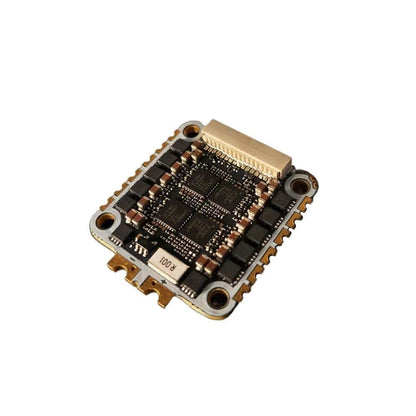

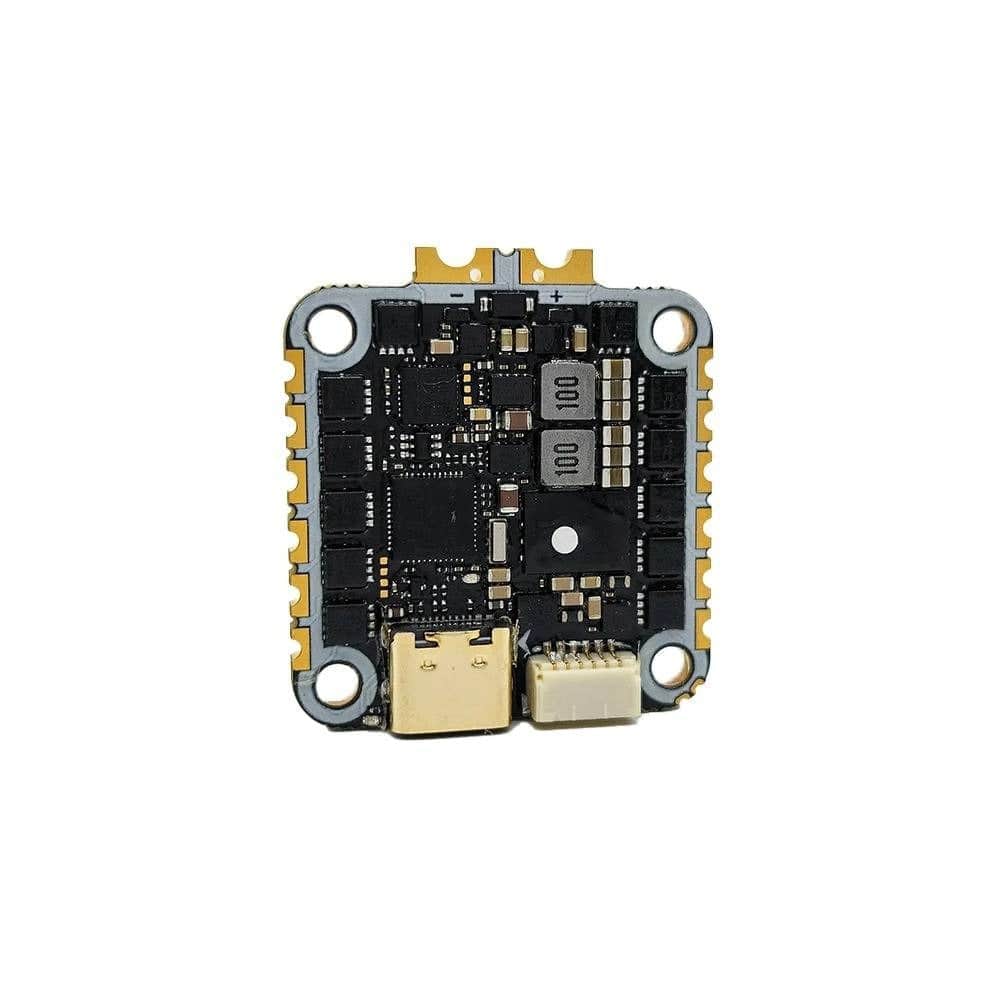

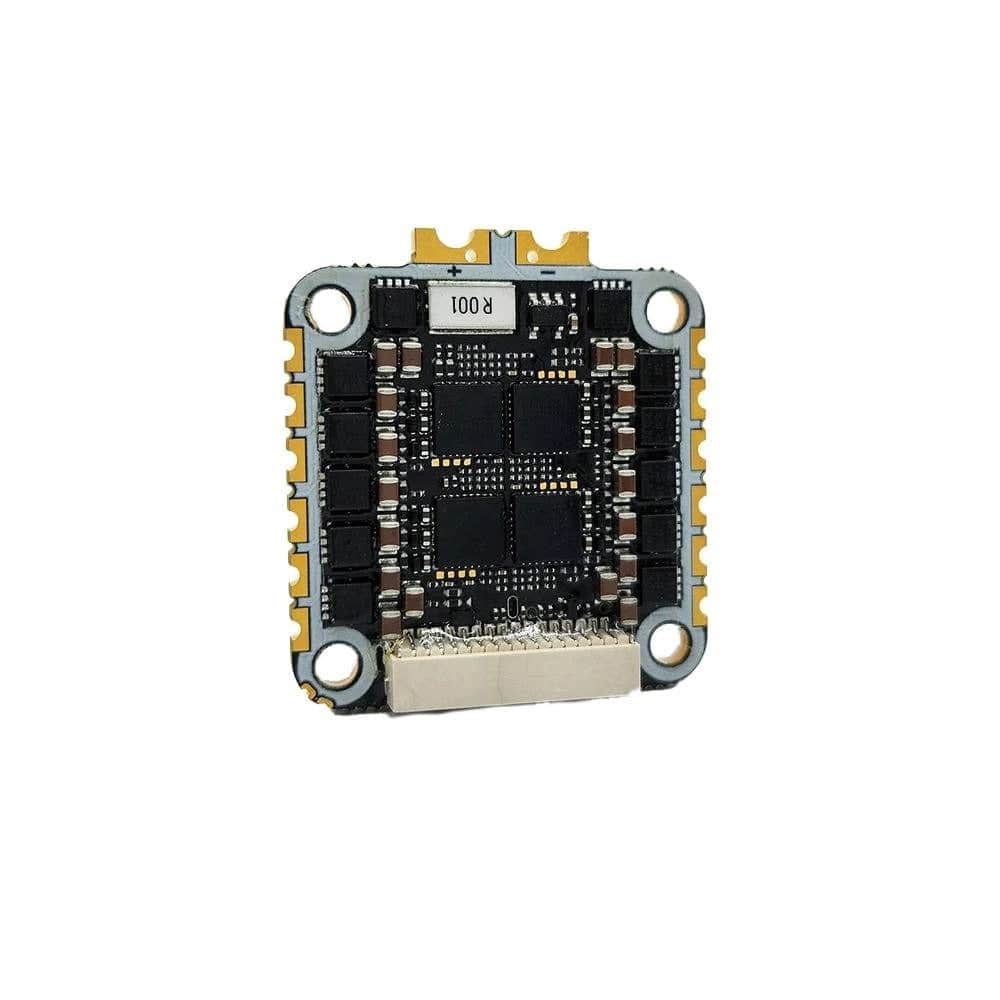

The NewBeeDrone Hummingbird 255 AIO F4 FC + 50A 3-6S AM32 ESC combines high performance and convenience for modern FPV drone builds. Powered by the AT32F435 MCU running at 288 MHz, it delivers up to 71% faster processing than F405 chips for ultra-responsive control. Its plug-and-play HD VTX interface supports DJI O4, Walksnail, and HDZero systems, while reinforced connectors and 50A continuous current handling ensure durability and reliability. Optimized for 2.5"–4" drones, it’s the perfect choice for pilots who want powerful performance with easy, solder-free setup.
Browse the rest of our Whoop AIO Boards and the rest of our NewBeeDrone products.
Features
- 288MHz Core Speed
- Dual Independent BEC Power Supply - 10V 2A + 5V 2A
- 6-Pin Plug-and-Play HD interface
- Standard 25.5mm x 25.5mm Mounting Pattern
Specifications
- MCU: AT32F435CGU7
- Gyro: ICM-42688
- Blackbox: 128MB
- Connectors:
- 6-Pin DJI FPV Air Unit Connector
- USB-C Connector
- UART Interfaces:
- UART7 - SBUS on DJI Connector (RX only)
- UART4 - DJI Connector
- UART5 - Free
- UART6 - Free
- ESC: 4x AT32F421 AM32 ESC MCU
- Continuous Current: 50A and 60A Burst ESC
- Battery Input: 3-6S
- Power Output: 10V 2A 20W (designed for HD VTX System)
- Dimensions: 35x32mm with 25.5x25.5 Mounting Holes
- Weight: 10.2g (without grommets)
Links

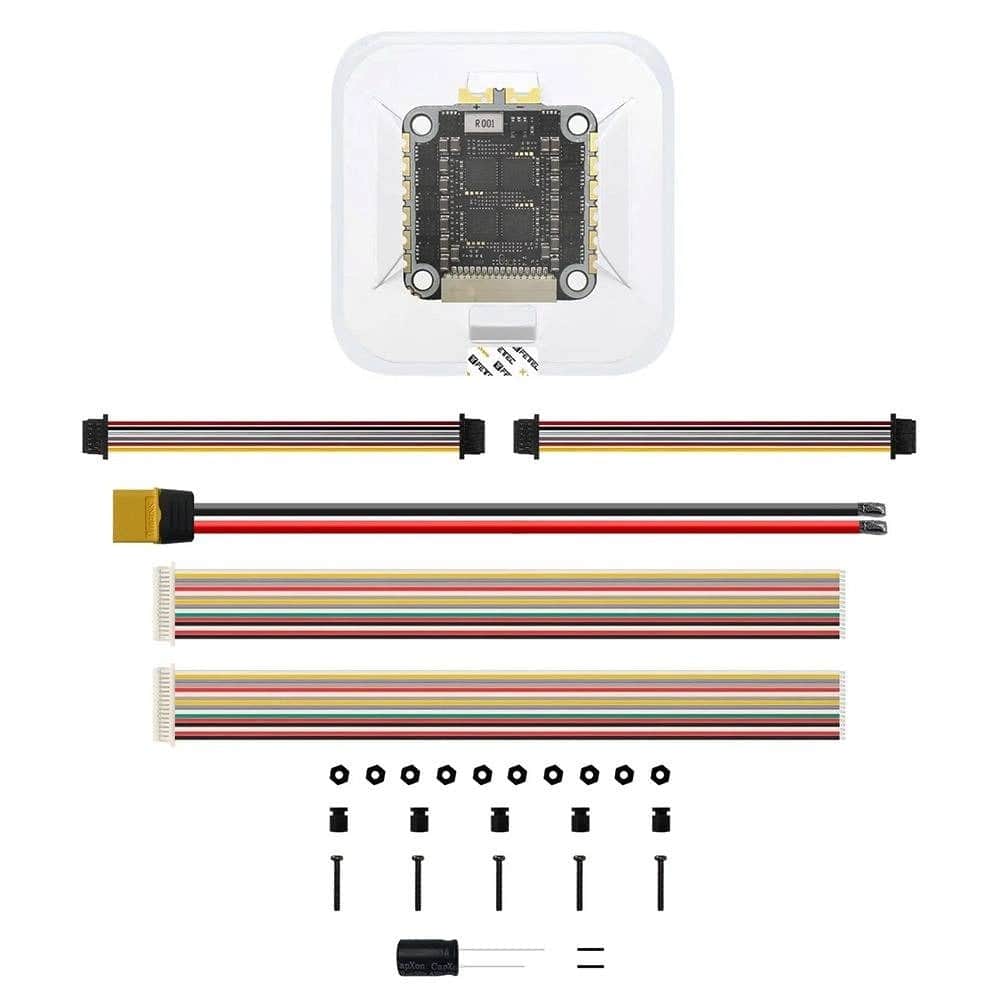

Includes
- 1x NewBeeDrone Hummingbird 255 AIO - F4 FC + 50A 3-6S AM32 ESC
- 2x DJI O4 Cable 55mm (Silicon wire)
- 2x 16Pin Cable 120mm (Teflon wire)
- 10x Nylon Lock Nut
- 5x Steel Screw M2x14
- 4x Grommets Short
- 1x 470uf 35v Electrolytic Capacitor
- 1x XT30 Cable
More Info
- SKU: 23690
- Barcode: 723326377198
