Great Stack
"Great stack! I ordered 2 and have one in a build and fly’s great! Can’t wait to build the next one!"
Details
Description

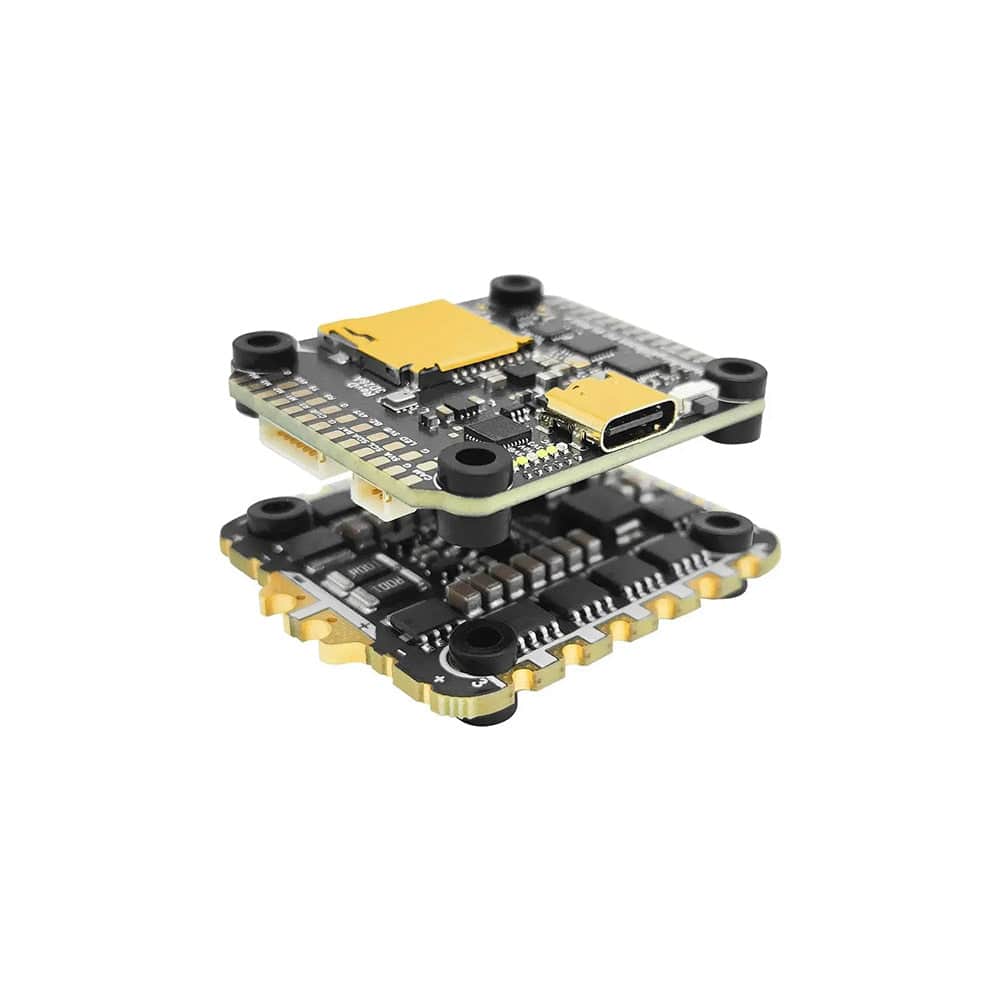

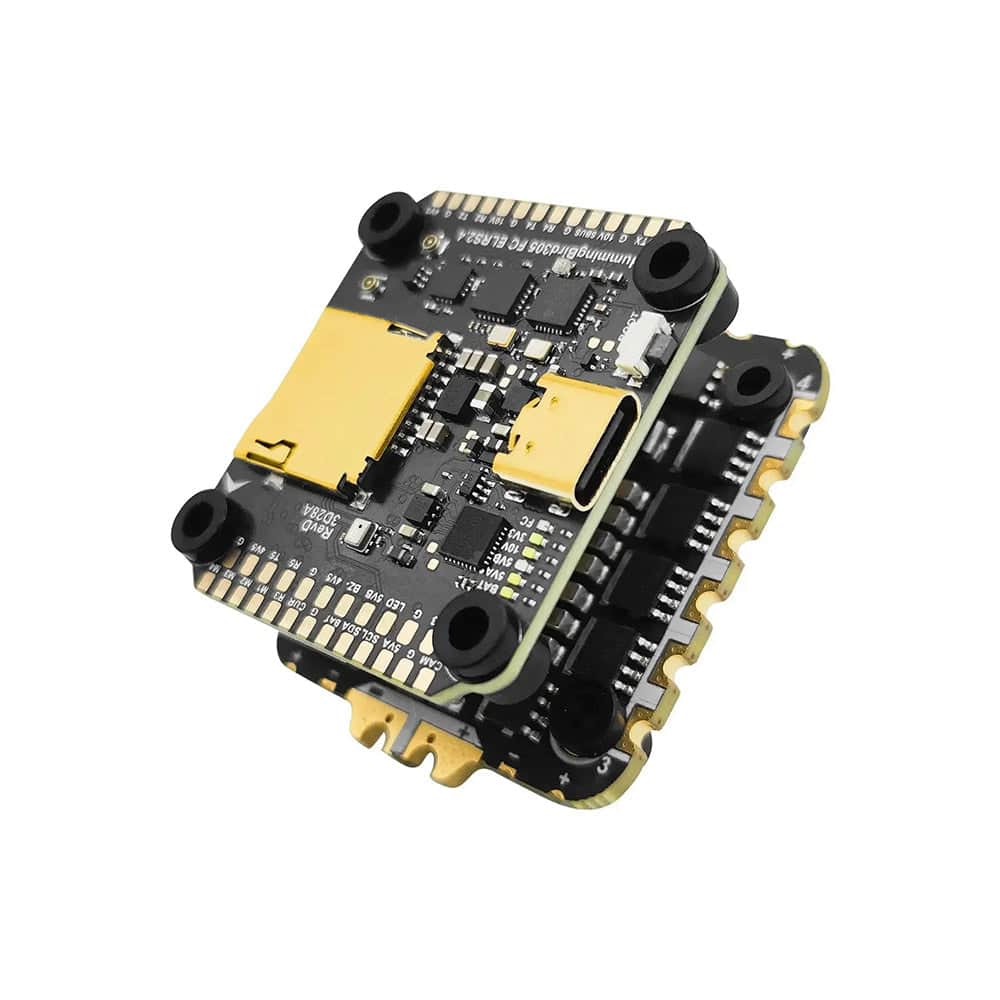

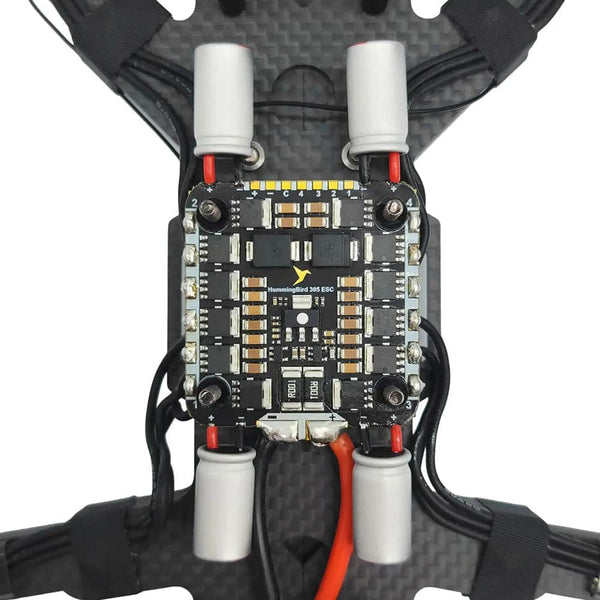

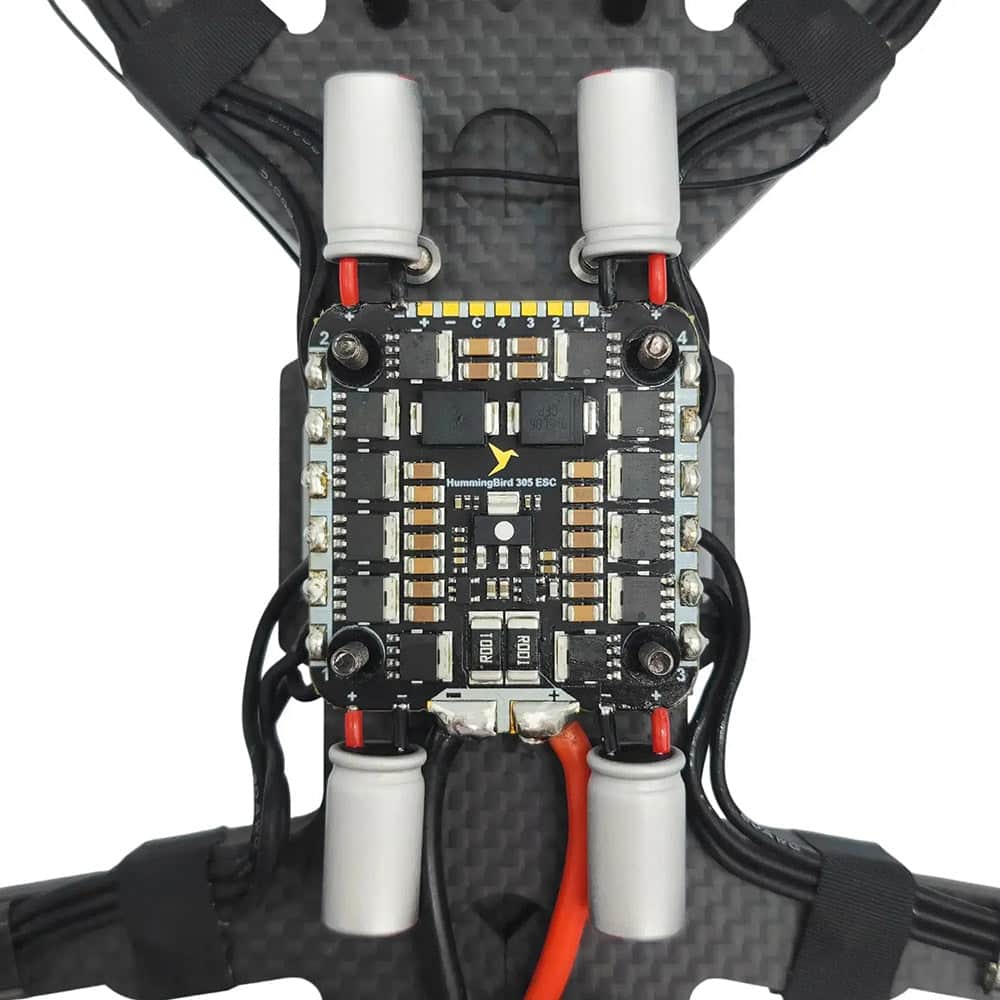

Matched with the Hummingbird 305 4in1 ESC, this power system supports up to 80A continuous for 10 seconds and 100A burst for 3 seconds per channel on 3–8S LiPo, delivering insane performance with robust protection. The ESC features 3oz 6-layer gold-plated PCB with blind vias, AT32F421 MCU + integrated Gate Driver, and 3x massive onboard TVS diodes, eliminating the need for external surge protection.
Check out all our 20x20 stacks and the rest of our NewBeeDrone products.
Features
- Optimized for 5" to 10" Drones
- Up to 8S LiPo Support
- Built for Power & Durability
Specifications

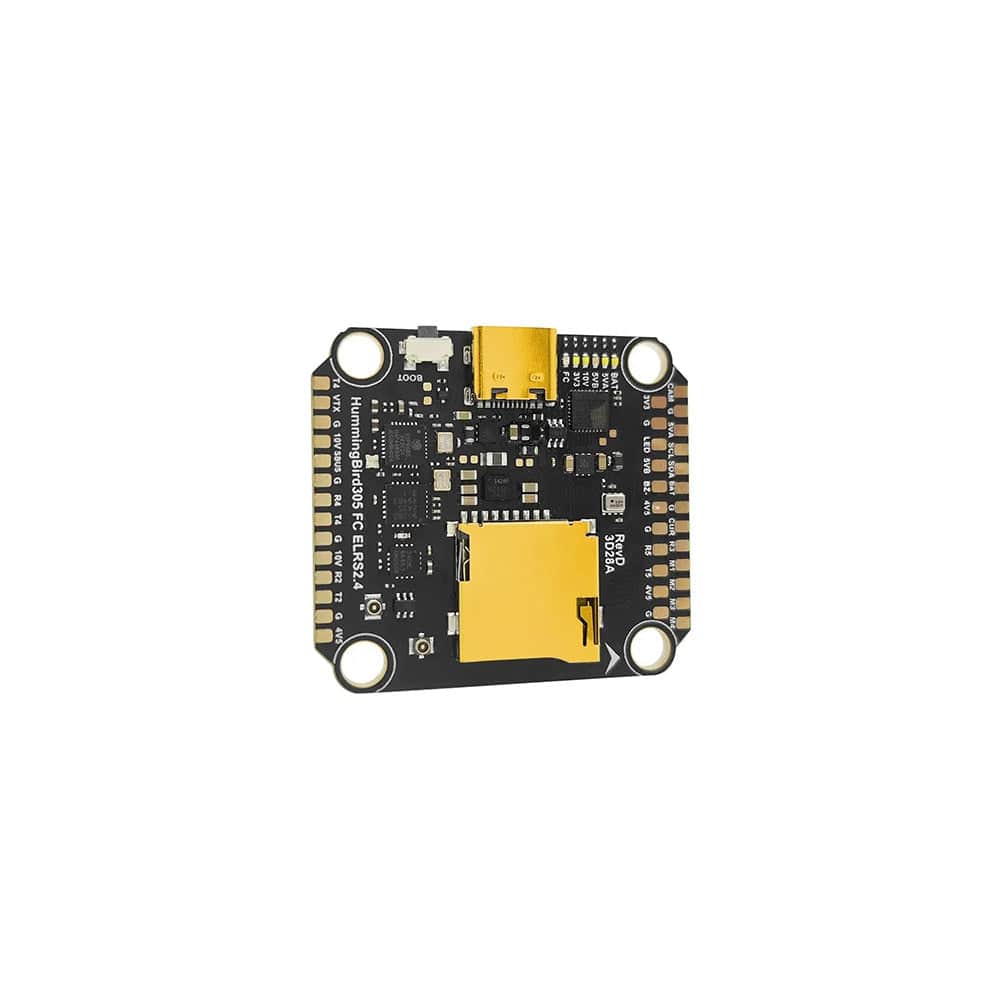

F7 ELRS Flight Controller
- MCU: STM32F722 @ 216MHz
- Built-in ExpressLRS 2.4GHz Diversity Receiver with TCXO Oscillator(Dual Antenna + LNA)
- Firmware target: NewBeeDrone Diversity 2.4Ghz RX V2
- Gyro: ICM-42688 with Independent LDO（External clock sampling in BF4.6)
- Barometer: SPL06-001
- SD Card Slot for Blackbox: Yes
- Supports Betaflight and iNAV: Yes
- BEC power Outputs: 10V 2A + 5V 2A
- VTX Support: Analog & Digital VTX Ready (DJI/HDZero/Walksnail)
- Mounting: Standard 30.5x30.5mm
- Nano Coating: Yes

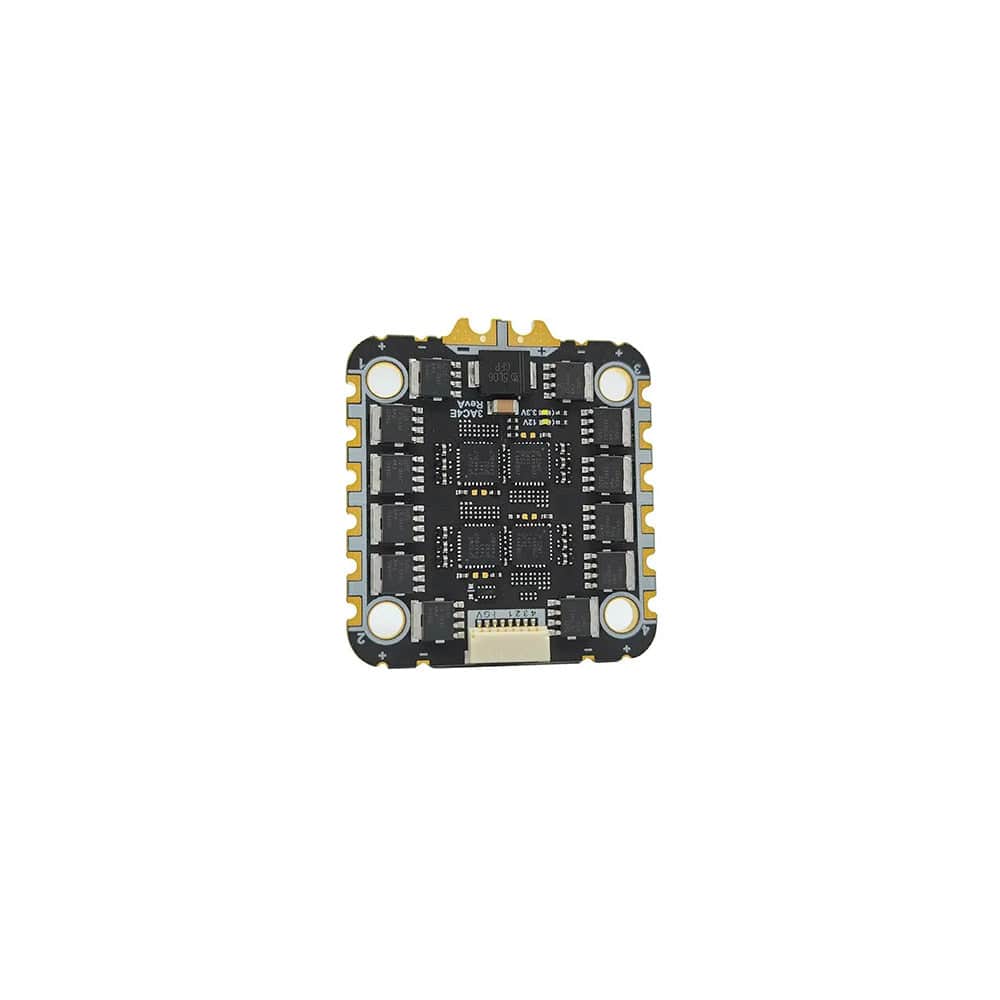

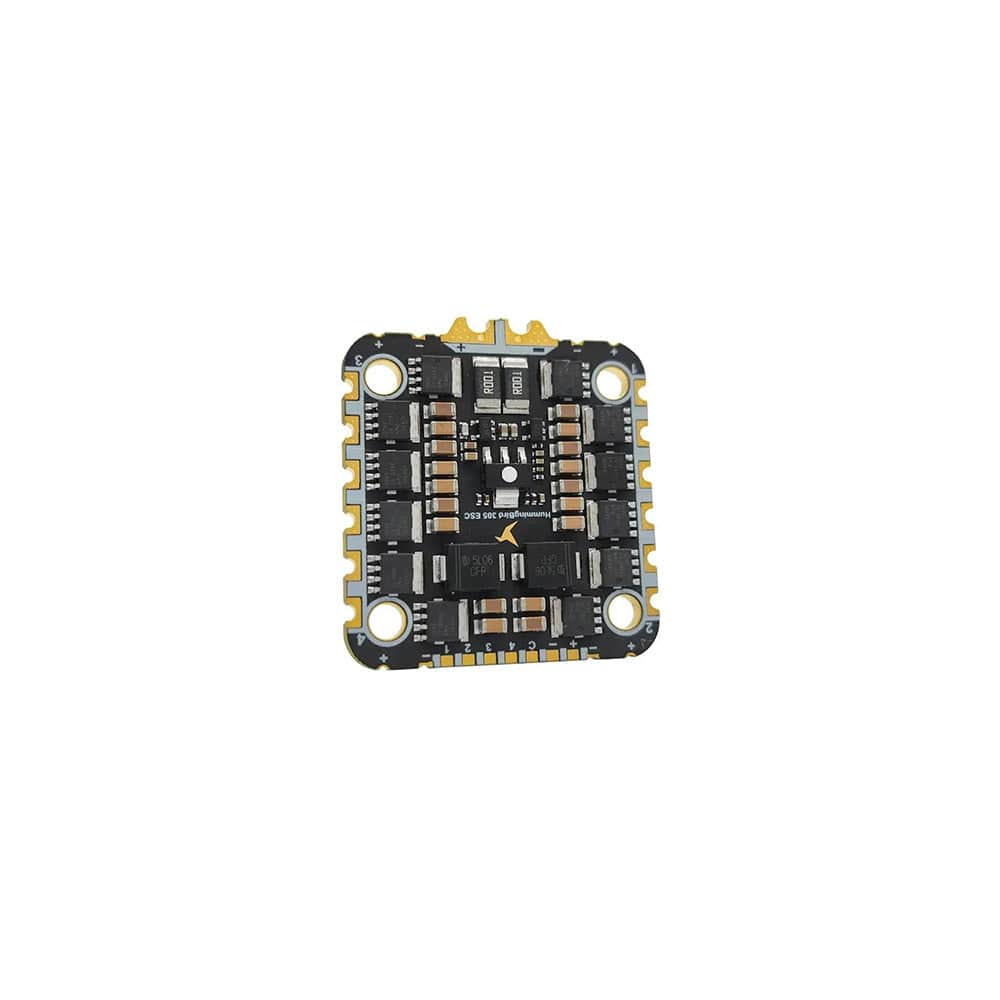

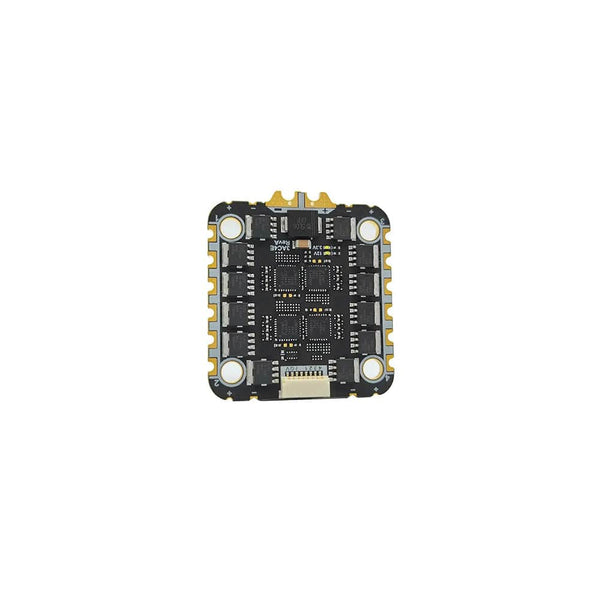

80A AM32 4-in-1 ESC
- Continuous Current: 80A/channel 10 Seconds
- Burst Current: 100A 3 Seconds
- Voltage: 3–8S LiPo
- Firmware: AM32 Ready (AT32F421 MCU + Integrated Gate Driver)
- TVS: 3x High-Capacity TVS Diodes (Total Peak Power > 1.5kW)
- PCB: 3oz Copper, 6-Layer Blind Via Gold-Plated
- Extra Cap Pad: at Corner for 7”/10” Build
- Mounting: Standard 30.5x30.5mm
- Nano Coating: Yes
IMPORTANT NOTES
- Recommended SD: Class 10 MicroSD ≤32GB, 4GB for blackbox. FAT32.
- External clock sampling in BF4.6 reduces gyro noise, improves stability.
Links

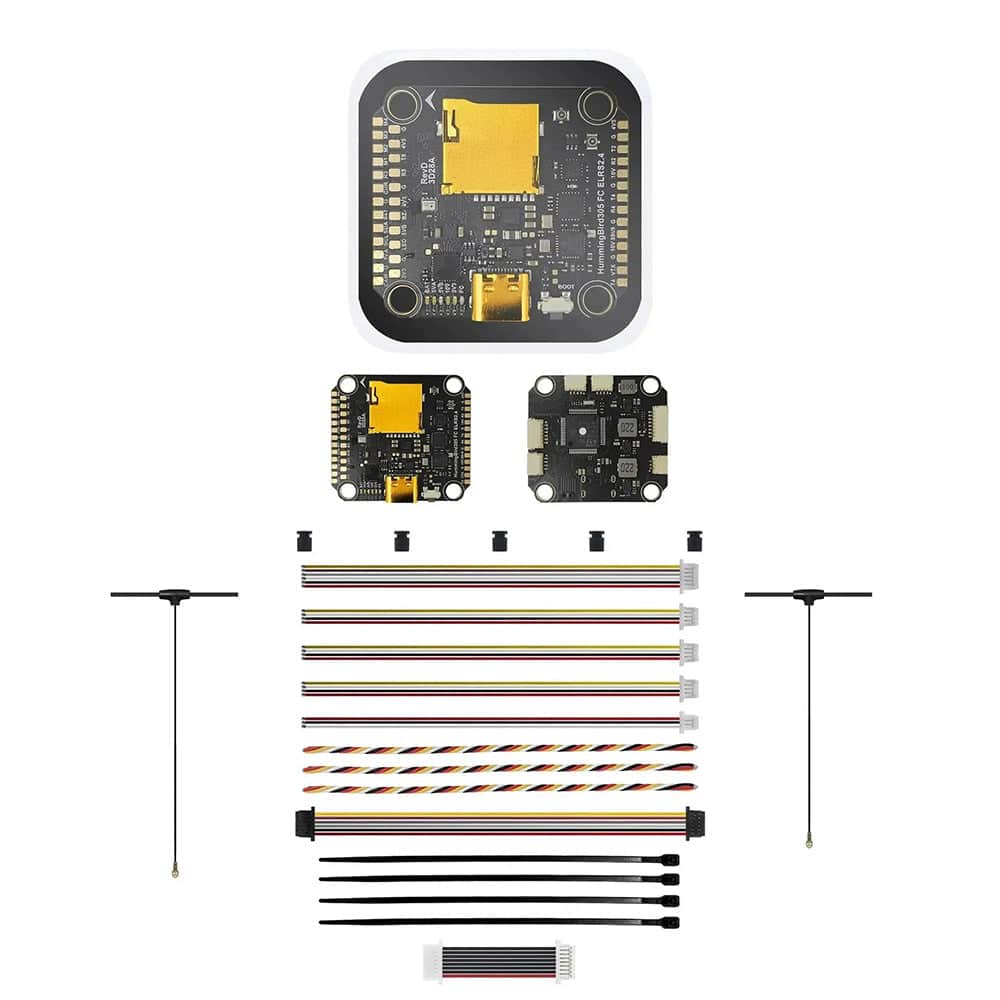

Includes
- 1x NewBeeDrone Hummingbird 305 Stack - F7 ELRS FC + 80A AM32 4-in-1 ESC - 30.5x30.5
- Flight Controller
- 2x 2.4G ELRS Antenna with MHF3 Connector
- 5x Grommets
- 1x DJI O3/O4 plug and play cable 100mm
- 1x SH1.0 3Pin 100mm for analog camera
- 3x SH1.0 4Pin 100mm for UART Port
- 1x SH1.0 6Pin 100mm for HD VTX
- 3x 120mm silicon wire 4color cable
- 1x SH1.0 8Pin 96mm for FC to ESC
- ESC
- 5x Grommet
- 1x 14awg Power cable
- 1x XT60 Plug
- 1x 8Pin 100mm Silicone Cable for FC Connection
- 1x 1000uf Capacitor
- 2x Tiny heat shrink for capacitor
- Flight Controller
More Info
- SKU: 23692
- Barcode: 723326377082
