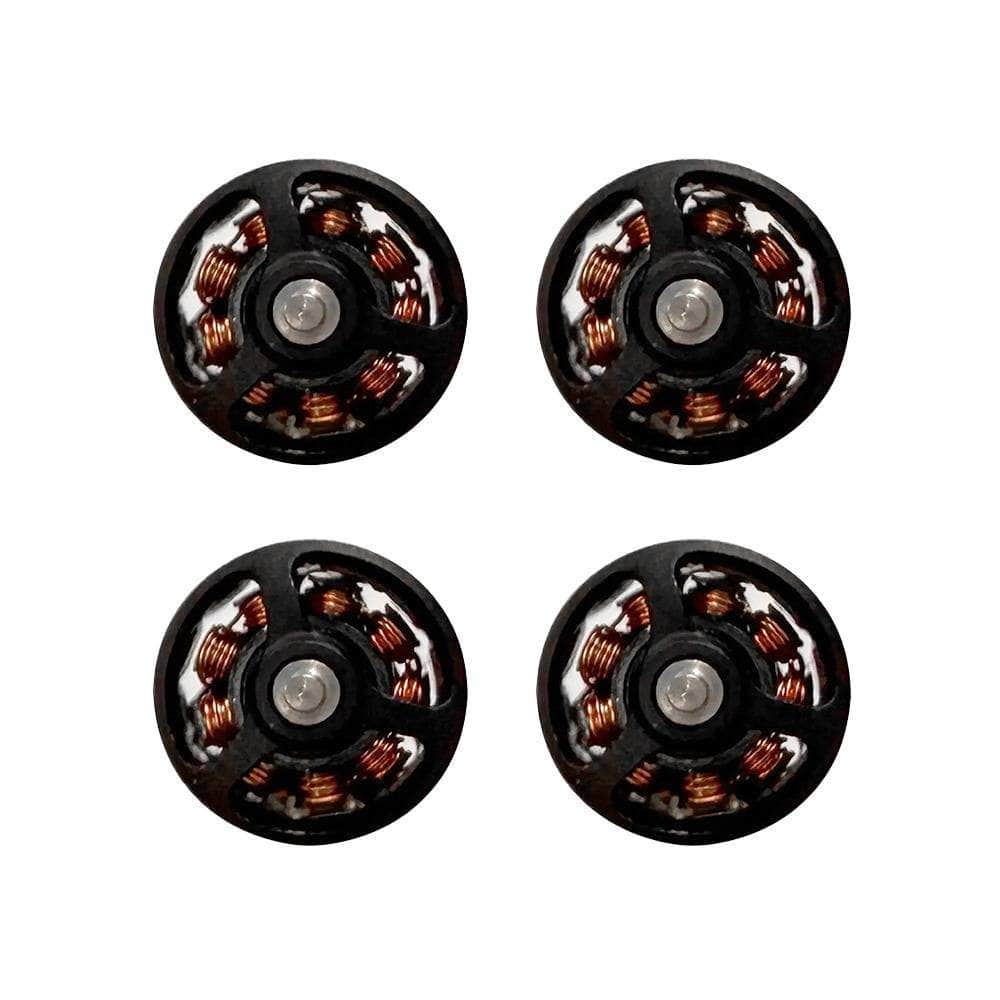

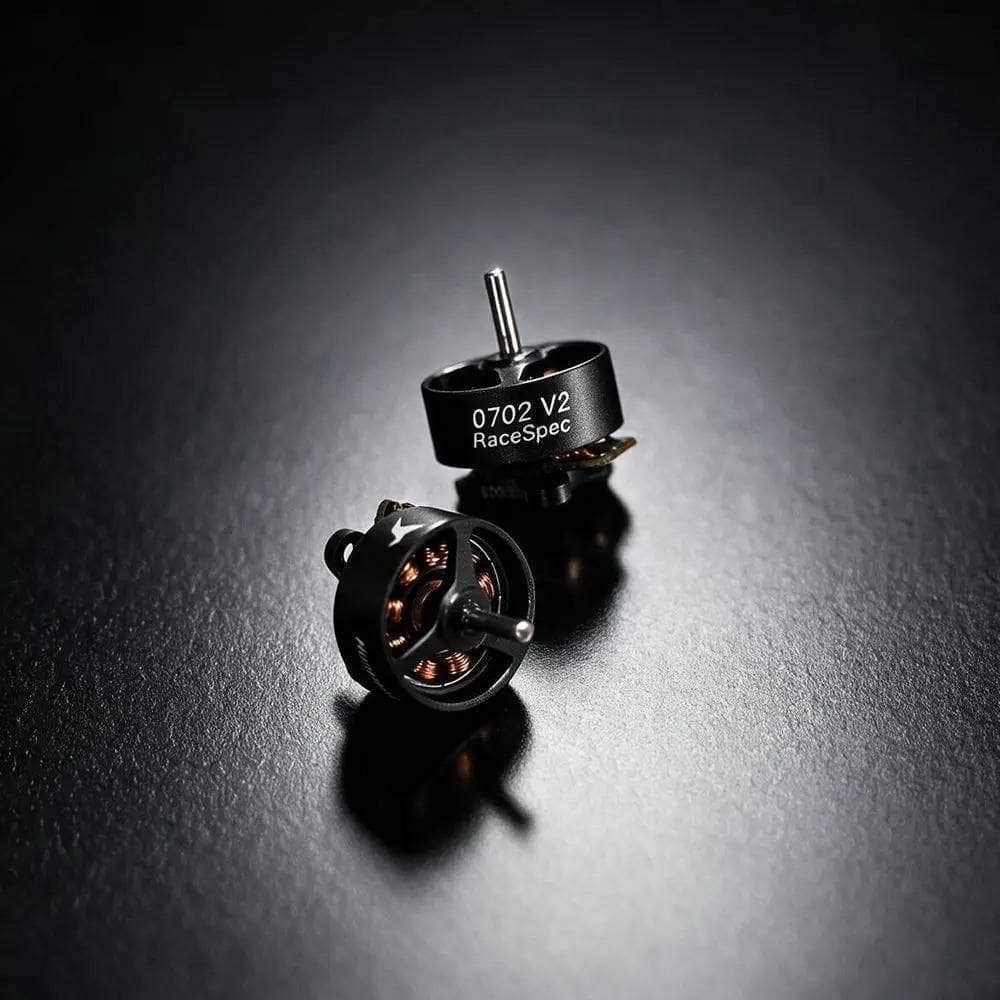

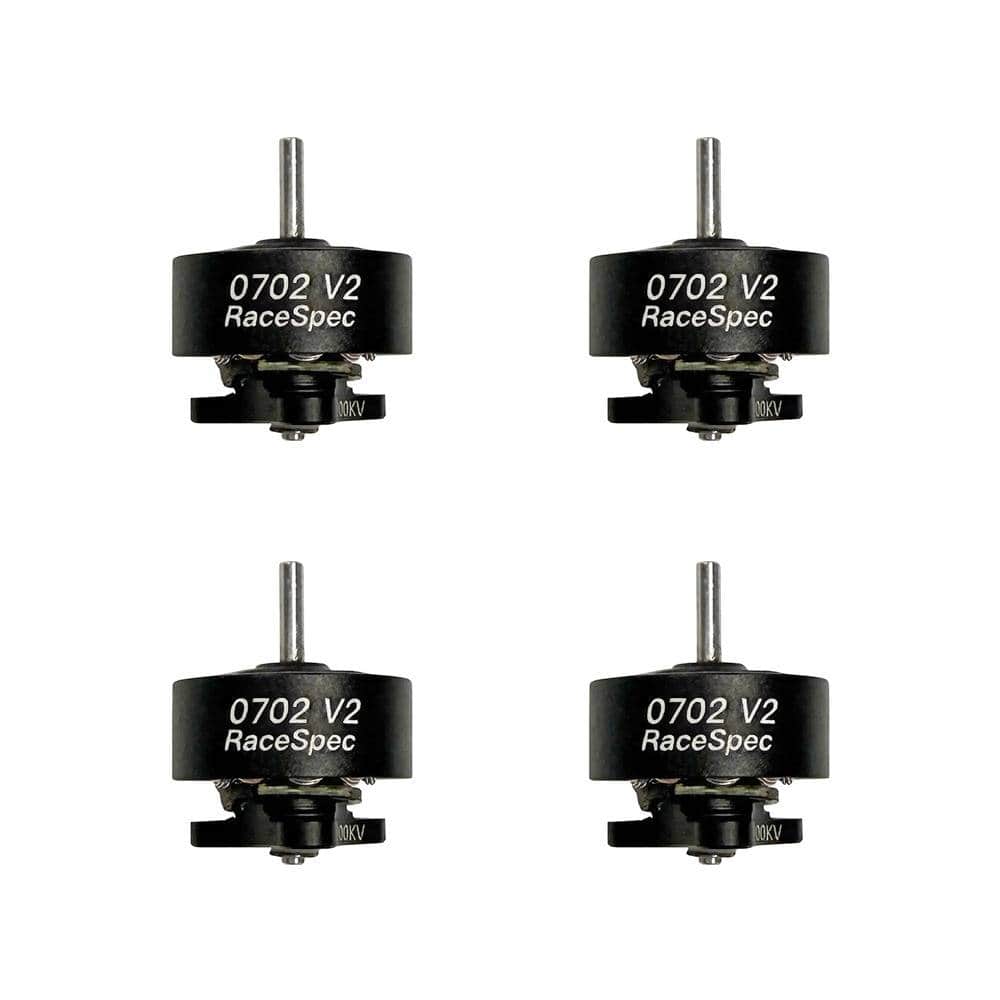

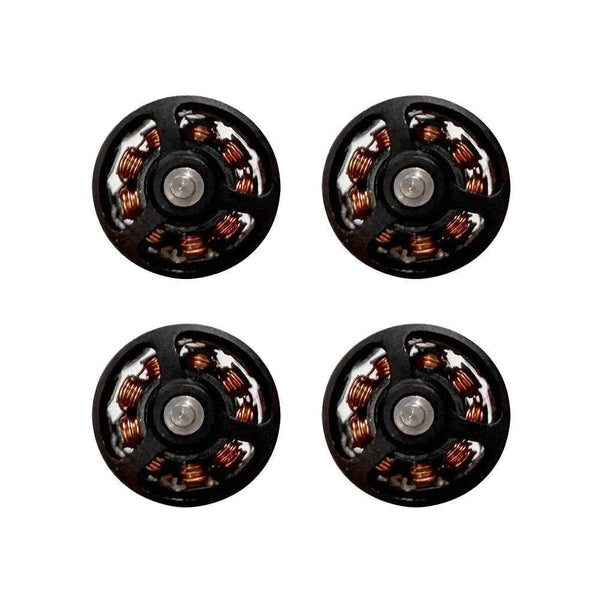

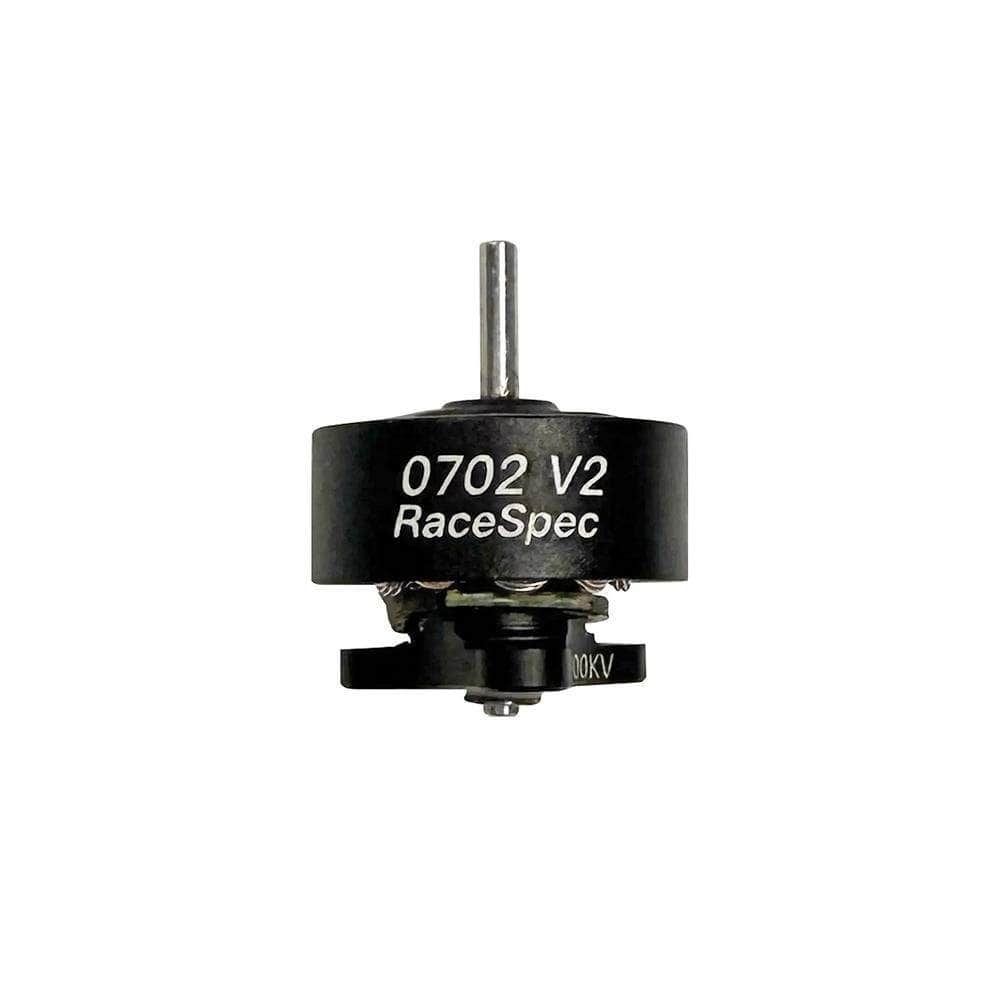

Built for lightweight, high-response micro FPV performance, the Hummingbird Unibell 0702 V2 30000KV motor combines a compact 0702 platform with an updated unibell design for improved rigidity and durability. The V2 keeps weight to a minimum while delivering the fast spool-up and responsive throttle feel expected from a 30000KV motor. A JST 1.0 3-pin connector allows for quick plug-and-play installation without soldering the motor directly to the flight controller.
Check out our vast brushless motor selection and all our NewBeeDrone products!
Features
- 30000KV high-RPM motor configuration
- Updated Unibell V2 design for improved rigidity
- Ultra-lightweight at only 1.1g without wires
- JST 1.0 3-pin connector for plug-and-play installation
- 9 stator slots / 12 rotor poles
Specifications
- Model: RaceSpec Unibell 0702 V2
- Stator: 0702
- KV: 30000KV
- Input Voltage: 1S (4.2V)
- Configuration: 9S12P
- Stator Height: 2mm
- Stator Diameter: 7mm
- Shaft Diameter: 1mm
- Weight: 1.1g (without wires)

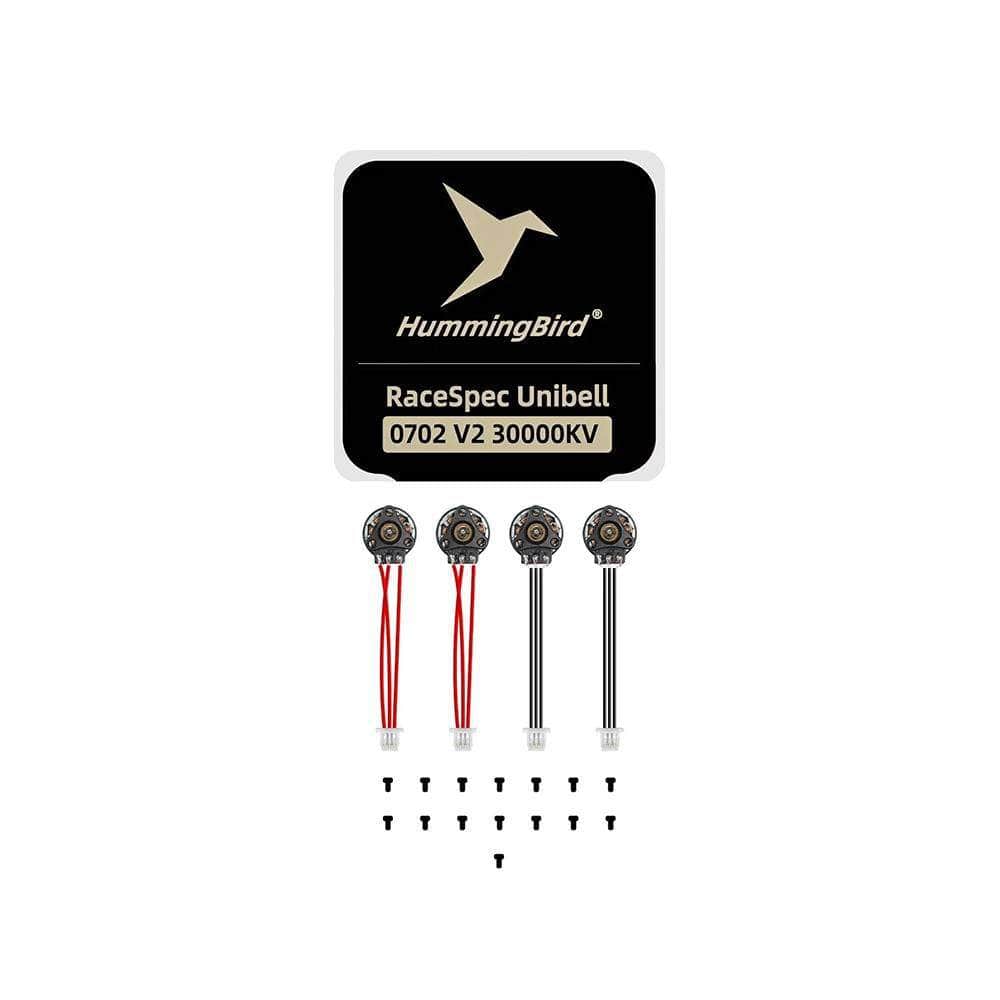

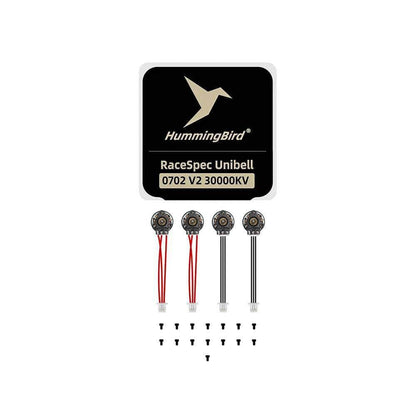

Includes
- 4x Hummingbird Unibell 0702 V2 30000KV Brushless Motors
More Info
- SKU: G25288CN1Z
- Barcode: 723326382987
