NewBeeDrone Infinity V2 PRO 3-6S 30x30 AIO Flight Controller w/ 55A 32bit ESC
NewBeeDrone Infinity AIO V2 is the next generation of Infinity AIO Flight Controller. NBD has invested an immense amount of R&D time to optimize the hardware between high current and signal processing layout to make the board extremely compact and with no interference. Additionally, by sealing every component inside the aluminum heatsink which acts like a shield to protect from dust and other conditions, NBD maximizes the physical toughness of the AIO stack.
The NewBeeDrone Infinity AIO V2 Pro is upgraded from AIO V2. Now it comes with Dual BMI270 Gyro. Better performance on handling noise and better reliability. Dual-Gyros allows device redundancy and also measurement redundancy. Having two gyros mounted to each other, the flight controller is able to cancel out the effects of a noisy axis on one of the IMUs to better handle strong winds and gusts, allowing smoother flight capabilities for filming aerial views.
Check out our AIO flight controllers, as well as the rest of our NewBeeDrone selection!
Specifications
- Voltage Input: 3-6S
- MCU: STM32F745VEH6
- Gyro: 2xBMI270
- Blackbox: 16MB
- UARTs: 5
- ESC MCU: SMT32G071 BLHELI32
- Max Continuous Current: 55A
- Max Burst Current: 65A
- BEC: 10V 3A 30W Design for DJI FPV Air Unit
- Betaflight OSD support Analog build
- I2C: SCL & SDA ready
- Buzzer: Yes
- LED: Yes
- 5V 3A Power supply for external LED or GPS module
- Mounting Pattern: 30.5x30.5
- Weight: 22g

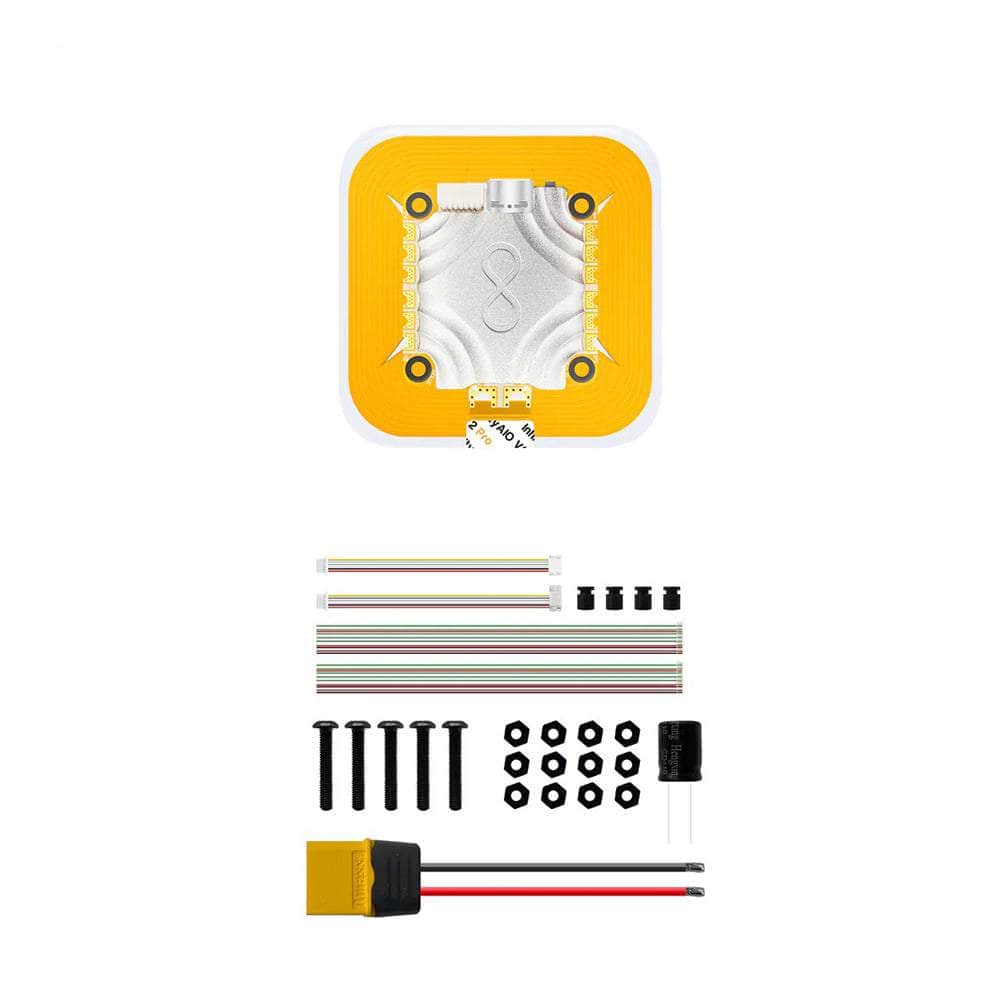

Includes
- 1x NewBeeDrone Infinity V2 PRO 3-6S 30x30 AIO Flight Controller w/ 55A 32bit ESC
- 1x Infinity AIO V2 PRO to DJI Air Module Cable 100mm (Silicon wire)
- 1x Infinity AIO V2 PRO to DJI Air Module V2 Cable 100mm (Silicon wire)
- 2x Infinity AIO V2 PRO8 16Pin Cable 150mm (Teflon wire)
- 13x Nylon Lock Nut
- 5x Steel Screw M3x14
- 4x Grommets Short 4x Grommets Long
- 1x 470uf 35v Electrolytic Capacitor
- 1x XT60 Cable
