NewBeeDrone Infinity 200RS Flight Controller
Introducing the NewBeeDrone Infinity200 RS - the ultimate racing flight controller designed to take your FPV racing experience to the next level. This flight controller was developed with the help of our talented team pilot, Levi Jonson, who provided valuable input during the development phase and helped test the product to ensure that it meets the needs and expectations of serious FPV racers.
At the heart of the Infinity200 RS is the highly acclaimed MPU6000 gyro, which is widely regarded as the best gyro chip for FPV racing. Despite being a discontinued gyro chip, the MPU6000 is still highly sought after for its incredible performance in high-speed racing environments. With digital and analog compatibility, this gyro is capable of delivering highly accurate and stable flight performance, allowing you to push your drone to its limits without fear of destabilization.

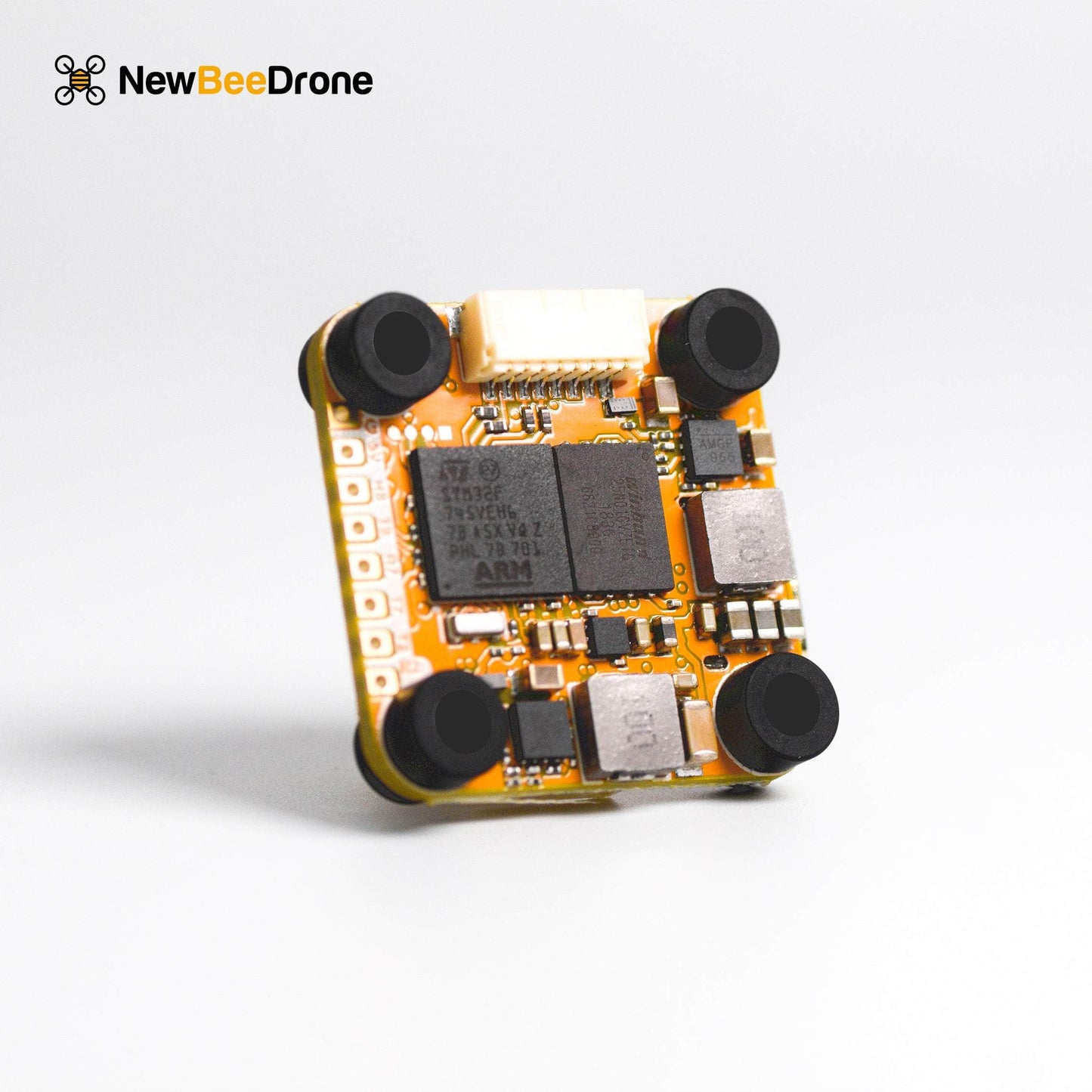

The Infinity200 RS also boasts a powerful STM32F745VEH6 processor and a Blackbox memory of 128MB, providing you with plenty of processing power and storage space for all your racing needs. The 3-6S direct battery input and 5V 3A / 12V 2A outputs ensure that your drone is powered up and ready to go.
The compact form factor of the Infinity200 RS (measuring just 26.5x26.5MM with 20x20 mounting holes and weighing only 4.85g) makes it ideal for use in high-performance racing drones. It features six UARTS, including UART1, UART2, UART3 (TX only), UART5 (RX only for ESC telemetry), UART7, and UART8, and is also ready for I2C_SCL and I2C_SDA.
The JST1.0 8Pin ESC socket with ESC telemetry and external current sensor is designed to be plug-and-play compatible with the NBD Infinity200 ESC, but is also compatible with most other ESCs on the market.
Our team pilot Daniel Daylight played an important role in testing the Infinity200 RS flight controller, providing invaluable feedback and giving the product a very high grade. Daniel's feedback confirmed that the Infinity200 RS is truly a top-of-the-line racing flight controller.
Overall, the NewBeeDrone Infinity200 RS is the ultimate racing flight controller, designed with advanced features and capabilities to help you dominate the competition. With its unmatched performance, precision, and stability, this flight controller is a must-have for serious FPV racers.
- MPU6000 Gyro
- 3-6S direct battery input
- 5V 3A
- 12V 2A
- BetaFlight OSD
- 26.5x26.5MM with 20x20 mounting holes, weight: 4.85g
- 6 UARTS on board.
- UART1 (Free)
- UART2 (Free)
- UART3 (only TX)
- UART5 (Only RX, ESC Telemetry)
- UART7 (Free)
- UART8 (Free)
- I2C_SCL I2C_SDA Ready
- JST1.0 8Pin ESC socket (including ESC telemetry, External current sensor)
- Plug and plug with NBD Infinity200 ESC. Also compatible with most of the ESC on the market.

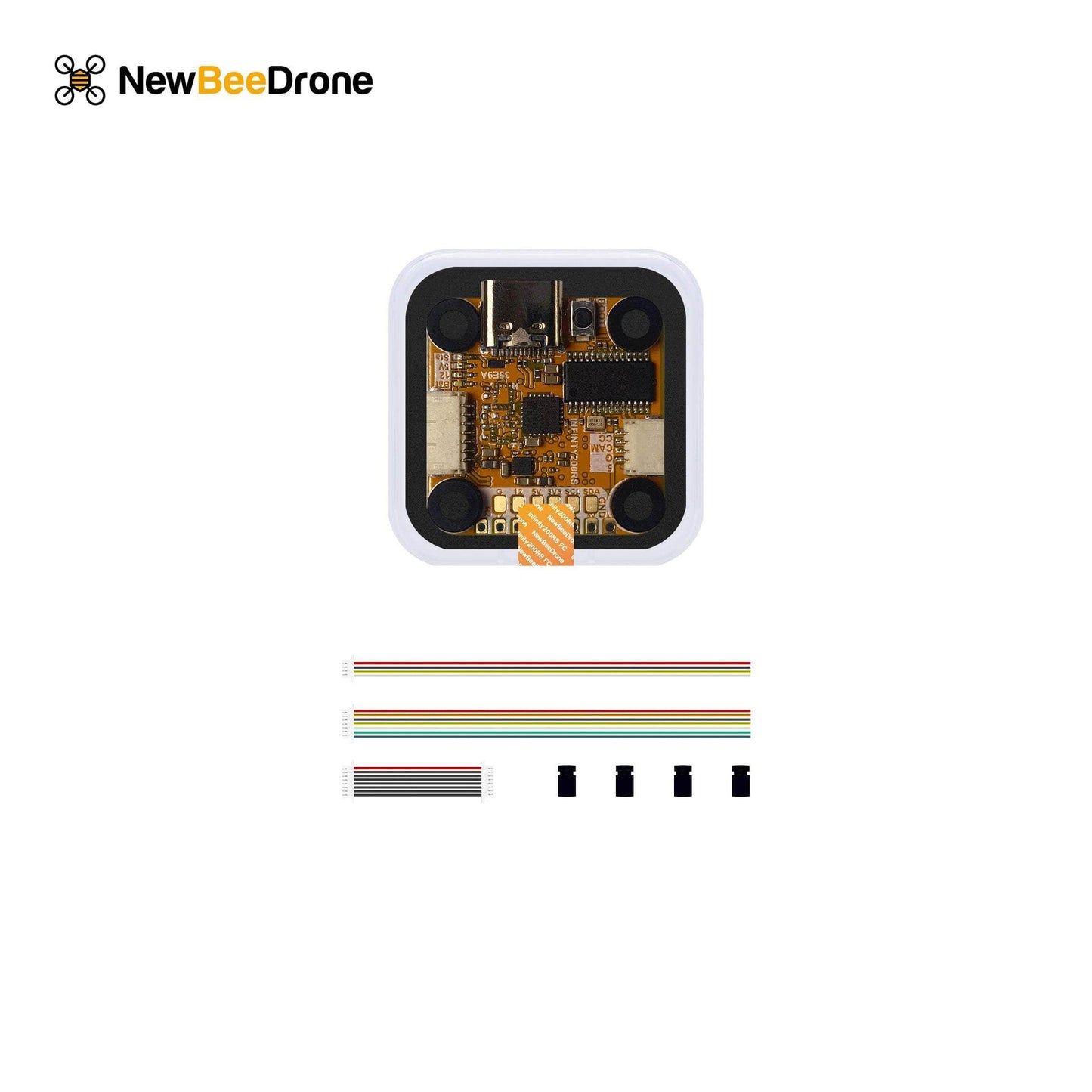

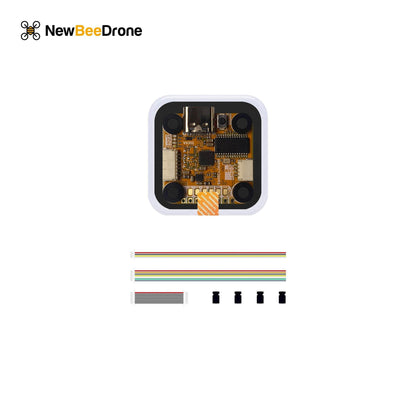

- 1x infinity 200RS Flight Controller
- 1x infinity 200RS JST1.0 4pin 145mm
- 1x infinity 200RS JST1.0 8pin 145mm
- 1x Infinity 200RS FC to Infinity20 ESC cable 30mm
- 4x Grommets Short (Pre-installed)
- 4x Grommets Long
