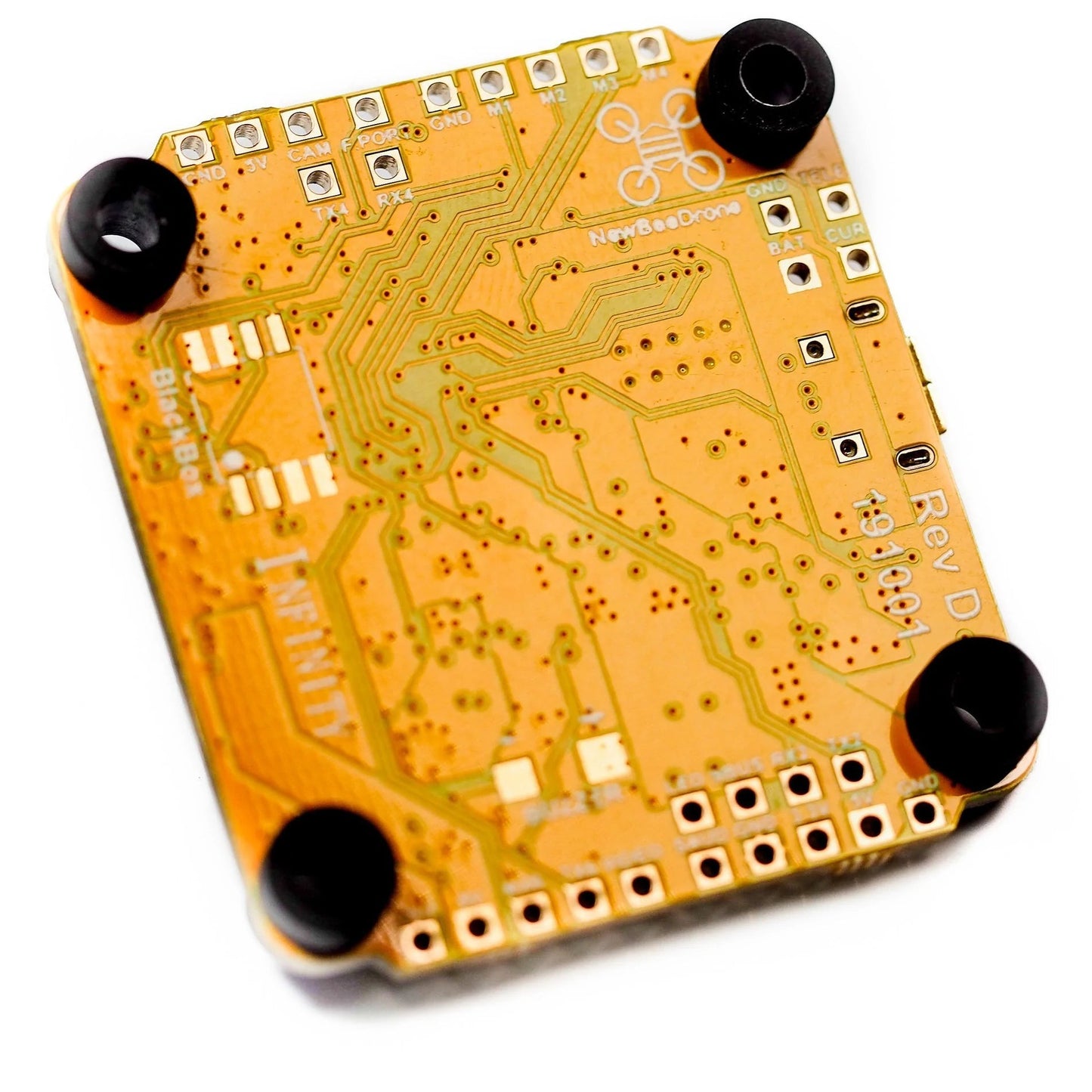

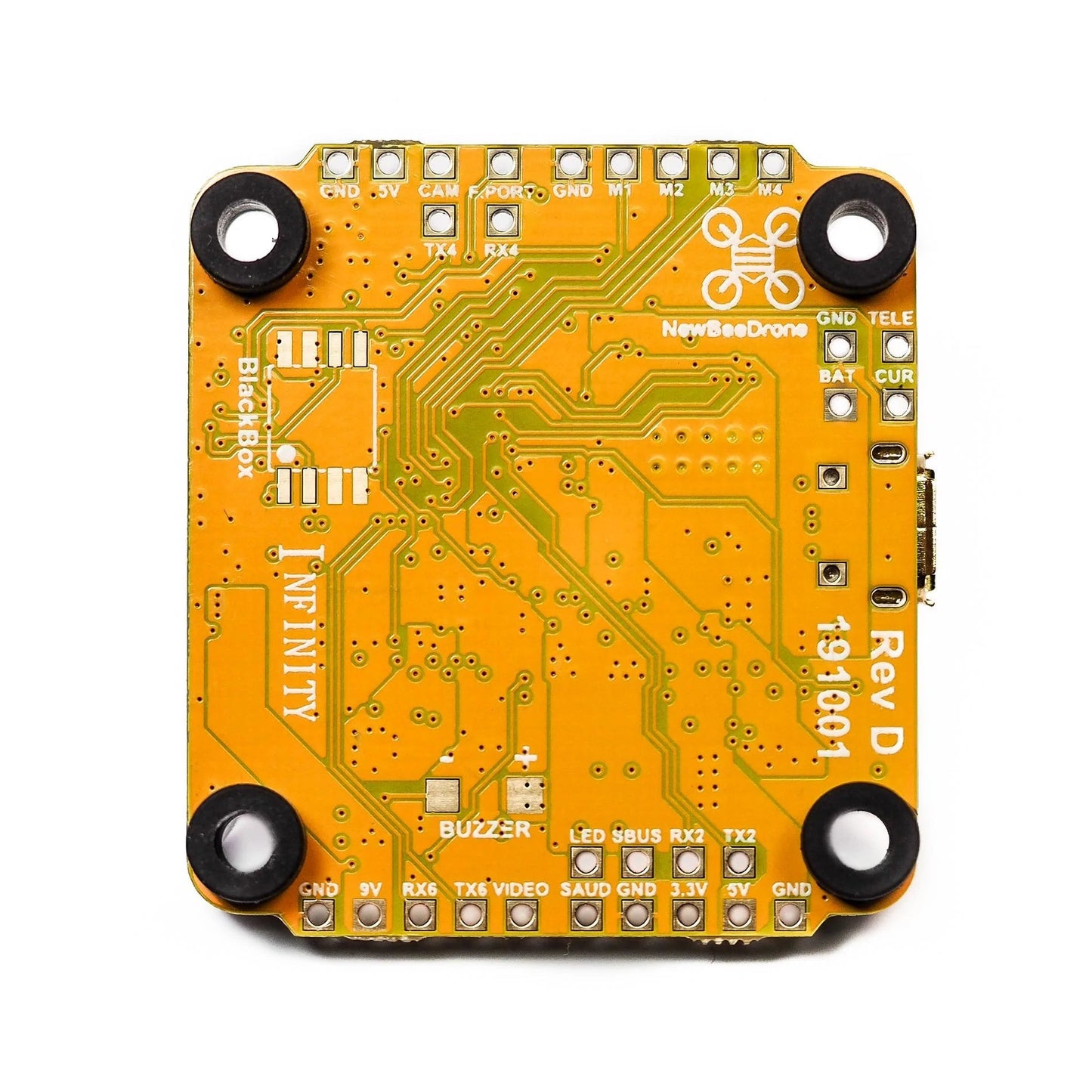

NewBeeDrone Infinity305 F4 3-6S Flight Controller

$49.99
In Stock
Pre Order
Coming Soon
Free Delivery on U.S.A. Orders $99 or more
Add to Wishlist

Premium Controller with Quality Parts and Features
Featuring F4 Processor and 45Amp BLheli32 with NewBeeDrone Smoov-certified hardware design that supports up to 3-6S batteries to provide the best and most reliable quality and performance for either freestyle or racing.

Designed to support the DJI Air Unit.
Though DJI Air Unit can only support up to 4S, the Infinity300 Stack can make the DJI Air Unite compatible with 6S batteries by providing a 9V 16W clean power for the DJI Air Unit.

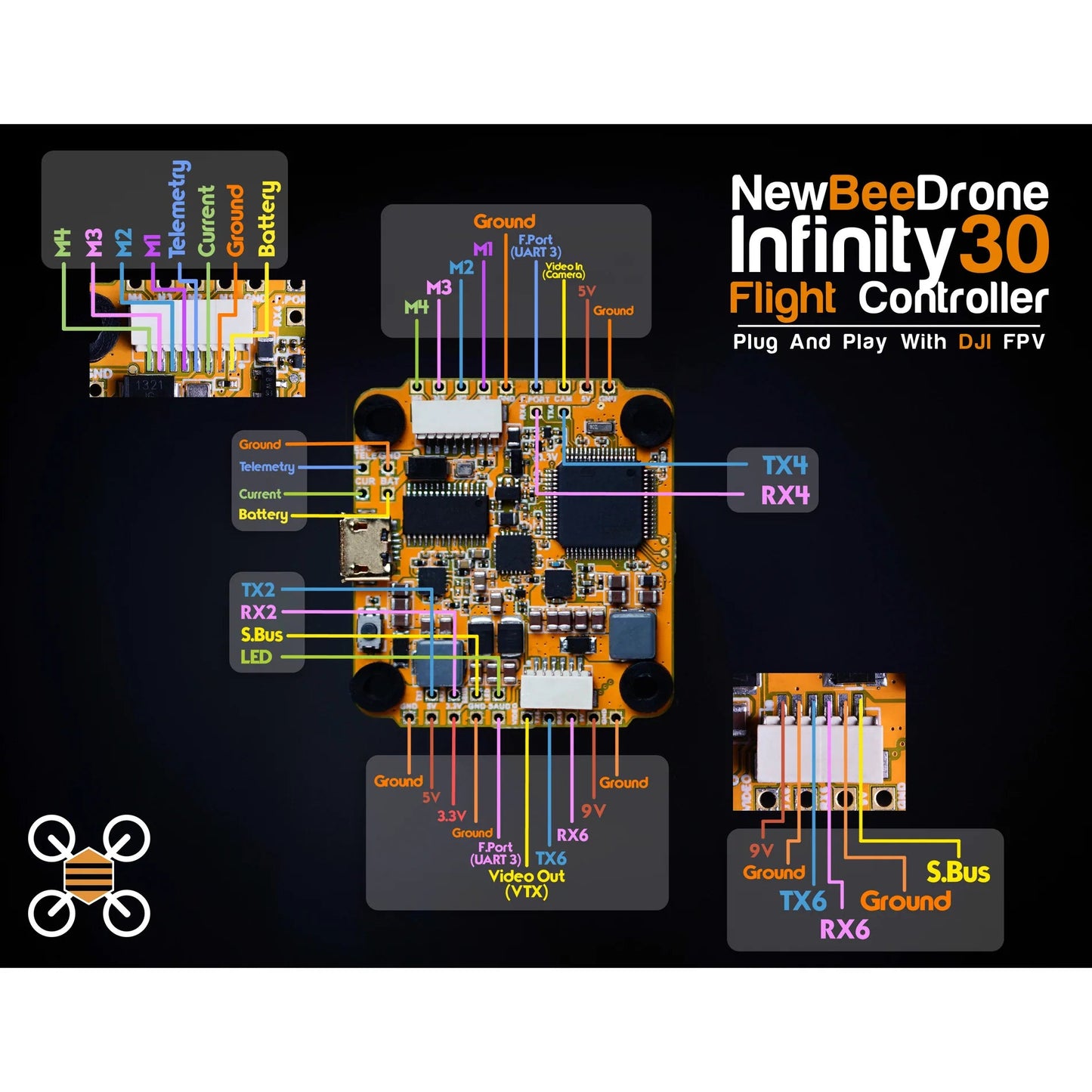

Plug-and-Play. No need to solder tiny wires.
The Infinity300 Stack includes a bundle of wires to connect the Flight Controller and ESC and a bundle of wires to connect the Flight Controller to the DJI Air Unit. No need to solder any tiny wires, making it simple and clean to build.

    Check out our other flight Controllers and all our NewBeeDrone products!

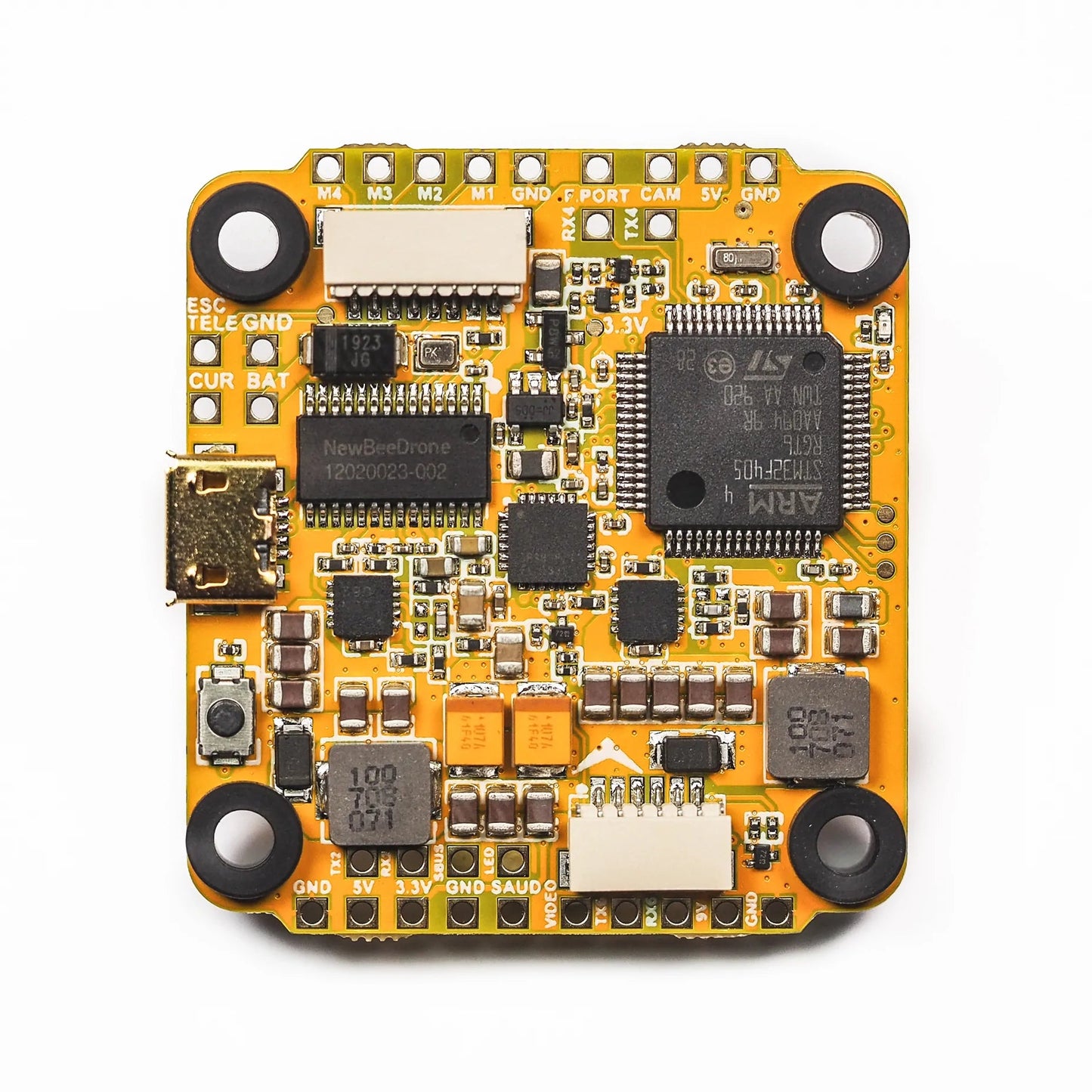

    Specifications

    • MCU: STM32F405 CPUE @ 168mhz, can be overclocked
    • IMU: MPU6000
    • OSD: Betaflight OSD w/ AT7456Ev
    • UART Ports: 6 UARTS
    • USB: Micro USB
    • Input: 3-6S
    • Installing Hole: 30x30mm M3
    • Weight: 14g

    Includes

    • 1x NewBeeDrone Infinity305 F4 3-6S Flight Controller
    • 4x Grommets short 4x Grommets Long
    • 1x Infinity305 FC to DJI Air module cable 40mm
    • 1x Infinity305 FC to DJI Air module cable 100mm
    • 1x Infinity305 FC to DJI Air module cable 150mm
