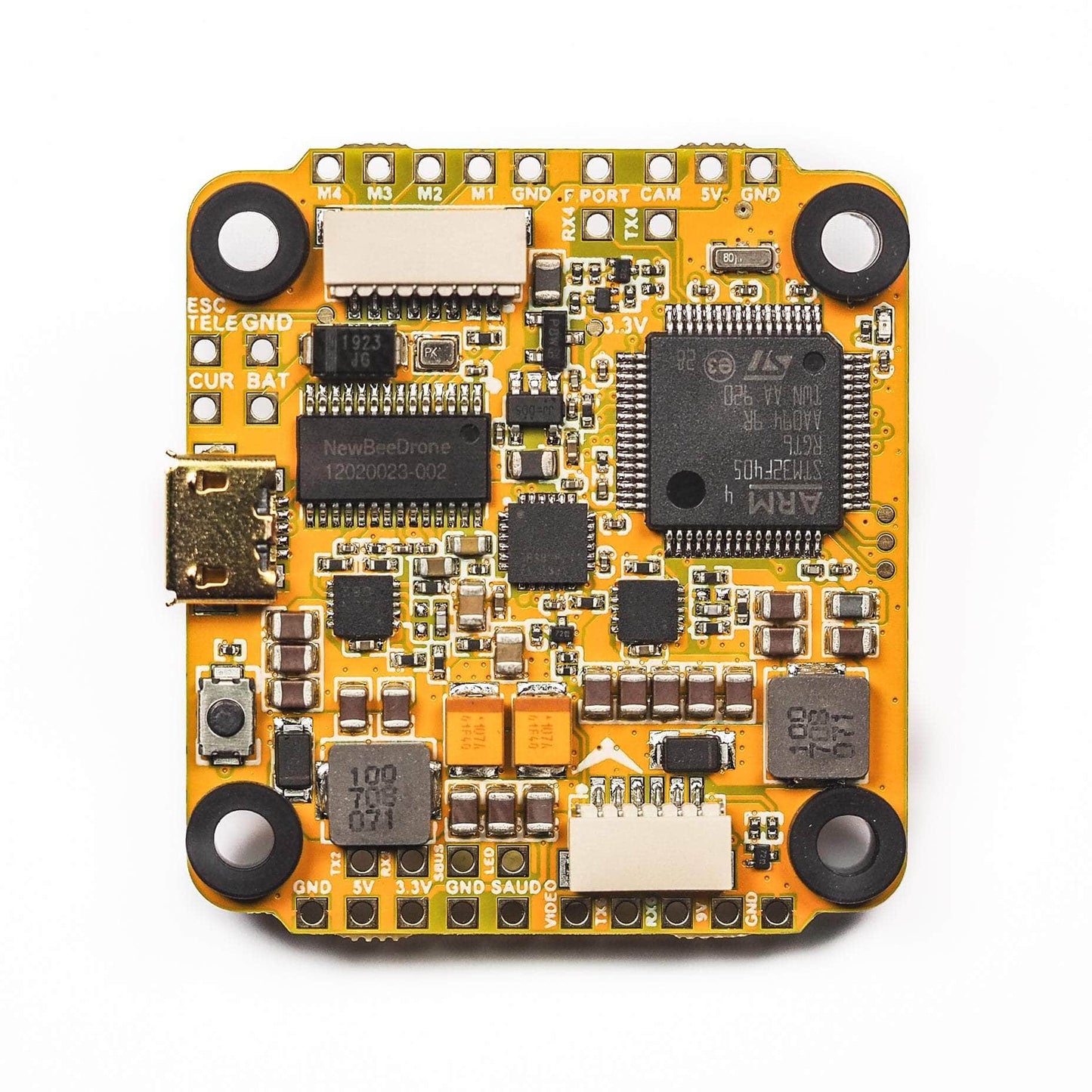

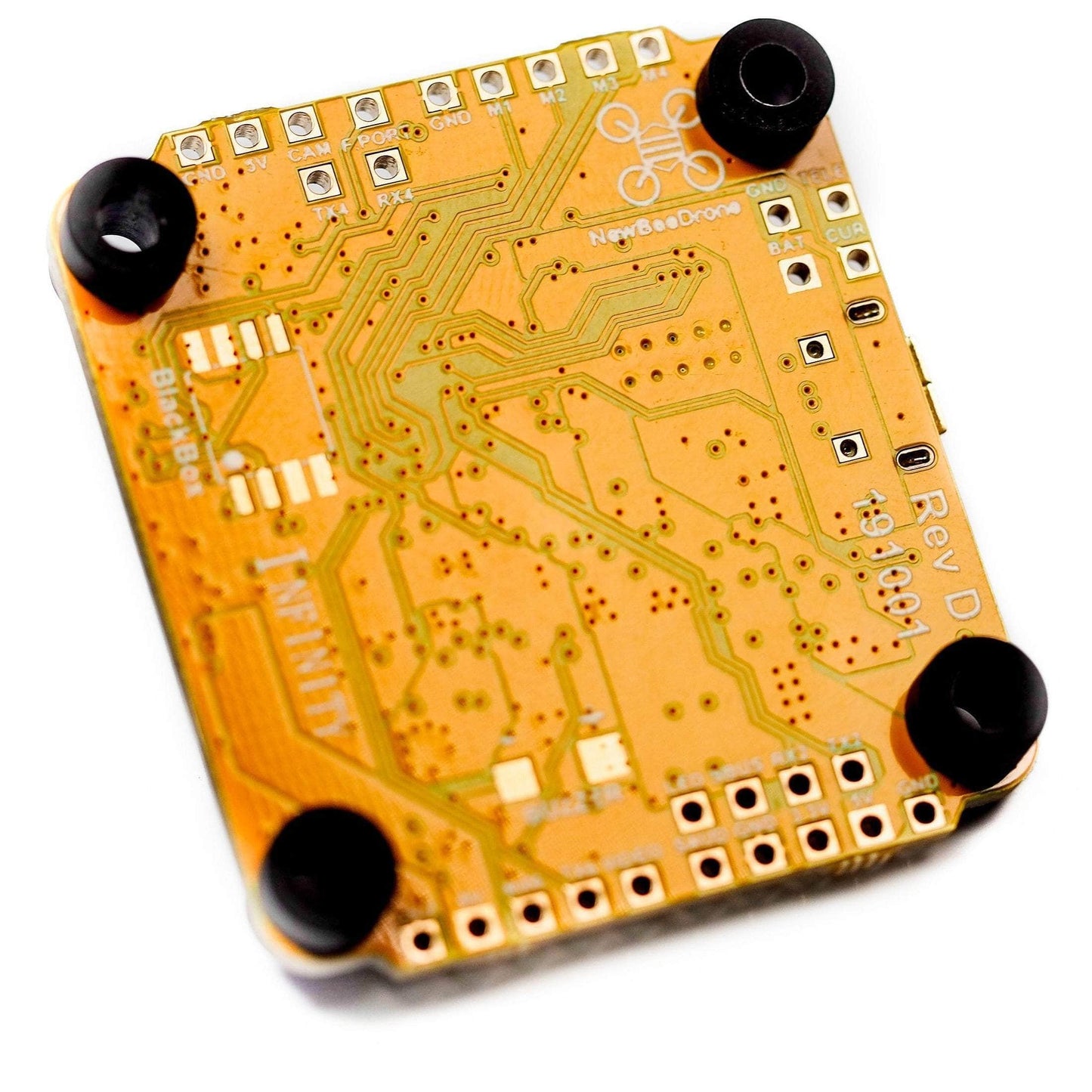

Infinity305 Flight Controller
-Infinity305 Flight Controller Firmware on Official Betaflight
Target name: NBD_INFINITYF4
Build Video:
We are offering a limited supply of the Infinity FC with a BlackBox pre-installed. The chip is a W25Q128JVSIM (128Mbit / 16MByte)
Flight Controller Spec:
- MPU6000 Gyro
- STM32F405 CPUE @ 168mhz, can be overclocked
- 3-6S direct battery input
- 5V 2A,
- 9V 2A 18W Design for DJI FPV Air Unit
- 5V Camera Power
- betaflight OSD
- Flat bottom PCB for SUPER CLEAN builds
- 36x39 CB with 30.5x30.5 mounting holes
- 6 UARTS. UART1 (INVERTER FOR SBUS)
- UART2 (FREE)
- UART3 (INVERTED TELEMETRY)
- UART4 (Free)
- UART5 (Smart Audio)
- UART6(Free)
- Built-in 4 IN 1 ESC socket(including ESC telemetry, External current sensor) JST1.0 8Pin
- Plug and plug with NBD Infinity30 ESC. Also compatible with most of the ESC on the market.
- Built-in solder pads for ESC signal output and power

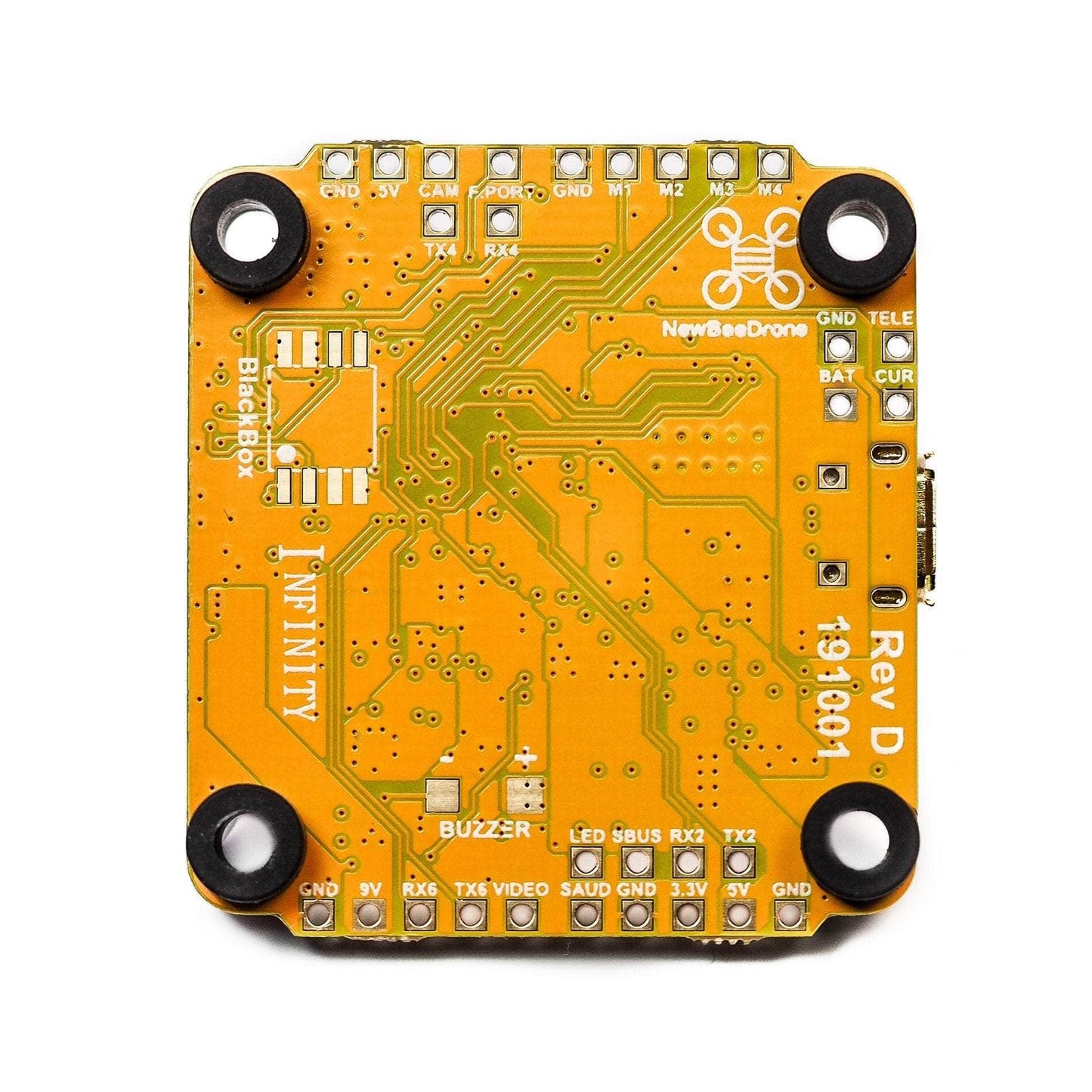

- Printed layout instructions ON the board - no need for instructions!

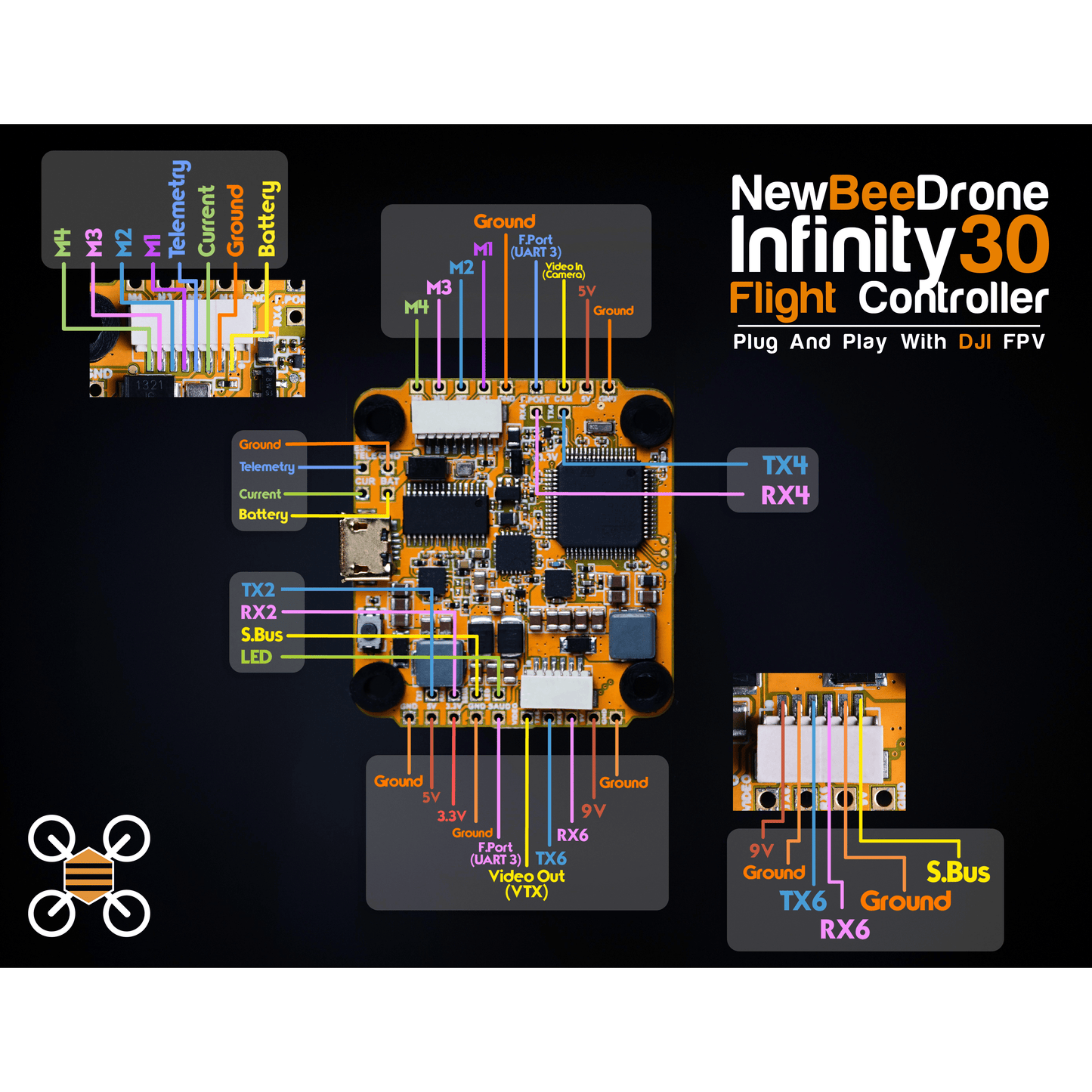

- DJI FPV Air Unit socket (use UART1 and UART6)
Includes:
- 1x Infinity305 flight controller
- 4x Grommets short 4x Grommets Long
- 1x Infinity305 FC to DJI Air module cable 40mm
- 1x Infinity305 FC to DJI Air module cable 100mm
- 1x Infinity305 FC to DJI Air module cable 150mm
NOTE: We suggest running a cap on 4s builds. Even though we tested and designed it to not need one, all builds are different and there are always exceptions.
