Description

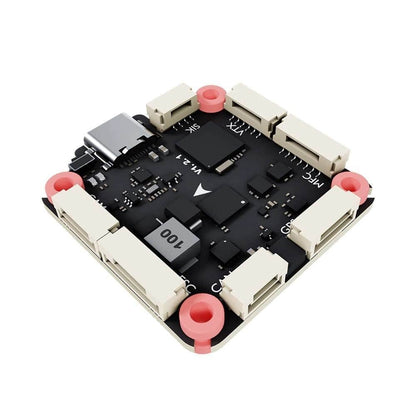

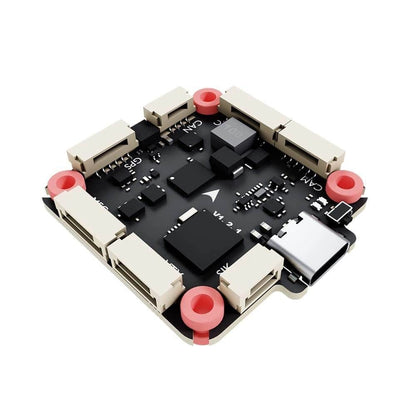

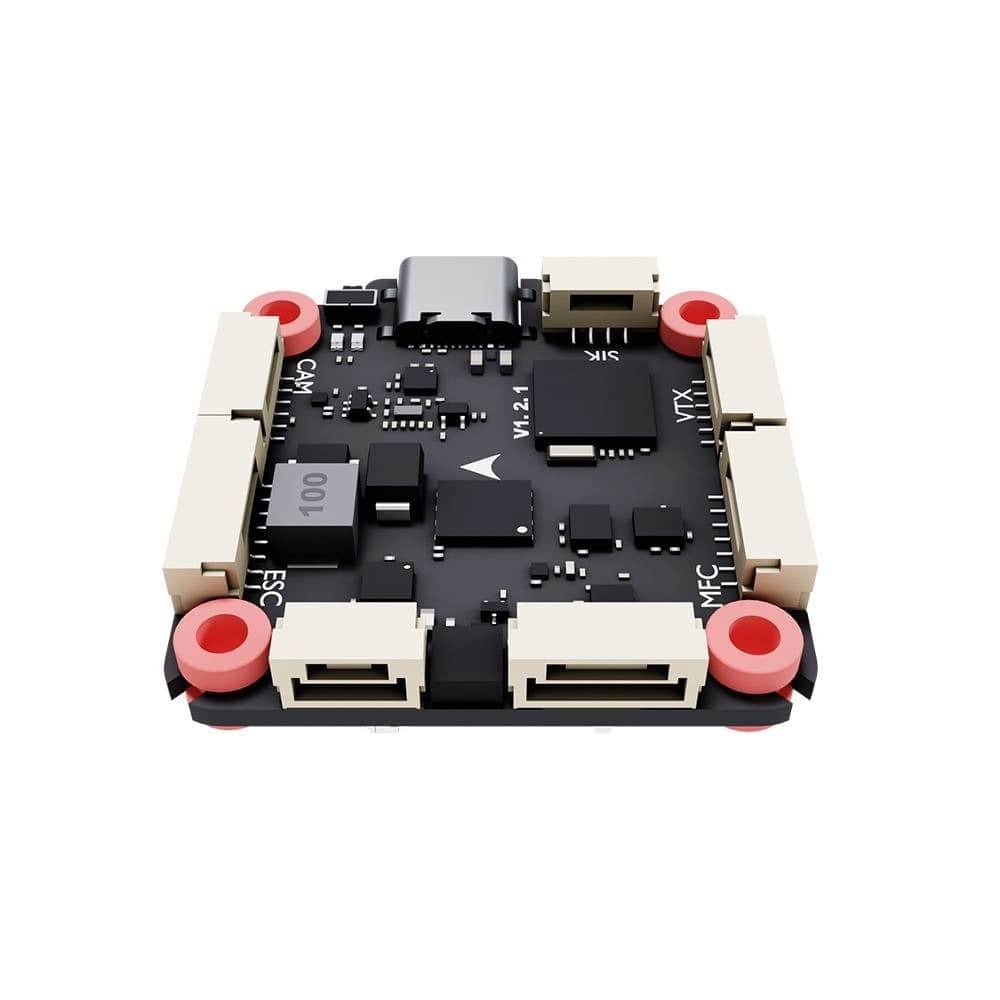

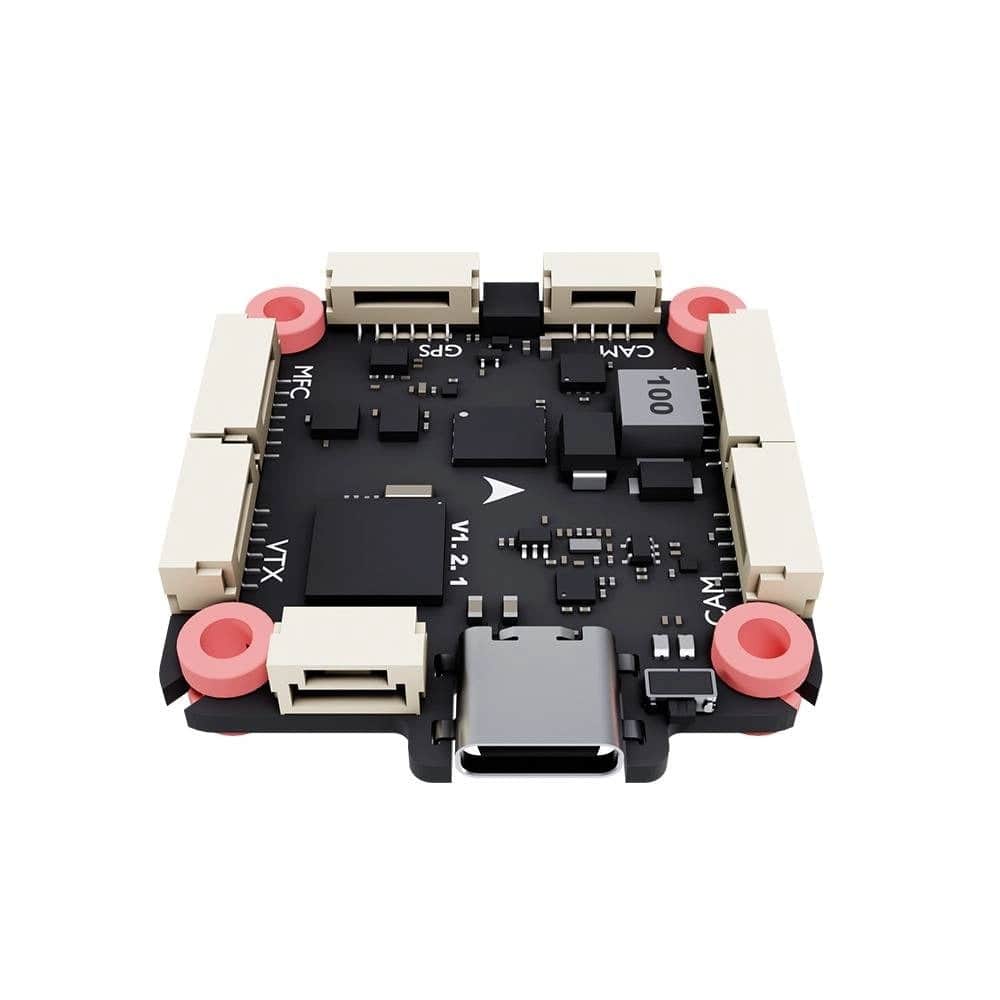

The Orqa QuadCore H7 is an innovative NDAA-compliant flight controller designed specifically for quadcopter drones. Its powerful STM32H743 MCU runs any of the common flight controller firmware (Betaflight, iNav, ArduPilot, PX4). It comes equipped with multiple accessory inputs and outputs, direct solder-free connection to most peripherals, and is ready to plug and fly with Orqa’s long-range radio and video equipment.

Make sure to check out our other Flight Controllers and everything NDAA Compliant!

Features

• H743 MCU ARM Cortex-M7 microcontroller
• 2S-6S Battery Support
• Custom NDAA-compliant OSD (Text + Graphics)
• Locking JST-GH for secure connections
• 100% plug and play with Orqa equipment (4-IN-1 ESC3030 , Ghost Hybrid vTx/Rx, Justice FPV Camera, GPS)
• Dual Camera input (switchable)
• SIK Telemetry Radio
• GPS/Magnetometer
• 3 Full UART, 8x Motor Outputs, 2x Servos
• Micro SD card for extended blackbox logs

Specifications

• MCU: STM32H743
• IMU: ICM-42688
• Barometer: DPS310
• OSD: Orqa NDAA-compliant
• Interfaces: CAN bus, i2c, 3 x UART, 3 x GPIO, PWM (+4 Motor Outputs)
• Battery input voltage: 2-6S
• BEC: 5V @ 2A
• Camera Inputs: Twin analog switchable
• Mounting pattern: 30.5 x 30.5mm
• Dimensions: 40.8 x 37.5 x 10.3mm
• Weight: 9.1g

Includes

• 1x Orqa F7 HD Flight Controller - 30.5 x 30.5
