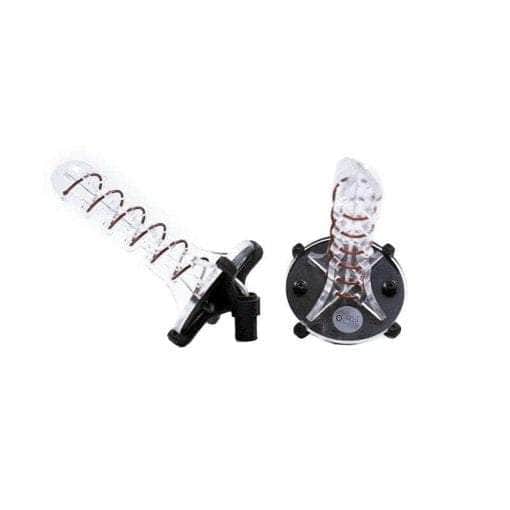

ORT Helical 6 Turn 5.8GHz DJI Goggles 2 Antenna 2 Pack - LHCP - Black

ORT Helical 6 Turn 5.8GHz DJI Goggles 2 Antenna 2 Pack - LHCP - Black

Regular price $95.99
Sale price $95.99 Regular price
In stock
In stock
Add To Wishlist
View full details

Details

Description

The ORT Helical 6 Turn 5.8GHz DJI Goggles 2 Antenna 2 Pack provides superior axial ratio performance compared to lower quality circular patch antennas. Its lightweight design makes it perfect for an FPV Goggles setup, and suitable for even the toughest RF environments, like those with buildings and trees that can block signals. Get industry-leading signal strength and penetration with ORT.

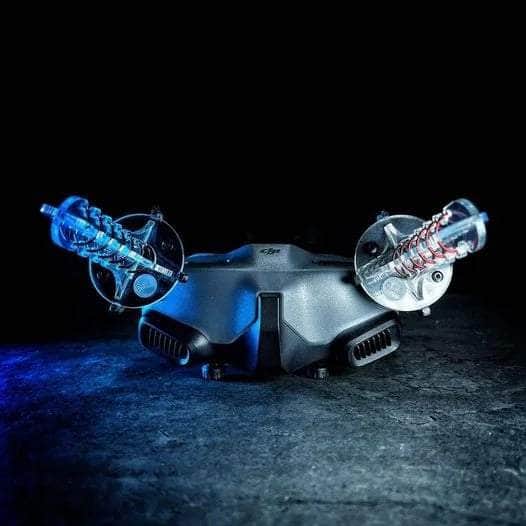

Two sets of antennas with MCX male connectors for PNP on your DJI Goggles 2 to replace the default linear antenna. Pull out your default DJI Goggles 2 linear antennas' and plug in this fine tuned LHCP Helical 6 turn for a range boost & better penetration to run with your O3 compatible quads.

Old Radio Transmission, is passionate about antenna’s that’s the reason why their antenna’s work flawlessly. They have tested the Helical 3 Turn whilst flying a whoop, the transition from indoor to outdoor flying was not an issue with these antennas!

Check out all our FPV Receivers & Antennas and all our ORT antennas!

Features

  • Made in mind for the DJI Googles 2!
  • Hand Tuned, 110~120 degree coverage with 15~20km clear ranges and beyond on 600mW Video Transmitter (depends on flying area noise, receiver sensitivity, and FPV setup)
  • Enameled Supreme Wire(anti-rust)
  • Original Low loss RG402 cable
  • High-quality acrylic, providing a premium look

Specifications

  • Freq Channel: 5300 ~ 6500 MHz
  • Gain (dBi): 10 dBic
  • SWR/S11: < 1:1.3
  • Beam width: 130deg
  • Polarization: Circularly Polarized – LHCP
  • Gain Pattern: Directional (need to be pointed on general flying area)
  • Connector: MCX Male (for use with DJI Goggles 2)
  • Weight: 32g ea

    Includes

    • 1x ORT Helical 6 Turn 5.8GHz DJI Goggles 2 Antenna 2 Pack - LHCP - Black

    More Info

    • SKU: ORT-ORT11146
    • Barcode: 6910236004687


    Overall rating: 4.0 / 5 from 2 reviews.

    AI Generated Review Summary

    Summary topics

    Review topics: [].

    Review highlights

    Reviews

    Great performance, poor build quality

    "Pros: 1) The antenna really delivers great performance and the range of the Goggles2 is greatly enhanced. I was able to go 2x as far, until the control link (rather than the video link) became the bottleneck. Cons 1) The MCX connectors on this antenna are really bad. While holding the antenna by the base plate, I had to push harder than I expected to get the antenna in. The glue that holds the 3D-printed part to the base separated because of the pressure. If you keep on adding and removing these antennas the connectors on your Goggles2 are GURANTEEED to get worn. 2) The overall build quality of these antennas can only be described as non-professional hobby grade. Glued acrylic, 3D-printed parts and poor connectors don't really impress. It doesn't feel like a consumer product. and together with the fragile construction I don't feel it's worth the price. What to do? 1) Instead of buying this, I suggest you get the Lumenier Universal Antenna Adapter Kit for DJI Goggles 2 so you then have an RP-SMA or SMA connector exposed. Then buy the regular SMA or RP-SMA version of this antenna for the performance and so you are only wearing out the adapter connector. 2) If you're more hands on, look online for how to build your own helical antenna. It's not a complex project."

    Theo (3/5)

    This is real!

    "The red light of the goggles no longer appears, but watch out for flights to the back. Watch out for blackouts!"

    조 석. (5/5)
