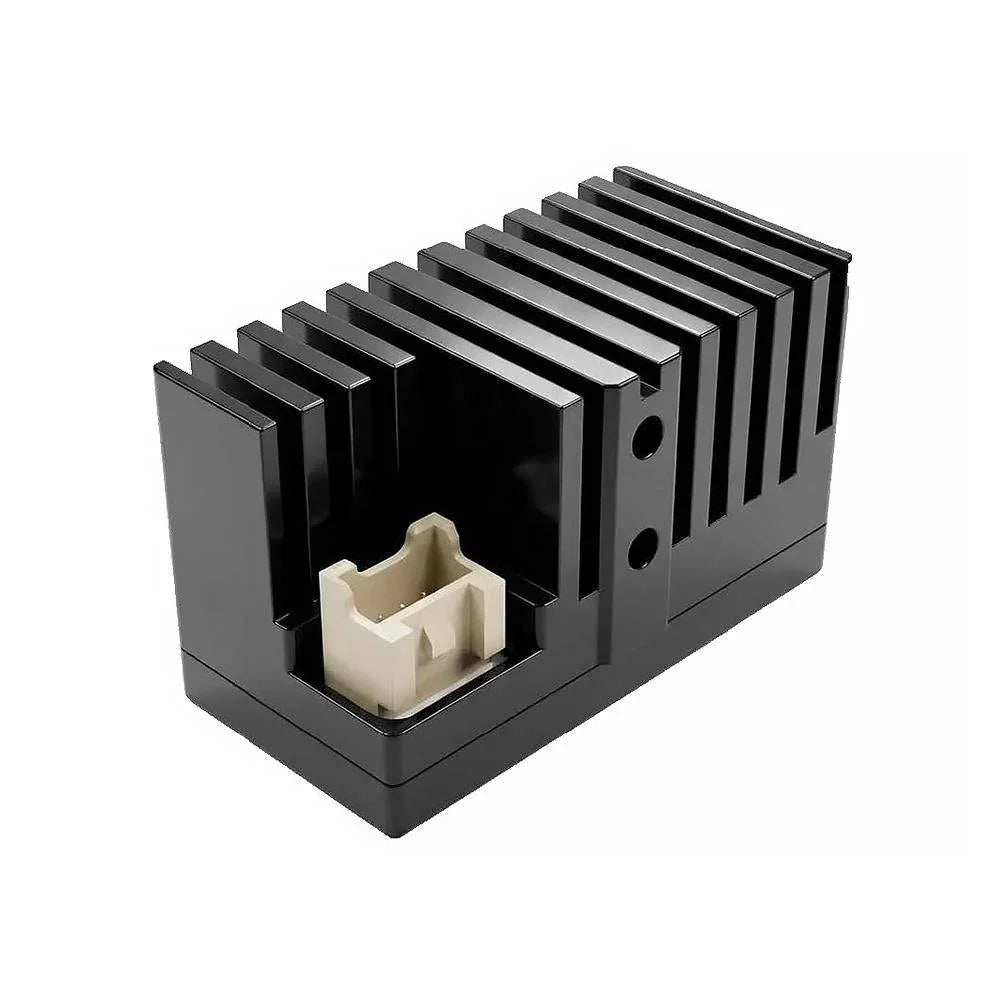

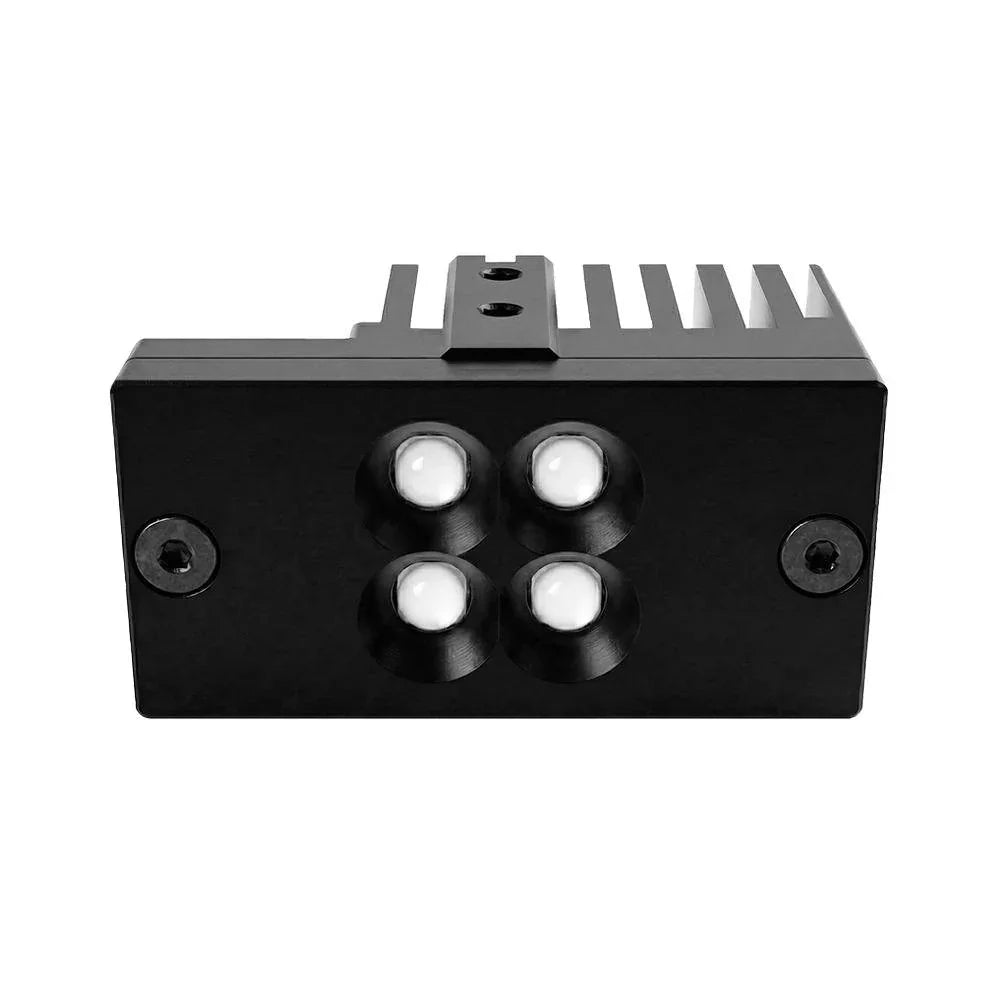

Patrios 4-IR MaxBright Tactical LED

Patrios 4-IR MaxBright Tactical LED

Regular price $399.99
Sale price $399.99 Regular price
In stock
In stock
Add To Wishlist
View full details

Details

Description

The Patrios 4-IR MaxBright Tactical LED sets a new benchmark for compact infrared illumination. Designed and manufactured in the USA, this high-output LED module delivers unmatched performance for low or no-light operations, including terrain navigation, target identification, and terminal guidance, eliminating the need for costly thermal imaging systems.

Check out the rest of our LEDs and everything NDAA at RDQ.

Features

  • Delivers up to 7,564 mW/sr of IR (850 nm) output
  • Useful illumination exceeds 450m
  • Same weight and only 2% larger than the original Tactical 2-in-1
  • Supports multiple brightness settings and thermal throttling
  • Quick integration via JST-PA 3-pin connection
  • U.S. made

Specifications

  • Useful IR Range: 450m+
  • Size: 18.5 × 36 × 21mm
  • Weight: 22g
  • Illumination:
    • IR (850 nm) 7,564 mW/sr
  • Viewing Angle:
    • IR: 50°
  • Input Voltage: 6V-28V, Recommend 12V-28V
  • Current Draw:
    • OFF: 5mA
    • ON: 20mA to 3A (depending on specified brightness)
    • STROBE: 2A to 3A, pulsed
  • Connection: JST-GH 3-Pin

Patrios 4-IR MaxBright Tactical LED

Links

Includes

  • 1x Patrios 4-IR MaxBright Tactical LED

More Info

  • SKU: G24165US1Z
  • Barcode: 723326379543
