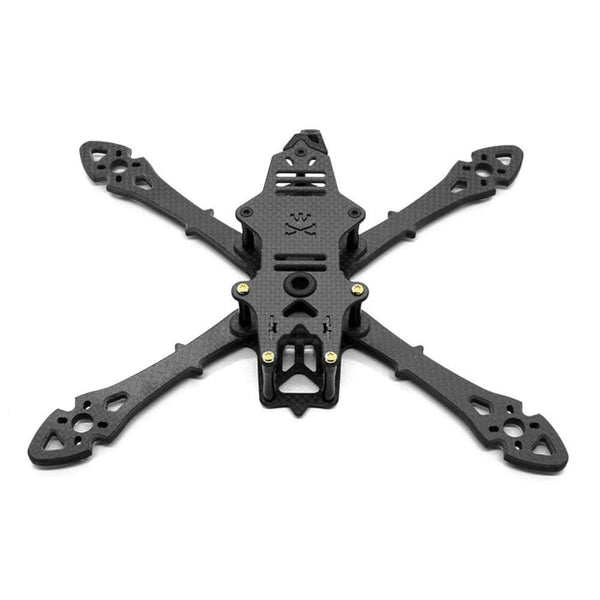

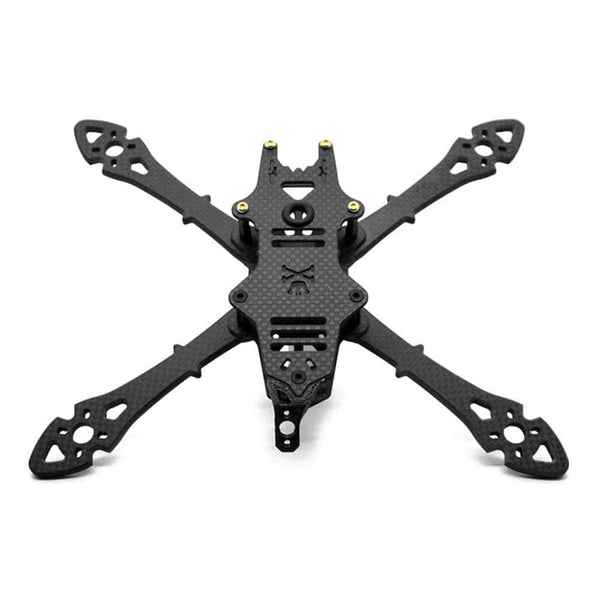

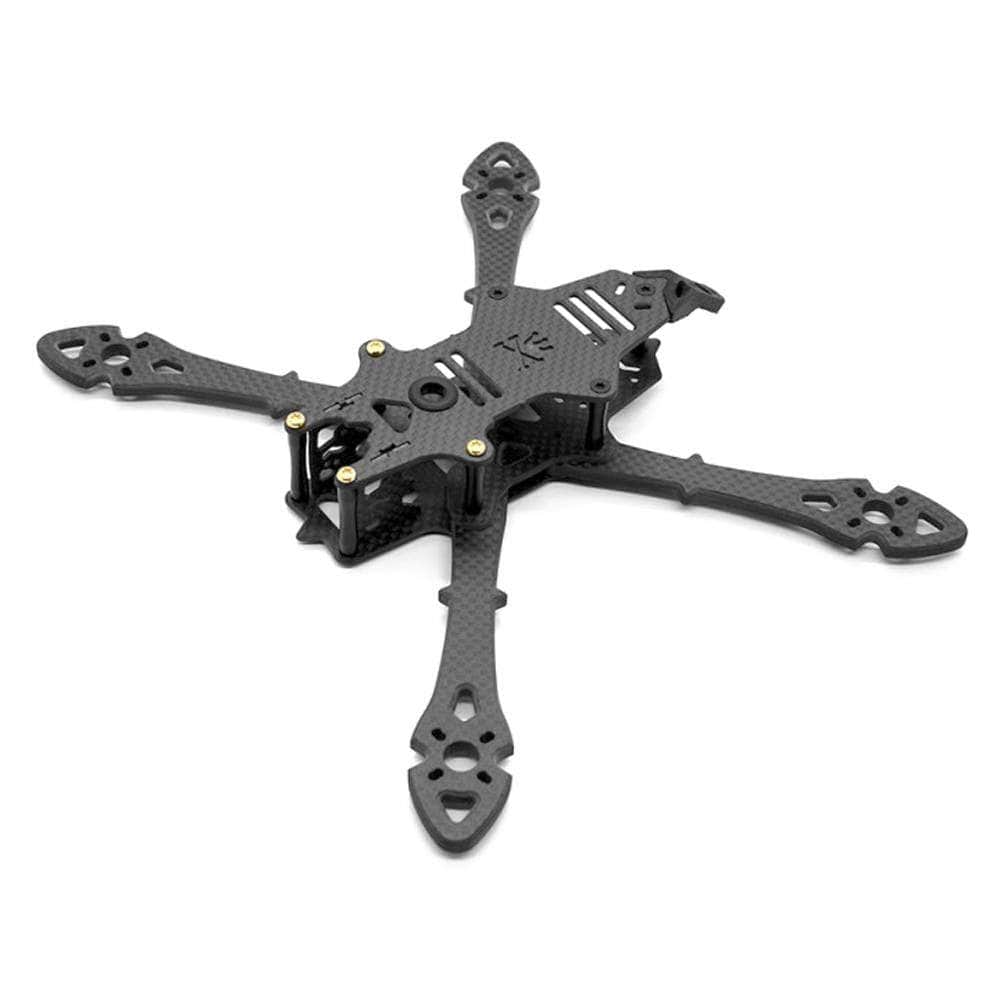

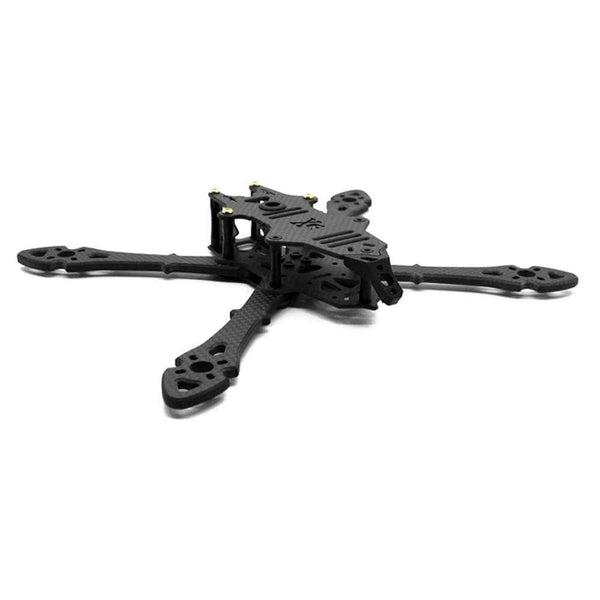

Check out the Hook V2 5" Freestyle Frame Kit, from PIRAT. This brand is more of the upper echelon for quality and premium frames.

The V2 frame features include more durability, Caddx Vista integration, and adaptability to all camera sizes. Developed in collaboration with PDEVX FPV pilot.

Crafted with high-quality carbon fiber and aluminum parts, the Hook V2 is a tough frame that focuses on excellent CG balance to give a smooth, super-tunable flight. Custom made with 235mm motor distance to give you enough space for clean air and flight stability.

We also have the Hook V2 7" version for this frame kit!

Be sure to check out all our 5" frames, and all our PIRAT Products.

Features

  • 5mm Ams and 2.5mm Bottom/top Plate thickness
  • Works with most camera sizes - 22 or 20mm
  • Allows 21mm Maximum Stack Height
  • 7075 T6 Aluminum Custom Standoff
  • Full T10 Torx 12.9 Steel Screw Set
  • Chamfered Full 3K T300 Carbon
  • Toilet Tank LiPo Positioning
  • 30x30 Mounting Pattern

     

    Specification

    • Stack Mounting: 30x30, 20x20
    • Carbon Material: Chamfered Full 3K T300
    • Camera Size Compatibility: 22 or 20mm
    • Bottom/top Plate thickness: 2.5mm
    • Maximum Stack Height: 21mm
    • Arm Size: 5"
    • Weight: 116g
    • Wheelbase: 235mm
    • Mounting Pattern: 30x30
    • Model: Pirat Hook V2
    • Arm thickness: 5mm
    • Motor Bolt Pattern: 16x16mm/19x19mm

    Manual

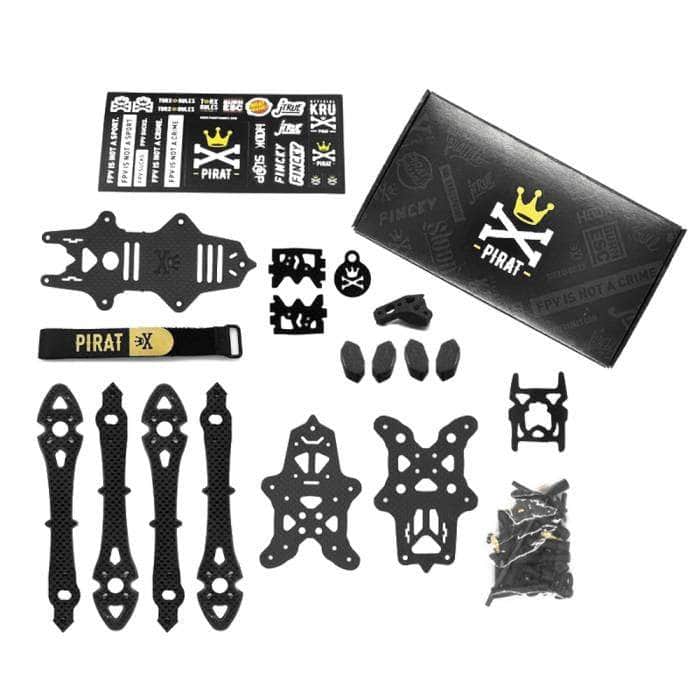

      Includes

      • PIRAT Hook V2 Freestyle 5" Frame Kit
      • 2x 28mm Custom spacers in 7075 aluminum
      • 5x 21mm Custom spacers in 7075 aluminum
      • 16 x M3 / 8mm Black pan motor screws
      • 1x VTX Antenna support in 3D printing
      • 8x 6061 Aluminum Custom washers
      • 4x M3 / 12mm countersunk screws
      • 4x M3 / 16mm countersunk screws
      • 6x M3 / 8mm countersunk screws
      • 4x M3 / 10mm gold pan screws
      • 1x 20mm / 230mm lipos straps
      • 4x 5mm Arm
      • 4x Black self-locking nuts
      • 4x Foam landing pad
      • 1x Silicone lipo pad
      • 1x Silicone eyelet
      • 2x Camera plate
      • 1x Bottom plate
      • 1x Middle plate
      • 1x Top plate
      >
