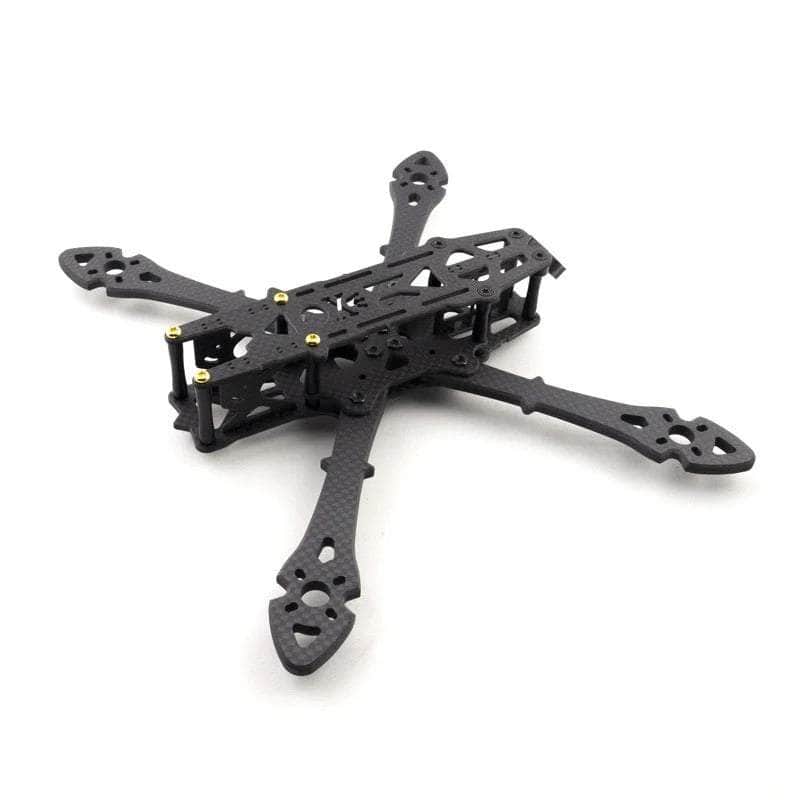

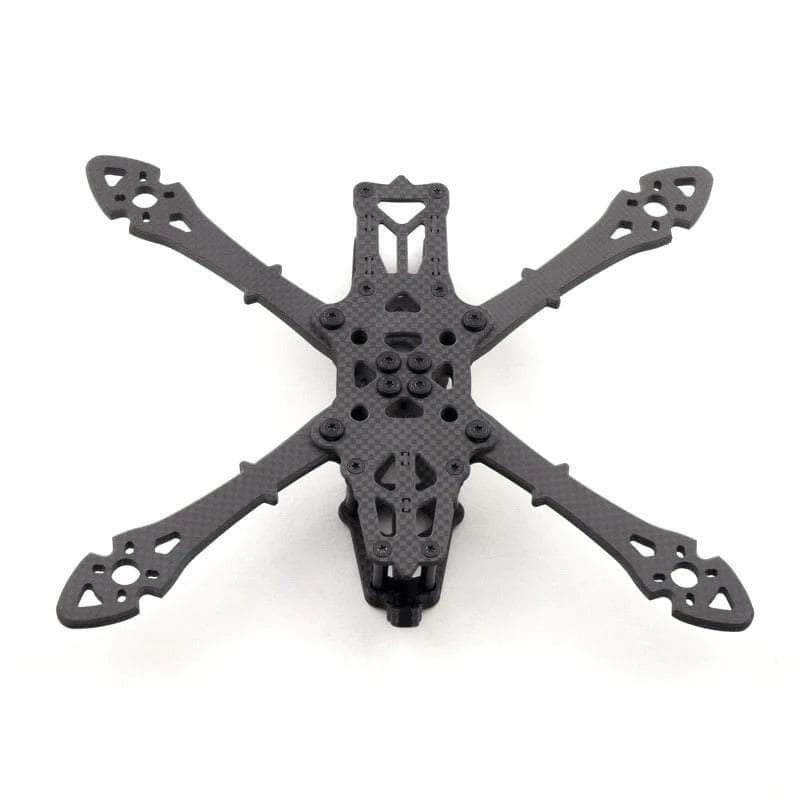

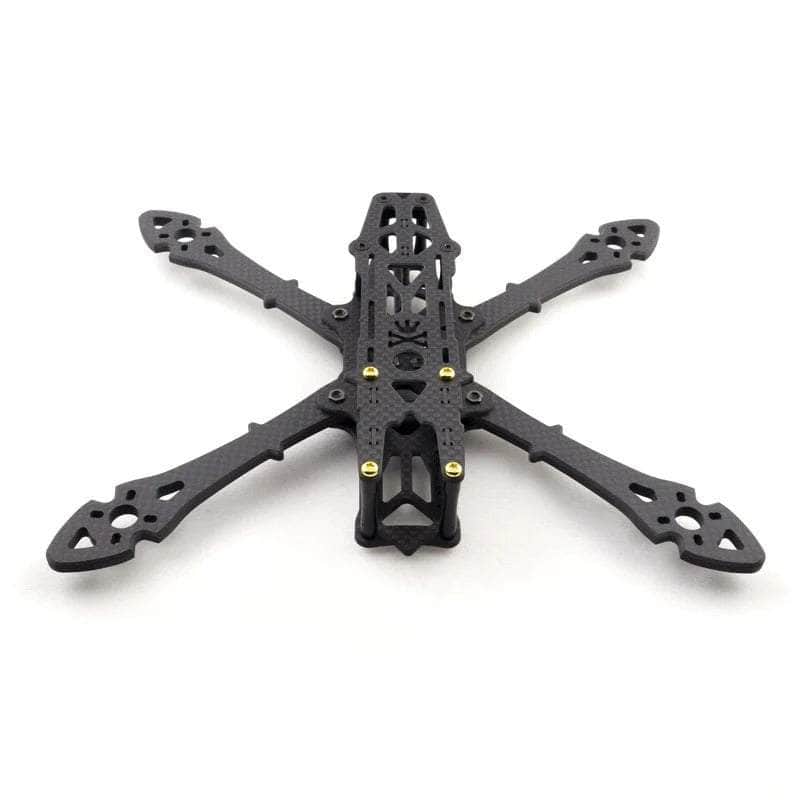

PIRAT Sloop V3 5" Freestyle Frame Kit
Check out the Sloop V3 5" Freestyle Frame Kit, from PIRAT. This brand is more of the upper echelon for quality and premium frames out there.
Crafted with high-quality carbon fiber and aluminum parts, the Sloop is a tough frame that focuses on excellent CG balance to give smooth, super-tunable flight.
Developed in collaboration with FPV Pilot J-True, here comes the third version of the Pirat Sloop frame! Developed to be "smooth as hell" and capable of cinematic or juicy freestyle flight. The frame features our special cross plate mounting system which increases stiffness, reduces frame resonance, and prevents breaks. It features 20x20mm mounting holes in the rear for mounting of a Caddx Vista air unit or an analog video system.
Be sure to check out all our 5" frames, and all our PIRAT Products.
Features
- 30x30 stack
- Mini camera size (predator mini like / 22mm width)
- Chamfered Full 3K T300 carbon
- 7075 T6 aluminum custom standoff
- Full T10 Torx 12.9 steel screw set.
- 5mm arms, 2.5mm bottom & top plate
- 27mm height for your stack.
Specification
- Stack Mounting: 30x30
- Carbon Material: Chamfered Full 3K T300
- Camera Size Compatibility: 22 or 20mm
- Bottom/top Plate thickness: 2.5mm
- Maximum Stack Height: 21mm
- Arm Size: 5"
- Arm thickness: 5mm
- Motor Bolt Pattern: 16x16mm/19x19mm
Manual

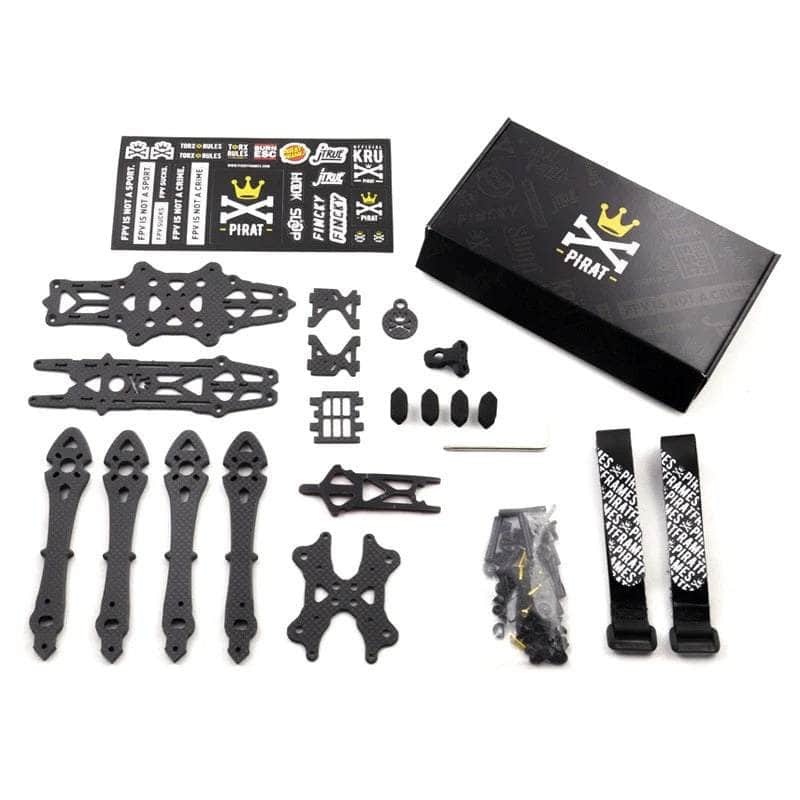

Includes
- 1x PIRAT Sloop V3 5" Freestyle Frame Kit
- 4x 5mm Arm 5"
- 1x 2.5mm Bottom plate
- 1x 2.5mm Top plate
- 2x 1.5mm Camera plate
- 1x 2mm Cross plate
- 1x 3D Printed VTX Antenna Mount
- 8x 6061 Aluminum Custom washers
- 4x 28mm Custom standoffs in 7075 aluminum
- 4x 21mm Custom standoffs in 7075 aluminum
- 4x Custom design 5mm standoffs in 7075 aluminum
- 8x Black Hex Press nuts
- 8x 8mm M3 Torx T10 12.9 steel countersunk screws
- 8x 12mm M3 Torx T10 12.9 steel countersunk screws
- 4x 10mm M3 Torx T10 12.9 steel gold colored mushroom head screws
- 4x 15mm M3 Torx T10 12.9 steel countersunk head screws
- 2x 20mm / 220mm lipo strap
- 1x Silicone grommet for battery cable
- 1x Silicone lipo pad
- 4x Foam landing pad
- 1x Torx T10 key
