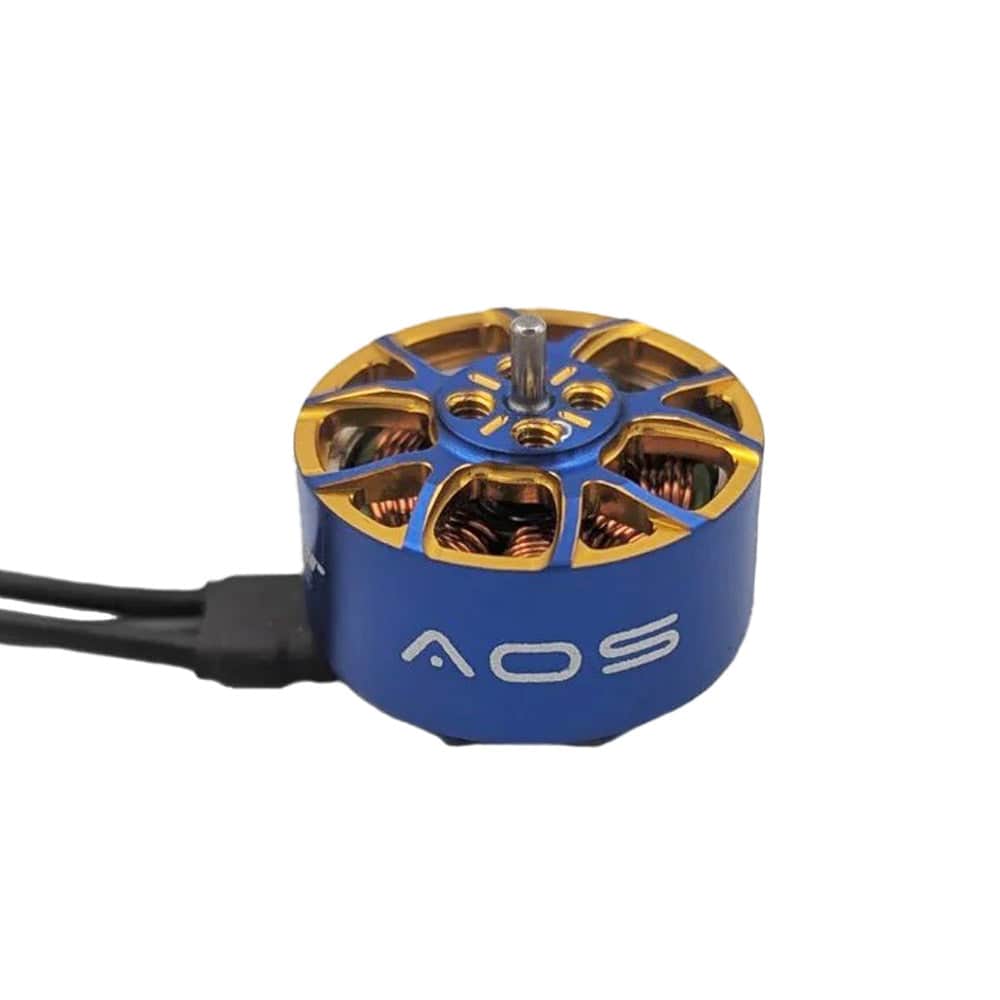

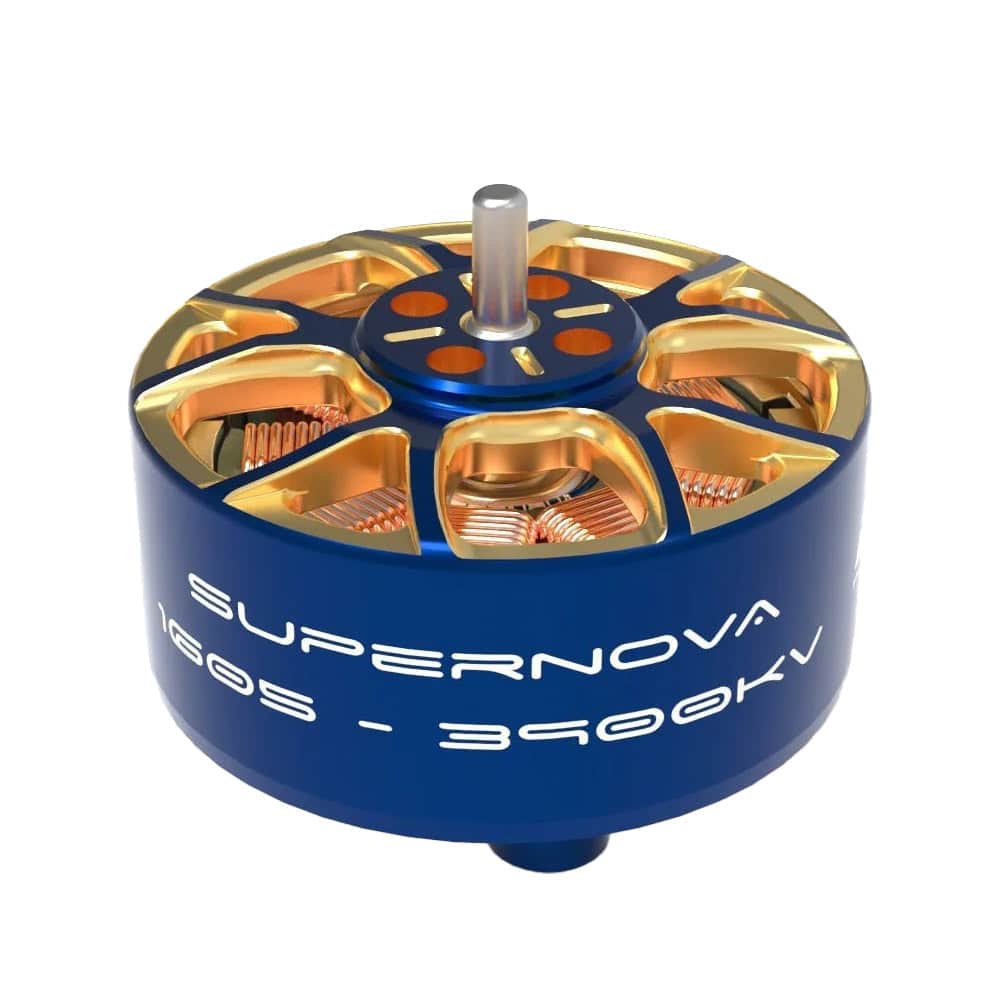

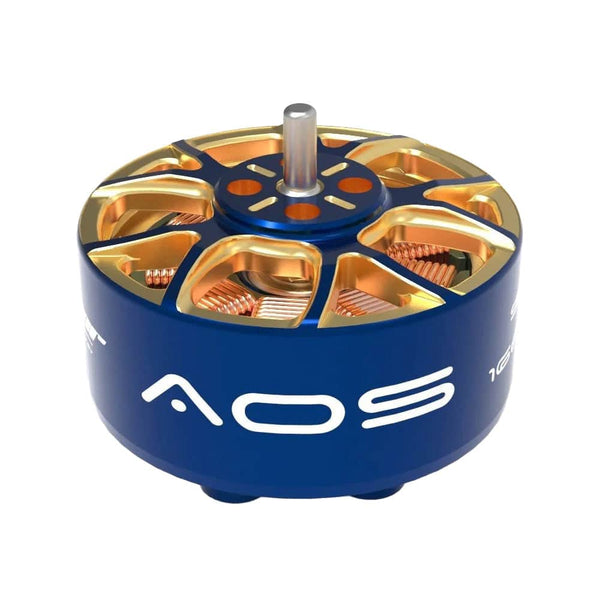

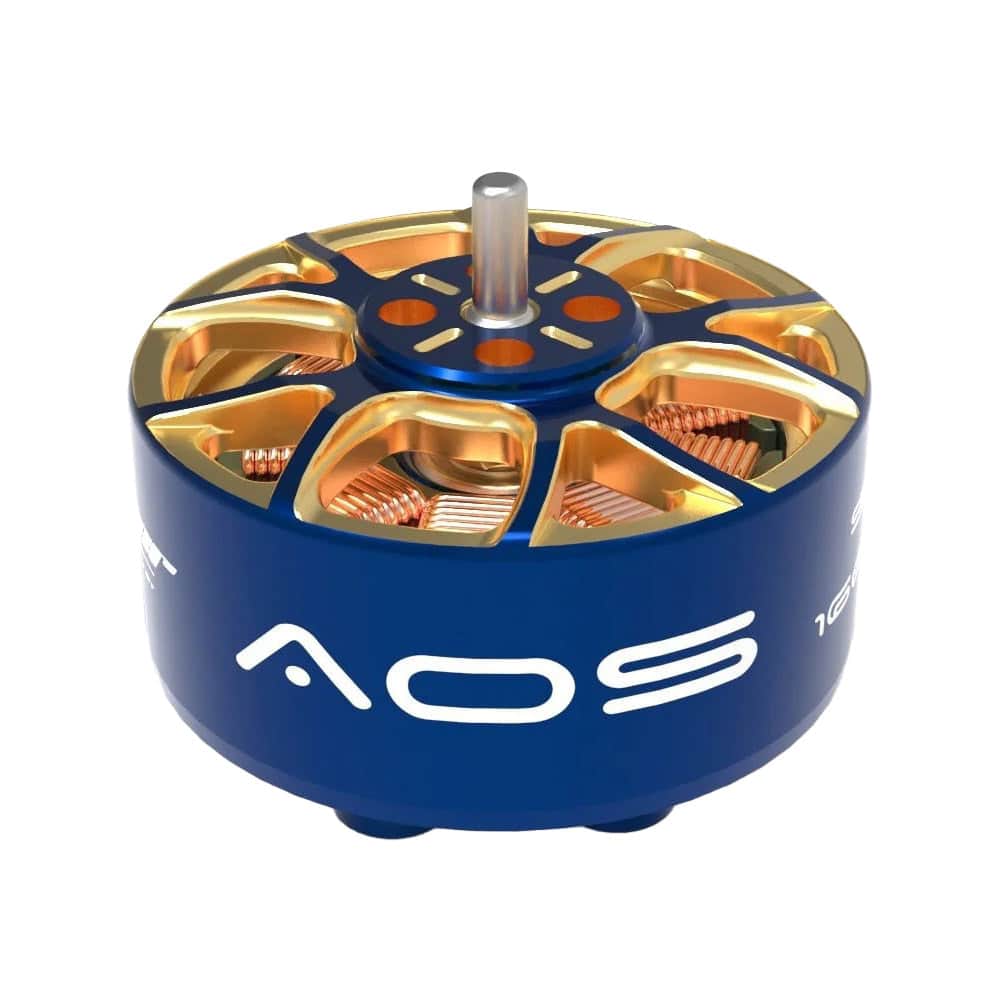

The 3.5” Freestyle performance champion AOS RC Supernova 1605 FPV Motor - 3900KV. Looking for the ultimate performance for your 3.5” freestyle build, this is it. Built on the world-drone-speed-record-breaking technology of the AOS Supernova 3220, the AOS Supernova 1605 is engineered to deliver the Torque, Power, and Performance you need, precisely matched to a 3.5” tri-blade Freestyle prop.
Note: 3.5” cinewhoops with bullnose props should use larger 2004 size motors.
Check out our vast brushless motors selection, and all our AOS RC Motors!
Features
- 25% More Thrust compared to similar 1404 motors
- 30% Better Torque from a thicker flux ring and fine-tuned magnet overhang
- Top Tier Efficiency
- Cris Rosser tuned and tested
Specifications
- KV: 3900
- Configuration: 9N12P
- Stator Diameter: 16mm
- Stator Length: 5mm
- Shaft Diameter: 1.5mm (2mm inside)
- Motor Dimensions: 20x3 x 14.2mm
- Weight: 13.3g (3cm wire)
- Idle Current(10)@10V(A): 1.26
- Cells (LiPo): 3S-4S
- Max Continuous Power(W)3S: 616
- Max Current(3S): 38.5A
- Max Efficiency Current: (5-8A)>85%
Includes
- 1x AOS RC Supernova 1605 FPV Motor - 3900KV
More Info
- SKU: G23873CN1Z
- Barcode: 723326377013
