Description

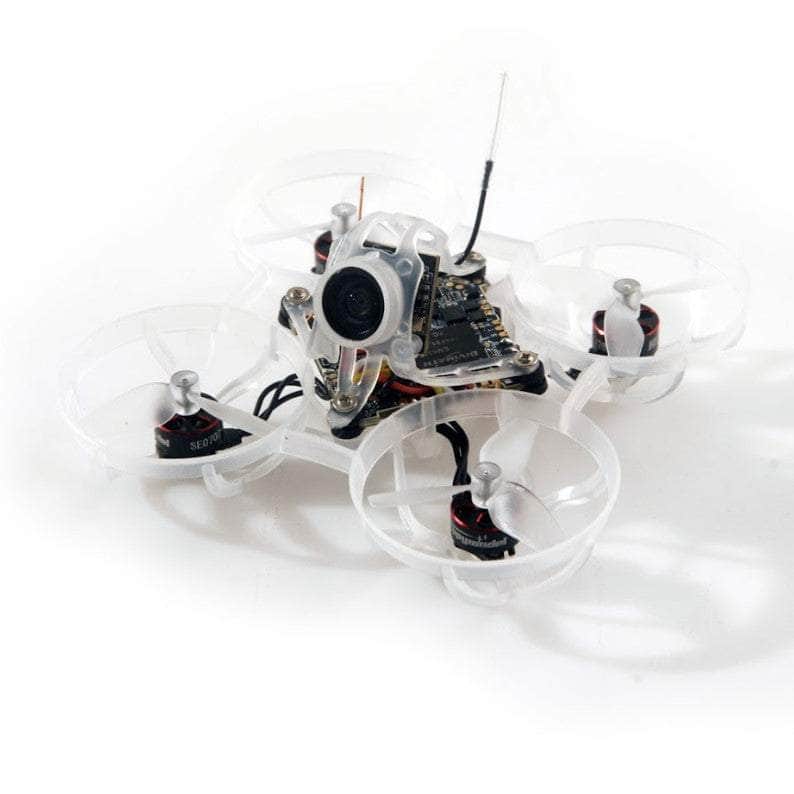

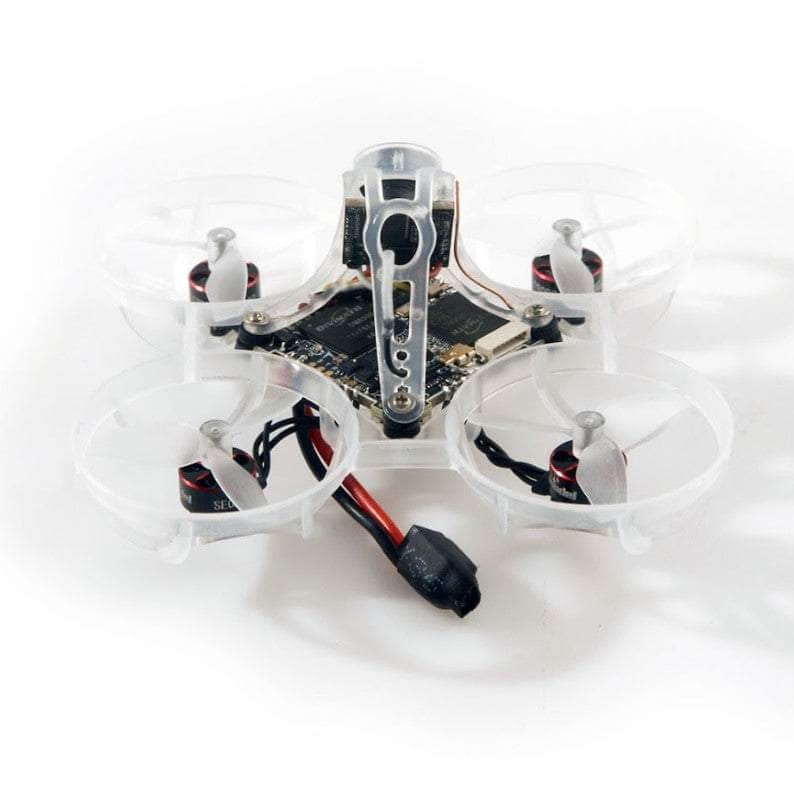

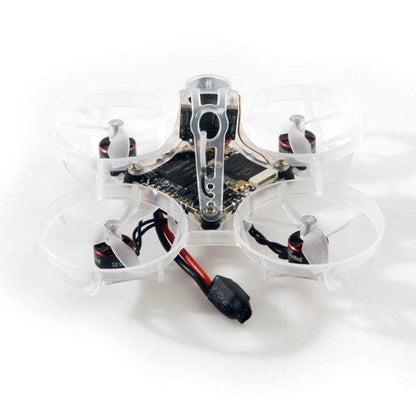

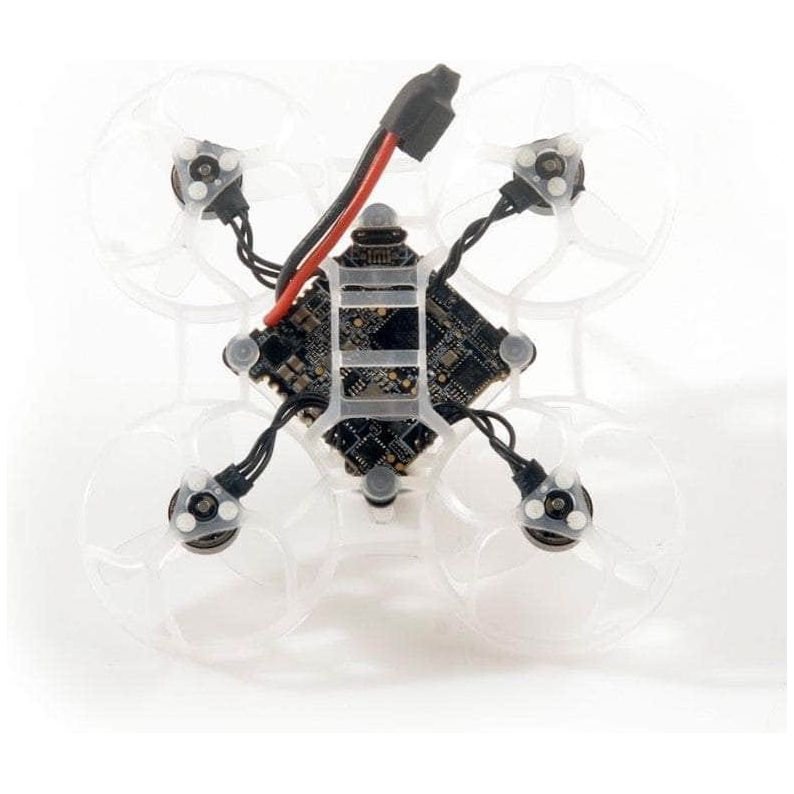

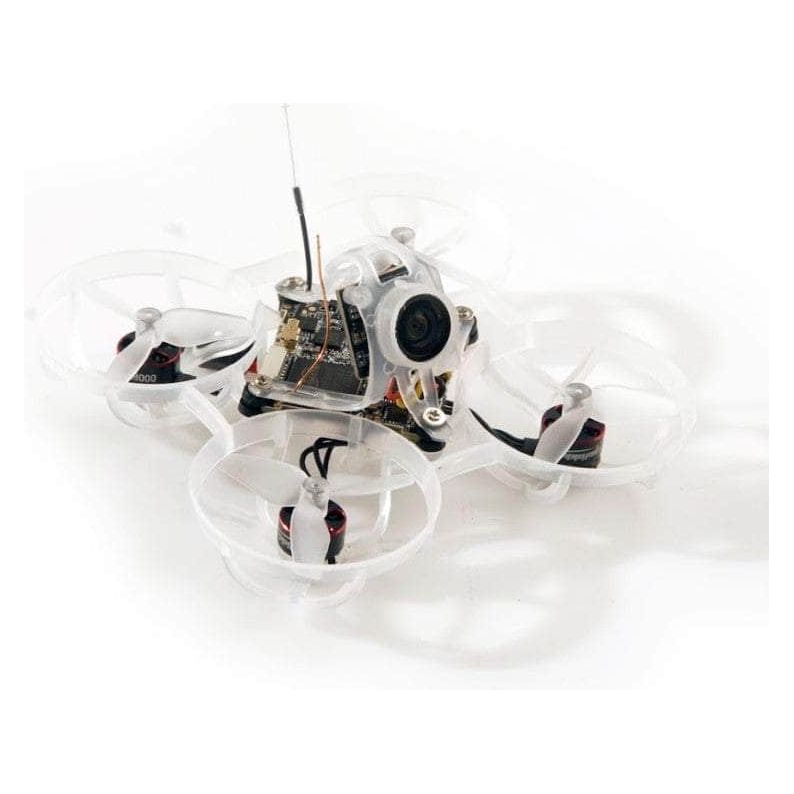

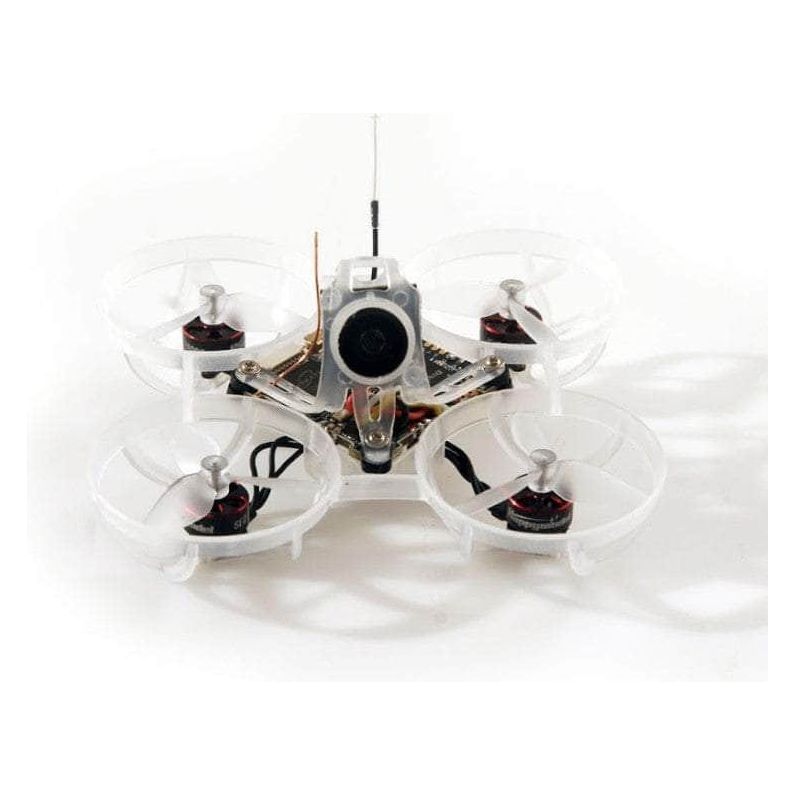

Introducing the Happymodel Mobula6 Race HD BNF - HDZero, an innovative aircraft engineered for unparalleled performance. Equipped with an all-in-one flight controller featuring a Serial ELRS Receiver and 5.8GHz Openvtx, this whoop offers agile and dynamic flight experiences. Weighing just 19.3 grams, it is one of the lightest options available, powered by SE0702 brushless motors for smooth and powerful performance. This whoop captures crystal-clear imagery indoors or outdoors with HDZero. With compatibility for both 1S LiPo and LiHV batteries, you can customize your flight experience. Its compact design ensures precise control in tight spaces. Elevate your FPV journey with the Happymodel Mobula6 Race HD BNF - HDZero.

Check out our other pre-built quads, as well as the rest of our HappyModel selection!

Features

• Equipped with the lightest brushless motors - SE0702, only 1.5 grams

• AIO Flight controller with Serial ELRS Receiver

• HDZero HD VTX

• Onboard black box read

• Smooth and powerful

Specifications

• Weight: 19.3g

• Recommended Battery: 1S 300mAh with A30 or BT2.0 plug

• Propeller Size: 31mm

AIO

• MCU: STM32F411 (100MHz, 512K Flash)

• Gyro: BMI270

• On board voltage and amperage meters

• Built-in 5A(each) BLHeli_S 4-in-1 ESC

• Bluejay ESC firmware pre-installed

• Built-in 5.8G HDZero VTX

• Built-in SPI ExpressLRS 2.4GHz receiver compatible with expresslrs v3.0

• Built-in 5V 1A BEC

• Board size: 28.5x28.5mm with a 25.5x25.5 mounting hole size

• Betaflight firmware: CRAZYBEEF4SX1280 4.4.2 out of factory

HDZero Eco Camera

• Sensor size: 1/3 inch
• Resolution: 720p60 4:3
• FOV: D:150° H:120° V:98°

Motors

• Mode: SE0702 KV28000

• Configu-ration:9N12P

• Stator Diamter:7mm

• Stator Length:2mm

• Shaft Diameter:Φ1mm

• Motor Dimension(Dia. x Len):Φ9.5mm x 14mm

• Weight(g):1.5g

• No.of Cells(Lipo):1S only

• With solder PCB

Includes

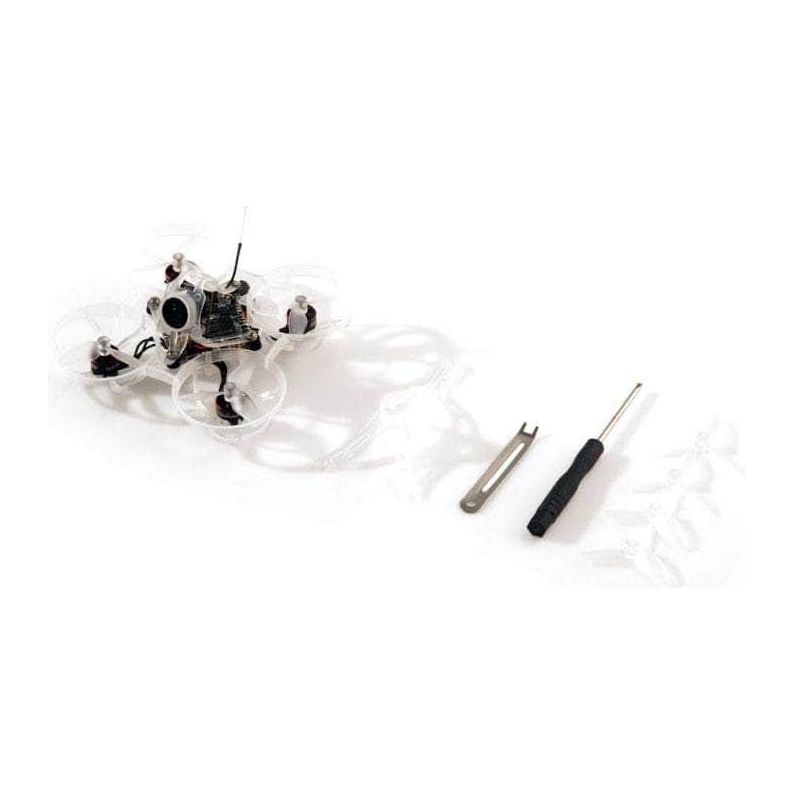

• 1x Happymodel Mobula6 Whoop HD/ w HDZero Eco - ELRS 2.4GHz - Racing
