Description

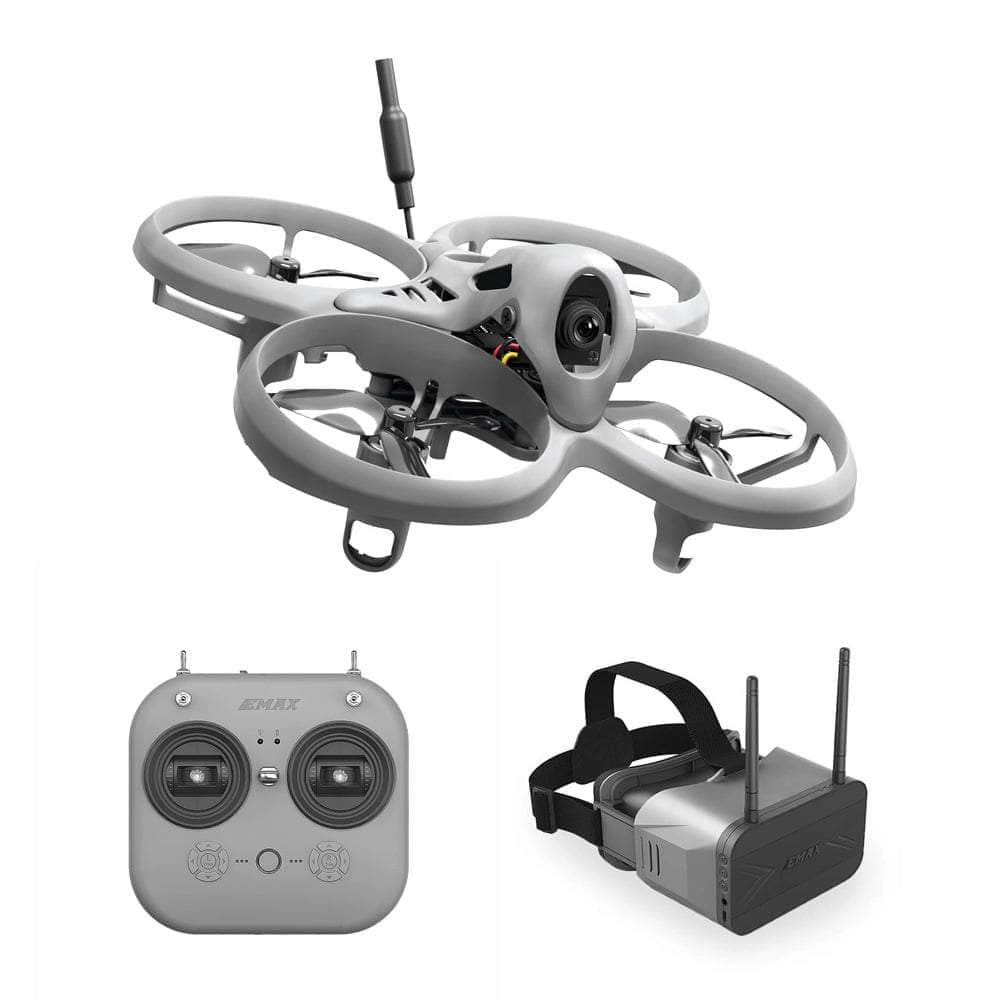

The EMAX Tinyhawk Lite RTF Kit is the perfect entry point into the whoop scene, giving new pilots everything they need in one box. It comes with a tough 75mm micro quad, analog FPV system, E8 radio, and Transporter 2 goggles for a true plug-and-play experience. Built for tight indoor spots but capable of small outdoor runs, it’s a smooth way to jump into FPV flying.

Check out our other RTF combos, all our pre-built quads, as well as the rest of our Emax selection!

All products containing batteries must be shipped by a ground shipping method.

Video

Features

• All-in-one ready-to-fly kit: drone, radio, and goggles included

• Lightweight micro quad, perfect for indoor or small outdoor flights

• Crash-resistant frame built for beginners

• Simple, beginner-friendly transmitter

• Includes E8 Transmitter and Transporter 2 goggles

• FPV camera for immersive first-person flying

• Budget-friendly way to start your FPV journey

Specifications

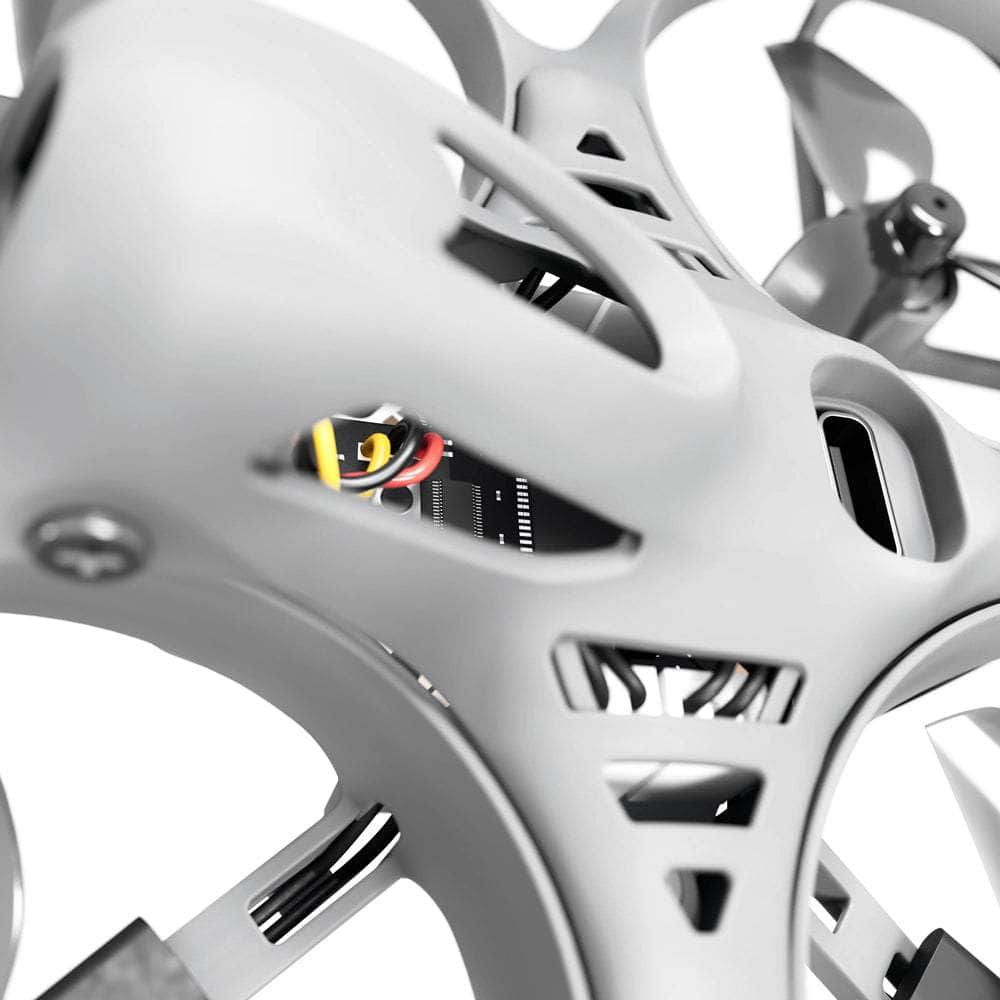

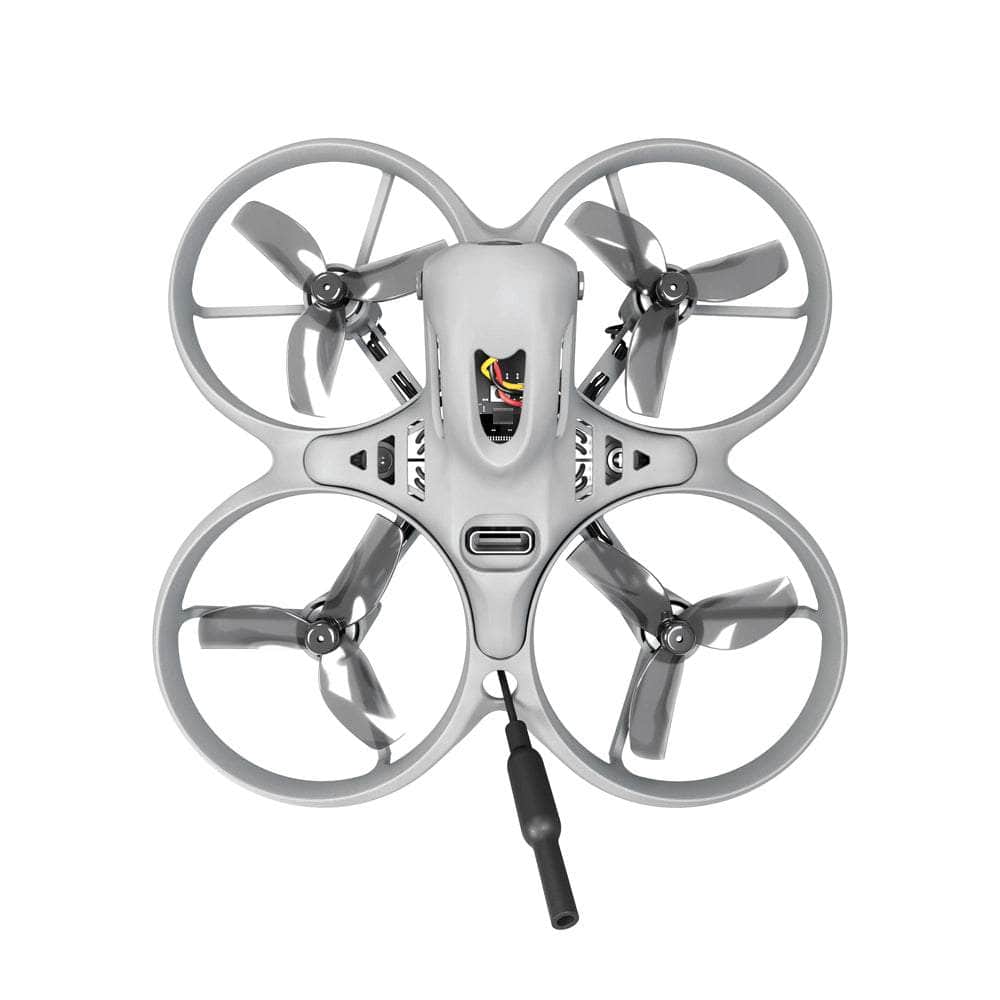

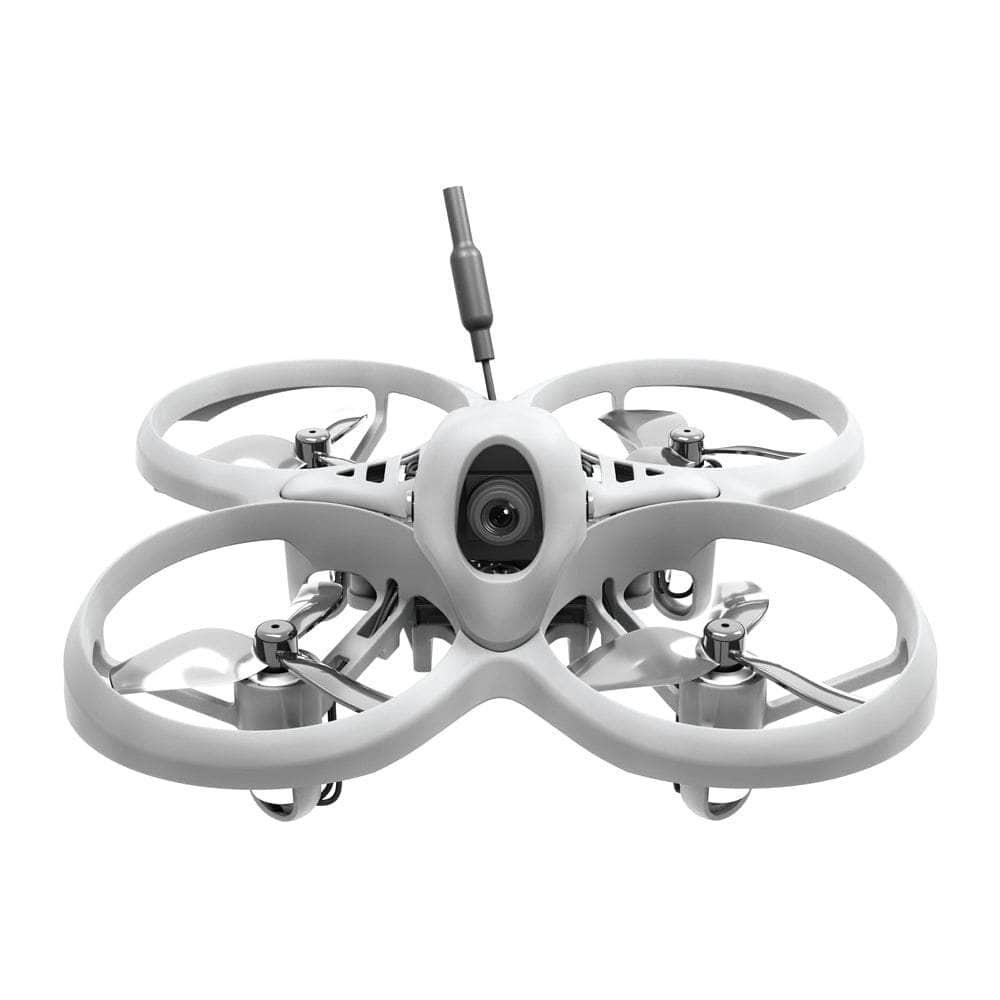

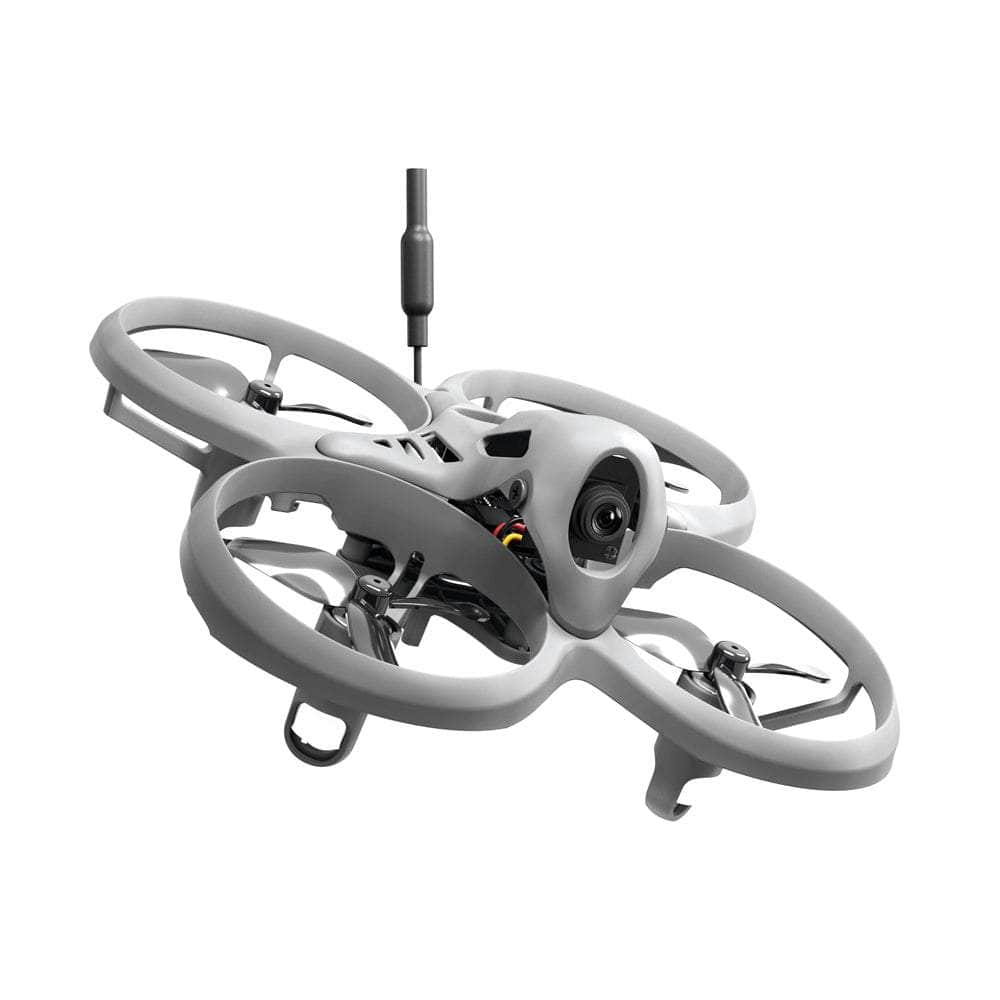

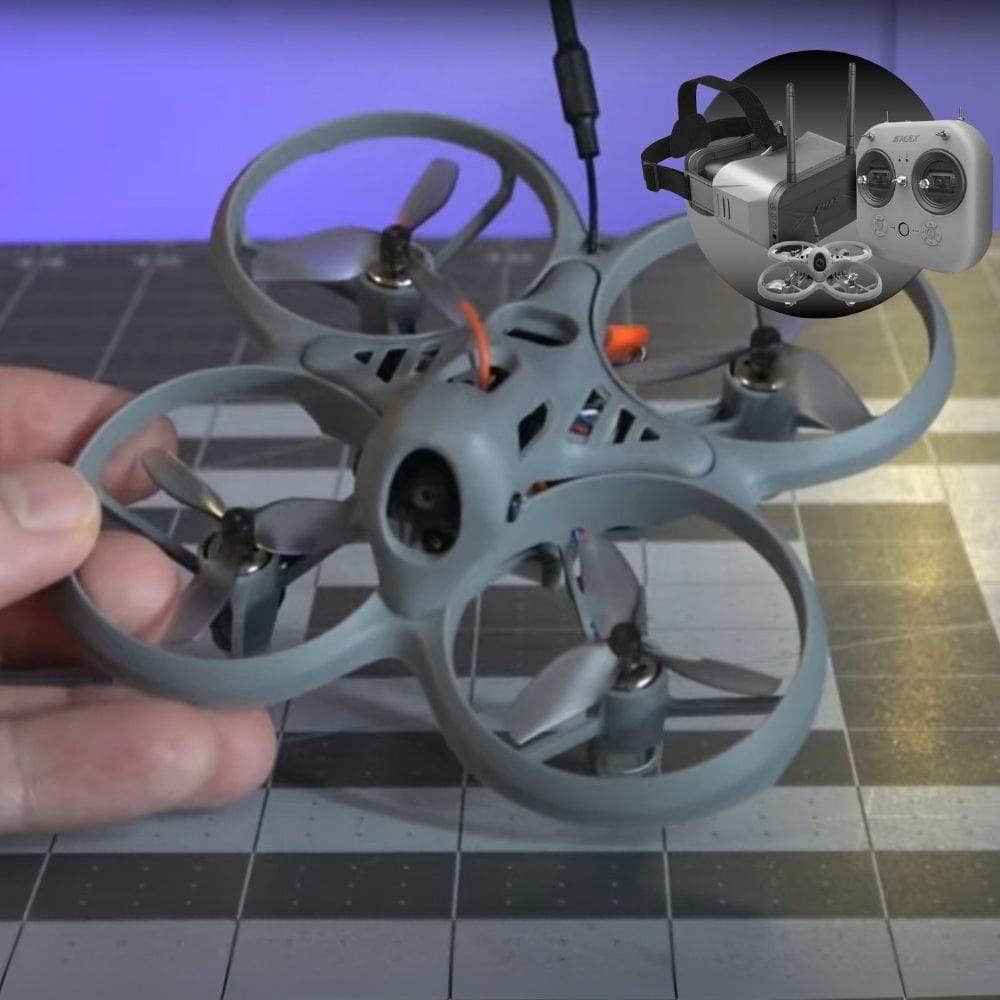

TINYHAWK LITE

• Flight Controller: STM32F411 (100MHz), 1S input, EMAX_TINYHAWKF4SX1280 Firmware
• Receiver: Built-in ELRS (2.4GHz), SX1280 RF module, CRSF protocol
• Configuration: Betaflight Configurator for VTX, OSD, and binding
• ESC: 4-in-1 brushed, 10A, DC 3.7–4.2V input
• FPV Camera: RunCam Nano 3 Analog
• VTX Power: 0/25mW/100mW/400mW
• VTX: 32-bit, 40CH, open-source
• Dimensions: 104 x 104 x 52mm
• Weight: ~37g (without battery)
• Motor: 0816 coreless DC 3.7V

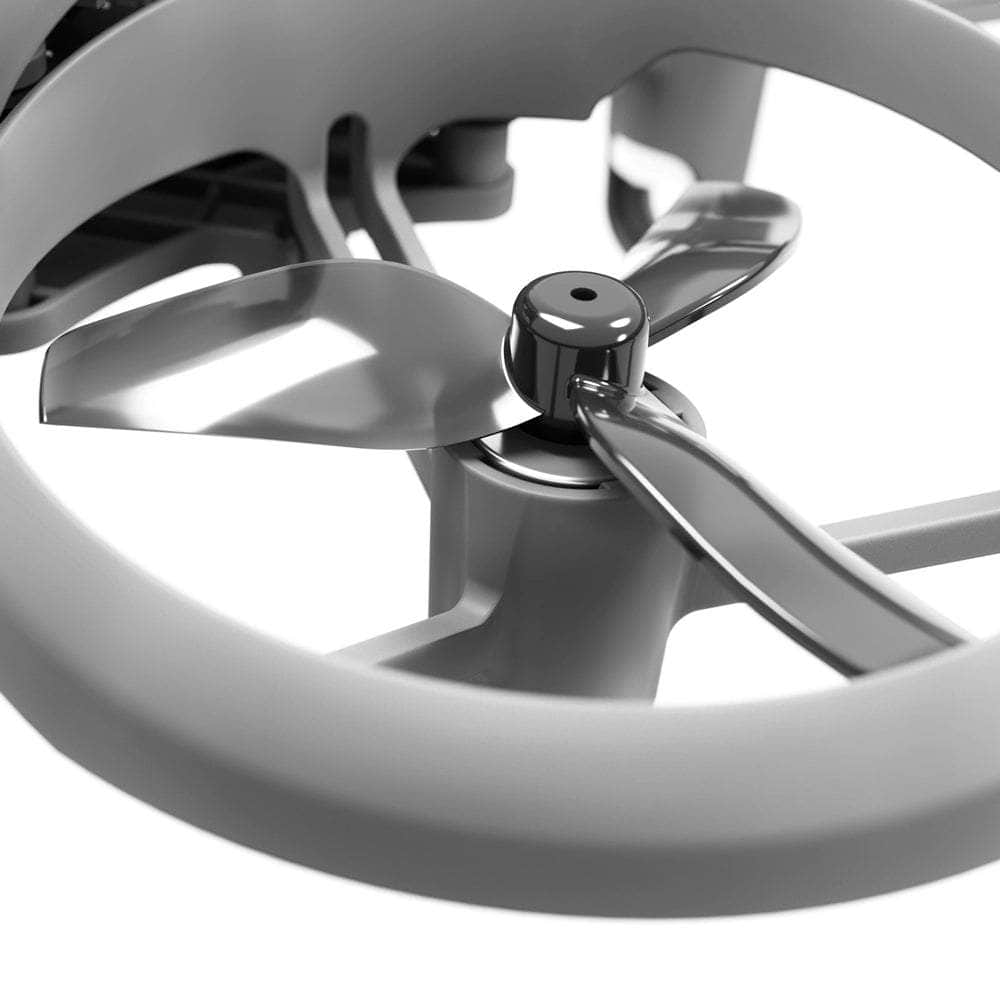

• Propellers: HQ 40mm 3-blade
• Battery: 1S HV 750mAh
• Model: Tinyhawk Lite
• Wheelbase: 75mm

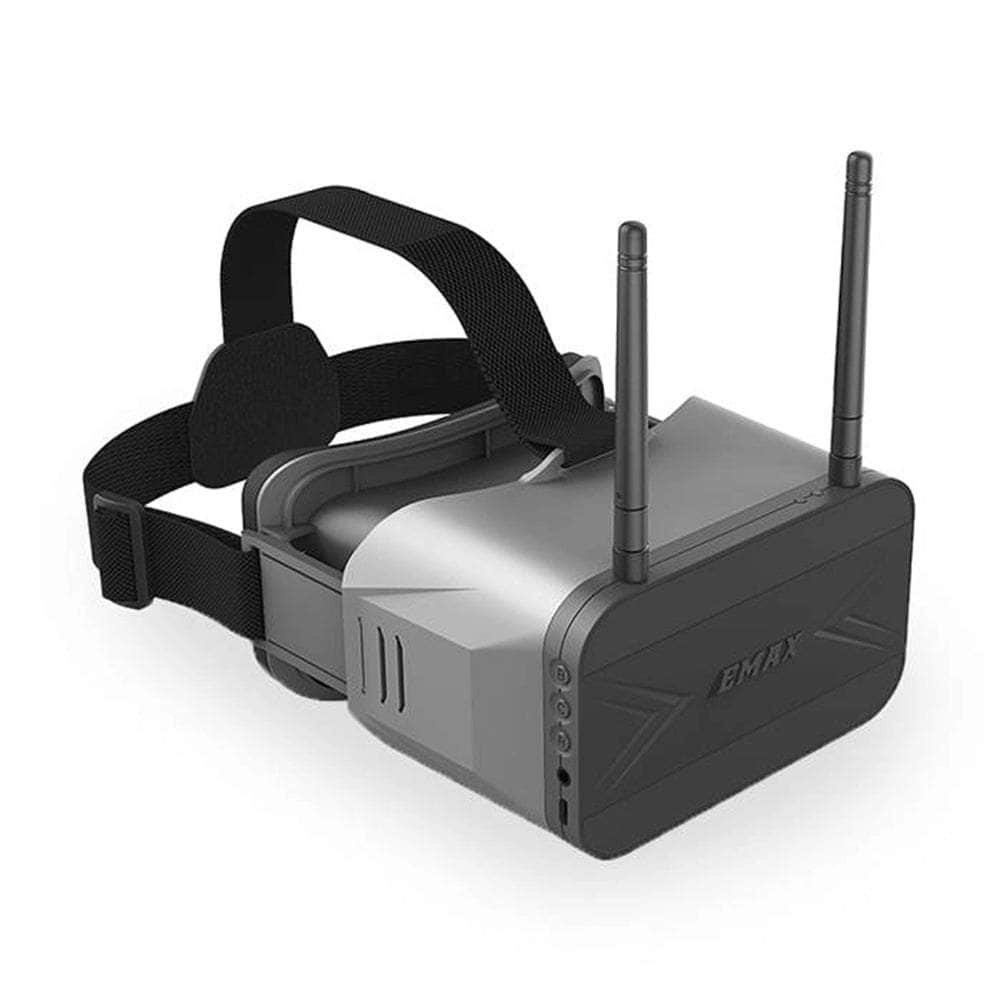

TRANSPORTER 2 GOGGLES

• Charging System: Built-in USB 5V--1A linear lithium-ion battery charging system
• Maximum Size: (Without antenna - Folded) 155x100x90mm
• Frequency: 5.8GHz（5658MHz-5945MHz)
• Video: VGA/D1/HD (Off/3min/5min/10min)
• DVR: 32 GB TF card (max), MJPEG, AVI
• Battery: 1300mAh Lithium-ion battery
• Screen resolution: 480X800
• Weight (With battery): 398g
• Working Voltage: 4.2V-3.7V
• Screen size: 4.3 inch
• Type: Analog

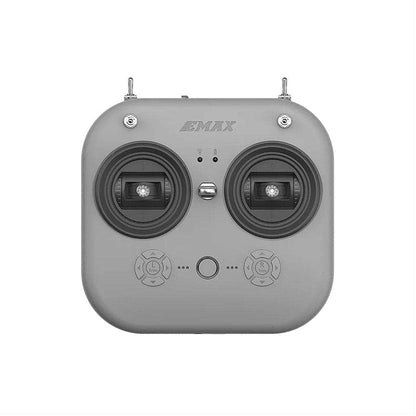

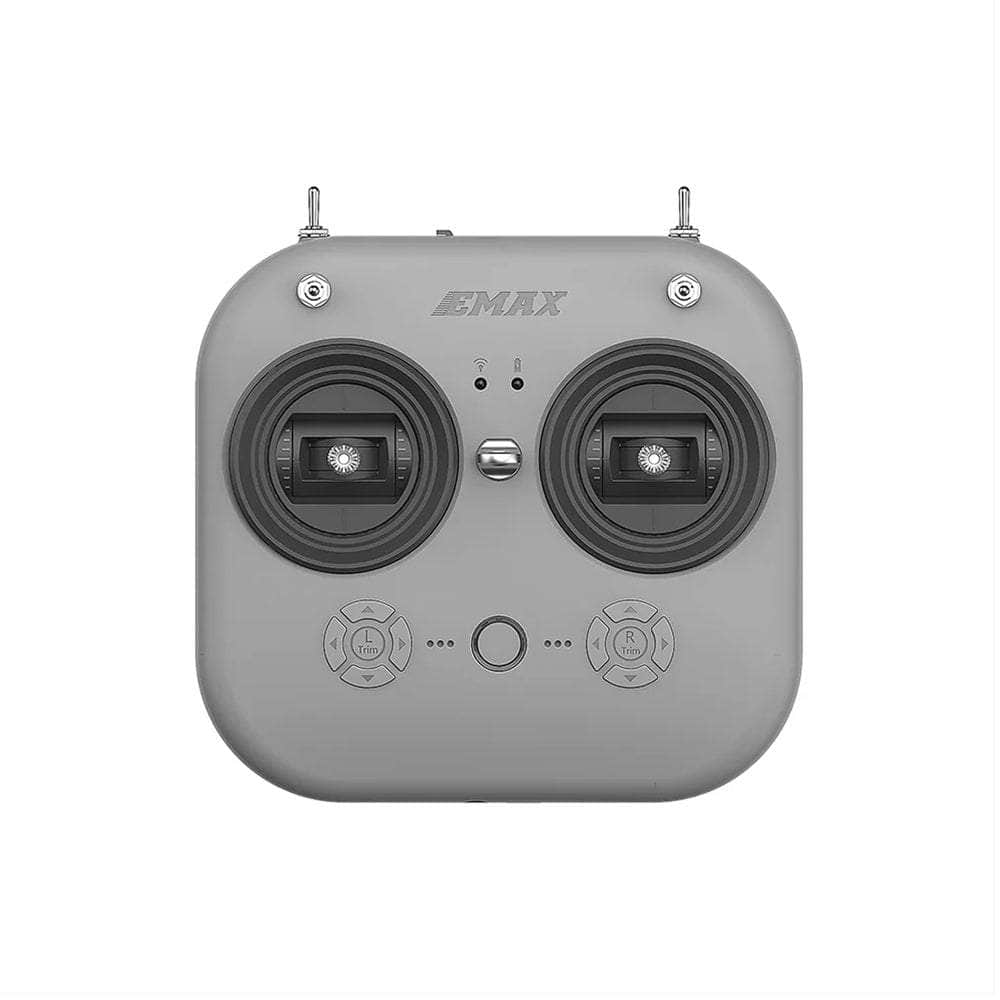

E8 ELRS RADIO TRANSMITTER

• Charging System: Built-in USB 5V--1A linear lithium-ion battery charging system
• External interface: Micro USB,3.5mm Audio interface (wired coach interface)
• Frequency 2.4GHz (2400MHz-2483.5MHz)
• Maximum Size: L*W*H=150x140x45mm
• Battery: 18650 Lithium-ion battery
• Weight (Without Battery): 260g
• Number Of Channels: 8CH
• Working Voltage: 4.2V-3.3V
• Protocol: ELRS
• Output: 22dbm

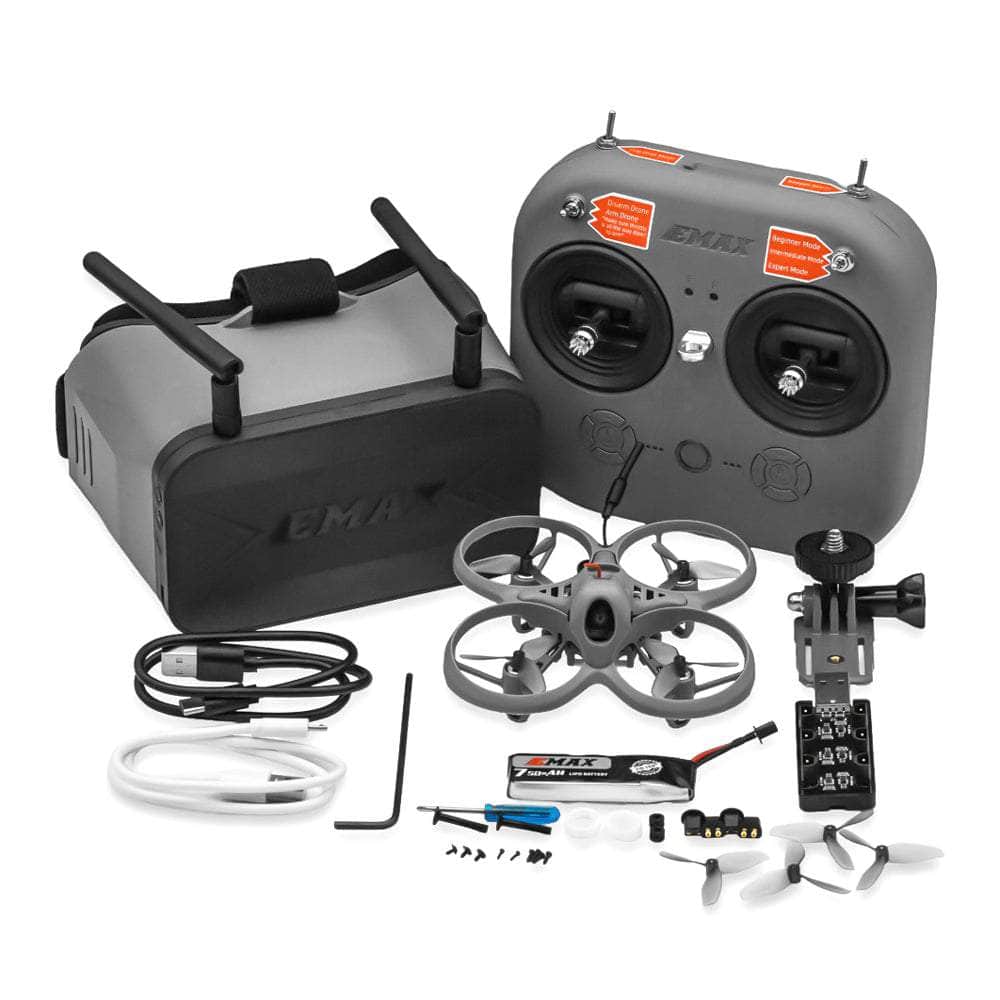

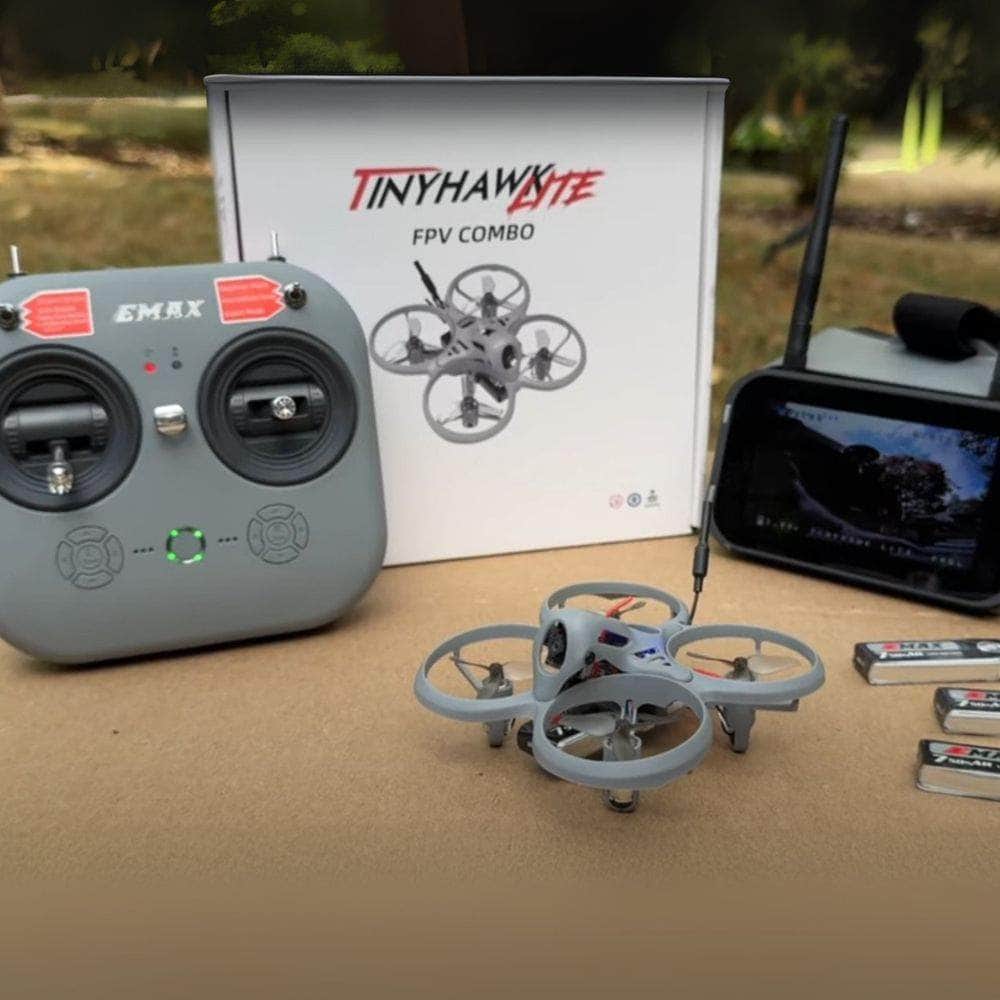

Includes

• 1x EMAX Tinyhawk Lite 75mm Micro Whoop - ELRS 2.4GHz
• 1x EMAX Transporter 2 Goggles
• 1x EMAX E8 Radio Transmitter
• 1x Action Camera Mount
• 4x Spare Propellers
• 1x Battery Charger
• 1x Hardware Kit
• 1x Battery
