Details
Description

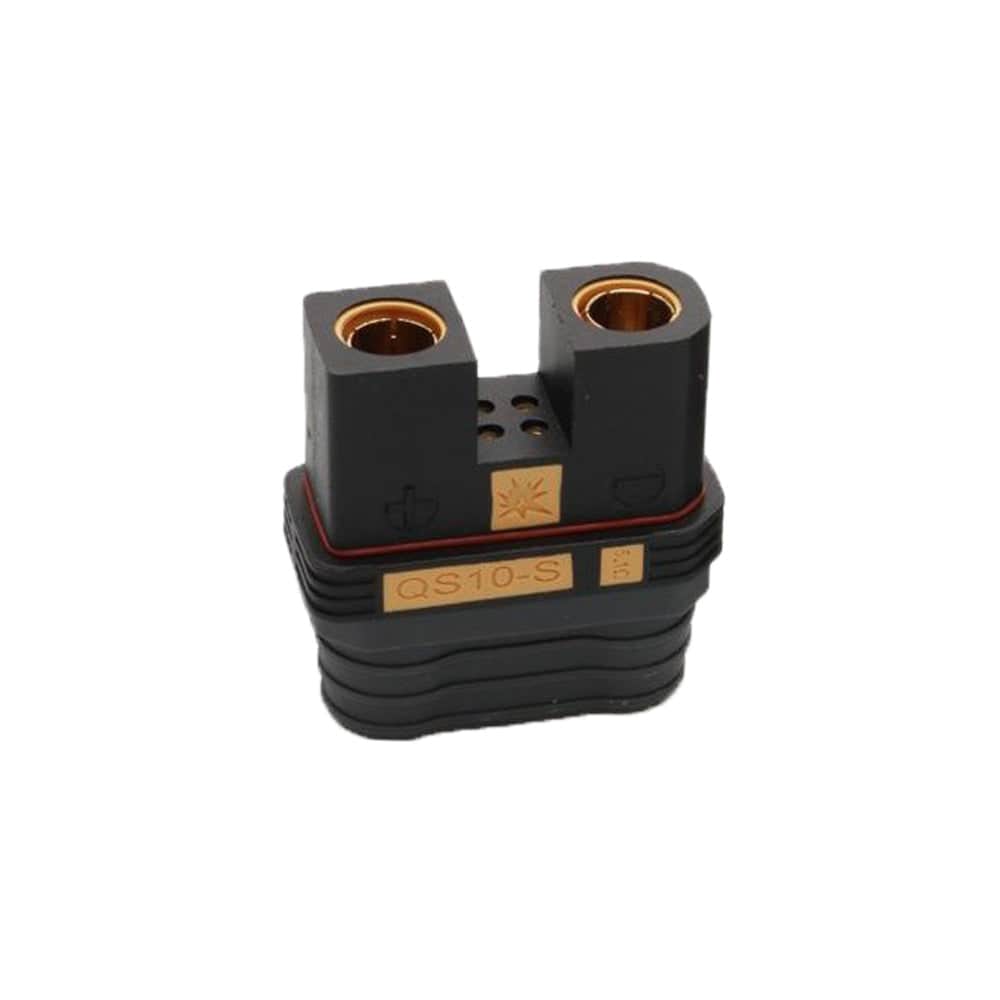

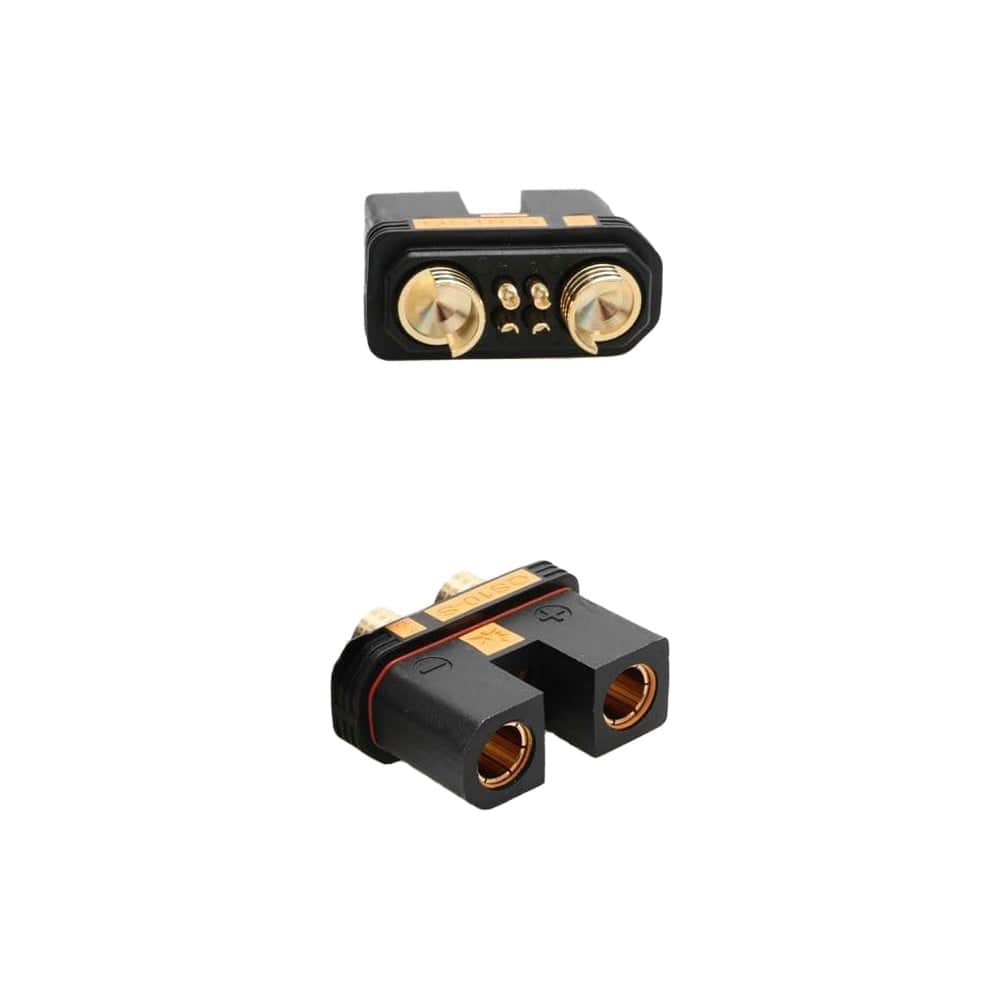

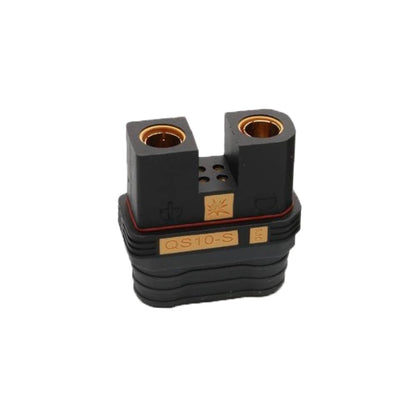

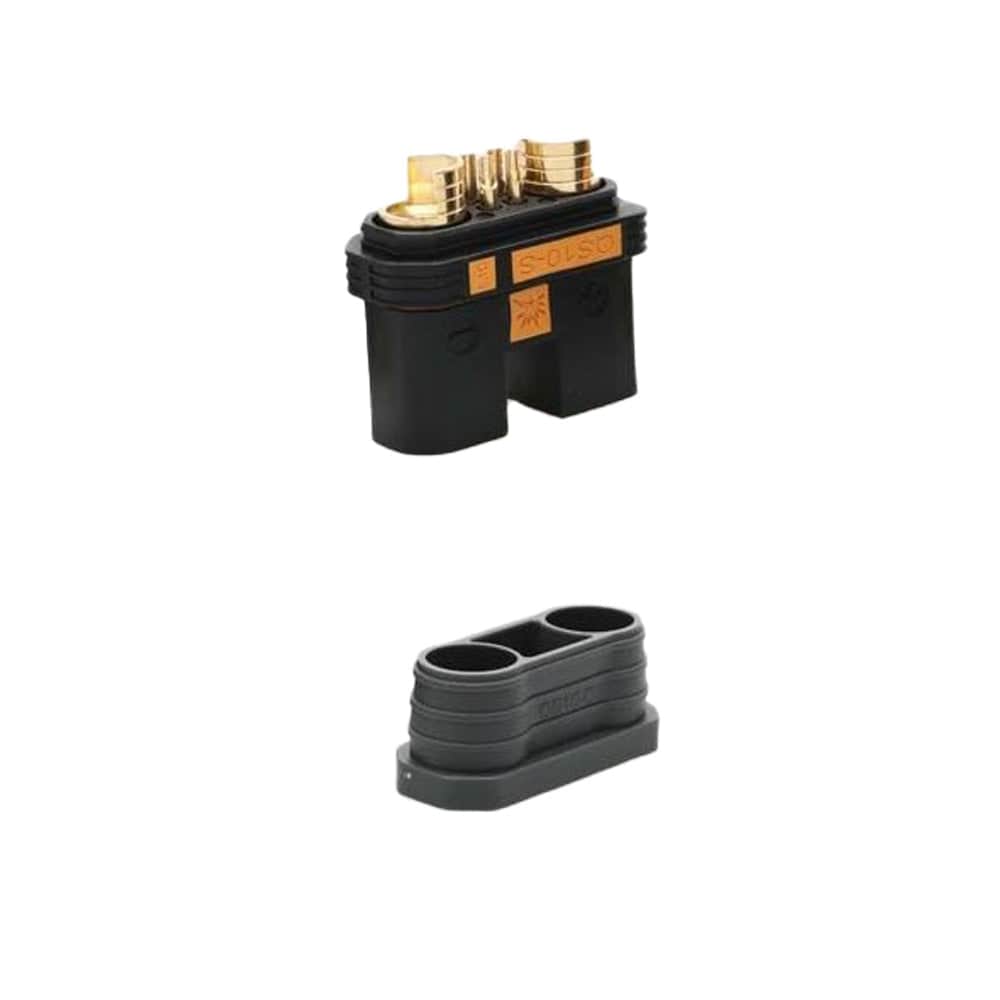

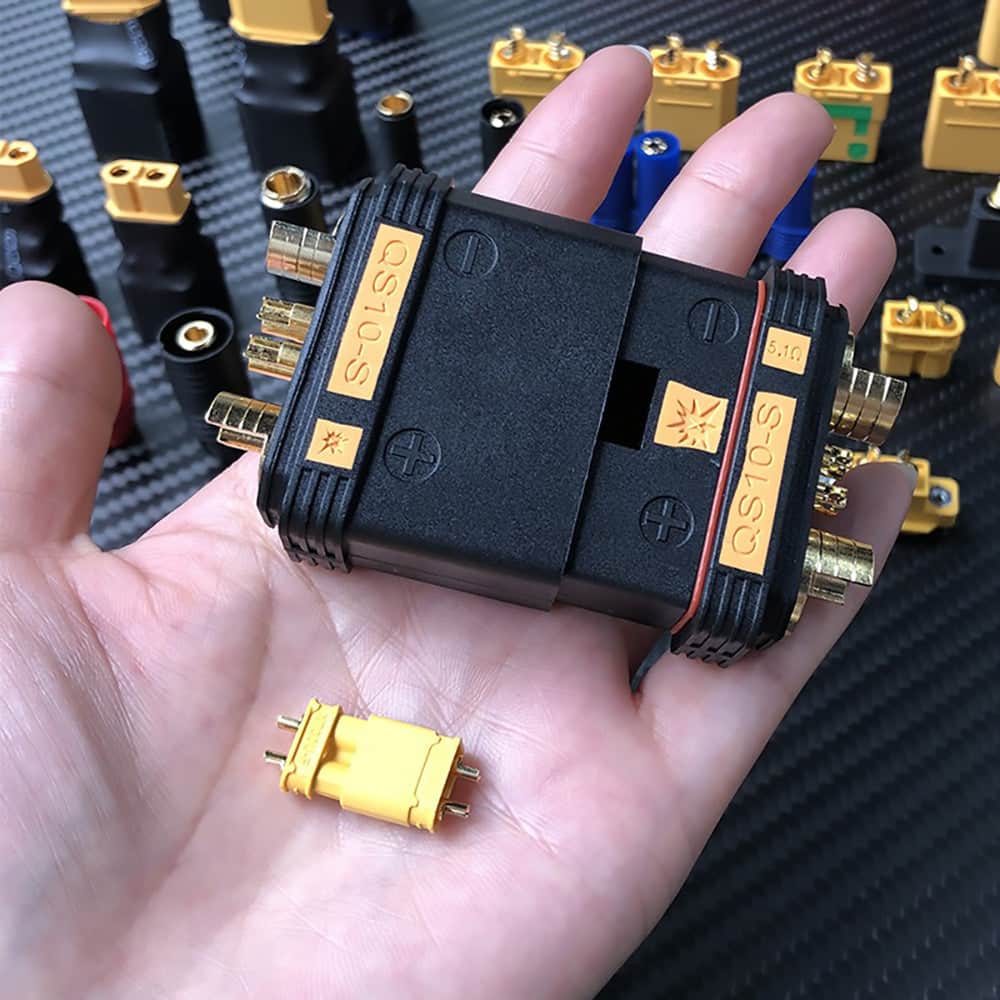

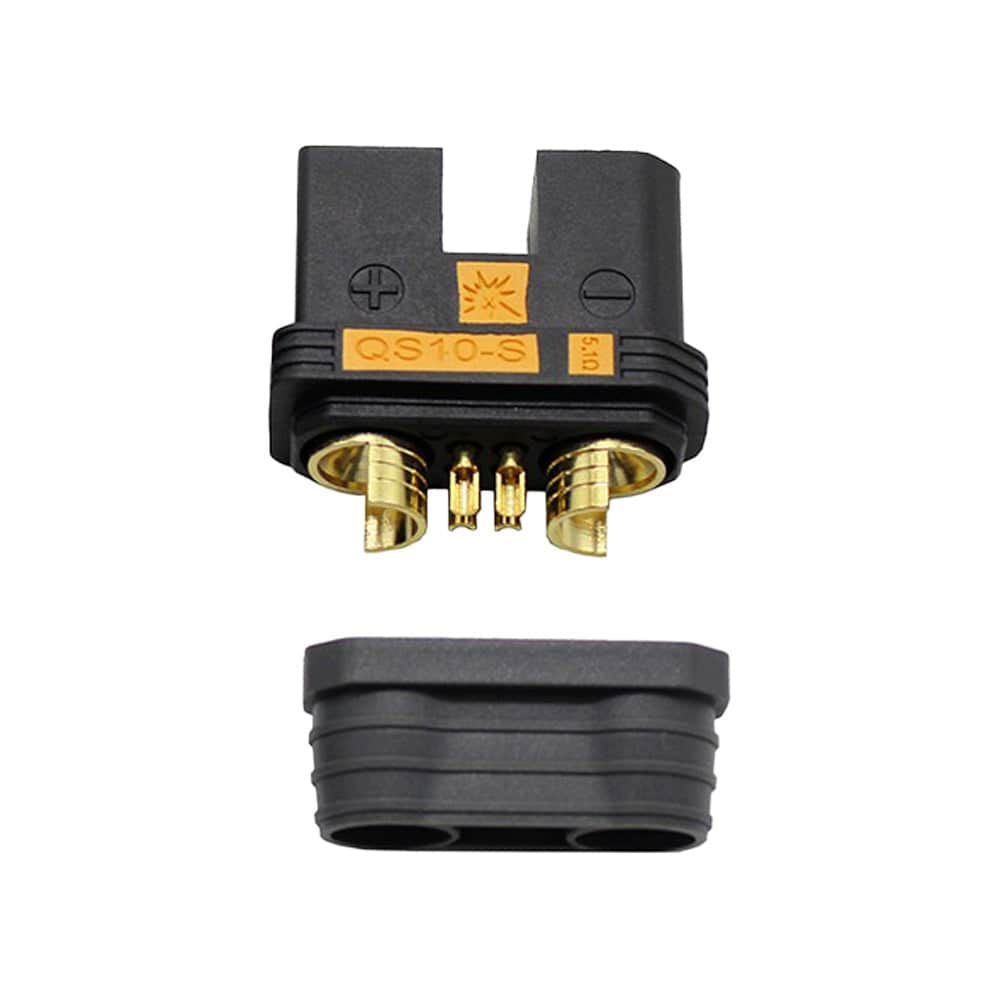

The QS10-S 180A Anti-Spark Connector - Male is a high-quality connector for extreme amp draw. Designed for secure and efficient power delivery. With its durable construction and reliable anti-spark design, it ensures a safe and stable connection for high-current, up to 180A applications.
Note: This is the Male version of the plug. To complete the connection requires both the Male & Female connectors.
Find the QS10-S 180A Anti-Spark Connector - Female Here
Check out the rest of our pigtails & connectors!
Features
- High-Quality Construction
- High-Current Capability
- Current rating at 180A
- Anti-Spark Technology
Specifications
- Connector name: QS10-S
- Max current: 240A
- Rated current:180A
- Contact resistance: 0.3mΩ
- Flame rating: UL94-V0
- Insulation material: PA
- Rated voltage: 500V
- Wire range: 4awg-10awg
- Working temperature: -30 ℃ to -150 ℃
- Recommended using times: 1000 times
- Weight: Male 52.2g
Includes
- 1x QS10-S 180A Anti-Spark Connector - Male
More Info
- SKU: G23832CN1Z
- Barcode: 723326377532
