Description

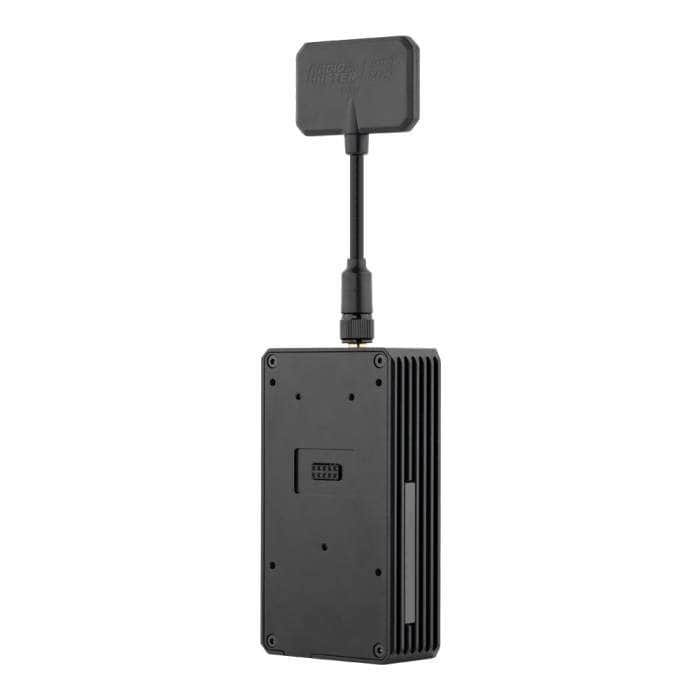

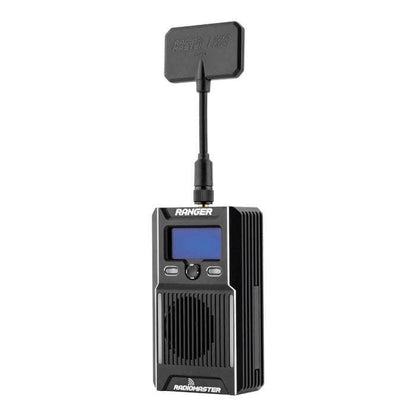

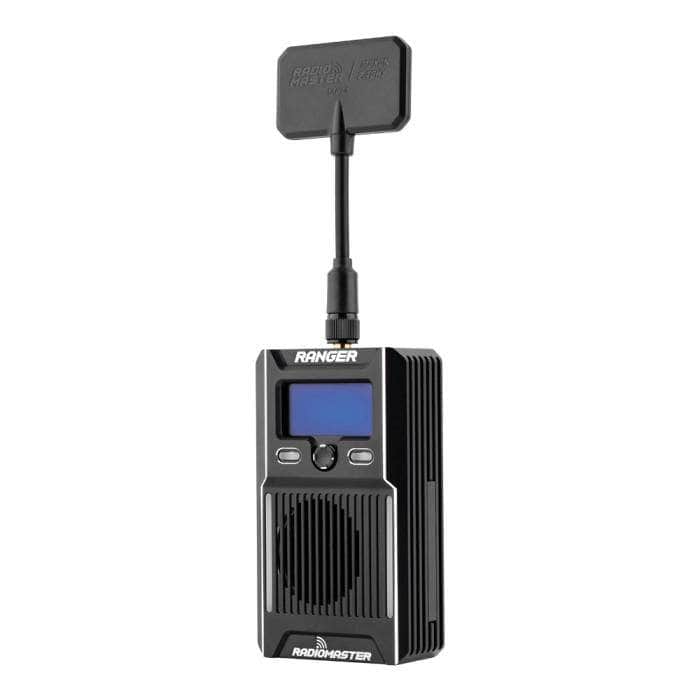

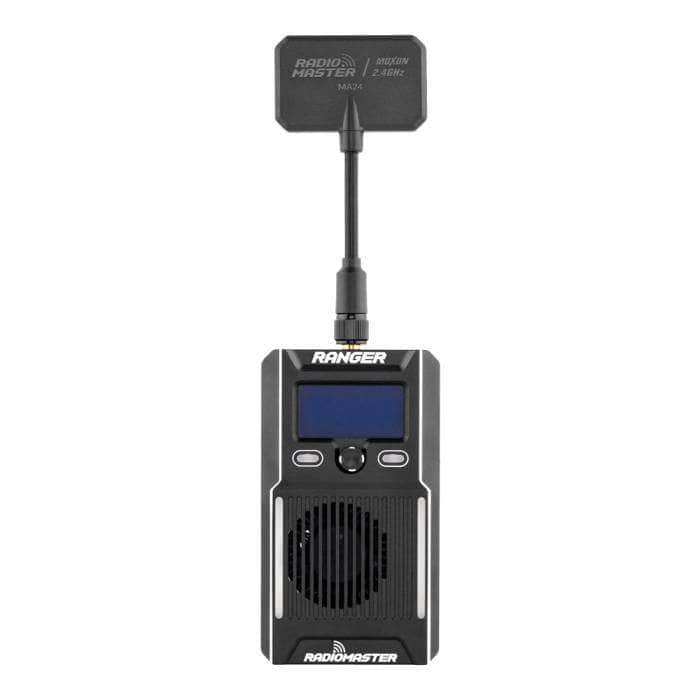

The RadioMaster Ranger 2.4GHz ELRS Module features a rugged CNC case and two module bay adapters. Other features include an OLED display, built-in accelerometer, packet rates up to F-1000Hz, up to 1 Watt Power output, and a high-efficiency cooling system. The 5 Direction Nav key and customizable shortcut buttons make this module user-friendly and customizable.

The starter combo also includes additional RPI receivers and one RP2 Receiver.

Check out all our RC Transmitters and our entire RadioMaster selection!

Features

• 2 Customizable Shortcut Buttons
• High-Efficiency Cooling System
• ExpressLRS 2.4GHz Module
• Max F-1000Hz Packet Rate
• WiFi and Bluetooth Support
• Rugged CNC Housing
• RGB Lighting effects

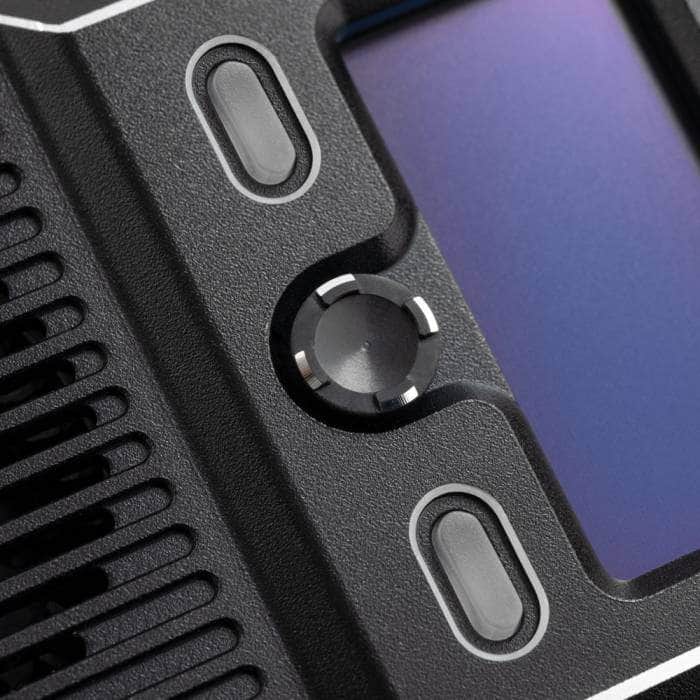

• 5 Direction NAV Key
• 1W Power Output
• OLED Display

Specifications

• Dimension: 178x51x25mm, 138g(with Moxon antenna) / 95x51x25mm, 126g (without antenna)
• Maximum packet rate: 500Hz/F1000Hz
• Minimum receiver refresh rate: 25Hz
• Futaba CRSF socket cable: Included
• Frequency: ExpressLRS 2.4GHz
• Regulatory Domain: ISM2400
• Packet Rate: MAX F-1000Hz
• OLED screen: 64x128px
• Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
• RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
• Weight: 138g (with Moxon antenna) / 135g (with T antenna)
• 3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
• Power Output: 1WItem: Ranger 2.4GHz ELRS Module
• MCU: ESP32(main), ESP8285(aux, as esp backpack)
• Frequency Range: 2400 MHz to 2480 MHz

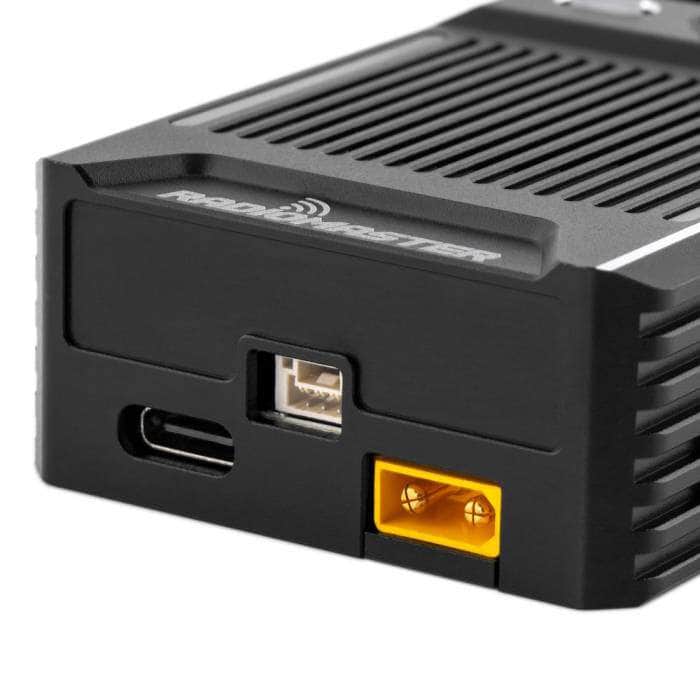

• XT30 Power supply voltage: DC 6V - 16V
• OLED screen: 64x128px
• Maximum packet rate: 500Hz/F1000Hz
• Minimum receiver refresh rate: 25Hz
• Futaba CRSF socket cable: Included
• Frequency: ExpressLRS 2.4GHz
• Regulatory Domain: ISM2400
• Packet Rate: MAX F-1000Hz
• OLED screen: 64x128px
• RF chip: SX1281IMLTRT
• Accelerometer: Built-In
• RGB: Built-in light strip
• Bluetooth support: Yes
• 3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
• Wifi Support: Yes
• RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
• Weight: 138g (with Moxon antenna) / 135g (with T antenna)
• Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket

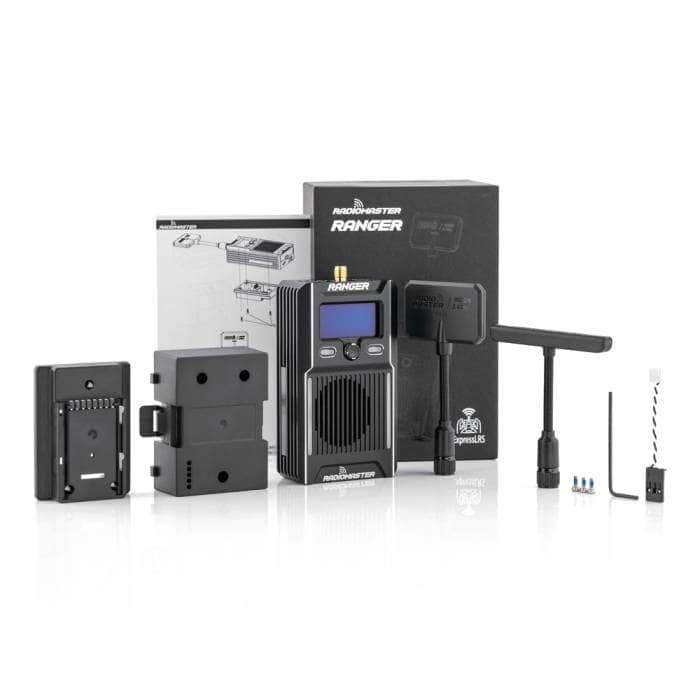

Includes Transmitter Only

• 1x Nano Standard 8pin Socket Module Bay Adapter
• 1x JR Standard 5pin Socket Module Bay Adapter
• 1x Radiomaster Ranger 2.4Ghz ELRS Module

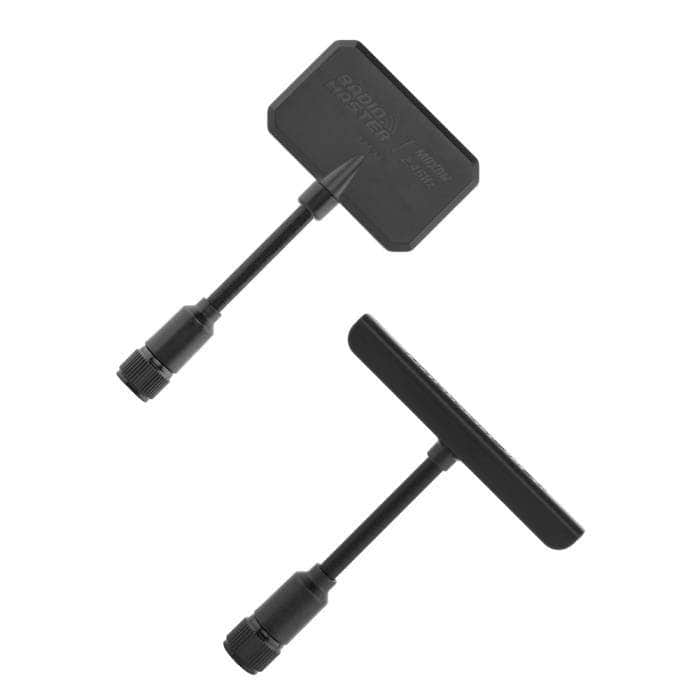

• 1x 2.4GHz Moxon Antenna - RP-SMA
• 1x Hexagon Socket Screwdriver
• 1x 2.4GHz T Antenna - RP-SMA
• 1x Futaba CRSF socket cable
• 3x M2x5 Screws

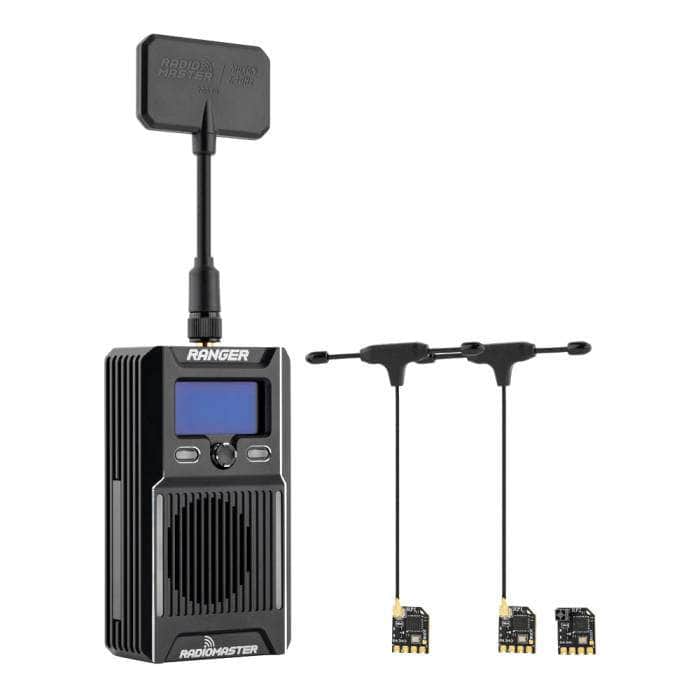

Includes Starter Combo

• 1x Nano Standard 8pin Socket Module Bay Adapter
• 1x JR Standard 5pin Socket Module Bay Adapter
• 1x Radiomaster Ranger 2.4Ghz ELRS Module
• 1x 2.4GHz Moxon Antenna - RP-SMA
• 1x Hexagon Socket Screwdriver
• 1x 2.4GHz T Antenna - RP-SMA

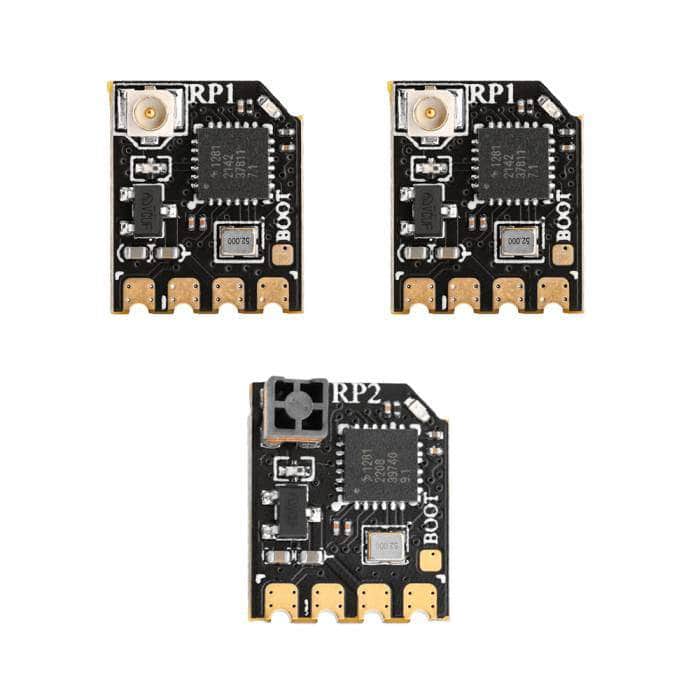

• 2x Radiomaster RP1 Receiver
• 1x Radiomaster RP2 Receiver
• 1x Futaba CRSF socket cable
• 3x M2x5 Screws
