RadioMaster Ranger Micro 2.4GHz ELRS Transmitter Module - Choose Version

RadioMaster Ranger Micro 2.4GHz ELRS Transmitter Module - Choose Version

$51.99
$51.99
Style:
In stock
In stock
Add To Wishlist
View full details

Details

Description

V1.6 Ranger Micro & Nano Modules: have resolved the external power issue and have begun shipping March.

The RadioMaster Ranger Micro 2.4GHz ELRS Transmitter Module features a JR module bay adapter, packet rates up to F-1000Hz, up to 1 Watt Power output, and a high-efficiency cooling system.

The starter combo also includes additional RPI receivers and one RP2 Receiver.

Check out all our RC Transmitters and our entire RadioMaster selection!

Features

  • The JR connector supports TX16S MKII/TX12 MKII or JR standard 5pin socket radios.
  • Micro ExpresssLRS 2.4GHz Module
  • High-Efficiency Cooling System
  • WiFi and Bluetooth Support
  • Max F-1000Hz Packet Rate
  • 1W Power Output

Specifications

  • Minimum receiver refresh rate: 25Hz
  • Weight: 50g (with Moxon antenna）
  • Regulatory Domain: ISM2400
  • Item: Ranger Micro Module
  • RF chip: SX1281IMLTRT
  • Bluetooth support: Yes
  • Wifi Support: Yes
  • Dimension: 136x49x33mm, 50g (with Moxon antenna) / 74x49x33mm, 40.5g (without antenna)
  • RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
  • MCU: ESP32(main), ESP8285(aux,as esp backpack)
  • Frequency Range: 2400 MHz to 2480 MHz

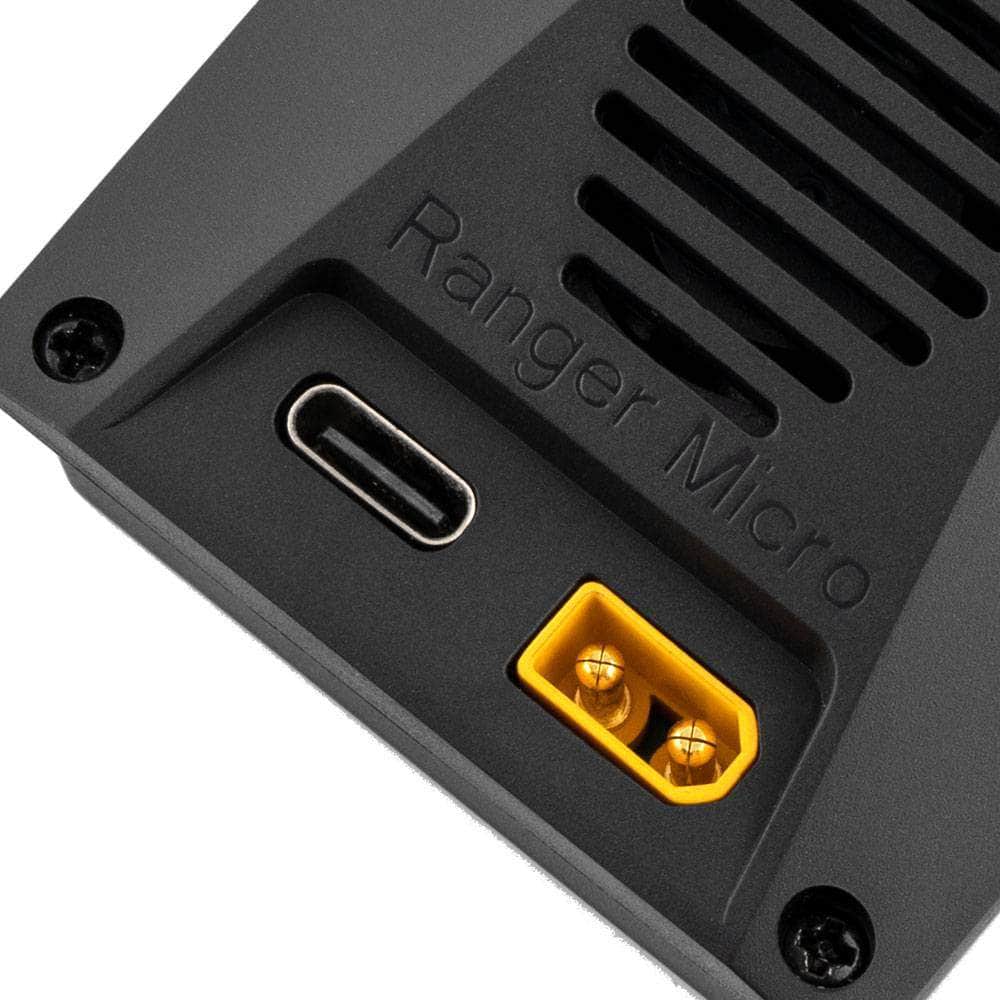

  • XT30 Power supply voltage: DC 6V - 16V
  • Maximum packet rate: 500Hz/F1000Hz

Includes Transmitter Only

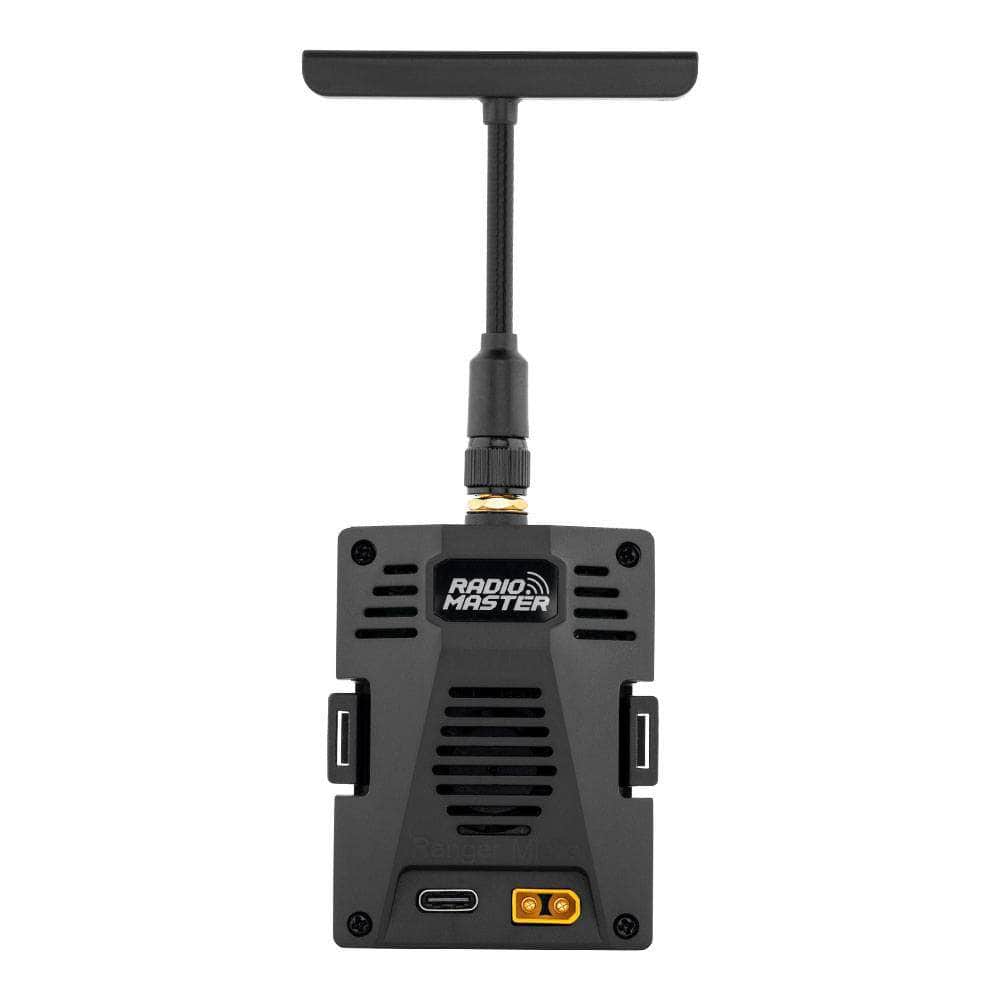

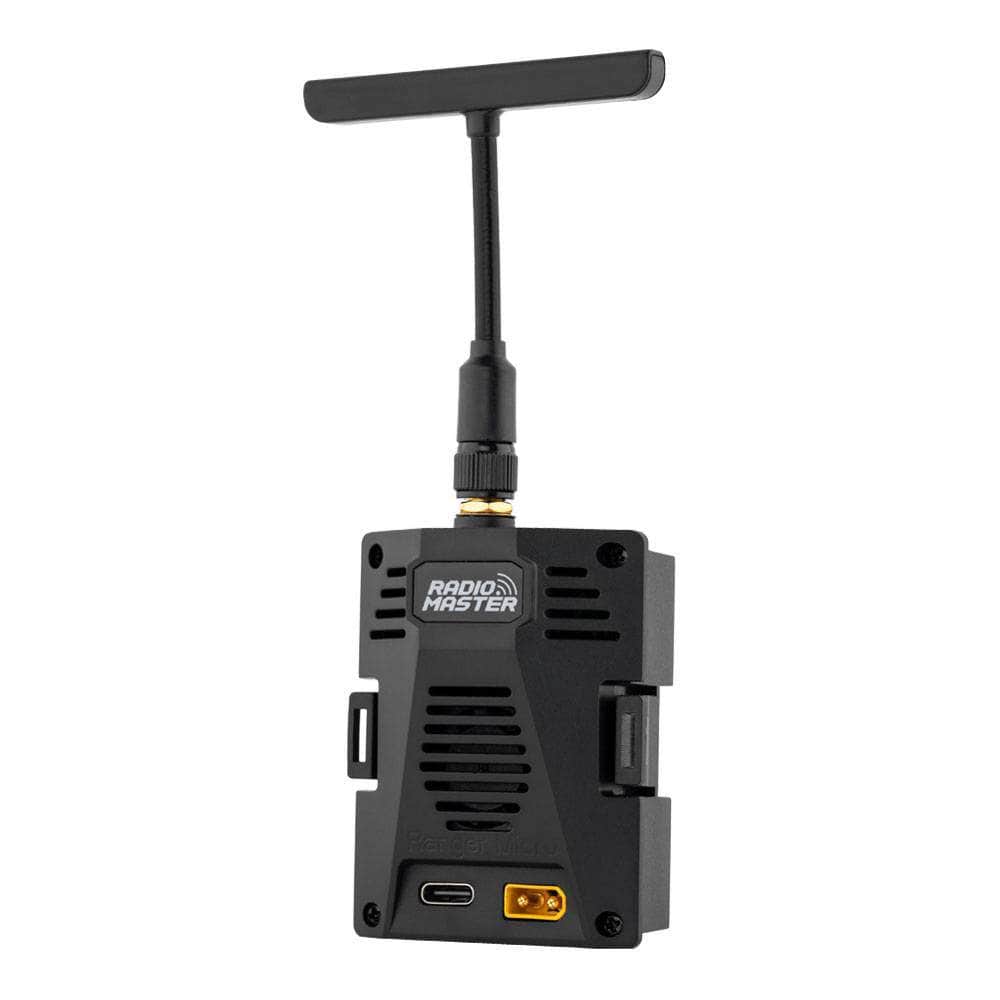

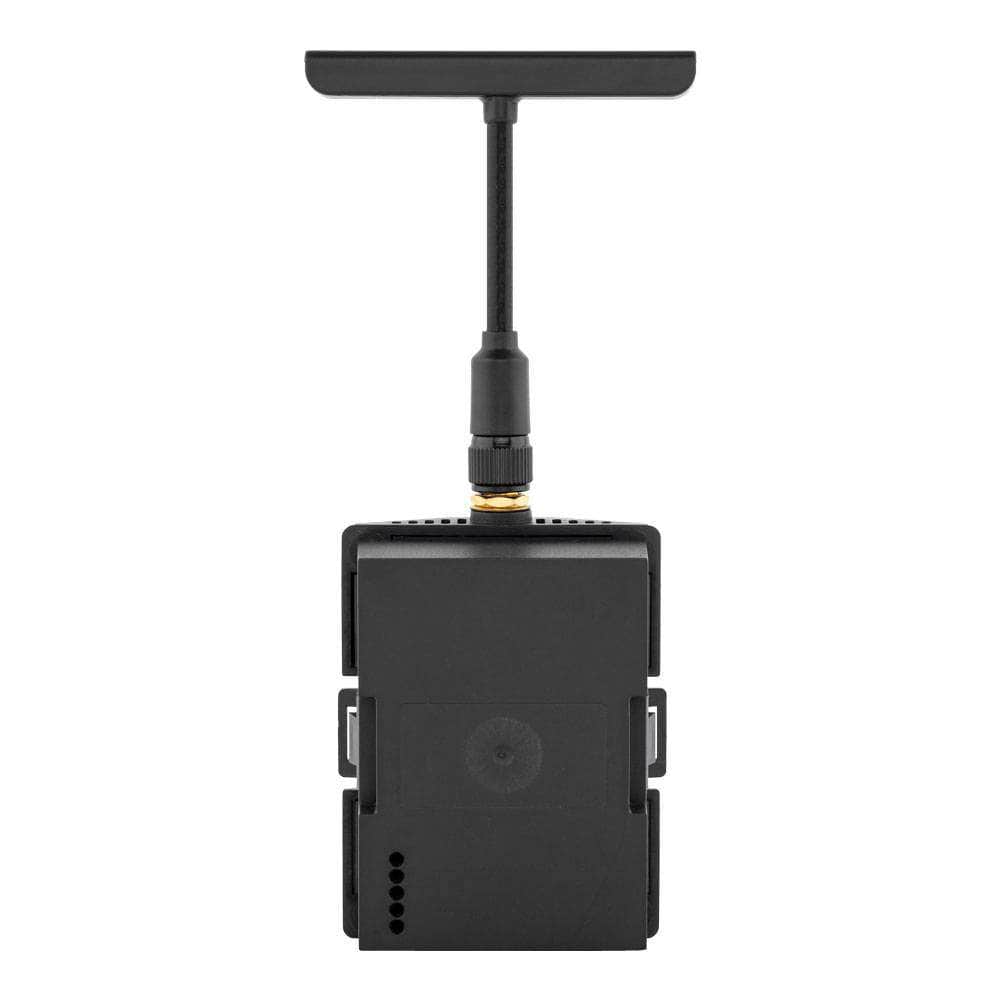

  • 1x Radiomaster Ranger Micro 2.4Ghz ELRS Module
  • 1x JR Standard 5pin Socket Module Bay Adapter
  • 1x Hexagon Socket Screwdriver

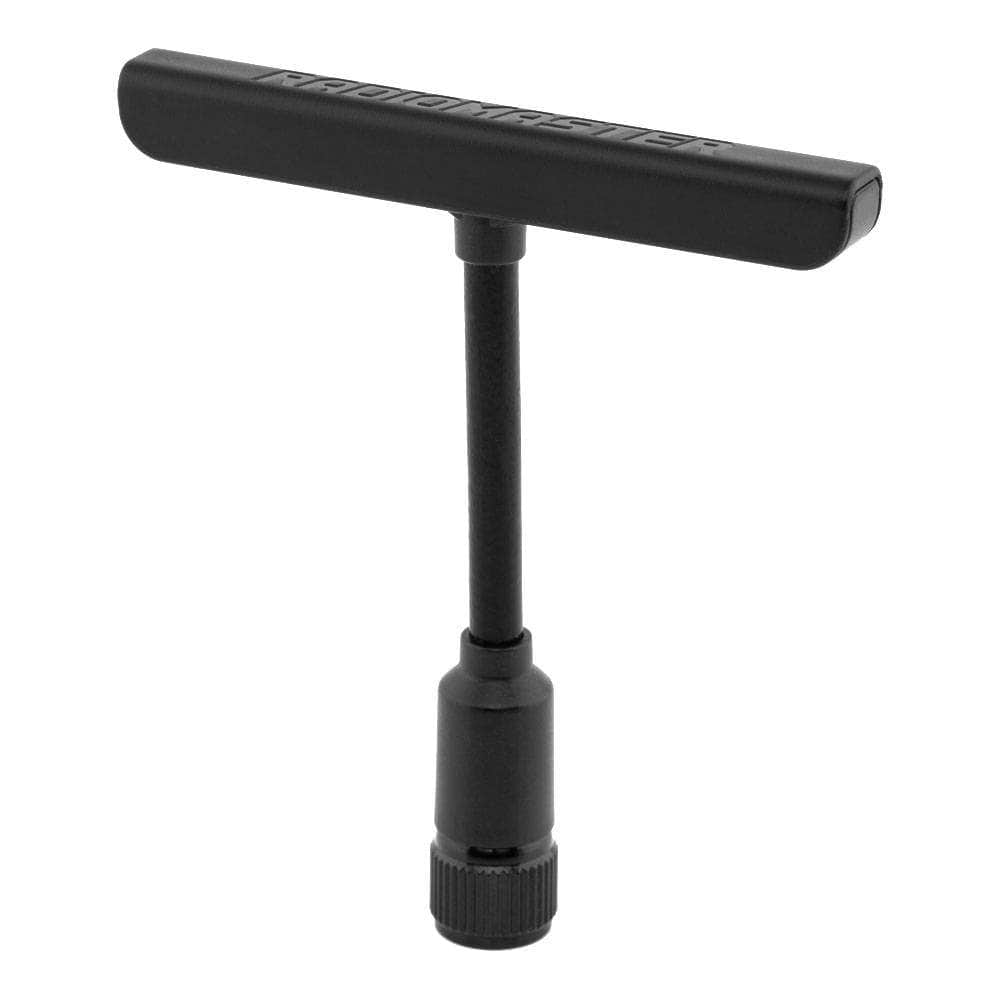

  • 1x 2.4GHz T Antenna - RP-SMA
  • 1x Futaba CRSF socket cable
  • 3x M2x5 Screws

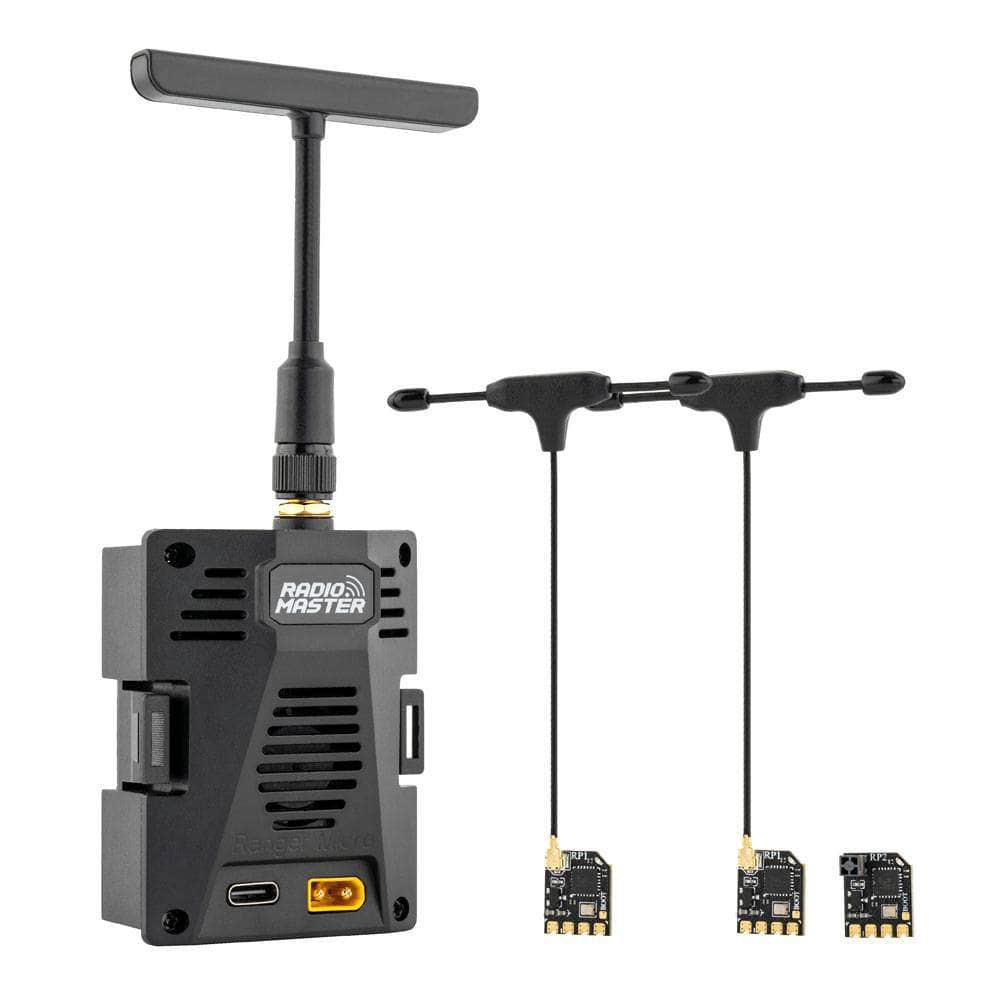

Includes Starter Combo

  • 1x Radiomaster Ranger Micro 2.4Ghz ELRS Module
  • 1x JR Standard 5pin Socket Module Bay Adapter
  • 1x Hexagon Socket Screwdriver
  • 1x 2.4GHz T Antenna - RP-SMA
  • 1x Futaba CRSF socket cable
  • 3x M2x5 Screws

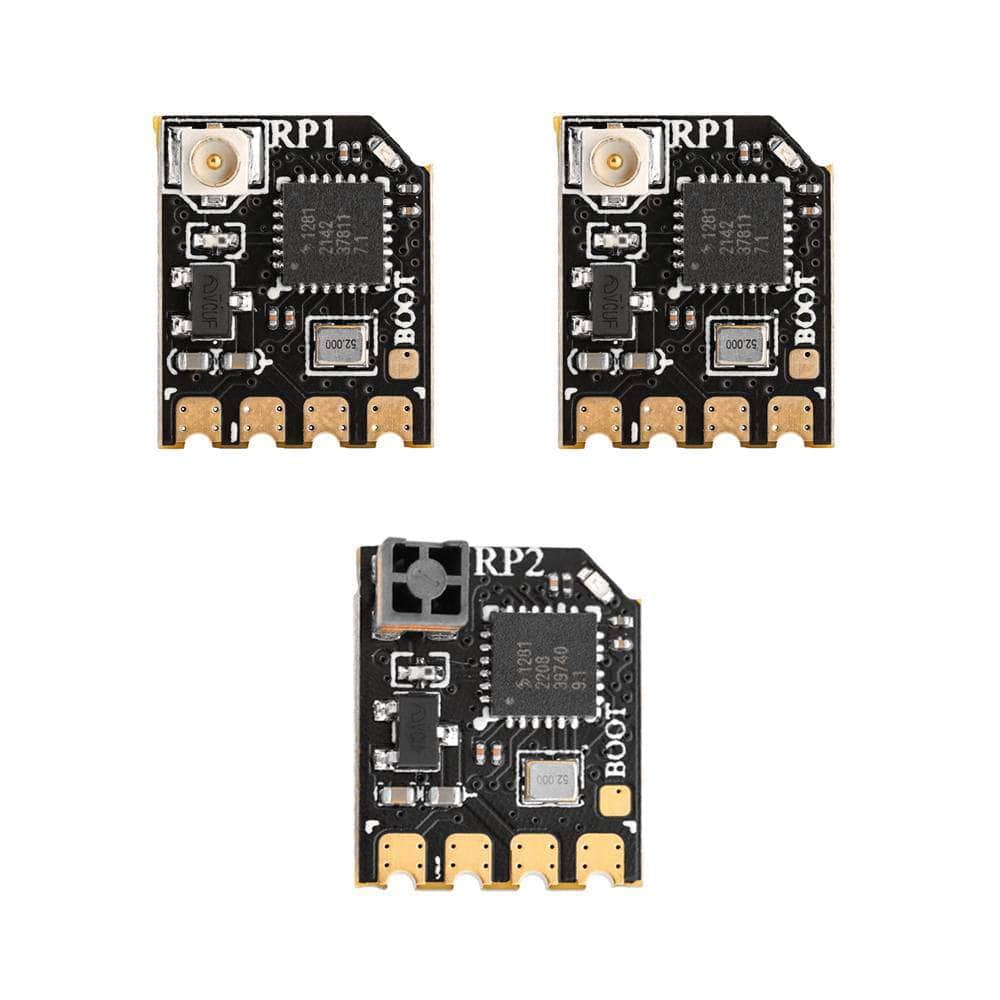

  • 2x Radiomaster RP1 Receiver
  • 1x Radiomaster RP2 Receiver

      More Info

      • SKU: 19796
      • Barcode: 691023532496


      Overall rating: 4.6271186 / 5 from 59 reviews.

      AI Generated Review Summary

      The RadioMaster Ranger Micro 2.4GHz ELRS Transmitter Module is praised for its great value, high-quality build, and ease of setup. Customers also appreciate the excellent packaging and small size of the packages for their radio receivers.

      Summary topics

      • Value for Money: 10%
      • Build and Performance: 10%
      • Ease of Setup: 32%
      • Packaging and Size: 8%

      Review topics: ["quality","shipping","performance","issues","upgrade","fit","works","price","module","range","receiver","ranger","deal","set","packs","elrs","version"].

      Review highlights

      • "This is a high quality module from Radiomaster, and it performs well." — Barry C.
      • "ELRS at a Welcome Price and Quality." — Teeravat V.
      • "Purchase d e l r s module super simple to set up easy binding fantastic product recommended" — Chris S.

      Reviews

      Works like a champ! Arrived

      "Works like a champ! Arrived quickly… snapped in. Ready to go."

      — WILLIAM C. (5/5)

      Great product so far so good

      "Purchase d e l r s module super simple to set up easy binding fantastic product recommended"

      — Chris S. (5/5)

      Great package price!

      "This is a great starter package for anyone looking to use express long range receivers with your older radio. The 3 receivers it comes with are very small too. Great budget elrs transmitter/receiver combo."

      — Joshua R. (5/5)

      "Came in perfect condition and fast shipping"

      — Titus (5/5)

      It works ok

      "Burns through batteries quickly. Installation was a pain, it took over an hour to push the module into place on the pins, be slow and don't eff up your pins!"

      — Jonathan H. (3/5)

      Great design works to perfection :-)

      "This is my first expressRLS module and I choose wisely :-) It can create 1W power & 1000hz packet rate... It doesn't run hot and it gives me great telemetry :-) I would highly recommend RadioMaster's expressRLS module to all pilots looking for the best product for the price $40..."

      — Jon V. (5/5)

      Happy I did

      "I was actually shocked at how small and light this was. It fit perfectly in my tx16s. Extremely smitten with the performance I’m getting, I just switched from frsky. I decided to go with RadioMaster because they are also the source of my daily driver and I’m extremely pleased with the quality of it."

      — Jasen C. (5/5)

      Works with no problem👍

      "Works with no problem👍"

      — JAMES H. (5/5)

      Flawless

      "Work as assumed. No issue with Radiomaster quality. Combo pack is a good deal"

      — Johnson H. (5/5)

      a great product

      "if your going to get a module for your Radiomaster radio, it might as well be a radiomaster module. With instructions it’s easy to setup and update firmware. Beware this will drain radios power faster, so you might want to consider upgrading to an external power supply or upgrading your battery"

      — William R. (5/5)

      Q&A

      Will this work in a Frsky Horis x10
      If it has an external Micro Bay then yes
      Will this work with the radiomaster boxer?
      Yes!
