Description

V1.6 Ranger Micro & Nano Modules: have resolved the external power issue and have begun shipping March.

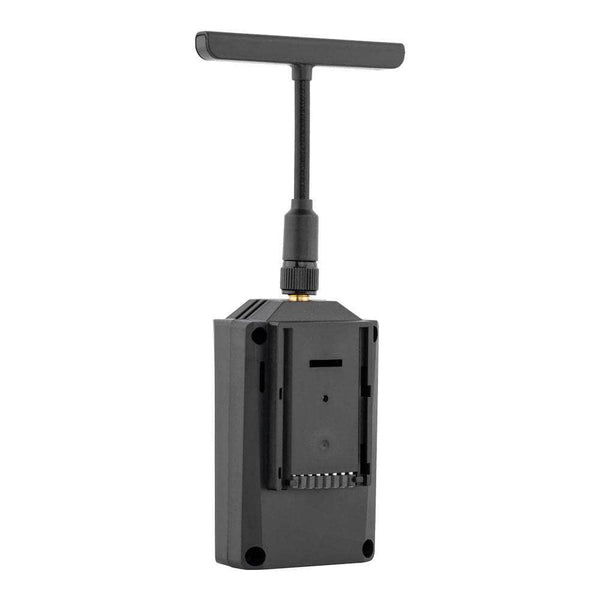

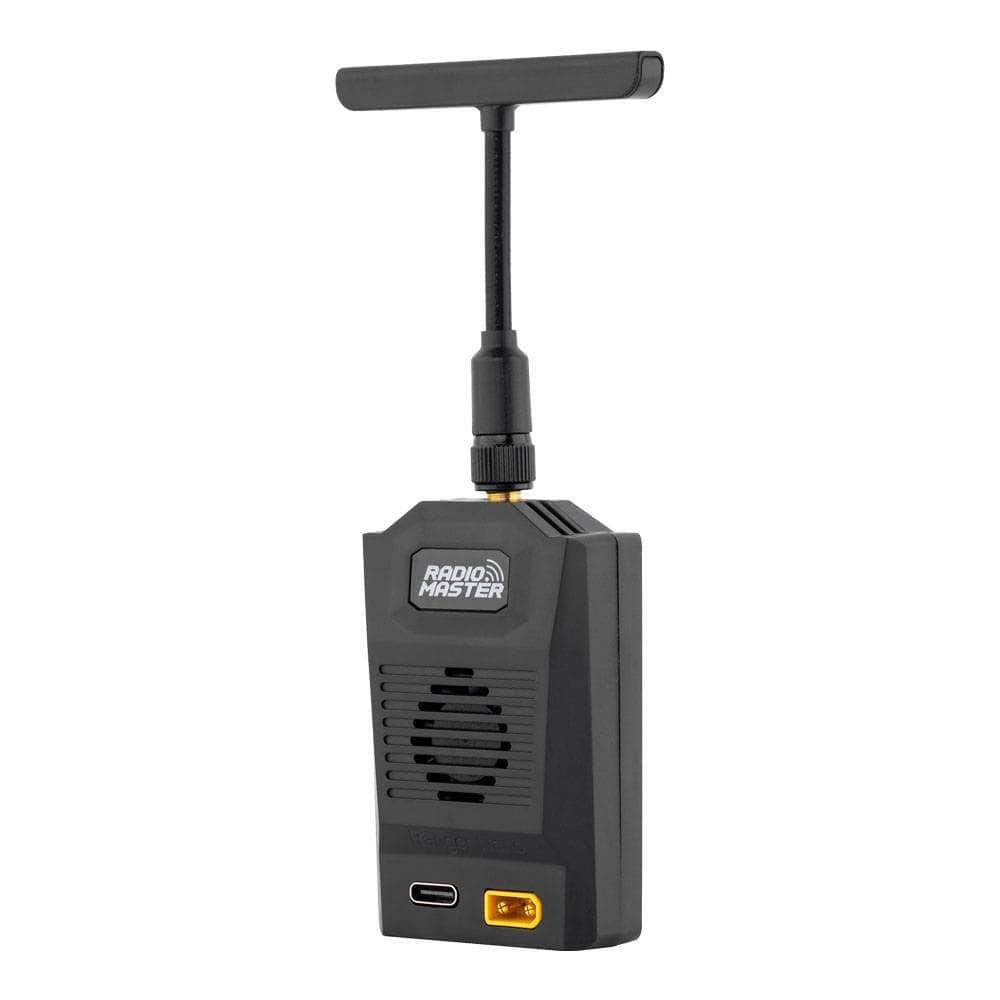

The RadioMaster Ranger Nano 2.4GHz ELRS Transmitter Module features a nano module bay adapter, packet rates up to F-1000Hz, up to 1 Watt Power output, and a high-efficiency cooling system.

The starter combo also includes additional RPI receivers and one RP2 Receiver.

Check out all our RC Transmitters and our entire RadioMaster selection!

Features

• The JR connector supports TX16S MKII/TX12 MKII or JR standard 5pin socket radios.
• Micro ExpresssLRS 2.4GHz Module
• High-Efficiency Cooling System
• WiFi and Bluetooth Support
• Max F-1000Hz Packet Rate
• 1W Power Output

Specifications

• Dimension: 136x42x26mm, 48g (with antenna) / 74x42x26mm, 39g (without antenna)
• RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
• MCU: ESP32(main), ESP8285(aux,as esp backpack)
• Frequency Range: 2400 MHz to 2480 MHz

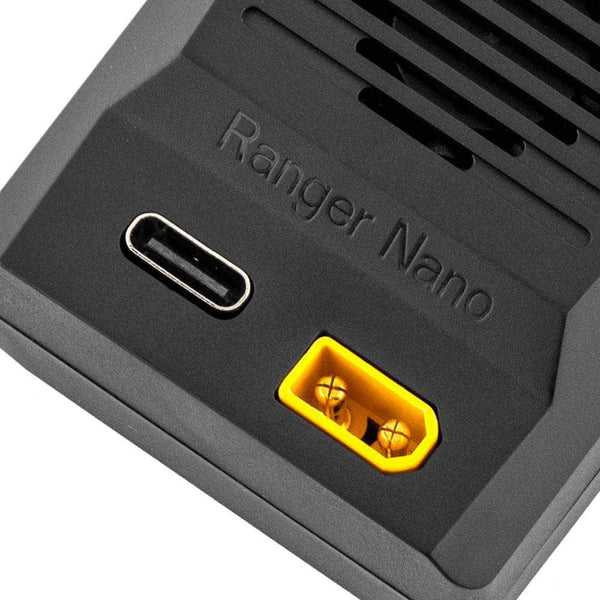

• XT30 Power supply voltage: DC 6V - 16V
• Maximum packet rate: 500Hz/F1000Hz
• Minimum receiver refresh rate: 25Hz
• Regulatory Domain: ISM2400
• Item: Ranger Nano Module
• Weight: 48g (with antenna）
• RF chip: SX1281IMLTRT
• Bluetooth support: Yes
• Wifi Support: Yes

Includes Transmitter Only

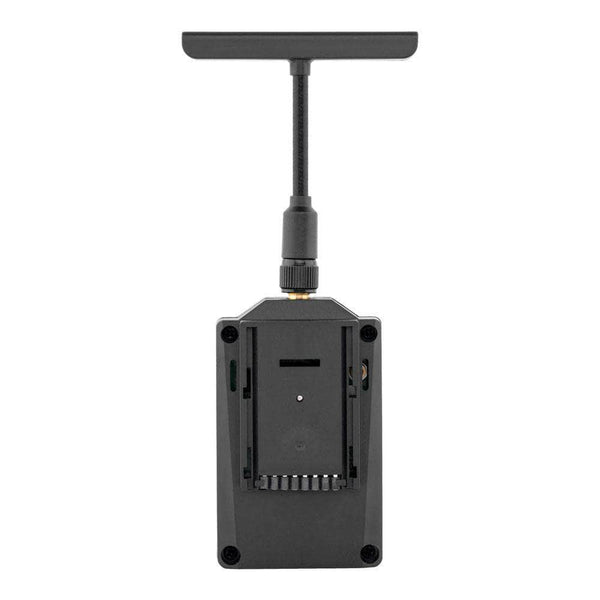

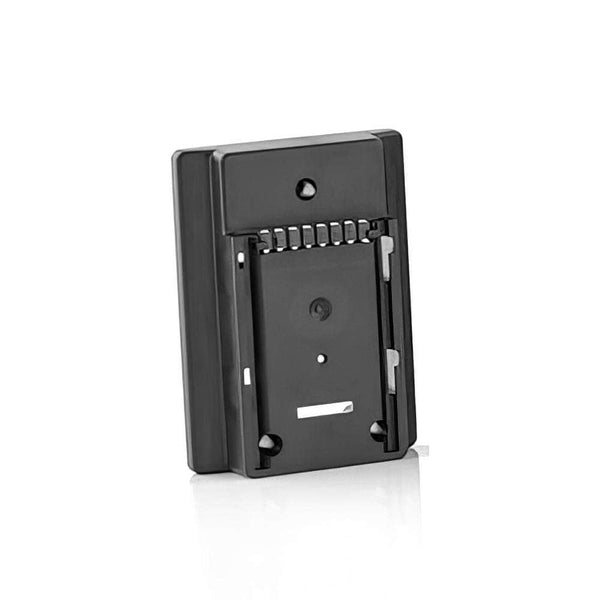

• 1x Nano Standard 8pin Socket Module Bay Adapter
• 1x Radiomaster Ranger Nano 2.4Ghz ELRS Module
• 1x Hexagon Socket Screwdriver

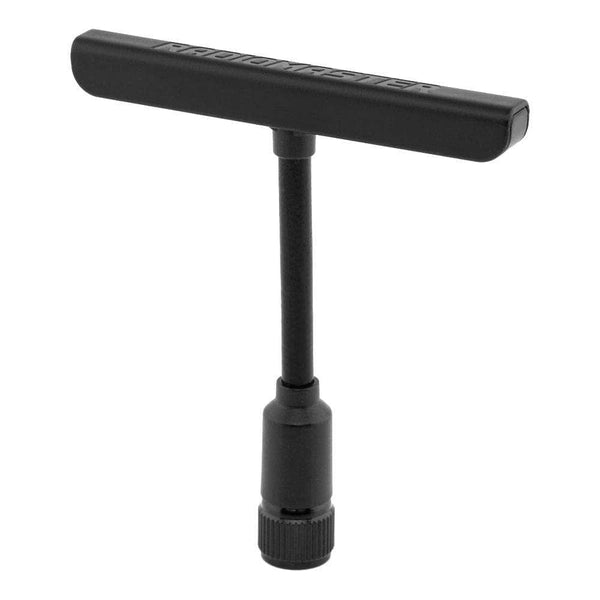

• 1x 2.4GHz T Antenna - RP-SMA
• 1x Futaba CRSF socket cable
• 3x M2x5 Screws

Includes Starter Combo

• 1x Nano Standard 8pin Socket Module Bay Adapter
• 1x Radiomaster Ranger Nano 2.4Ghz ELRS Module
• 1x Hexagon Socket Screwdriver
• 1x 2.4GHz T Antenna - RP-SMA
• 1x Futaba CRSF socket cable
• 3x M2x5 Screws

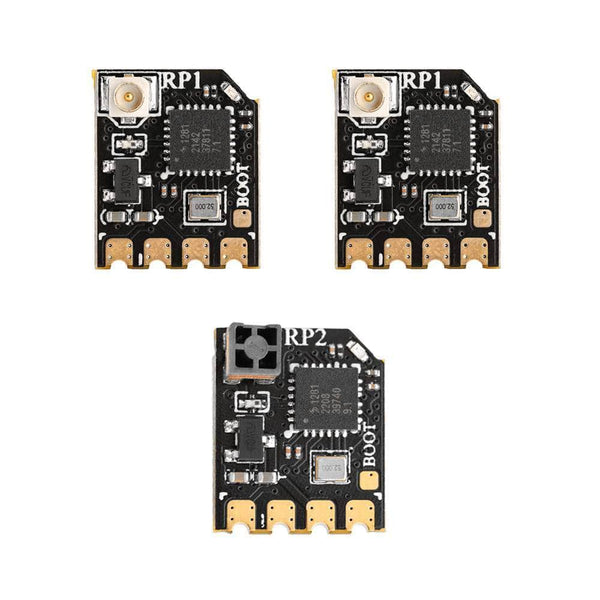

• 2x Radiomaster RP1 Receiver
• 1x Radiomaster RP2 Receiver
