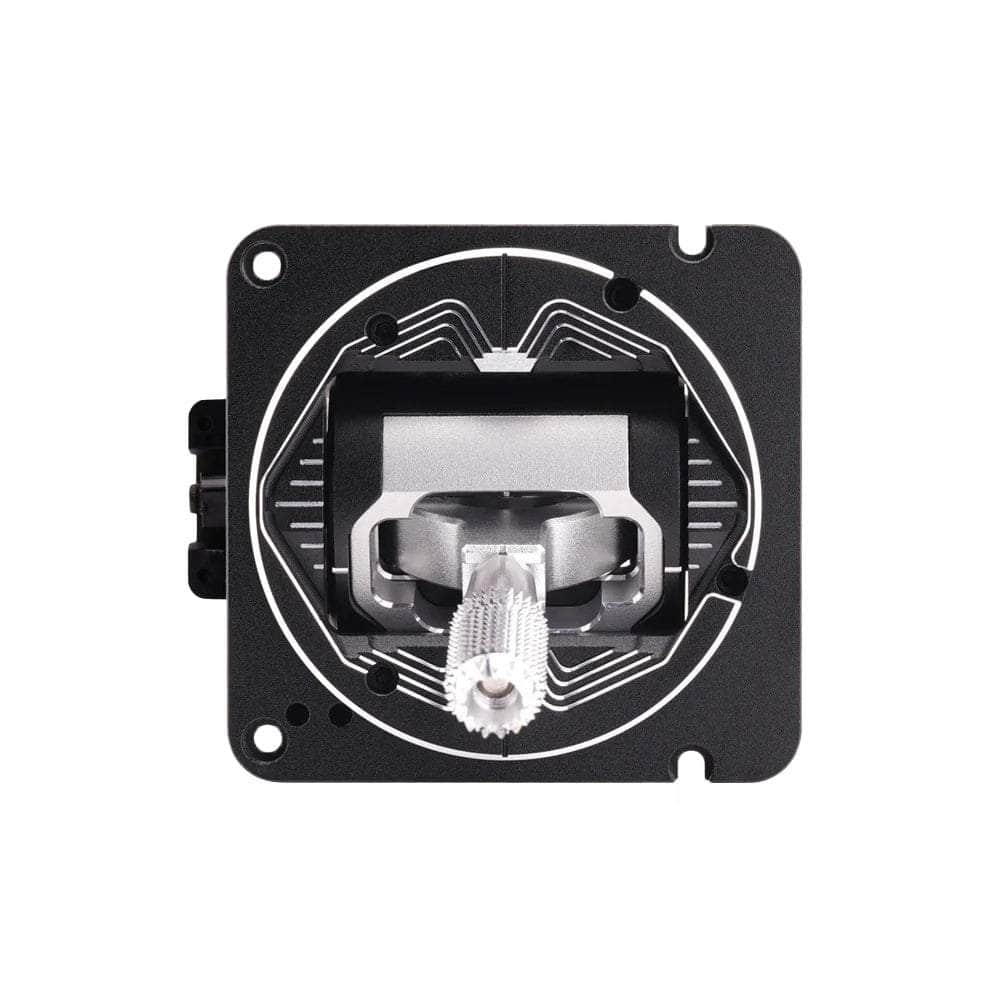

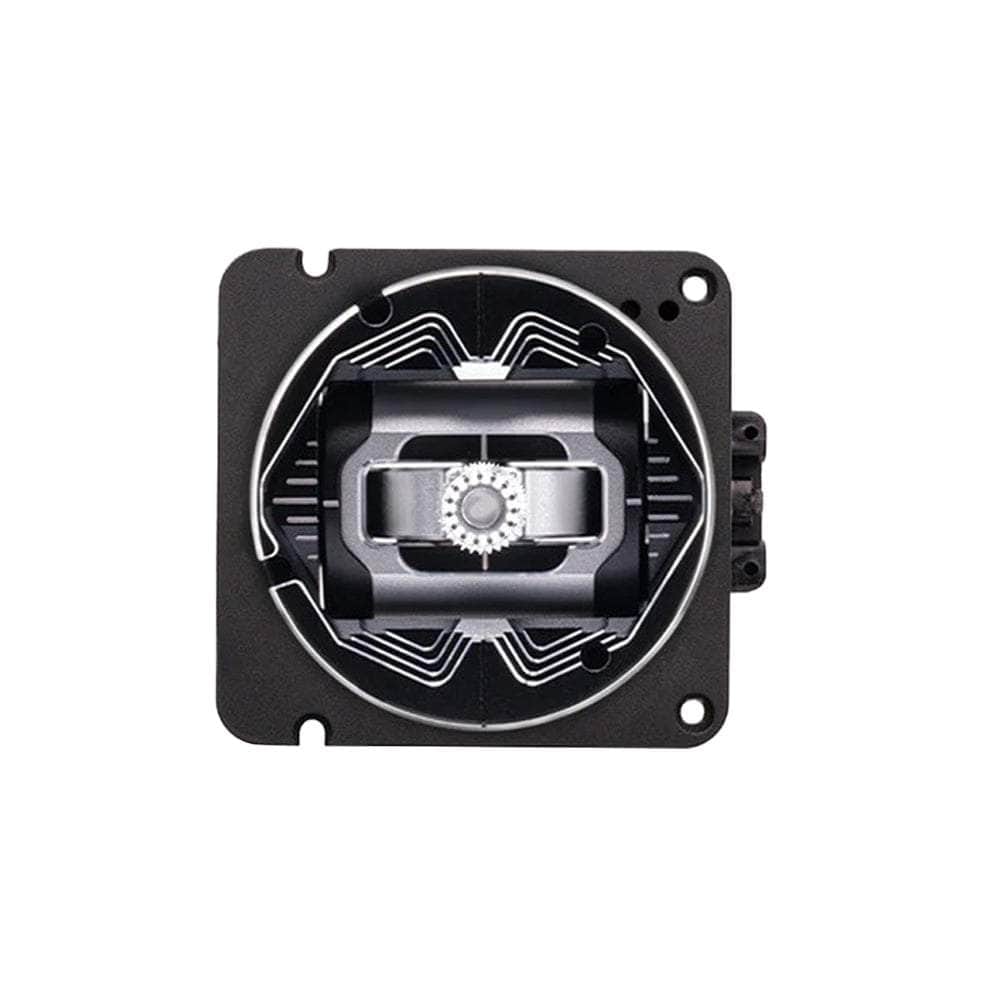

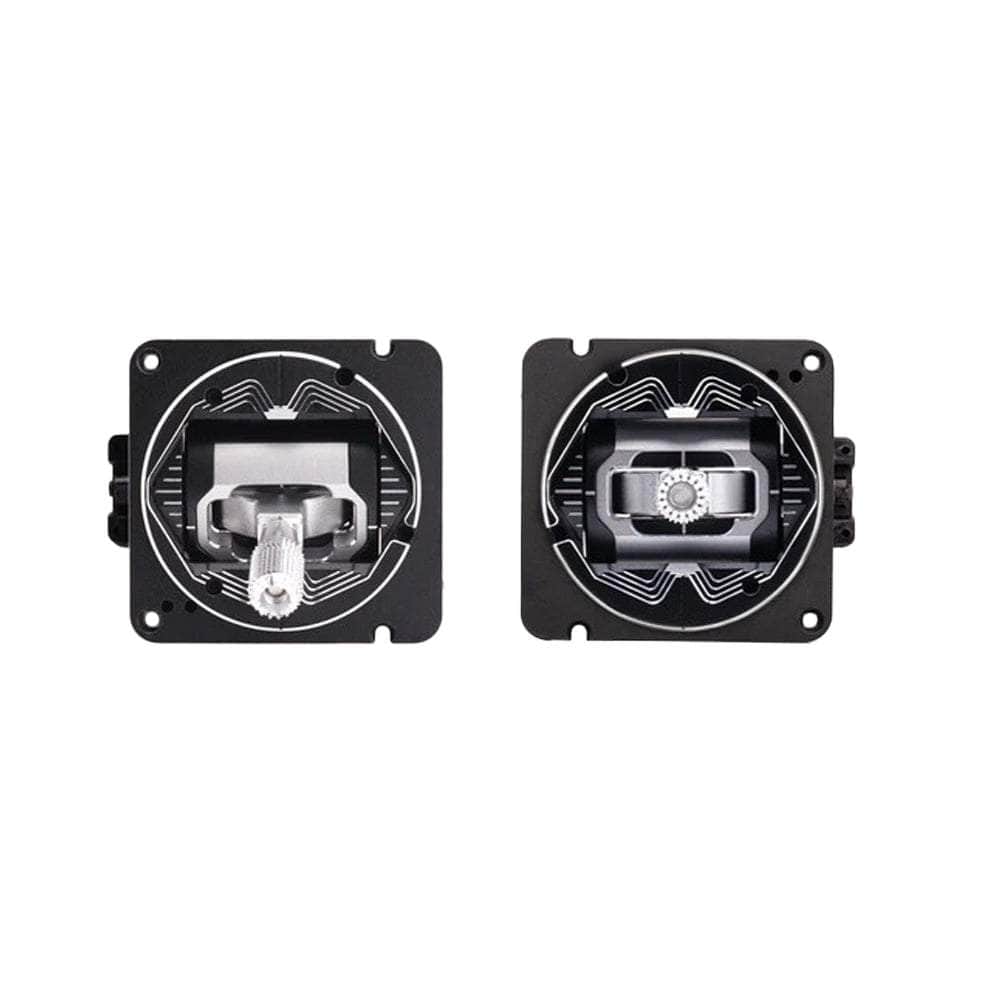

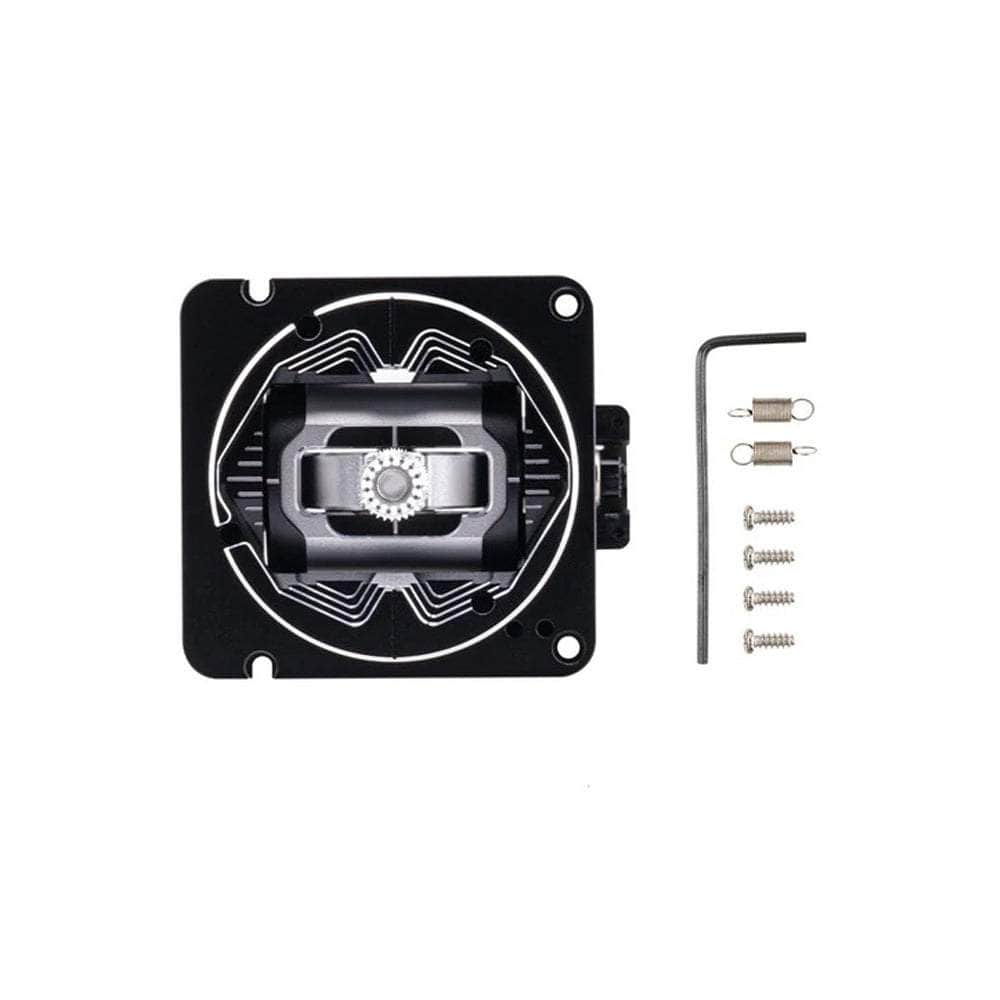

Choose Throttle Gimbal, Centering Gimbal or a set of both.

This Radiomaster AG01 Full CNC Hall Gimbal Set was designed and tested for over a year. The AG01 is fully CNC milled for ultimate precision with quad ball bearings for a smooth and precise feel. Featuring front-accessible tension and travel adjustment for easy fine-tuning. The AG01 will take your TX16s to the next level.

The AG01 gimbals have been in development with our engineers and champion pro pilots such as MCK, Alex Campbell, Noical, Veysi.FPV, AZFPV, Xiao Zheng, and Long XL meet the demanding requirements of the world’s most competitive racing events.

Check out our RadioMaster collection and all our RC transmitters!


  • Designed specifically for the RadioMaster TX16S Radio
  • Mode Switching Throttle Tension Adjustment
  • CNC Aviation-Grade Aluminum
  • Spring Tension Adjustment
  • Non-Contact Hall Sensors
  • Quad Precision Bearings
  • Stick Travel Adjustment

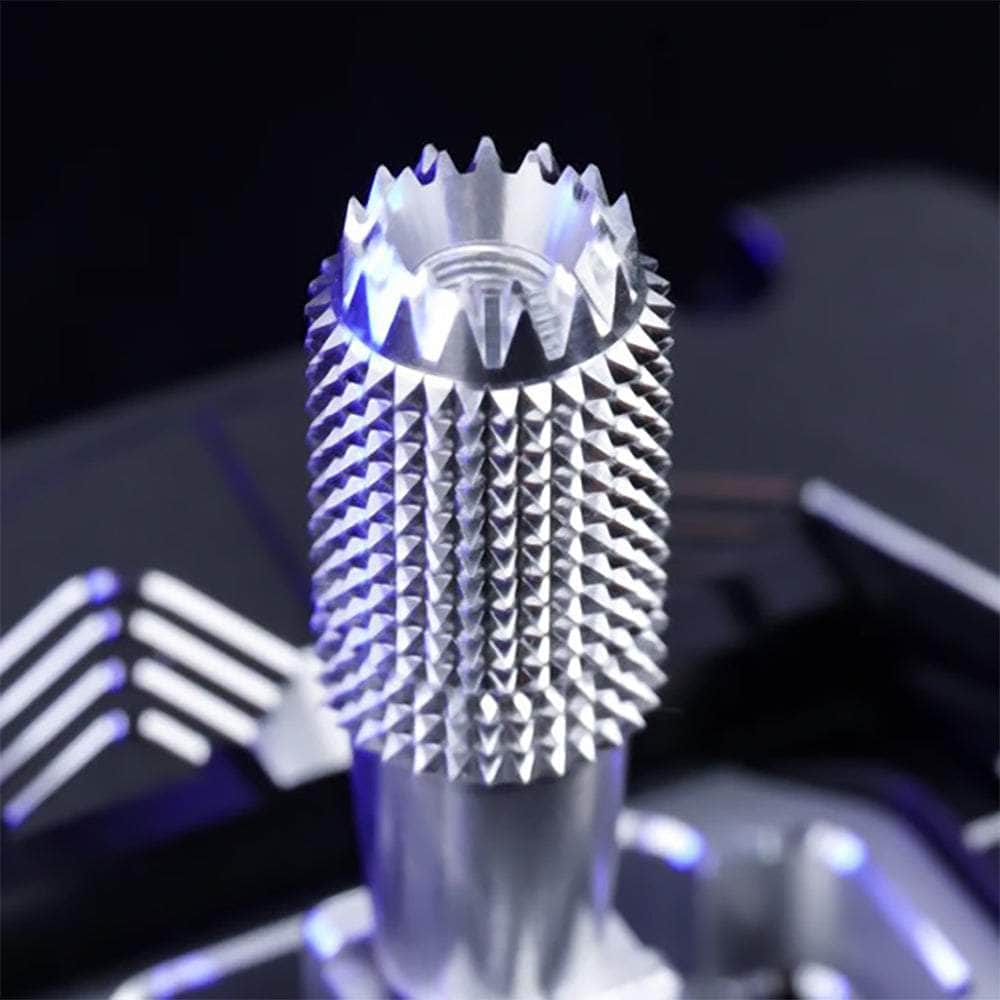

  • Ergonomic Stick Ends
  • Adjustable Exterior



  • Adjustable travel range: 38°- 54°
  • Temperature range: -20°c-85°c
  • Linearity: Real-time (No delay)
  • Working voltage: DC 3.3V
  • Adjustable tension: Yes
  • Adjustable mode: Yes
  • Product model: AG01
  • Size: 60*53*56mm
  • Quad bearing: Yes
  • Sensing type: Hall
  • Weight: 82g


  • Radiomaster TX16S CNC Hall Gimbal (Choose Throttle, Centering or Set of Both)
