Description

The RadioMaster TX16S MK3 MAX Radio Controller builds on the globally trusted TX16S legacy, continuing its commitment to open-source RC innovation. Built for pilots who expect more, it represents the pinnacle of the TX16S platform by combining the proven full-size layout with premium materials, advanced controls, and uncompromising attention to detail. Powered by the advanced STM32H7 processor, it offers lightning-fast performance, smooth operation, and instant responsiveness. The bright 5-inch 480×800 IPS touchscreen provides a sharp, sunlight-readable interface for easy navigation and programming.

Check out all our RC Transmitters and our entire RadioMaster selection!

Features

Batteries NOT included

• High-Performance MCU: Powered by the STM32 H7 chip for maximum processing power.
• Touchscreen Display: 5-inch, 800 x 480 IPS touchscreen with vivid colors and sharp detail.

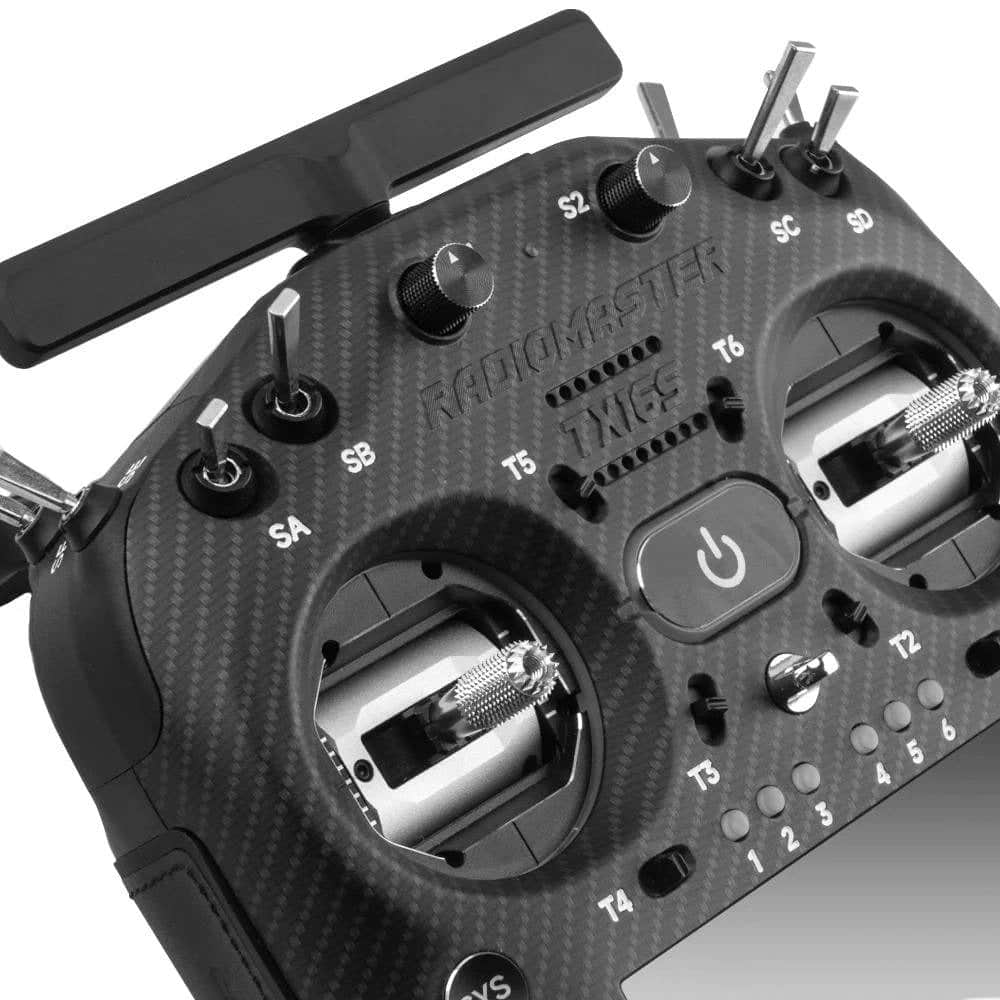

• Precision Gimbals: AG02 Quad-Bearing, CNC Aluminum Hall sensor gimbals.
• RGB Programmable Gimbal Light Rings: LUA-controlled, customizable LED gimbal lighting.
• Internal RF Module: Dual-band Gemini 2.4GHz and Sub-G 900MHz
• Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for better battery life.
• Powerful Cooling System: Low-noise, high-output fans and an aluminum heat sink keep your radio cool, even on the hottest days.
• Digital audio: Greater sound quality and reduced interference.
• Dual Foldable Antennas: Compact and easy to store without compromising signal strength.
• Built-in Microphone: For future feature expansion.
• Automatic back light adjustment: Makes the screen easier to read indoors and out.
• Built-in Motion Sensor: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.
• Memory: Integrated 4GB of onboard flash memory and external MicroSD card support.
• Removable shoulder switch panels: Customize your setup with modular switch panels.

Specifications

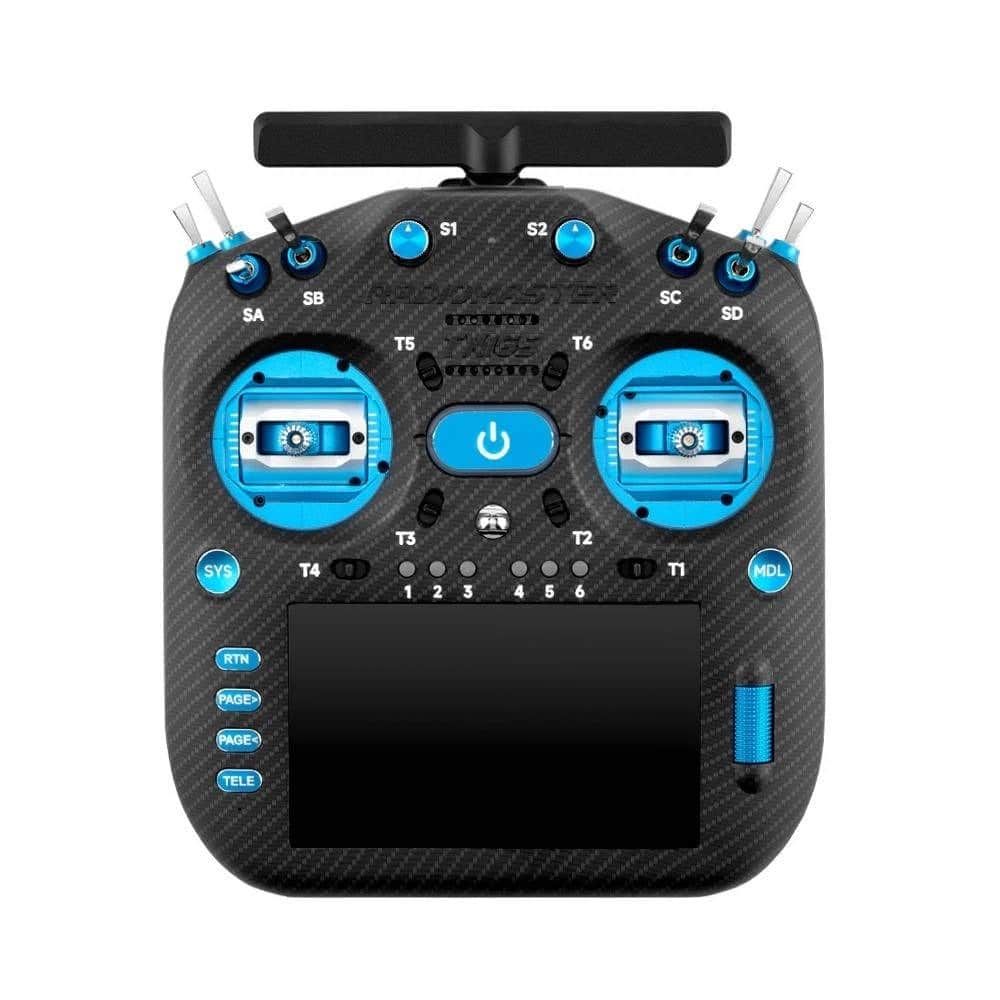

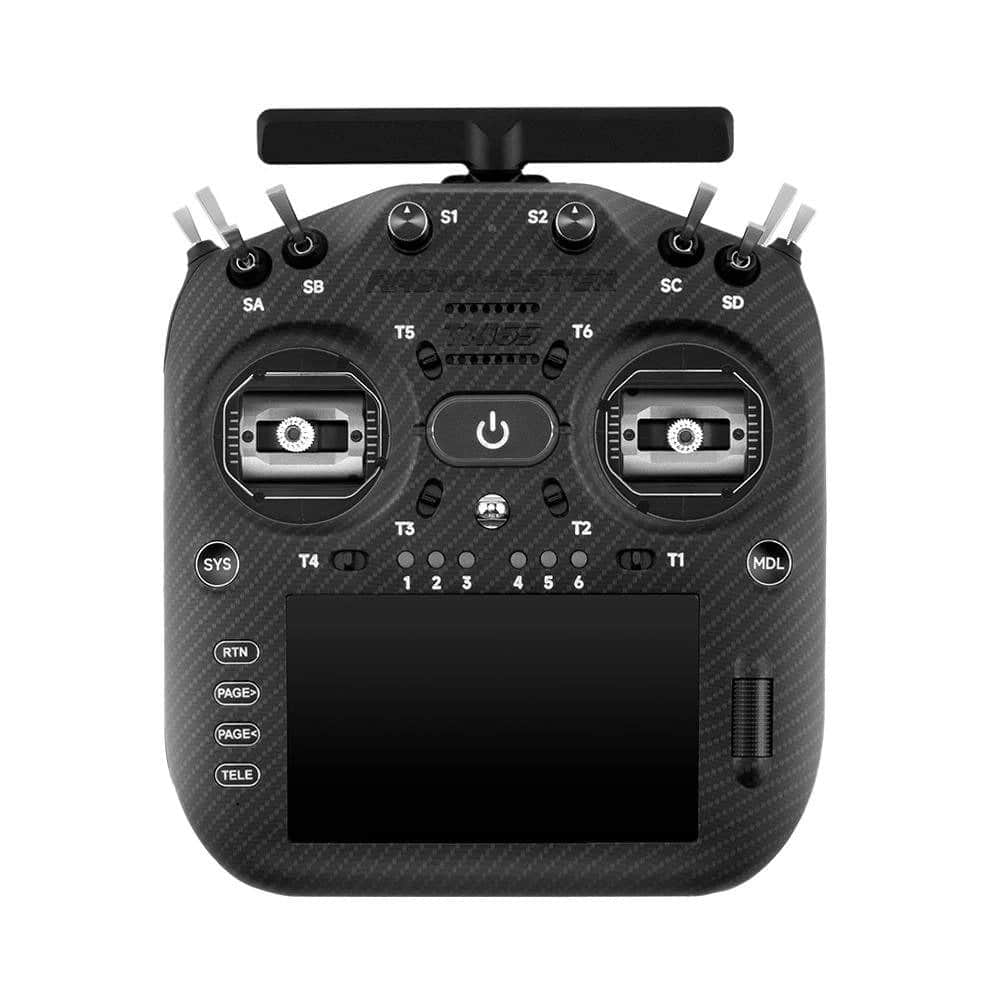

• Item: RadioMaster TX16S MK3 MAX Radio Controller - ELRS Dual-Band

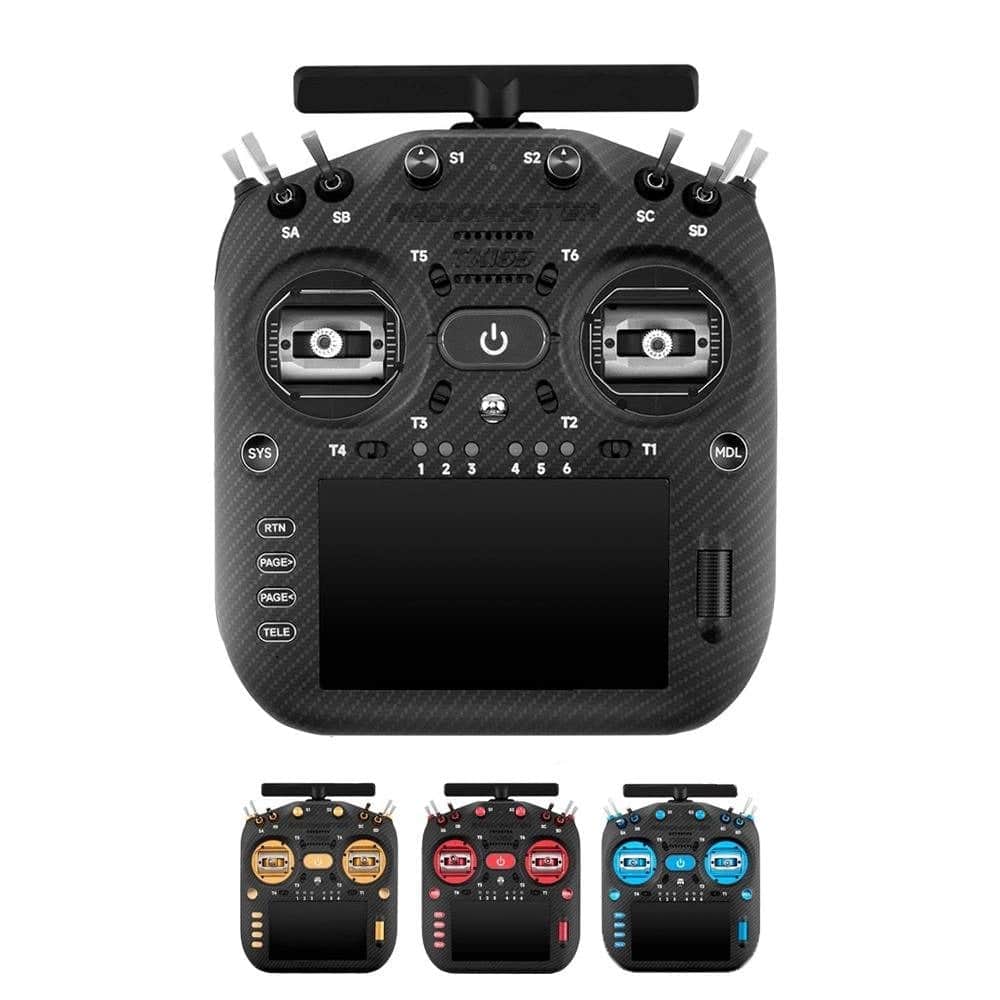

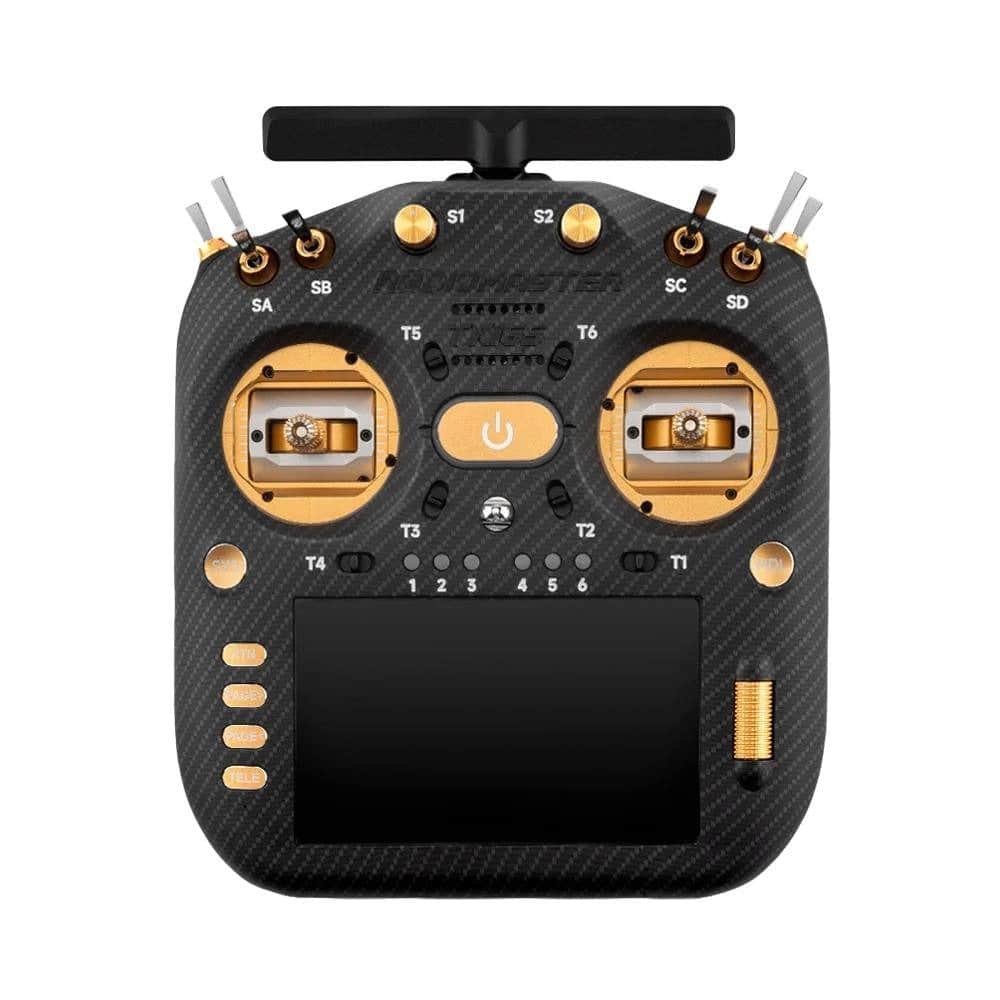

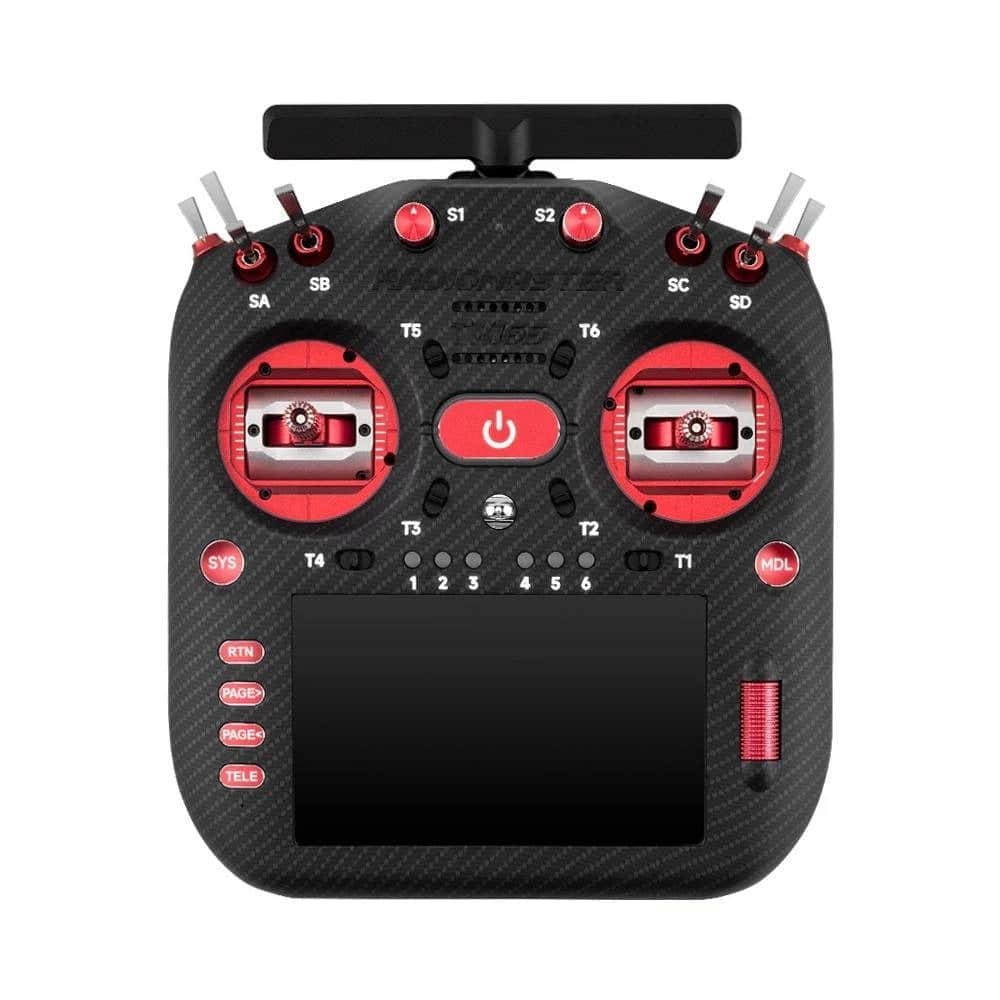

• Color: Black / Gold / Red / Blue
• Voltage Range: 6.6 - 8.4V DC
• Working Current: 1.10A (at max RF output power)
• Radio Firmware: EdgeTX (require 3.0.0 or higher)
• Built-in RF Module: ExpressLRS 2 x LR1121
• Frequency: ISM 2.4GHz and Sub-G 900MHz
• Number of Channels: Up to 16ch
• Gimbal: AG02 CNC Hall sensor gimbals

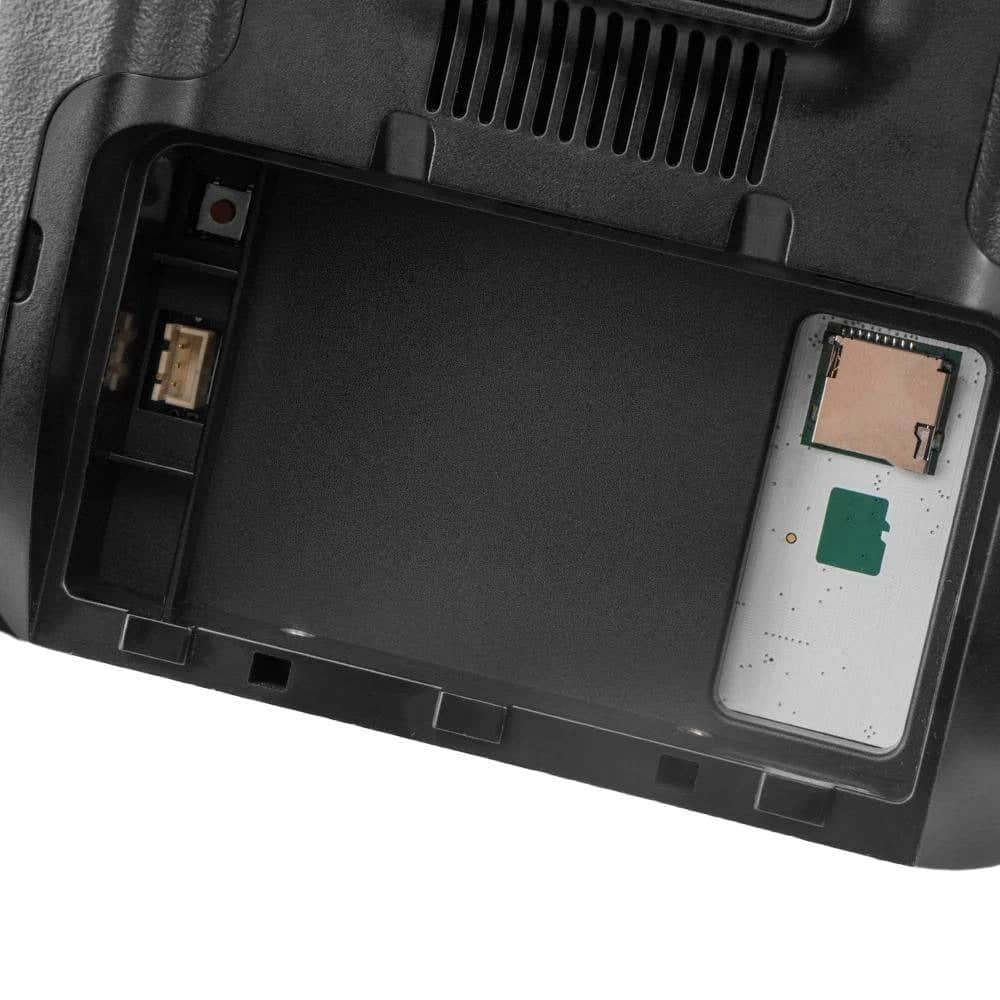

• MicroSD Card Slot: Yes (card not included)
• Internal Storage: Integrated 4GB of onboard flash memory
• Display: 5-inch IPS touchscreen (800 X 480 resolution)
• Battery: Two 3.7V 18650 Lithium-Ion cells / 21700 Li-ion 5000mAh Battery / 2S 7.4V 6200mAh Lipo (batteries not included)
• Upgrade Method: USB / EdgeTX Companion PC software
• Module Bay: JR-compatible module bay for additional modules
• Dimensions: 200 x 178 x 88mm
• Weight: 864g  (without battery)

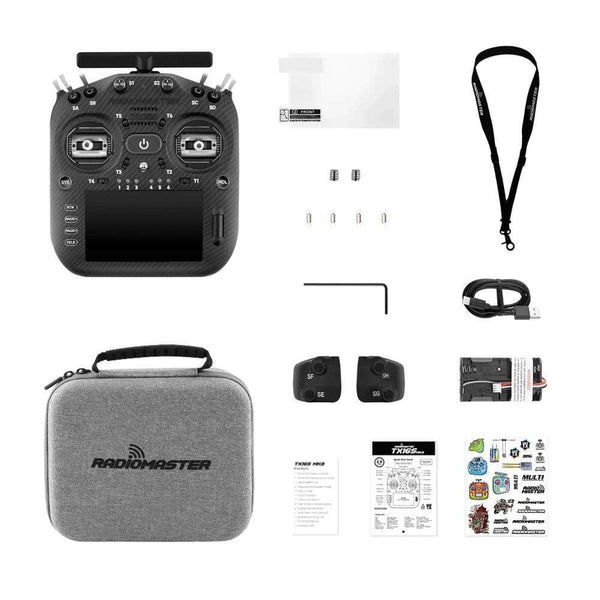

Includes

• 1x RadioMaster TX16S MK3 MAX Radio Controller - ELRS Dual-Band

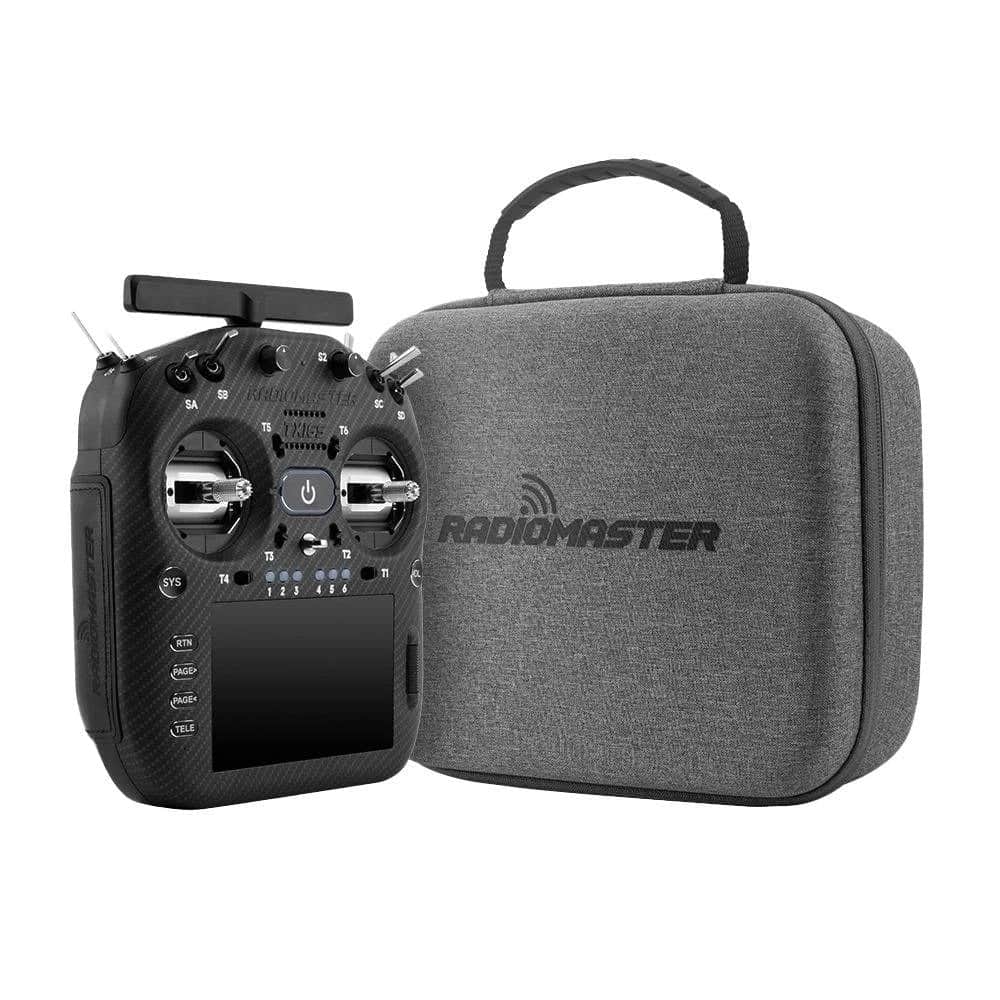

• 1x TX16S MK3 Signature Carry Case
• 1x 18650 Battery Tray
• 2x Replacement Shoulder Panels
• 1x Type-C Cable
• 1x Screen Protector
• 1x 1.5mm Hex Wrench
• 4x Low Tension Gimbals Springs
• 2x Gimbal Stick Set Screws
• 1x Nylon Neck Strap (Lanyard)
• 1x RadioMaster Sticker Set
• 1x TX16S MK3 Manual
• 1x Inventory Card

Batteries NOT included.
