Description

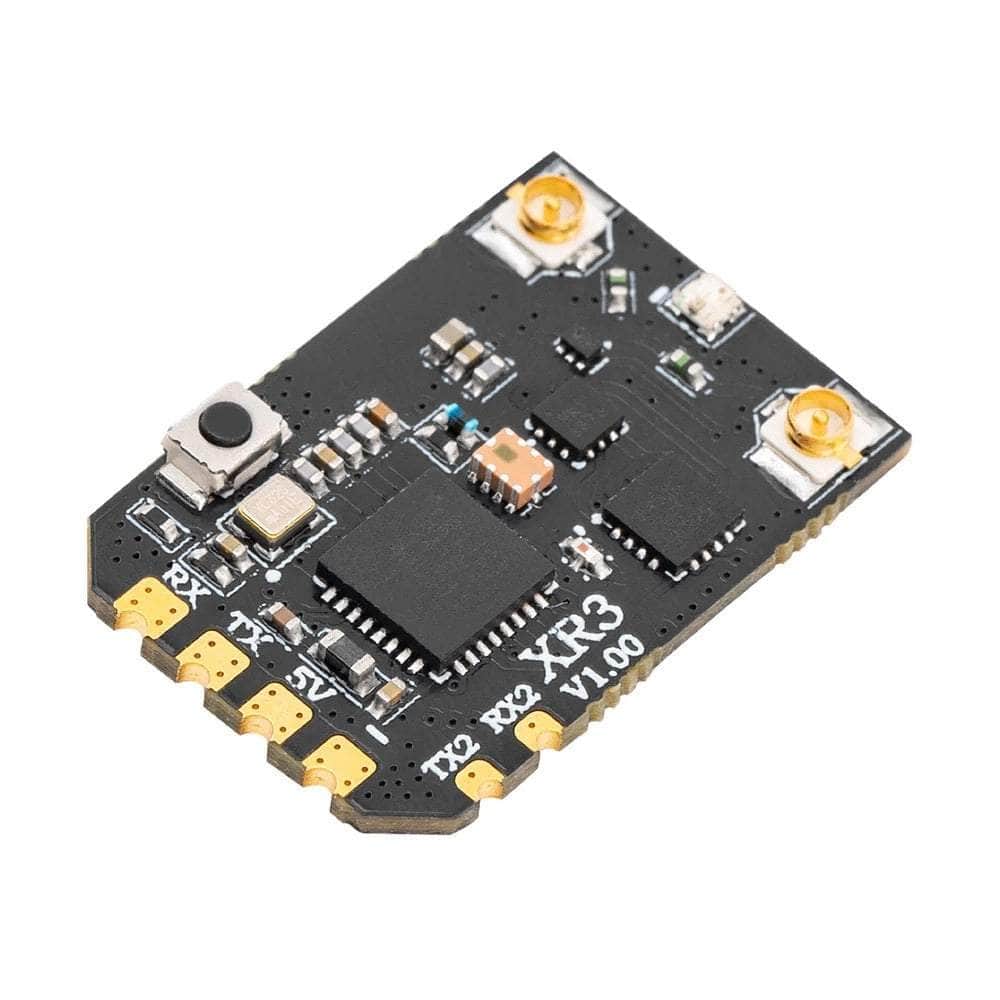

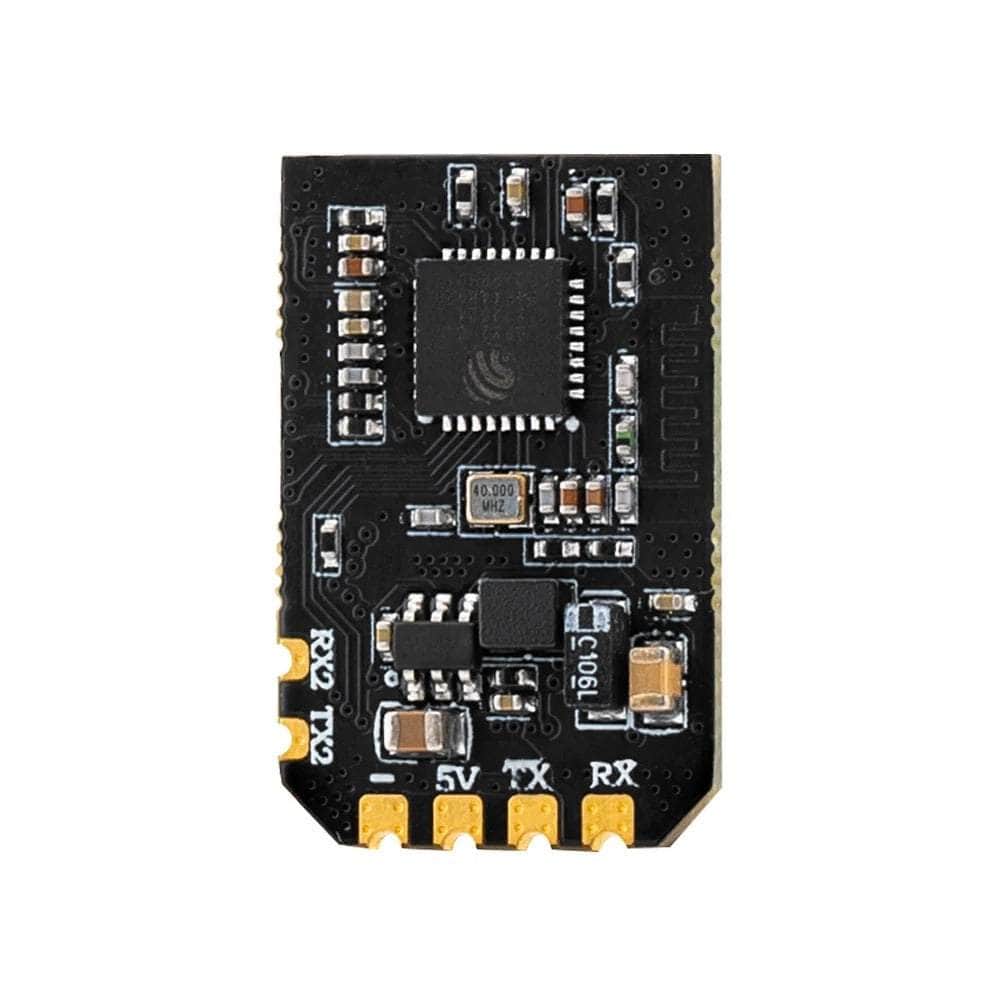

The XR3 Receiver is a tiny ExpressLRS receiver, powered by the third-generation Semtech LR1121 transceiver. It operates on 2.4GHz or Sub-G 900MHz, offering exceptional range and connectivity in a lightweight design. With built-in Wi-Fi, configuration and firmware updates are effortless via an intuitive WebUI on your PC or mobile device.

Check out the rest of our RC receivers and all our RC transmitters, modules, and accessories!

Features

• High-Performance MCU
• Advanced Transceiver
• Additional UART Port
• Frequency Options
• Antenna Diversity
• Secondary Port
• Castled Pads

Specifications

• Frequency Range: 2.4GHz / Sub-G 900MHz [ISM 2.4GHz / FCC 915 / EU 868]
• Item: XR3 Nano Multi-Frequency Antenna Diversity ExpressLRS Receiver
• Firmware Target: RadioMaster XR3 2.4/900 Diversity RX
• Maximum Receive Refresh Rate: DK500Hz / K1000Hz
• Firmware Version: ExpressLRS v3.5.1 pre-installed
• Minimum Receiver Refresh Rate: 25Hz
• Dimensions: 22mm x 15mm x 4mm

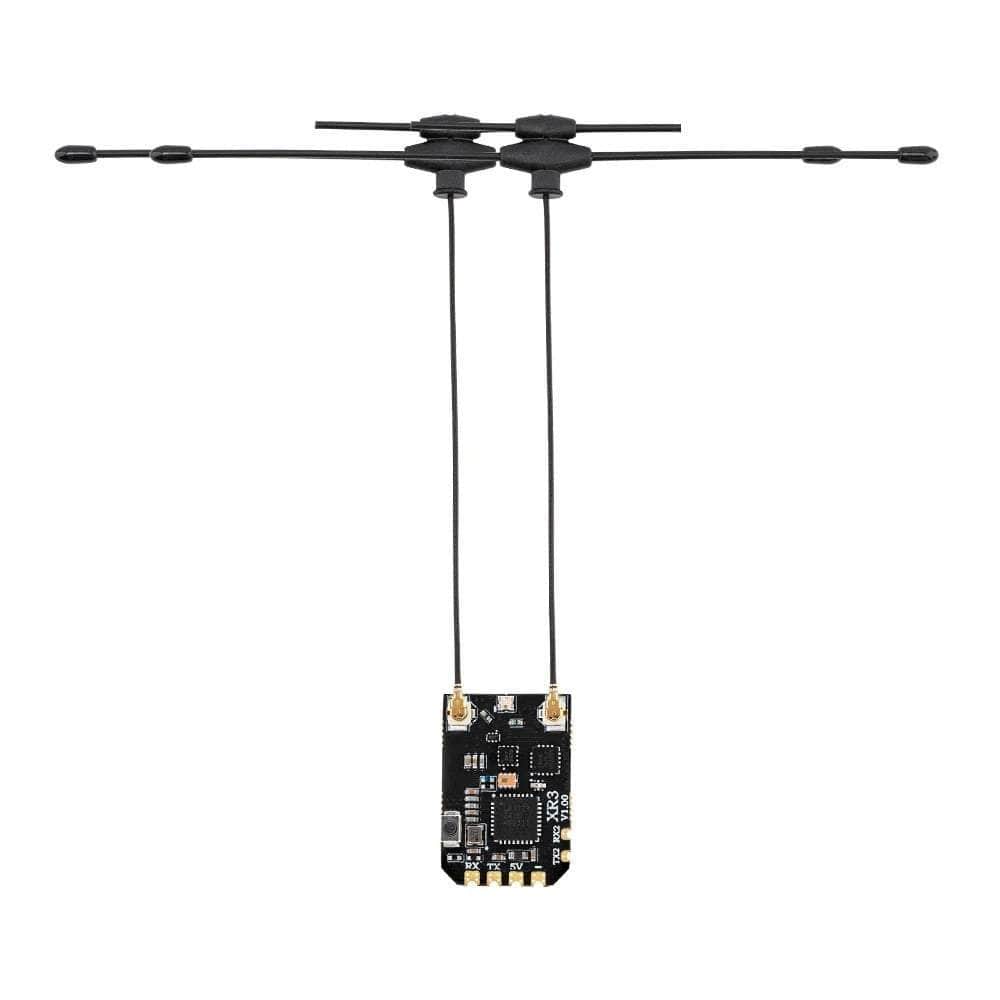

• Antenna: 2x T-Antenna (Dual Band)
• Working Voltage: DC 5.0 - 12.6V
• Weight: 1.3g (without antenna)
• Telemetry Power: 100mW
• RF Connector: IPEX-1 x 2
• Type: ISM 2.4, FCC 915
• Bus Interface 2: UART
• Bus Interface 1: CRSF
• RF Chip: LR1121
• MCU: ESP32C3

Includes

• 1x RadioMaster XR3 Nano Multi-Frequency ELRS 2.4GHz/900MHz Dual-Band Diversity Receiver
• 2x  Dual Band T-Antenna
• 3x Heat-Shrinkable Tube
• 1x Manual Card
• 1x  CRSF Wire
